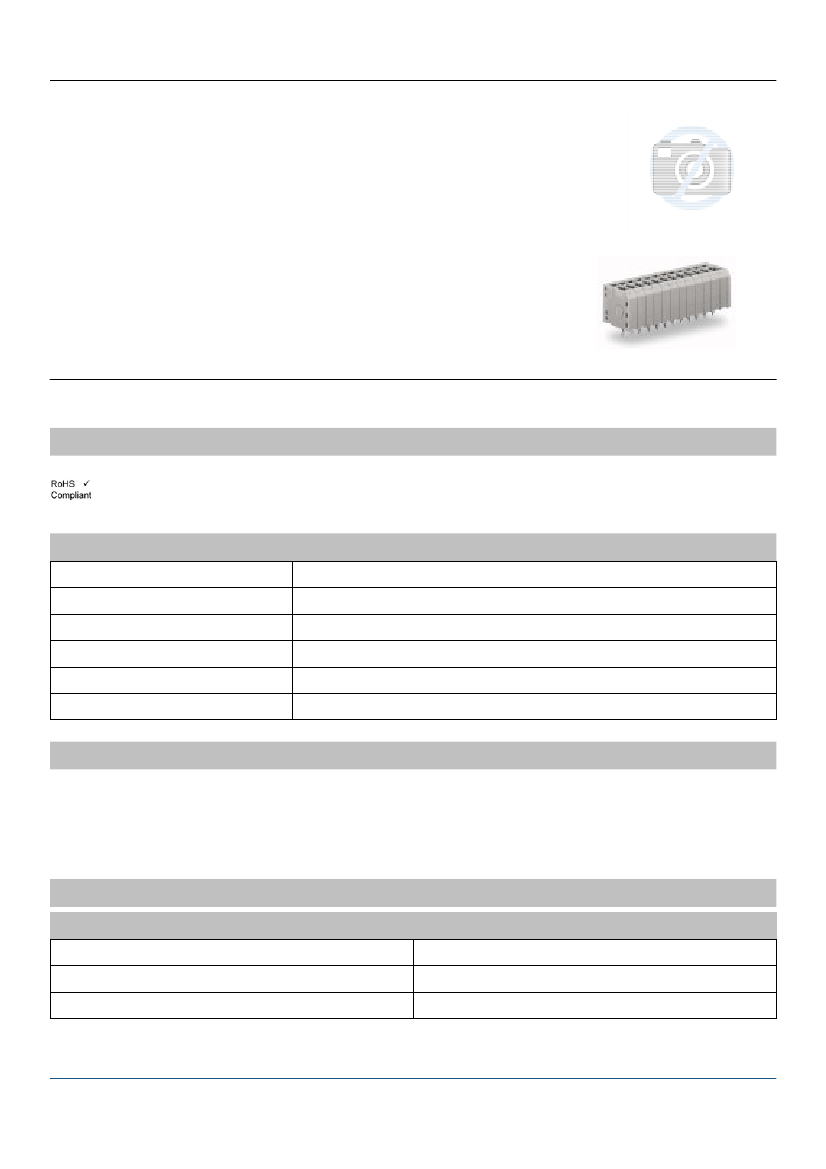

Printview: Press-in PCB terminal block; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; CAGE CLAMP® - Item No.:
739-312/100-000
.
Press-in PCB terminal block; 1.5 mm²; Pin spacing 3.5 mm; 12-
pole; CAGE CLAMP®
Item No.: 739-312/100-000
.

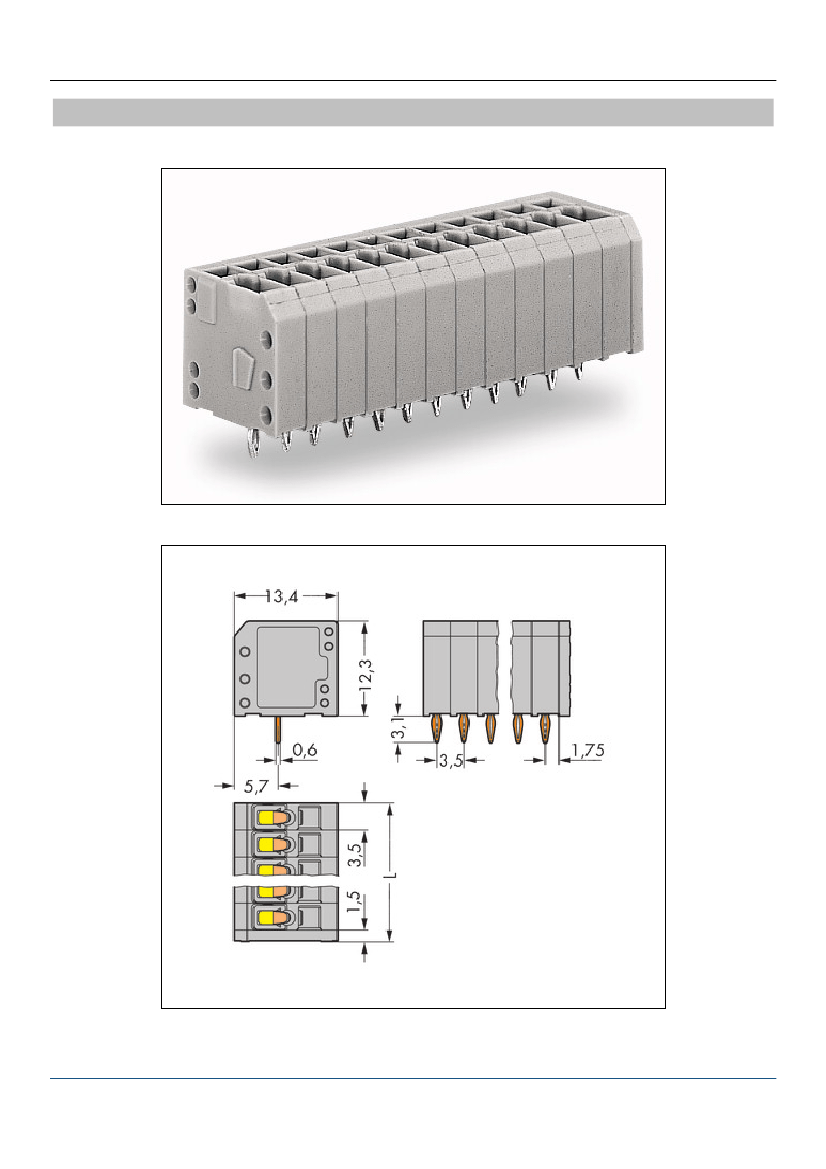

Press-in PCB terminal block; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; CAGE CLAMP®
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
739-312/100-000
4045454295790
1
25
Item description:Terminal strips with screwdriver-actuated CAGE CLAMP®Vertical conductor entry and operating
direction for space-saving positioning/groupingPress-in technology saves costs, no additional soldering process
required
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
12
3.5 mm (0.138 in)
12
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: Press-in PCB terminal block; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; CAGE CLAMP® - Item No.:
739-312/100-000
Technical data
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Pollution degree (1)
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Pull-in time
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
12
gray
IEC/EN 60664-1
160 [V]
2.5 [kV]
2
160 [V]
2.5 [kV]
320 [V]
2.5 [kV]
4 [A]
(III / 2 ) Overvoltage category III /
1
1
0.0
CAGE CLAMP®
1
Operating tool
0.08 … 1.5 mm² / 28 … 14 AWG
0.08 … 1.5 mm² / 28 … 14 AWG
0.25 … 1 mm² / …
Fine-stranded conductor with ferrule without plastic collar 0.25 … 1.5 mm² / …
Strip length
Conductor entry angle to the PCB [°]
PressIn pin: Dimensions [mm]
PressIn pin: Drilled hole diameter [mm]
5 … 6 mm / 0.2 … 0.24 Inch
90 [°]
0.6 x 1.2 [mm]
1.15(+ 0.025 ... - 0.025) [mm]
PressIn pin: Plated through-hole diameter (HAL Sn) [mm] 1(+ 0.09 ... - 0.06) [mm]
PressIn pin: Plated through-hole diameter (Chem. Sn)
[mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Clamping spring material
1(+ 0.09 ... - 0.0) [mm]
I
Polyamide 66 (PA 66)
V0
-40 … 85 °C
Chrome-nickel spring steel (CrNi)
WAGO Kontakttechnik GmbH & Co. KG
2
