HS3160B-4: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, CDIP22, HERMETICALLY SEALED CERAMIC, DIP-24; CategoryAnalog mixed-signal IC converter; File Size800KB，3 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

HS3160B-4 Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, CDIP22, HERMETICALLY SEALED CERAMIC, DIP-24

HS3160B-4 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP22,.4
Contacts	24
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T22
Maximum linear error (EL)	0.006%
Number of digits	16
Number of functions	1
Number of terminals	22
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.4
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	15 V
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Nominal settling time (tstl)	2 µs
Nominal supply voltage	15 V
surface mount	NO
technology	CMOS
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1

Preview

Download Datasheet

View All

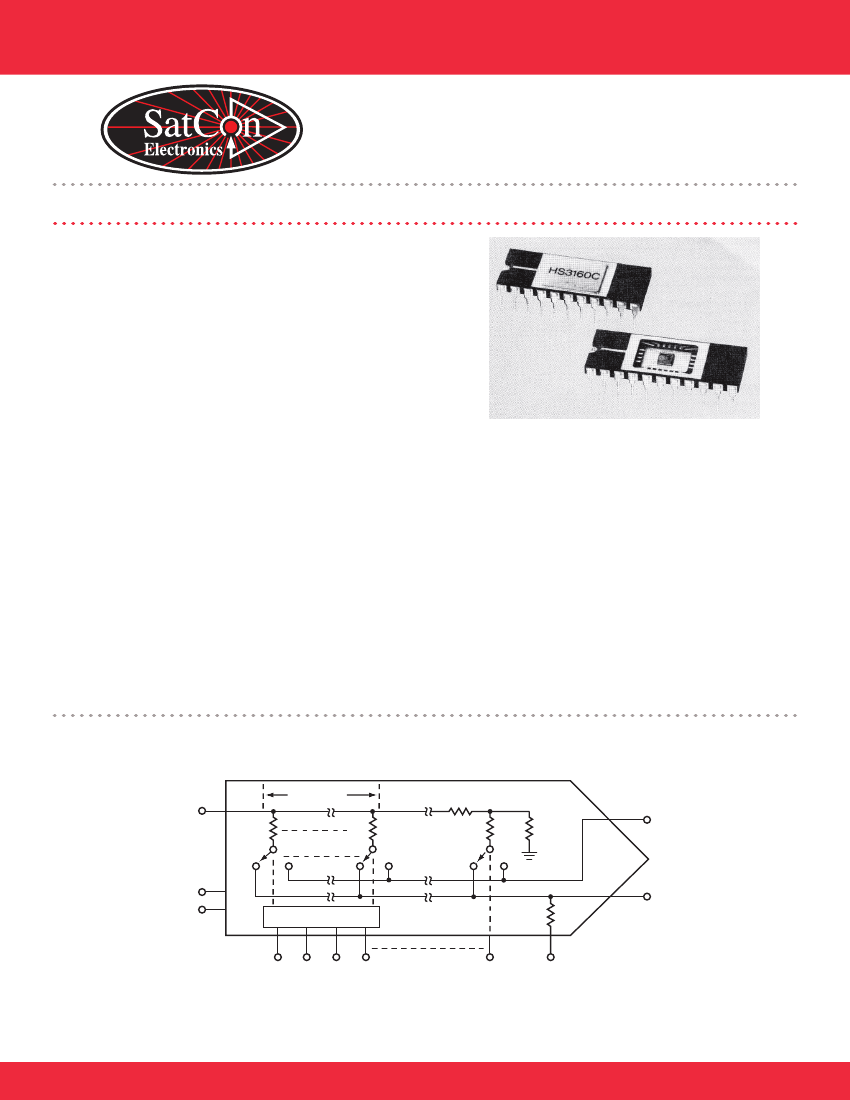

H S3160

Monolithic 16-Bit MD AC

FEA TURES

• M onolithic CM OS circuit

• Linearity ±0.003%

• Linearity TC 1 ppm/ C max

• Latch-up protected

• Small size: 22 pin ceramic DIP

• Commercial and M IL-STD-883 Rev. C

processing

• Single power supply: + 15V DC

• Low power: 30mW

DESCRIPTION

The HS3160 is a 16-bit CM OS multiplying D/A

converter integrated in a single monolithic chip. It

represents a major advance in the field of monolithic

converter technology, extending resolution to 16 bits

and with linearity to 14 bits and 0.003% . The HS3160

accepts A C or DC reference voltages, multiplies in all

four quadrants, has latch-up protection, and is

packaged in a hermetic 22 pin DIP. Outstanding

features of the HS3160 include:

14-Bit Linearity — HS3160 offers a 0.003% integral

linearity and a 0.003% differential linearity and is

monotonic over the entire specified operating

temperature range. The excellent differential

linearity is achieved by using a unique bit decoding

technique. The transfer function is actually divided

into 16 segments (determined by bits 1 to 4). each

consisting of 4096 discrete voltage levels (determined

Sipex D ata Converter Line

by bits 5 to 16). Bits 1 to 4 are digitally decoded into

15 control signals, driving 15 equal current sources,

rather than 4 binarily weighted sources; thus.

reducing the matching accuracy requirement on the

resistors and CM OS switches.

M onolithic Construction — HS3160 is a single chip

CM OS circuit using advanced design and

manufacturing techniques.

Processing — The HS3160 is offered in two versions.

The -C version is commercially processed for

applications in the 0 C to 70 C range. The -B version

operates in the ~55 C to +125 C temperature range

and* is processed and screened to the requirements

of M IL-M -38510 and M IL-STD-883C.

FUNCTIONA L DIA GRA M

V REF

96k

15 EQUA L

SECTIONS

96k

48k

96k

HS 3160

96k

I OUT 2

GND

V DD

4 to 16 DECODE

BIT 16

(LSB)

R FEEDBA CK

I OUT 1

SW ITCHES A RE

SHOW N IN THE

HIGH STA TE

BIT 1 BIT 2 BIT 3 BIT 4

(M SB)

165 Cedar Hill Street, Marlborough, MA 01752 Tel: 508.485.6350

www.satconelectronics.com

Fax: 508.485.5168

HS3160B-4 Related Products

	HS3160B-4	HS3160C-4	HS3160C-3	HS3160B-3
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, CDIP22, HERMETICALLY SEALED CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, CDIP22, HERMETICALLY SEALED CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, CDIP22, HERMETICALLY SEALED CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, CDIP22, HERMETICALLY SEALED CERAMIC, DIP-24
Parts packaging code	DIP	DIP	DIP	DIP
package instruction	DIP, DIP22,.4	DIP, DIP22,.4	DIP, DIP22,.4	DIP, DIP22,.4
Contacts	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum analog output voltage	10 V	10 V	10 V	10 V
Minimum analog output voltage	-10 V	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T22	R-CDIP-T22	R-CDIP-T22	R-CDIP-T22
Maximum linear error (EL)	0.006%	0.006%	0.012%	0.012%
Number of digits	16	16	16	16
Number of functions	1	1	1	1
Number of terminals	22	22	22	22
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP22,.4	DIP22,.4	DIP22,.4	DIP22,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	15 V	15 V	15 V	15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Nominal settling time (tstl)	2 µs	2 µs	2 µs	2 µs
Nominal supply voltage	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	COMMERCIAL	COMMERCIAL	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Base Number Matches	1	1	1	1
