800R-404-303 datasheet, PDF - EEWORLD Datasheet

800R-404-303: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

800R-404-303 Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Other features	LOW PROFILE,POST-SHEAR PLATING
body width	0.157 inch
subject depth	0.105 inch
body length	0.315 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	2.78 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8000
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
Plating thickness	15u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.075 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	8
Evacuation force-minimum value	.556 N
Base Number Matches	1

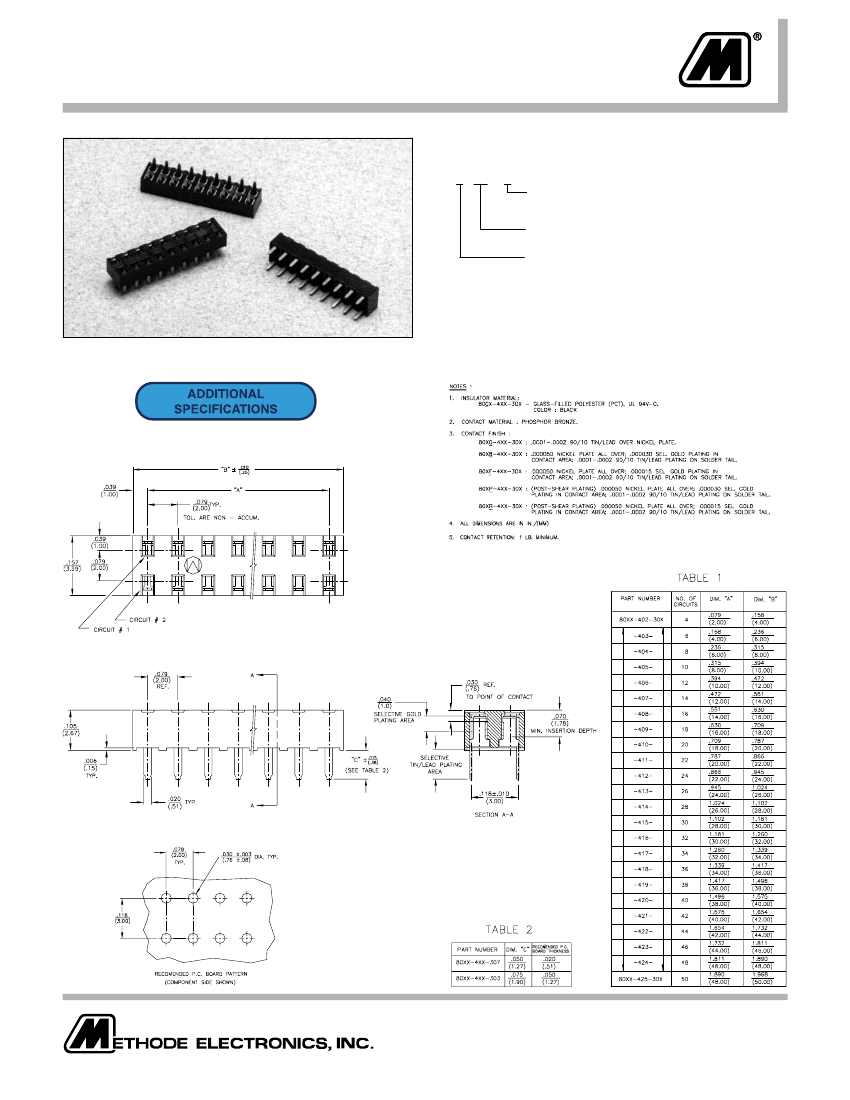

.079” (2mm) Low Profile

Dual Row Through Hole Vertical Connectors

8000 SERIES “POST/BOXE”

PART NUMBER LEGEND

800X-4XX-30X

SOLDER TAIL LENGTH (DIM. C)

3 = .075 (1.90)

7 = .050 (1.27)

NUMBER OF POSITIONS PER ROW

2 - 25

CONTACT FINISH

0 = TIN/LEAD

8 = .000030 SELECTIVE GOLD

F = .000015 SELECTIVE GOLD

MATING HEADERS: 8100 SERIES

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
