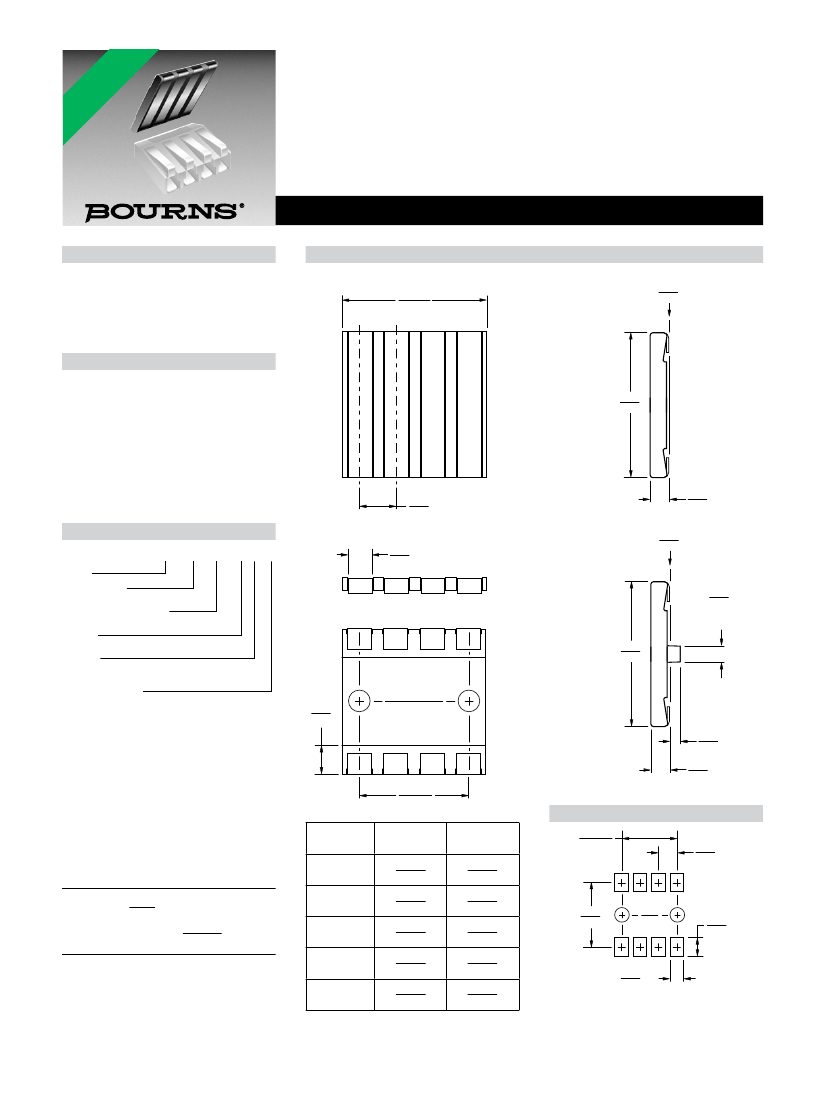

M
PL
IA
NT
Features
■
2.54 mm pitch & height
■
2 to 6 precious metal contacts
■
End-to-end stackable
■
Twin hot contacts (symmetrical pad layout)
■
Pick & place compatible
■
High cycle life
■
RoHS compliant* - see
processing
*R
oH
S
information
for RoHS compliant surface
mount components
CO
70AA/Female - Modular Contact
Materials & Finishes
Insulator .... Glass reinforced thermoplastic,
Product Dimensions
Standard Version (-0)
A ± 0.20
(A ± .008)
LEADS TO BE COPLANAR WITHIN
0.10
(.004)
UL 94V-0 rated, black
Contact ...................................Copper alloy
Finish
Underplating.................. 30
µ”
to 60
µ”
Ni
Contact Area ......... 30
µ”
min. Au over Ni
Operating Characteristics
Electrical
Current Rating....................... 3 A/contact
Voltage Rating..................................60 V
Contact Resistance ....... 30 mohms max.
Dielectric Voltage .....................AC 500 V
Insulating Resistance .. 1000 Mohms min.
Operating Temperature
........................................-55 °C to 125 °C
Mechanical
Durability ................... 10,000 cycles min.
10.0
(.394)
2.54
(.100)
1.27
(.050)
How to Order
Locating Pins Version (-1)
70AA J - 4 - F 0 G
Model
Terminal Style
J = SMT
Number of Contacts (N)
2 through 6
Gender
F = Female
Options
0 = Standard
1 =Locating Pins
Packaging Option
__ = Tube (240/N pcs. or 240 contacts
per tube)
G = Embossed Tape (750 pcs. per reel)
1.65
(.065)
LEADS TO BE COPLANAR WITHIN
0.10
(.004)
OPTIONAL LOCATOR PINS
1.27
(.050)
DIA.
2 PLCS.
10.0
(.394)
1.45
(.057)
0.84
(.033)
1.27
(.050)
B ± 0.20
(B ± .008)
Recommended PWB Layout
Number of
Contacts
2
TOLERANCES:
±0.3
UNLESS OTHERWISE NOTED
(±.012)
MM
(INCHES)
Dimension
A
4.98
(.196)
7.52
(.296)
10.06
(.396)
12.60
(.496)
15.14
Dimension
B
2.54
(.100)
5.08
(.200)
7.62
(.300)
10.16
(.400)
12.70
B ± 0.20
(B ± .008)
2.54
TYP
(.100)
3
4
5
6
8.86
(.349)
DIMENSIONS:
2.41
(.095)
TYP.
1.96
TYP.
(.077)
(.596)
(.500)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
70AA/Female - Modular Contact

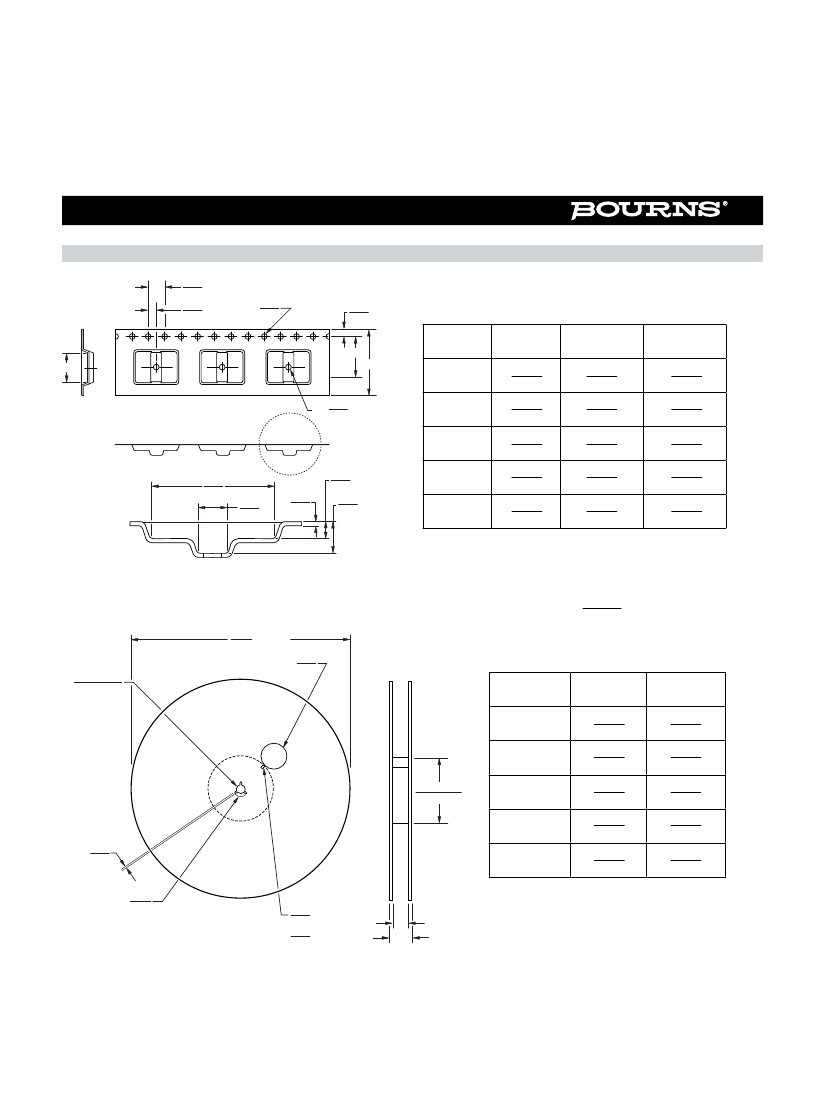

Packaging Specifications
4.0
(.157)
2.0
(.079)
DIA.
1.5
(.059)
1.75
(.069)
C
A
B
No. of
Contacts
2
Dimension
A
5.23
(.206)
7.77
(.306)
10.31
(.406)
12.85
(.506)
15.39
(.606)
Dimension
B
16.0
(.630)
16.0
(.630)
24.0
(.945)
24.0
(.945)
24.0
(.945)
Dimension
C
7.5
(.295)
7.5
(.295)
11.5
(.453)
11.5
(.453)
11.5
(.453)
DIA.
1.5
(.059)
3
4
10.26
(.404)
2.65
(.104)
1.4
(.055)
0.33
(.013)
2.55
(.100)
5
6
DIMENSIONS:
13.00
DIA. MAX.
(.512)
1.575
DIA. MIN. ACCESS HOLE AT
(.062)
SLOT LOCATION
MM
(INCHES)
0.512 ± .008
(.020 ± .0003)
DIA.
No. of
Contacts
2
3
3.90 ± 0.04
(.154 ± .0016)
Dimension
A
.646
(.025)
.646
(.025)
.961
(.038)
.961
(.038)
.961
(.038)
Dimension
B (Max.)
.882
(.035)
.882
(.035)
1.197
(.047)
1.197
(.047)
1.197
(.047)
4
5
.059
(.002)
MIN.
EQUALLY
SPACED
3 PLCS.
6
.795
(.031)
DIA. MIN.
.098
MIN. WIDTH X
(.004)
.394
MIN. DEPTH X
(.016)
SLOT IN CORE
A
B
REV. 10/13
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
