423-2ASUBC/S400-A6/P/TR1 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 423-2ASUBC/S400-A6/P/TR1

423-2ASUBC/S400-A6/P/TR1: DescriptionSingle Color LED, Super Blue, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size176KB，9 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

423-2ASUBC/S400-A6/P/TR1 Overview

Single Color LED, Super Blue, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2

423-2ASUBC/S400-A6/P/TR1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	EVERLIGHT
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	SUPER BLUE
Configuration	SINGLE WITH BUILT-IN ZENER DIODE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	120.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	6.7 mm
method of packing	TAPE AND REEL
peak wavelength	473 nm
shape	CYLINDRICAL
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	90 deg
Base Number Matches	1

Preview

Download Datasheet

View All

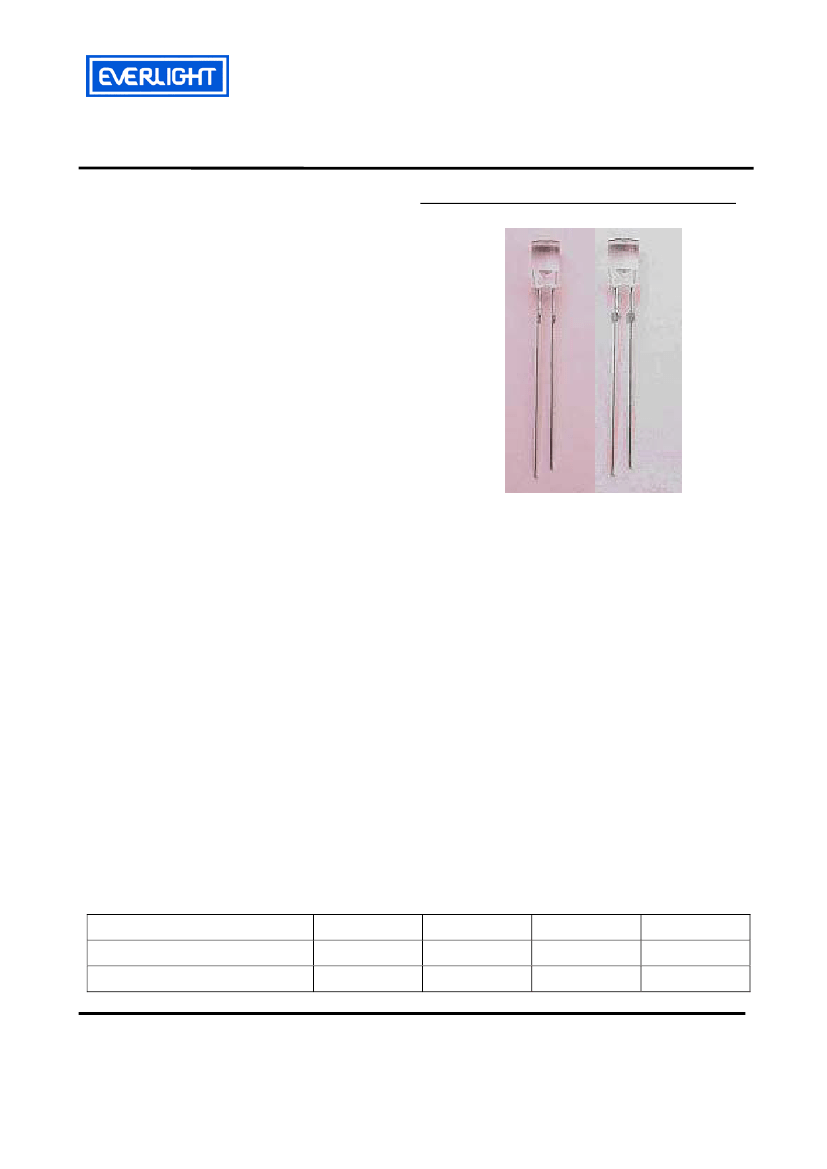

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

5 mm Cylindrical Shape

423-2ASUBC/S400-A6/X/TR1

Features

․Cylindrical

lens with white Diffused color .

․I.C

compatible.

․Available

on tape and reel.

․Reliable

and robust.

․The

product itself will remain within RoHS compliant

․ESD-withstand

voltage: up to 4K V

Descriptions

․The

series is specially designed for

applications requiring higher

brightness

․The

LED lamps are available with

different colors, intensities, epoxy

colors, etc.

Applications

․TV

set

․Monitor

․Telephone

․Computer

Device Selection Guide

LED Part No.

423-2ASUBC/S400-A6/P

423-2ASUBC/S400-A6

Chip Material Emitted Color

InGaN

Super Blue

Lens Color

Water Clear

Stopper

Yes

Everlight Electronics Co., Ltd.

Device Number : DT1-042-003

http\\:www.everlight.com

Prepared date: 02-14-2006

Rev 2

Page: 1 of 9

Prepared by: Grace Shen

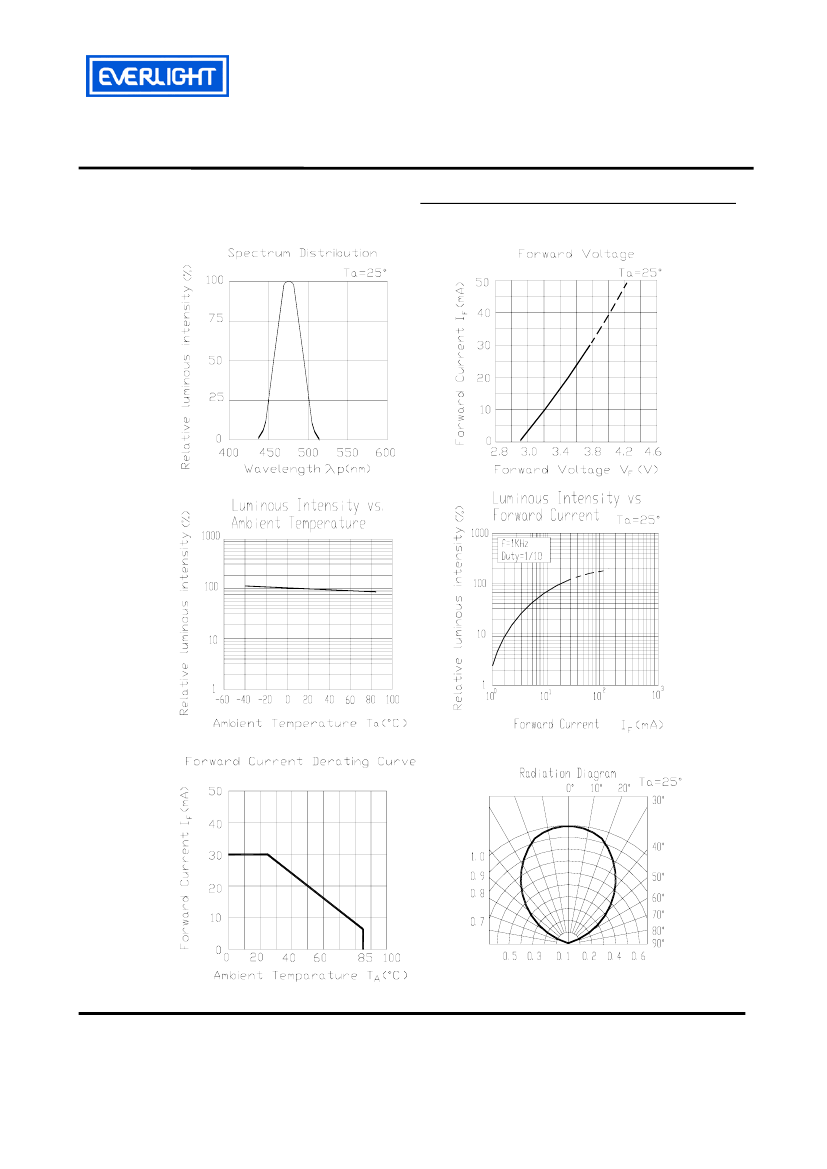

423-2ASUBC/S400-A6/P/TR1 Related Products

	423-2ASUBC/S400-A6/P/TR1	423-2ASUBC/S400-A6/TR1
Description	Single Color LED, Super Blue, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2	Single Color LED, Super Blue, Water Clear, T-1 3/4, 5mm, ROHS COMPLIANT PACKAGE-2
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	EVERLIGHT	EVERLIGHT
package instruction	ROHS COMPLIANT PACKAGE-2	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant	compliant
color	SUPER BLUE	SUPER BLUE
Configuration	SINGLE WITH BUILT-IN ZENER DIODE	SINGLE WITH BUILT-IN ZENER DIODE
Maximum forward current	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	120.0 mcd	120.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	6.7 mm	6.7 mm
method of packing	TAPE AND REEL	TAPE AND REEL
peak wavelength	473 nm	473 nm
shape	CYLINDRICAL	CYLINDRICAL
size	5 mm	5 mm
surface mount	NO	NO
T code	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm
perspective	90 deg	90 deg
Base Number Matches	1	1
