BAT18-05E6327 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT18-05E6327

BAT18-05E6327: DescriptionPin Diode, Silicon,; CategoryDiscrete semiconductor diode; File Size806KB，5 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BAT18-05E6327 Overview

Pin Diode, Silicon,

BAT18-05E6327 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
package instruction	R-PDSO-G3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	1 week
application	SWITCHING
Configuration	COMMON CATHODE, 2 ELEMENTS
Maximum diode capacitance	1 pF
Nominal diode capacitance	0.75 pF
Diode component materials	SILICON
Maximum diode forward resistance	0.7 Ω
Diode resistance test current	5 mA
Diode resistance test frequency	100 MHz
Diode type	PIN DIODE
frequency band	ULTRA HIGH FREQUENCY
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	2
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Reverse test voltage	20 V
surface mount	YES
technology	POSITIVE-INTRINSIC-NEGATIVE
Terminal surface	MATTE TIN
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

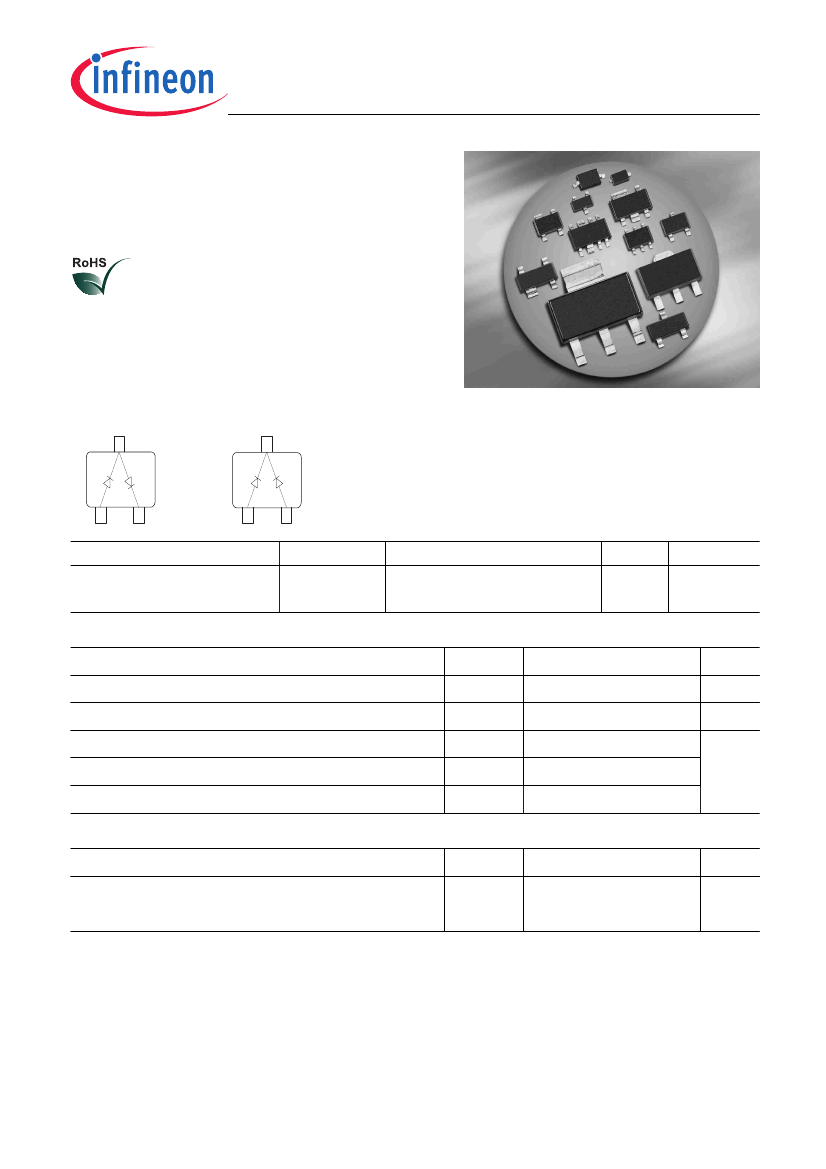

BAT18...

Silicon RF Switching Diode

•

Low-loss VHF / UHF switch above 10 MHz

•

PIN diode with low forward resistance

•

Pb-free (RoHS compliant) package

BAT18-04

BAT18-05

Type

BAT18-04

BAT18-05

Package

SOT23

Configuration

series

common cathode

(nH)

1.8

Marking

AUs

ASs

Maximum Ratings

= 25°C, unless otherwise specified

Parameter

Diode reverse voltage

Forward current

Junction temperature

Operating temperature range

Storage temperature

Thermal Resistance

Parameter

Symbol

thJS

Value

≤

290

Unit

Symbol

stg

Value

100

150

-55 ... 125

-55 ... 150

Unit

°C

Junction - soldering point

BAT18-04, BAT18-05

For

K/W

calculation of

thJA

please refer to Application Note Thermal Resistance

2011-06-14

BAT18-05E6327 Related Products

	BAT18-05E6327	BAT18-04E6327
Description	Pin Diode, Silicon,	Pin Diode, Silicon,
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Infineon	Infineon
package instruction	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
application	SWITCHING	SWITCHING
Configuration	COMMON CATHODE, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Maximum diode capacitance	1 pF	1 pF
Nominal diode capacitance	0.75 pF	0.75 pF
Diode component materials	SILICON	SILICON
Maximum diode forward resistance	0.7 Ω	0.7 Ω
Diode resistance test current	5 mA	5 mA
Diode resistance test frequency	100 MHz	100 MHz
Diode type	PIN DIODE	PIN DIODE
frequency band	ULTRA HIGH FREQUENCY	ULTRA HIGH FREQUENCY
JESD-30 code	R-PDSO-G3	R-PDSO-G3
JESD-609 code	e3	e3
Humidity sensitivity level	1	1
Number of components	2	2
Number of terminals	3	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260
Certification status	Not Qualified	Not Qualified
Reverse test voltage	20 V	20 V
surface mount	YES	YES
technology	POSITIVE-INTRINSIC-NEGATIVE	POSITIVE-INTRINSIC-NEGATIVE
Terminal surface	MATTE TIN	MATTE TIN
Terminal form	GULL WING	GULL WING
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	40	40
Base Number Matches	1	1
