IL766B-2-X001 datasheet, PDF - EEWORLD Datasheet

IL766B-2-X001: DescriptionAC Input-Darlington Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-6; CategoryLED optoelectronic/LED photoelectric; File Size41KB，1 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

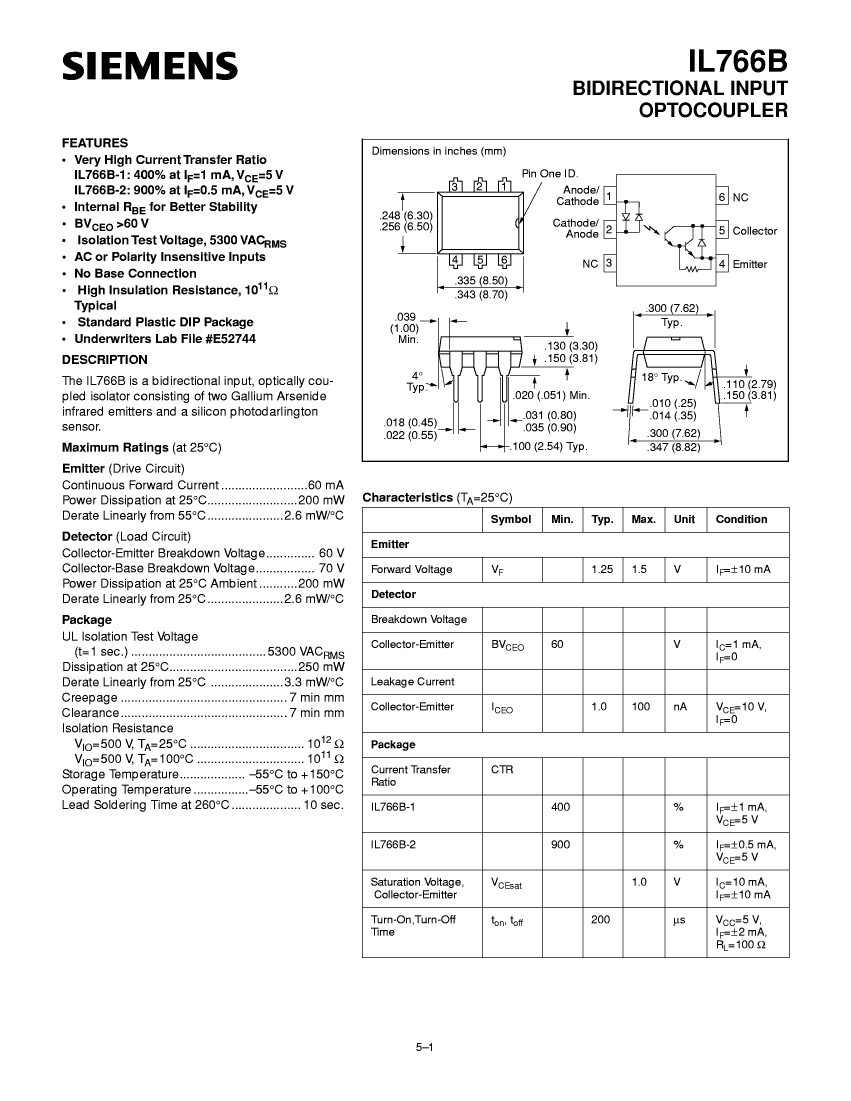

Download Datasheet Parametric View All

IL766B-2-X001 Overview

AC Input-Darlington Output Optocoupler, 1-Element, 5300V Isolation, PLASTIC, DIP-6

Parameter Name	Attribute value
Maker	Infineon
package instruction	PLASTIC, DIP-6
Reach Compliance Code	unknown
Other features	UL RECOGNIZED, VDE APPROVED
Coll-Emtr Bkdn Voltage-Min	60 V
Configuration	SINGLE WITH BUILT-IN DIODE AND RESISTOR
Nominal current transfer ratio	900%
Maximum dark power	100 nA
Maximum forward current	0.06 A
Maximum insulation voltage	5300 V
Number of components	1
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Optoelectronic device types	AC INPUT-DARLINGTON OUTPUT OPTOCOUPLER
Base Number Matches	1
