5962-8951302RX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5962-8951302RX

5962-8951302RX: DescriptionBus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 1.060 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-20; Categorylogic logic; File Size192KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

5962-8951302RX Overview

Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 1.060 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-20

5962-8951302RX Parametric

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
Other features	BROADSIDE VERSION OF 374; IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V
series	FCT
JESD-30 code	R-XDIP-T20
length	25.3365 mm
Logic integrated circuit type	BUS DRIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	7.2 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

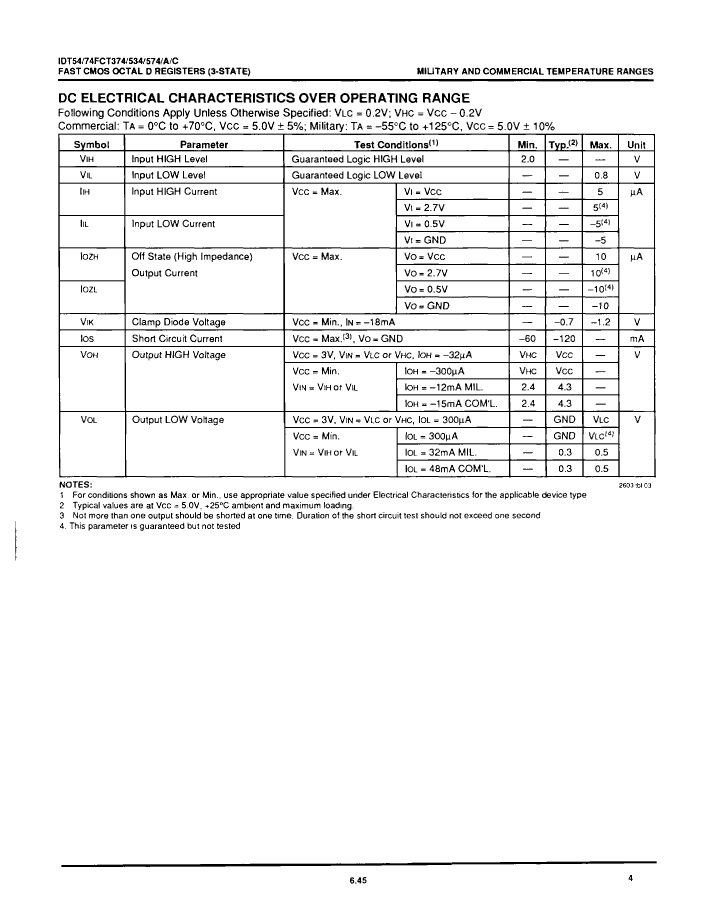

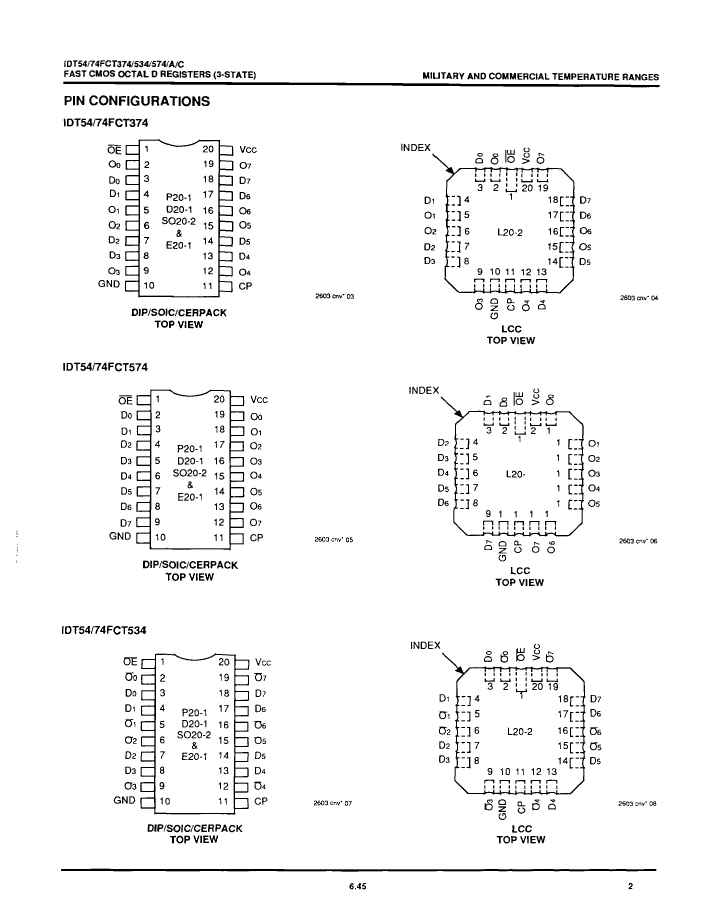

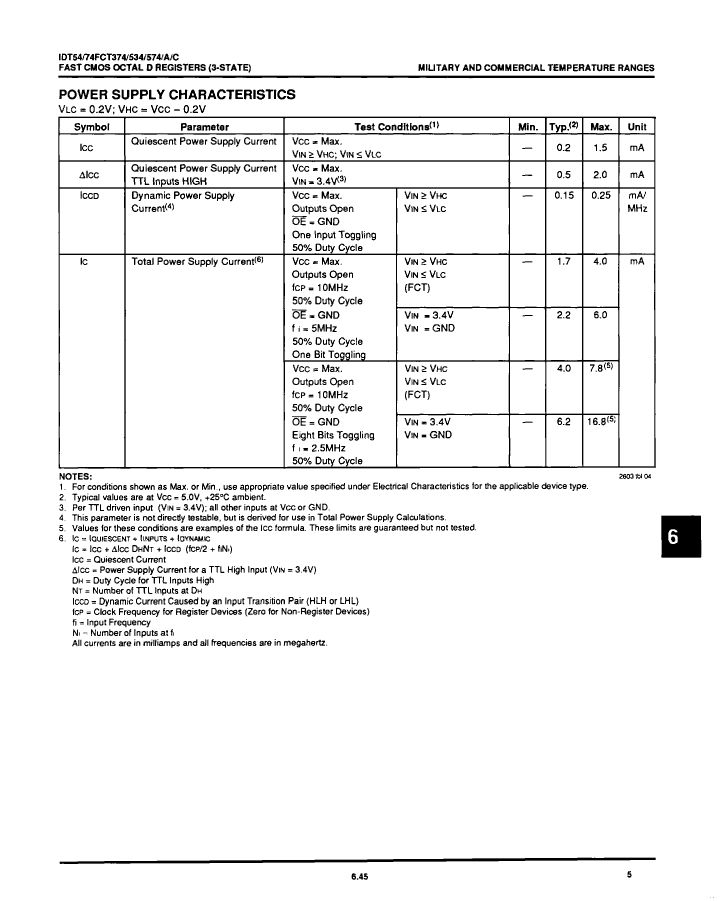

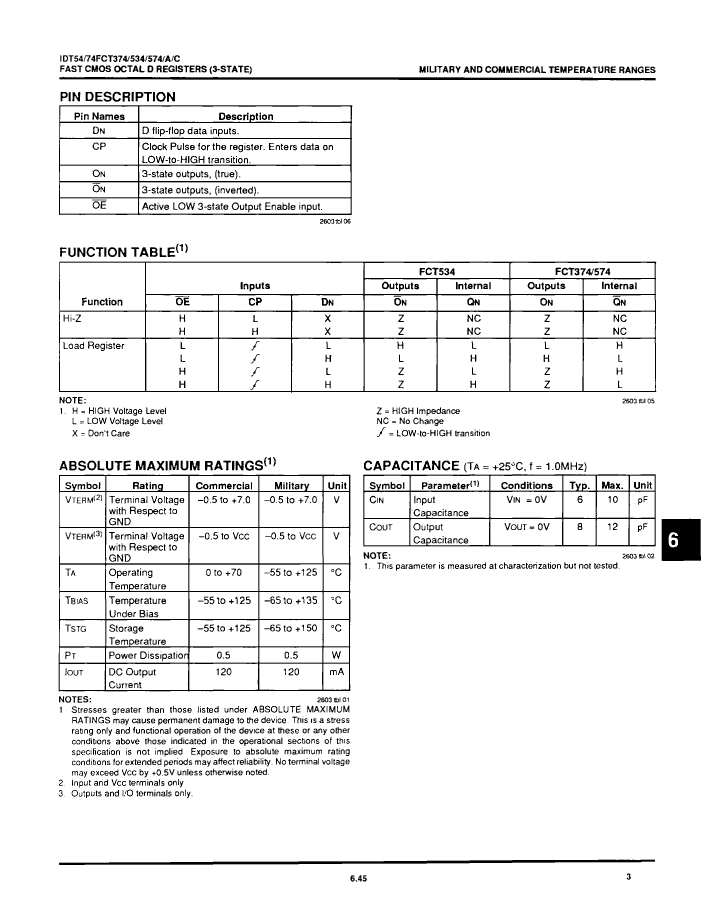

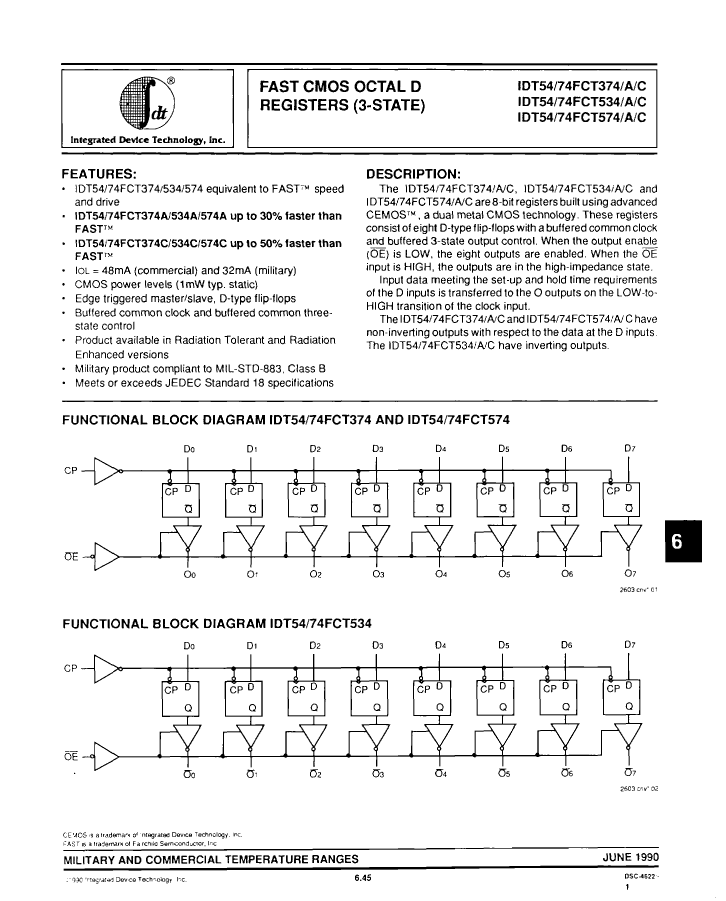

Preview

Download Datasheet

View All

5962-8951302RX Related Products

	5962-8951302RX	5962-8951302SX	5962-89513022X
Description	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 1.060 X 0.310 INCH, 0.200 INCH HEIGHT, DIP-20	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 0.540 X 0.300 INCH, 0.100 INCH HEIGHT, FP-20	Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, 0.358 X 0.358 INCH, 0.100 INCH HEIGHT, LCC-20
Parts packaging code	DIP	DFP	QLCC
package instruction	DIP,	DFP,	QCCN,
Contacts	20	20	20
Reach Compliance Code	unknown	unknown	unknown
Other features	BROADSIDE VERSION OF 374; IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	BROADSIDE VERSION OF 374; IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V	BROADSIDE VERSION OF 374; IOH = 0.3MA @ VOH = 4.3V; IOL = 0.3MA @ VOL = 0.2V
series	FCT	FCT	FCT
JESD-30 code	R-XDIP-T20	R-XDFP-F20	S-XQCC-N20
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	8	8	8
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DFP	QCCN
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
propagation delay (tpd)	7.2 ns	7.2 ns	7.2 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum seat height	5.08 mm	2.3368 mm	2.54 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
width	7.62 mm	6.9215 mm	8.89 mm
Base Number Matches	1	1	1
length	25.3365 mm	-	8.89 mm
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED
