HD74HC91FP-EL datasheet, PDF - EEWORLD Datasheet

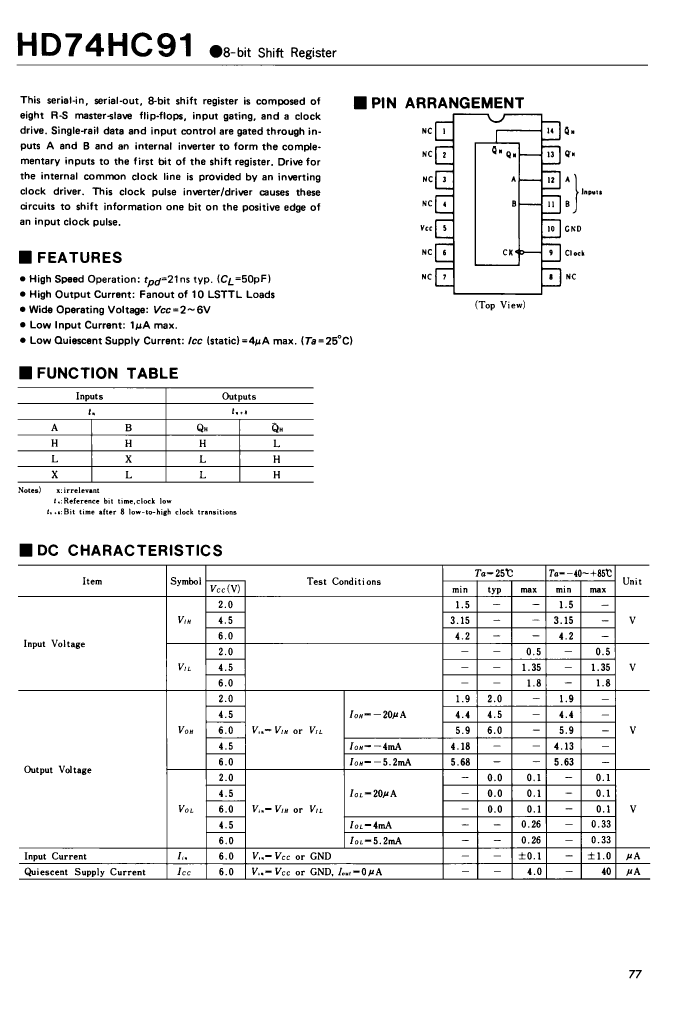

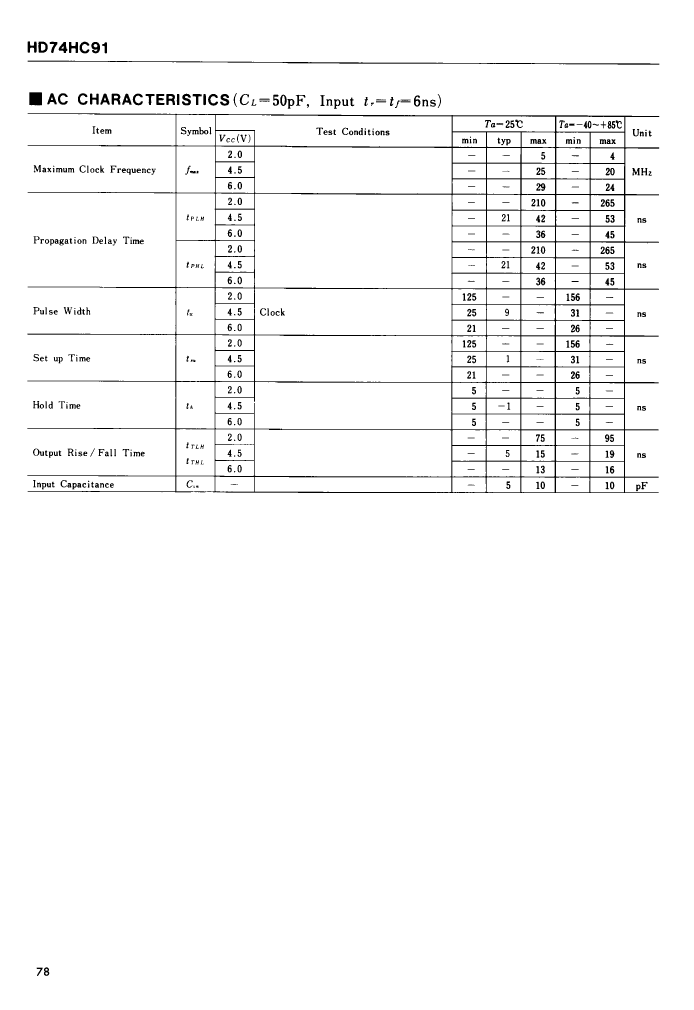

HD74HC91FP-EL: DescriptionHC/UH SERIES, 8-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, PDSO14, EIAJ, SOP-14; Categorylogic logic; File Size40KB，2 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HD74HC91FP-EL Overview

HC/UH SERIES, 8-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, PDSO14, EIAJ, SOP-14

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknow
ECCN code	EAR99
Counting direction	RIGHT
series	HC/UH
JESD-30 code	R-PDSO-G14
length	10.06 mm
Logic integrated circuit type	SERIAL IN SERIAL OUT
Number of digits	8
Number of functions	1
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	53 ns
Certification status	Not Qualified
Maximum seat height	2.2 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	5.5 mm
minfmax	20 MHz
Base Number Matches	1

	HD74HC91FP-EL	HD74HC91RP-EL
Description	HC/UH SERIES, 8-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, PDSO14, EIAJ, SOP-14	HC/UH SERIES, 8-BIT RIGHT SERIAL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, PDSO14, SOP-14
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	14	14
Reach Compliance Code	unknow	unknow
Counting direction	RIGHT	RIGHT
series	HC/UH	HC/UH
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	10.06 mm	8.65 mm
Logic integrated circuit type	SERIAL IN SERIAL OUT	SERIAL IN SERIAL OUT
Number of digits	8	8
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	53 ns	53 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.2 mm	1.75 mm
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	5.5 mm	3.9 mm
minfmax	20 MHz	20 MHz
Base Number Matches	1	1
