Part Number

Search

54F08/B2A

Description
AND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20
Categorylogic    logic
File Size101KB,3 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Download Datasheet Parametric Compare View All

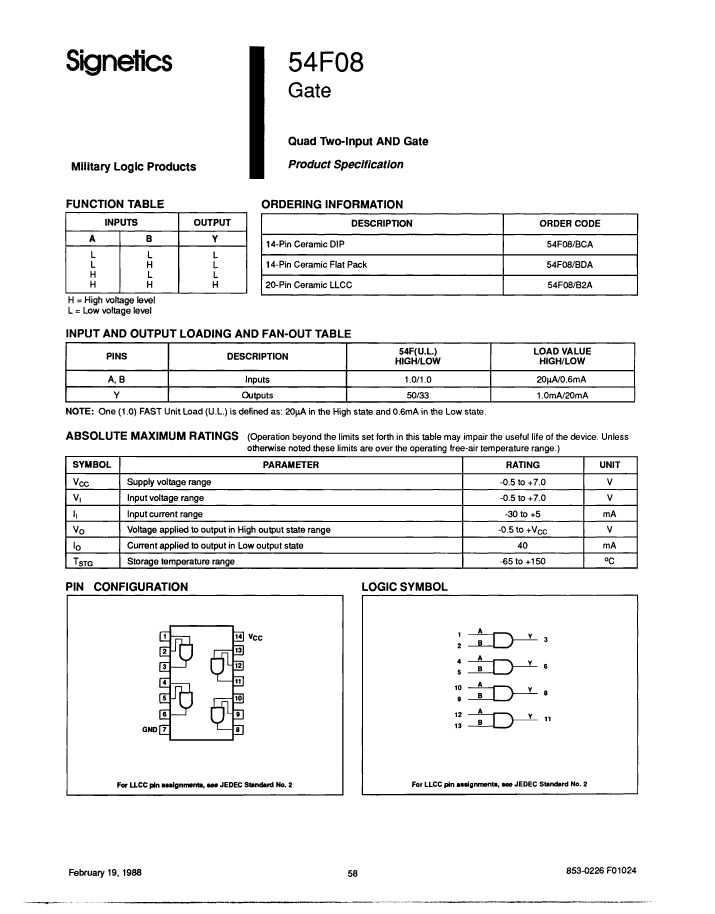

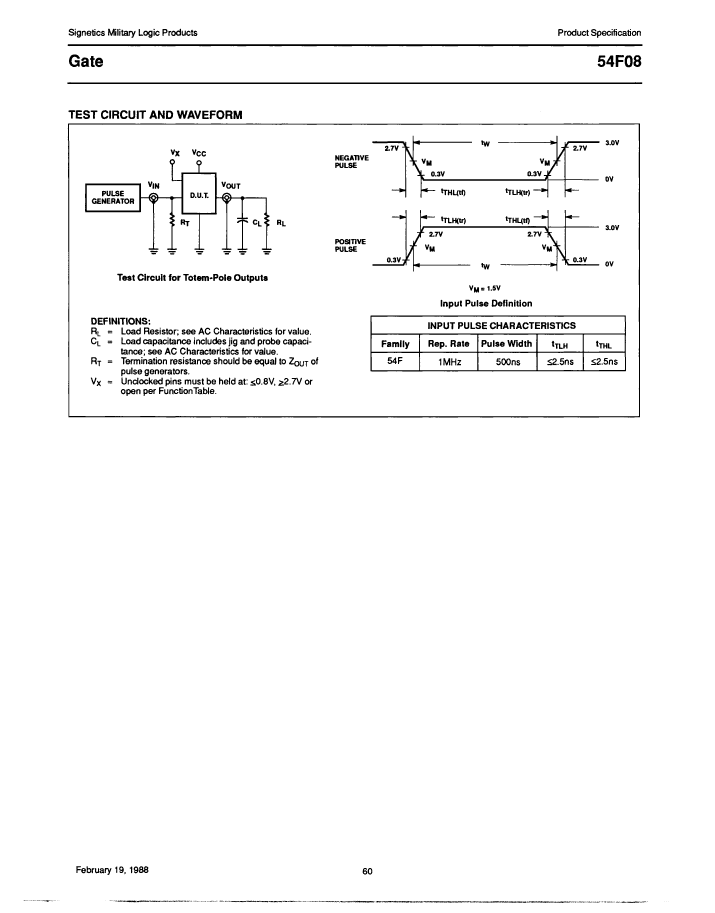

54F08/B2A Overview

AND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20

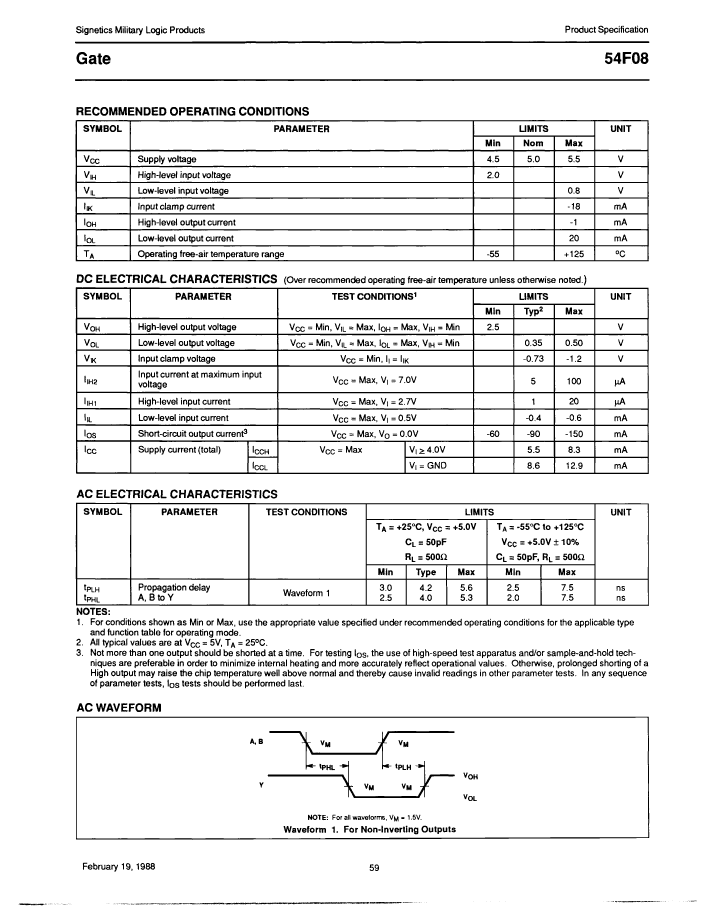

54F08/B2A Parametric

Parameter NameAttribute value
package instruction,
Reach Compliance Codeunknown
seriesF/FAST
JESD-30 codeS-CQCC-N20
Load capacitance (CL)50 pF
Logic integrated circuit typeAND GATE
Number of functions4
Number of entries2
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeSQUARE
Package formCHIP CARRIER
Maximum supply current (ICC)12.9 mA
propagation delay (tpd)7.5 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal formNO LEAD
Terminal locationQUAD
Base Number Matches1

54F08/B2A Related Products

54F08/B2A 54F08/BCA 54F08/BDA
Description AND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CQCC20 AND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDIP14 AND Gate, F/FAST Series, 4-Func, 2-Input, TTL, CDFP14
Reach Compliance Code unknown unknown unknown
series F/FAST F/FAST F/FAST
JESD-30 code S-CQCC-N20 R-CDIP-T14 R-CDFP-F14
Load capacitance (CL) 50 pF 50 pF 50 pF
Logic integrated circuit type AND GATE AND GATE AND GATE
Number of functions 4 4 4
Number of entries 2 2 2
Number of terminals 20 14 14
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
Package shape SQUARE RECTANGULAR RECTANGULAR
Package form CHIP CARRIER IN-LINE FLATPACK
Maximum supply current (ICC) 12.9 mA 12.9 mA 12.9 mA
propagation delay (tpd) 7.5 ns 7.5 ns 7.5 ns
Certification status Not Qualified Not Qualified Not Qualified
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES NO YES
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal form NO LEAD THROUGH-HOLE FLAT
Terminal location QUAD DUAL DUAL
Base Number Matches 1 1 1
