5409DMQB: DescriptionAND Gate, TTL, CDIP14,; Categorylogic logic; File Size180KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5409DMQB Overview

AND Gate, TTL, CDIP14,

5409DMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.016 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	33 mA
Prop。Delay @ Nom-Sup	32 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

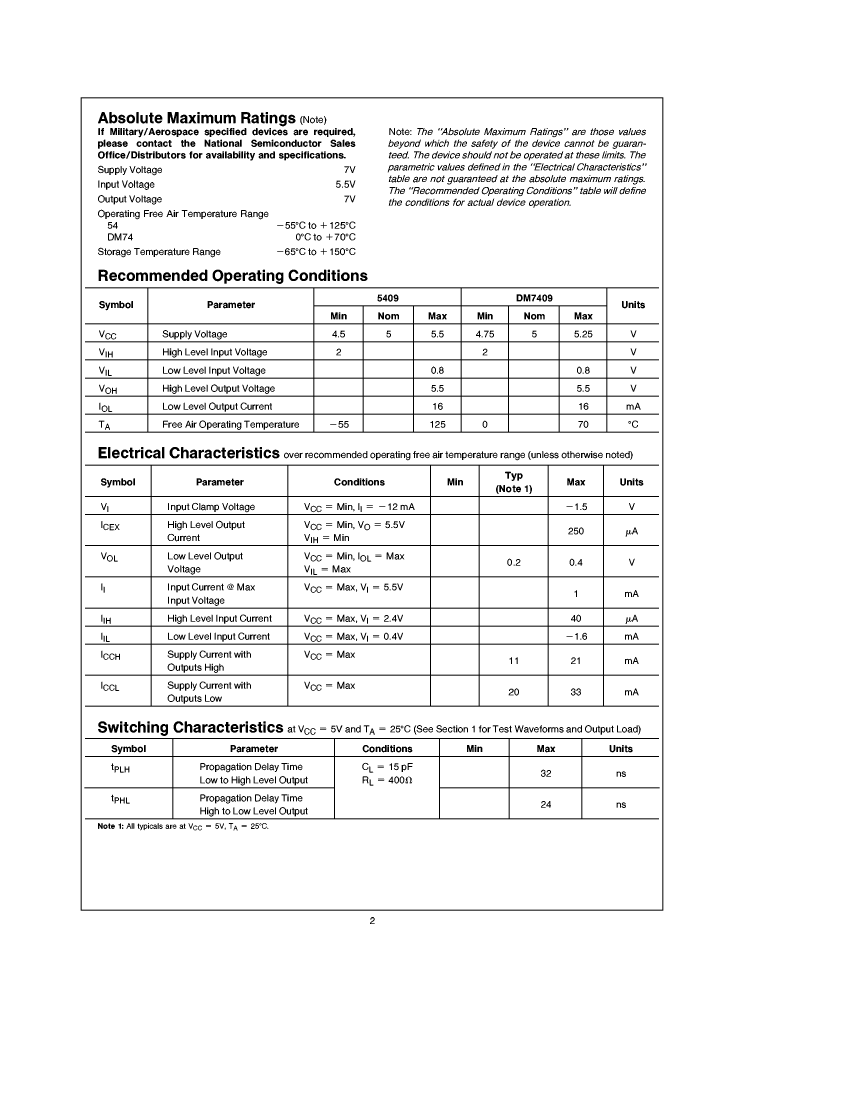

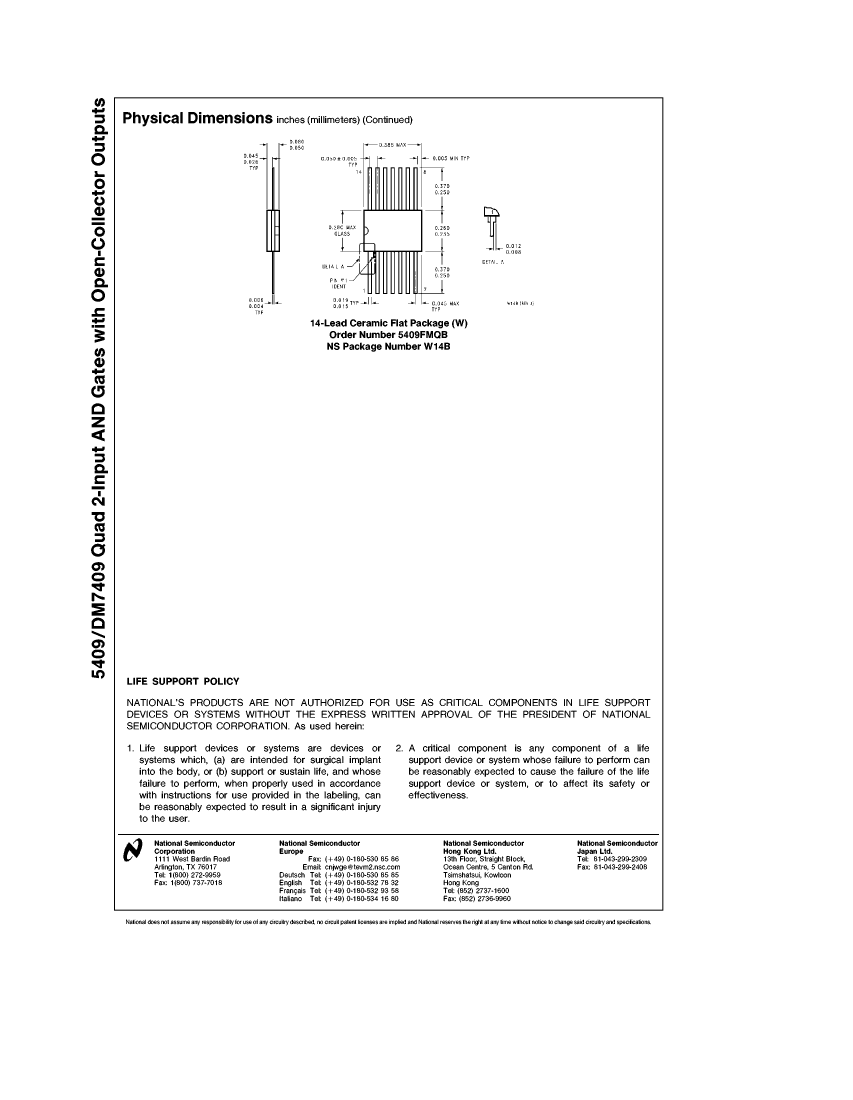

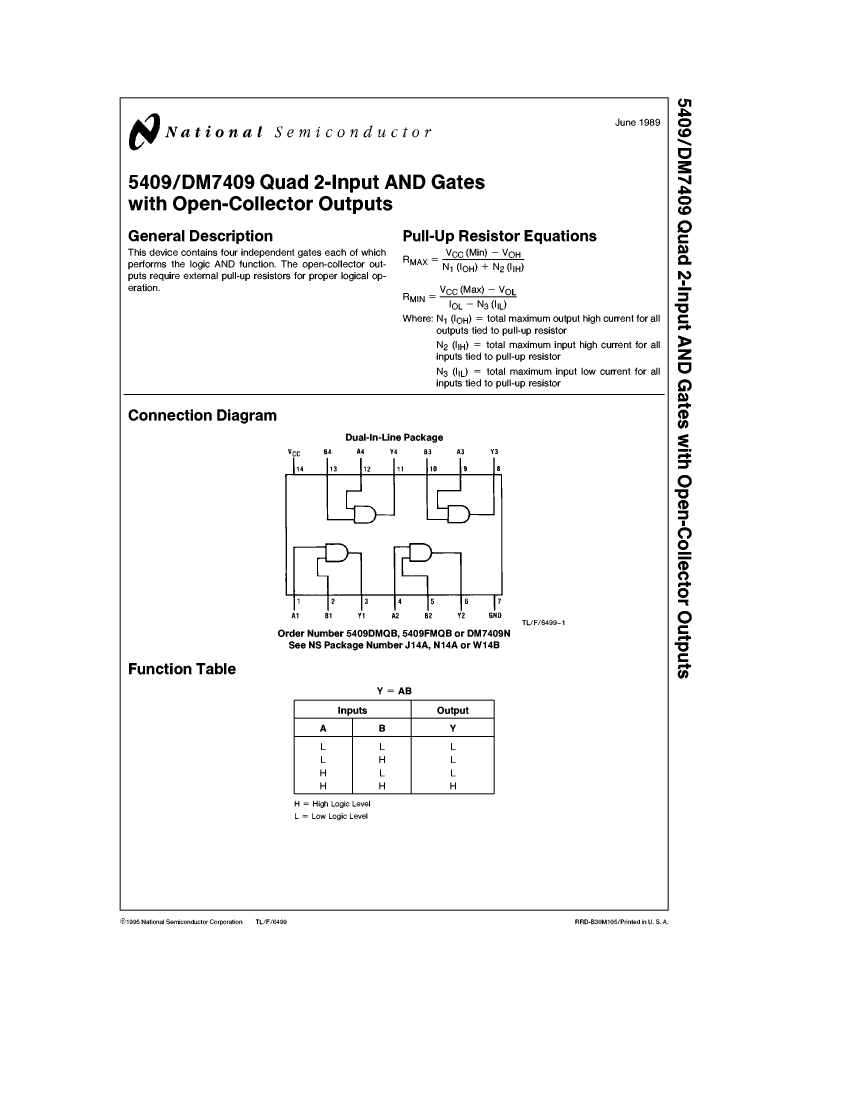

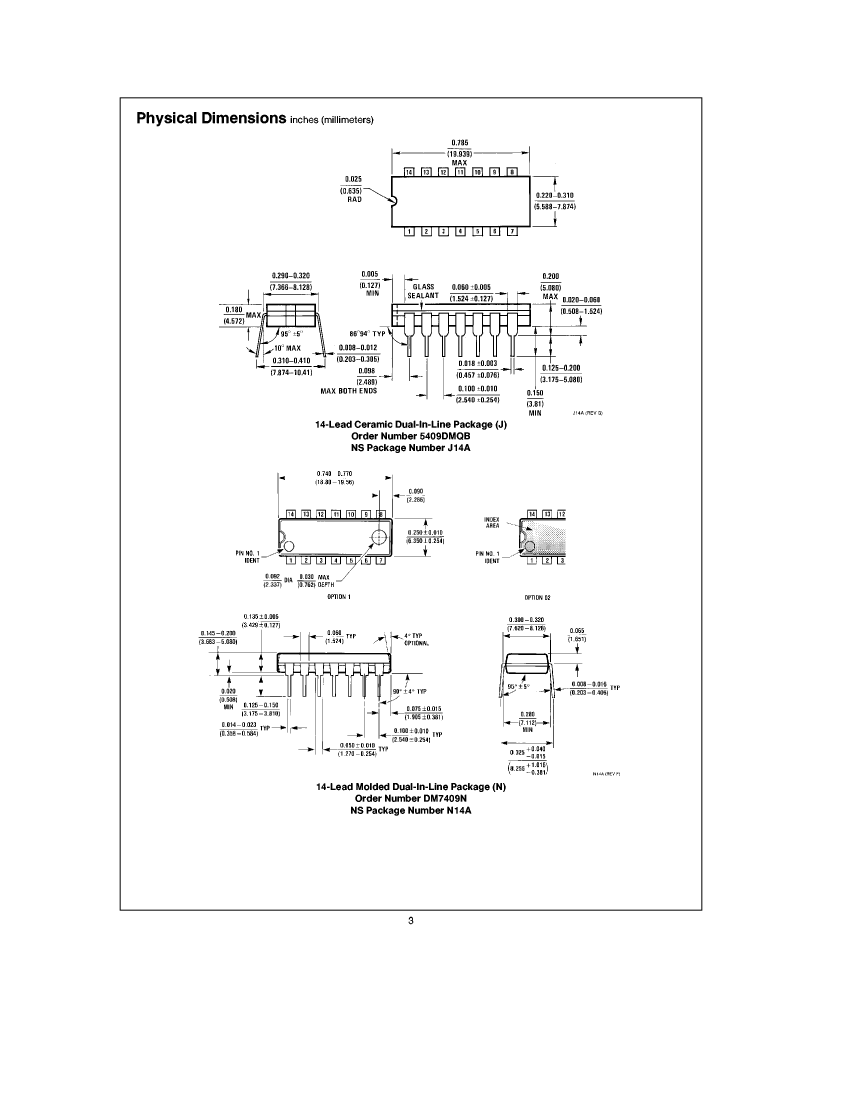

Preview

Download Datasheet

View All

5409DMQB Related Products

	5409DMQB	5409FMQB	DM7409N	7409FCQR	7409FCQM	7409PCQM	7409PCQR
Description	AND Gate, TTL, CDIP14,	AND Gate, TTL, CDFP14,	AND Gate, TTL, PDIP14,	AND Gate, TTL, CDFP14,	AND Gate, TTL, CDFP14,	AND Gate, TTL, PDIP14,	AND Gate, TTL, PDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	DFP, FL14,.3	DIP, DIP14,.3	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant	compliant	unknown
JESD-30 code	R-XDIP-T14	R-XDFP-F14	R-PDIP-T14	R-XDFP-F14	R-XDFP-F14	R-PDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE
MaximumI(ol)	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DFP	DIP	DFP	DFP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	FL14,.3	DIP14,.3	FL14,.3	FL14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	33 mA	33 mA	33 mA	33 mA	33 mA	33 mA	33 mA
Prop。Delay @ Nom-Sup	32 ns	32 ns	32 ns	32 ns	32 ns	32 ns	32 ns
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-
Base Number Matches	1	1	1	1	1	-	-
Maker	-	-	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Is it lead-free?	-	-	-	Contains lead	Contains lead	Contains lead	Contains lead
Humidity sensitivity level	-	-	-	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	-	-	-	250	250	250	250
Maximum time at peak reflow temperature	-	-	-	30	30	30	30
