FA1L3ZL36-T1B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> FA1L3ZL36-T1B

FA1L3ZL36-T1B: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SC-59, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size109KB，3 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

FA1L3ZL36-T1B Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SC-59, 3 PIN

FA1L3ZL36-T1B Parametric

Parameter Name	Attribute value
Maker	NEC Electronics
Parts packaging code	SC-59
package instruction	SMALL OUTLINE, R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	0.1 A
Collector-emitter maximum voltage	50 V
Configuration	SINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)	135
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	6000 ns
Maximum opening time (tons)	200 ns
Base Number Matches	1

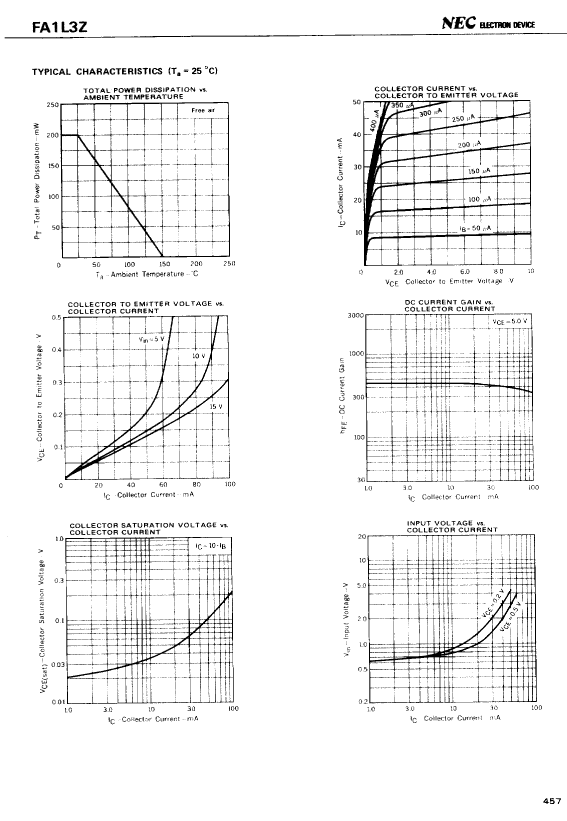

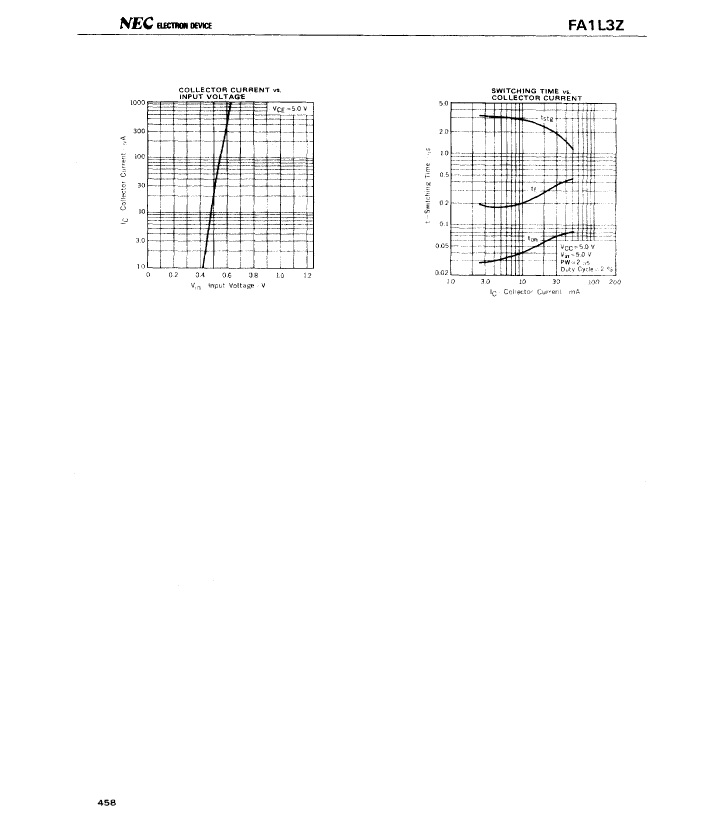

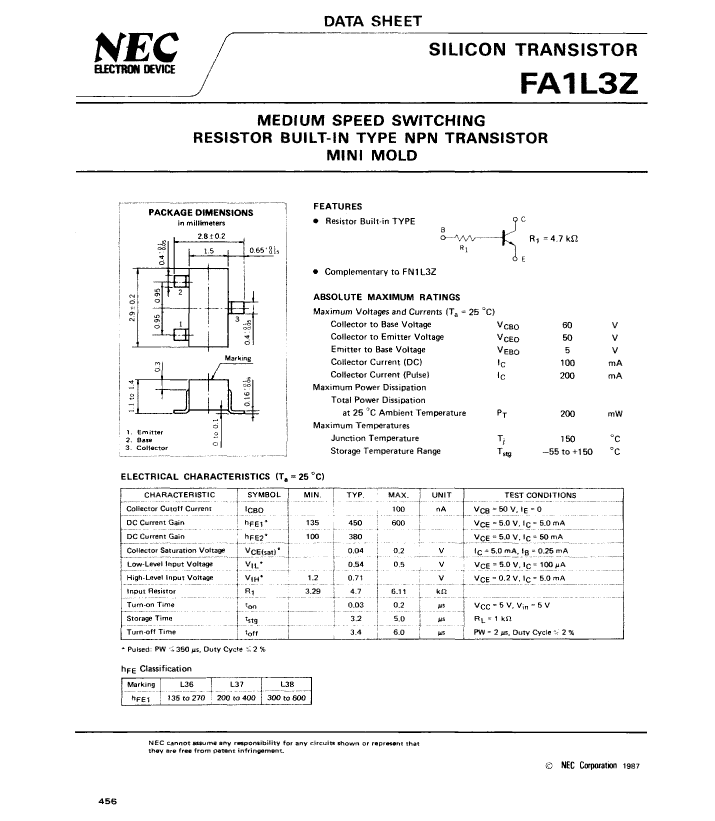

Preview

Download Datasheet

View All

FA1L3ZL36-T1B Related Products

	FA1L3ZL36-T1B	FA1L3ZL36-T2B	FA1L3ZL37-T1B	FA1L3ZL37-T2B	FA1L3ZL38-T1B	HTHG120656R900CW
Description	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SC-59, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SC-59, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SC-59, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SC-59, 3 PIN	Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, NPN, Silicon, MINIMOLD, SC-59, 3 PIN	RES,SMT,METAL FOIL,56.9 OHMS,.25% +/-TOL,-2.5,2.5PPM TC,1206 CASE
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMT, 1206
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Number of terminals	3	3	3	3	3	2
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMT
Maker	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	NEC Electronics	-
Parts packaging code	SC-59	SC-59	SC-59	SC-59	SC-59	-
Contacts	3	3	3	3	3	-
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	-
Collector-emitter maximum voltage	50 V	50 V	50 V	50 V	50 V	-
Configuration	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	SINGLE WITH BUILT-IN RESISTOR	-
Minimum DC current gain (hFE)	135	135	200	200	300	-
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	-
Number of components	1	1	1	1	1	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
surface mount	YES	YES	YES	YES	YES	-
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING	-
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-
Maximum off time (toff)	6000 ns	6000 ns	6000 ns	6000 ns	6000 ns	-
Maximum opening time (tons)	200 ns	200 ns	200 ns	200 ns	200 ns	-
Base Number Matches	1	1	1	1	1	-
