BR81D datasheet, PDF - EEWORLD Datasheet

BR81D: DescriptionBridge Rectifier Diode, 1 Phase, 2A, 100V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size37KB，1 Pages; ManufacturerDiodes Incorporated

Download Datasheet Parametric Compare View All

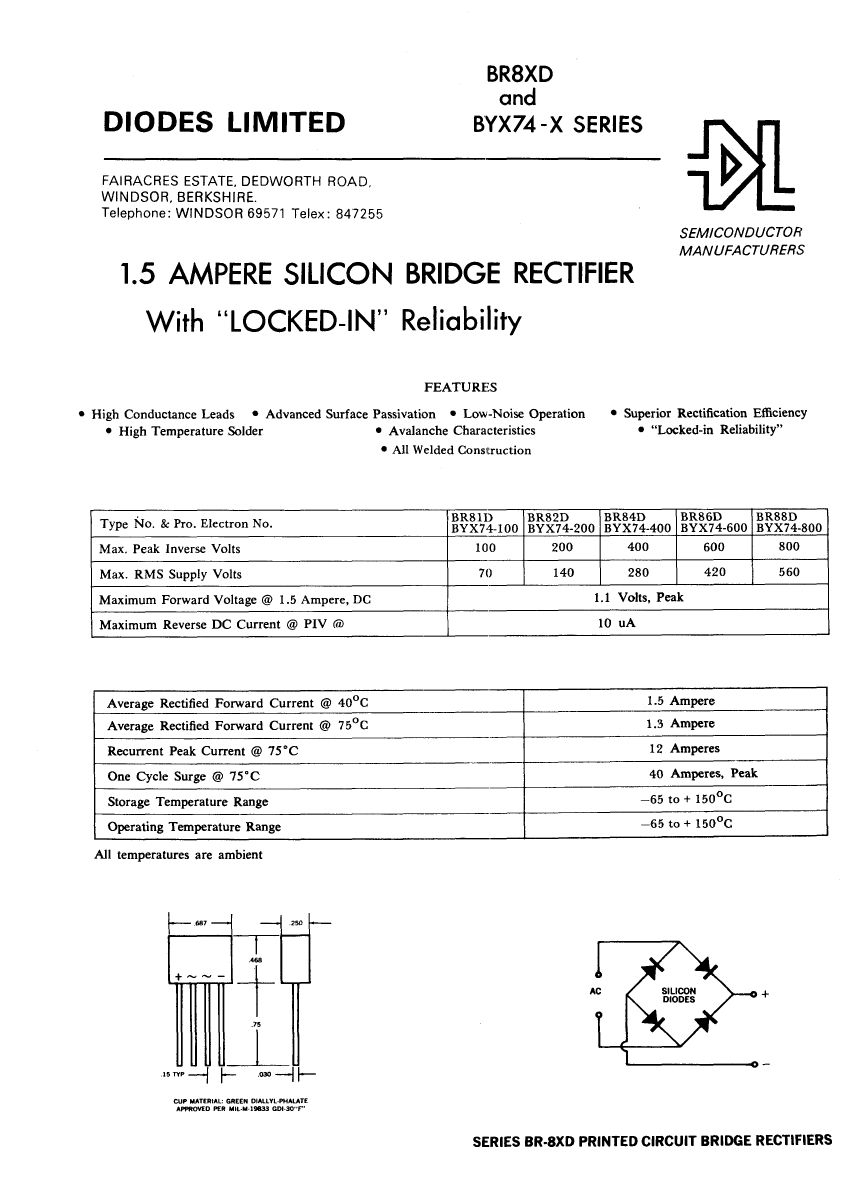

BR81D Overview

Bridge Rectifier Diode, 1 Phase, 2A, 100V V(RRM), Silicon,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	R-PSIP-W4
Reach Compliance Code	unknown
Minimum breakdown voltage	100 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	R-PSIP-W4
JESD-609 code	e0
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	235
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	0.00001 µA
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
Base Number Matches	1

	BR81D	BR84D
Description	Bridge Rectifier Diode, 1 Phase, 2A, 100V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2A, 400V V(RRM), Silicon
Is it Rohs certified?	incompatible	incompatible
package instruction	R-PSIP-W4	R-PSIP-W4
Reach Compliance Code	unknown	unknown
Minimum breakdown voltage	100 V	400 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V
JESD-30 code	R-PSIP-W4	R-PSIP-W4
JESD-609 code	e0	e0
Maximum non-repetitive peak forward current	50 A	50 A
Number of components	4	4
Phase	1	1
Number of terminals	4	4
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C
Maximum output current	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	235	235
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	400 V
Maximum reverse current	0.00001 µA	0.00001 µA
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	WIRE	WIRE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	10	10
Base Number Matches	1	1
