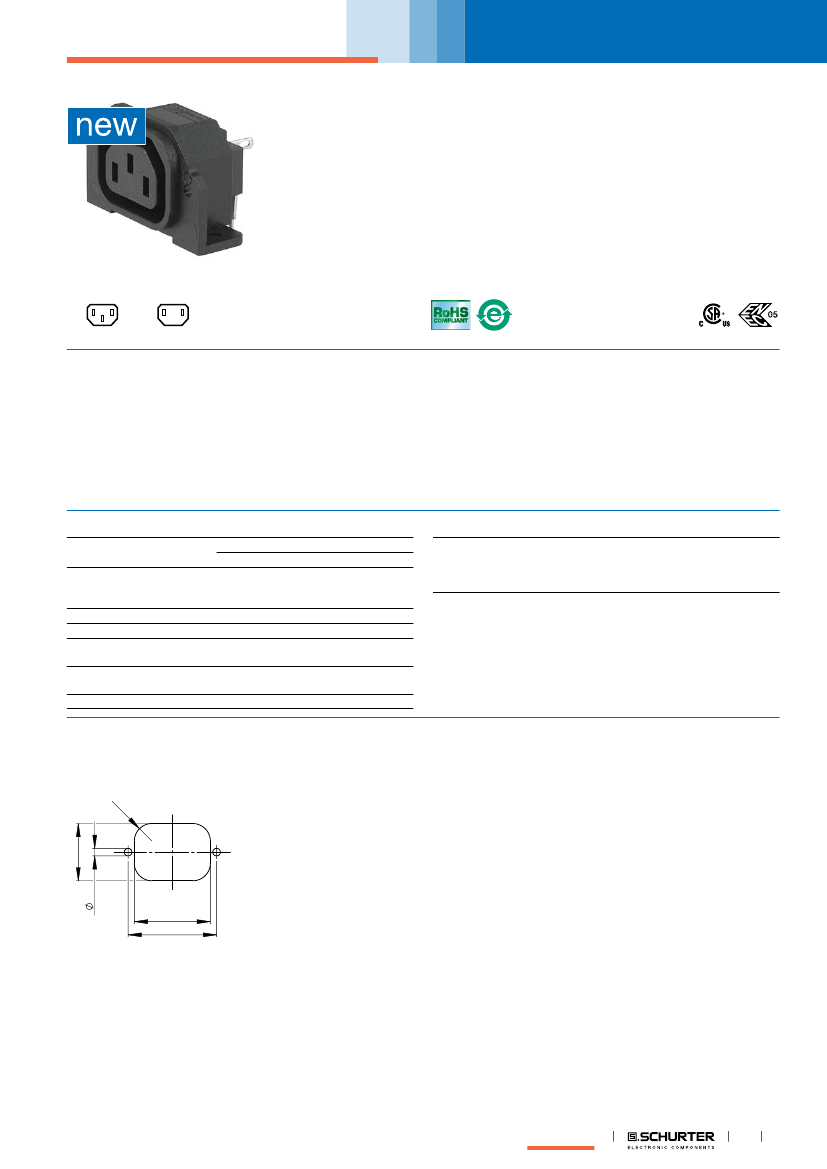

IEC Appliance Outlet F, Screw-on Mounting, Rear Side, PCB-/Solder Terminal
5001
F
70° C
H
70° C
Description
- Panel Mount:
Screw-on mounting from rear-side
- 1 Function:
- Connector, Pin temperature 70 °C, protection class I or II
- For PCB mounting
Other versions on request
- For protection class II
References
Weblinks
Substitute for type
P675/PC
Alternative: protection class II version
pdf-datasheet, html-datasheet, General Product Information, Approvals,
CE declaration of conformity, RoHS, CHINA-RoHS, Mating Connectors,
e-Shop, SCHURTER-Stock-Check, Distributor-Stock-Check, CAD-
Drawings, Accessories, Detailed request for product
Approvals
- VDE Certificate Number: -
- UL File Number: -
- CSA File Number: 1896151
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
10 A / 250 VAC; 50 Hz
15 A / 250 VAC; 60 Hz
> 4 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class I or II acc. to IEC 61140
For PCB mounting ; Ground terminal:
Solder terminal straight
PA6, black / grey / white, UL 94V-0
Appliance Outlet
F acc. to IEC 60320,
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
10 A, Protection Class I or II
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
Connectors
1
Connectors (Inlets/Outlets)
www.schurter.com/PG07
Config. Code
5001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
5001
5001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Type
Type
protection class 2
protection class 1
Configuration
key
B
X
5001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Color
Color
Black
Grey
White
Configuration
key
A
B
D
5001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Terminals
Terminal L
Configuration
key
4
5001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Style
Style
flange with through holes
Configuration
key
2
PCB-terminal (standard)
5001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Terminals
Terminal N
PCB-terminal (standard)
Symbols similar as in table A
Configuration
key
4
5001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Features
Features
Configuration
key
5001
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
O
|
= Terminals
Terminal Ground
without terminal
PCB-terminal (long)
Symbols similar as in table A
Configuration
key
0
6
Packaging unit
Mating Inlets/Plugs
50 Pcs
Category / Description
Plug Overview complete
IEC Plug E, Cord Connector (Rewireable), Straight, max. cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 8.5 mm
IEC Plug E, Cord Connector (Rewireable), Straight, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Angled, max. Cable Diameter 10 mm
IEC Plug E, Cord Connector (Rewireable), Straight
Plug further types to 5001
4732
4733
4735
4736
9009
...
