Features
•
•
•
•
•
•
Wide input voltage range
High surge withstand
97% Efficiency
Input reverse polarity protection
On/Off control feature
MicroMod Package
Data Sheet
IAM48
TM
Input Power
Conditioning Module

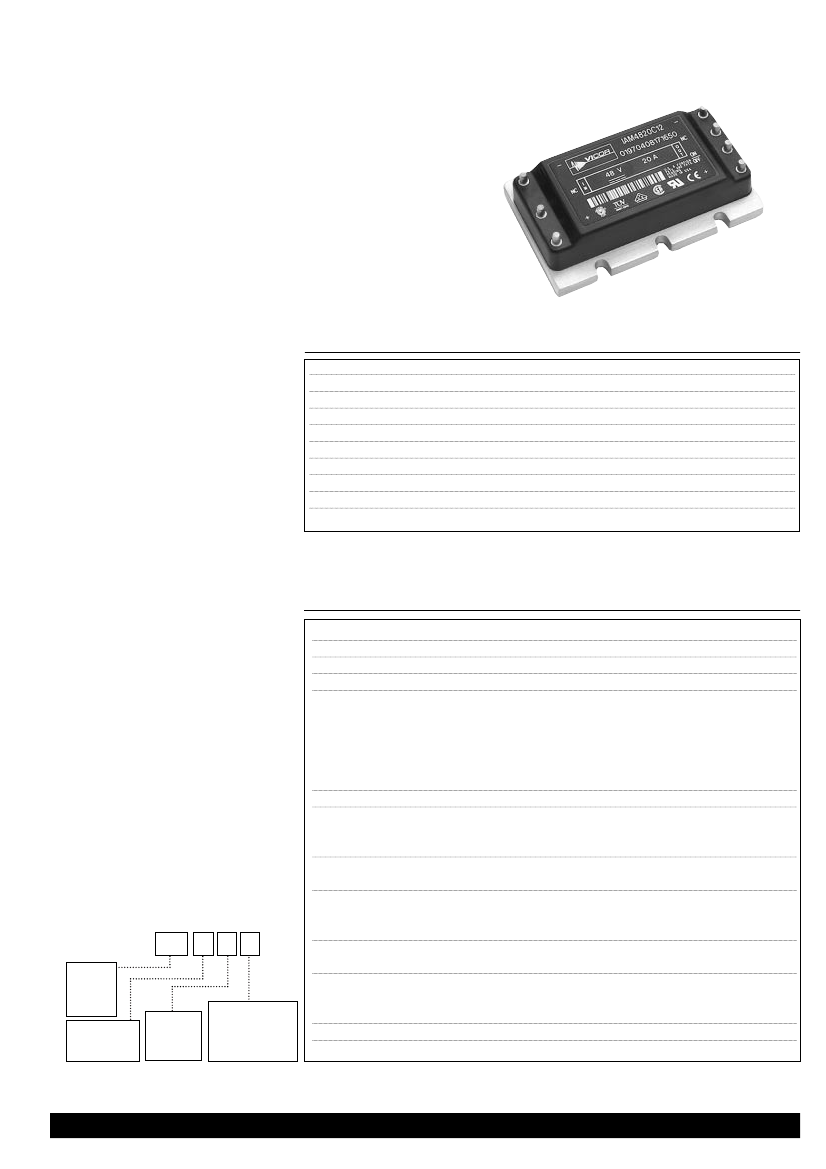

Shown actual size:
2.28 x 1.45 x 0.5 in
57,9 x 36,8 x 12,7 mm
Absolute Maximum Rating
Parameter
+In to –In
+In to –In
+Out to –Out
Mounting torque
Pin soldering temperature
Pin soldering temperature
Storage temperature C–,T–Grade
Operating temperature C–Grade
Operating temperature T–Grade
Rating
80
100
75
5(0.57)
500 (260)
750 (390)
-40 to +125
-20 to +100
-40 to +100
Unit
Vdc
V
Vdc
in-lbs
°F(°C)
°F(°C)
°C
°C
°C
Notes
Continuous
100ms
Continuous
6 each, #4-40 or M3
<5 sec; wave solder
<7 sec; hand solder
Baseplate
Baseplate
Primary Function
•
Inrush current limiting
•
Input transient protection
Products Highlights
The 2nd Generation IAM48 is a
component level, DC input front-end
designed to occupy minimum board
space while providing maximum
transient protection for today’s
sophisticated electrical systems. The
IAM48, in combination with Vicor’s
48V input 2nd Generation DC-DC
converters, provides a highly efficient,
high density power system with
outputs from 1 to 100Vdc.
When the IAM48 is used with the
Vicor FM48-FiltMod, the
combination meets the conducted
EMI specifications of Telcordia,
FCC and European Norms.
IAM48 Specifications
(typical at T
BP
= 25°C, nominal line, unless otherwise specified)
Parameter
Min
Typ
Max
Input voltage
36Vdc
48Vdc
76Vdc
Inrush limiting
14mA/µF
Safety approvals
UL 1950, CSA 22.2-950, EN 60950
Transient immunity
Telcordia-GR-499-CORE Section 132
200V
ETS 300 386-1 Class 2
200V
250V
Remarks
Continuous
6A with 330µF capacitor (See Fig 1)
Compatible Products
•
FM48-FiltMod
•
2nd Generation 48V input
DC-DC converters
Dielectric withstand
Output current
IAM4810C12
IAM4820C12
Efficiency
ON/OFF control
ENABLE(ON)
DISABLE(OFF)
1,500Vrms
10A
20A
97%
1µsec duration
5.0µsec rise time, 50µsec duration surge
1-100 nsec burst
When used with Vicor
FM-48 filter module
Input/Output to base
Delivered current to any
combination of Vicor’s 2nd Generation
48Vin DC-DC converters
Internal voltage drop is 1.1V max.
@ 20A, 100°C baseplate
Referenced to –Vout.
100KΩ internal pull-up resistor
No damage to module, external
fuse required
See Fig 3
100V
100V
Part Numbers
IAM 48 10 C 1 1
Output
Current
10=10Amp
20=20Amp
Baseplate
Product Grade
C=-20° to 100°C
T=-40° to 100°C
1=Slotted
2=Threaded
3=Thru-hole
Pin Style
1= Short Pin
2= Long Pin
S= Short ModuMate
N= Long ModuMate
0.0Vdc
3.5Vdc
1.0Vdc
5.0Vdc
Reverse polarity protection
External capacitance
IAM4810C12
IAM4820C12
Weight
Warranty
10µF
150µF
100µF
330µF
1.7 ounces (50 grams)
2 years
Set your site on VICOR at www.vicorpower.com

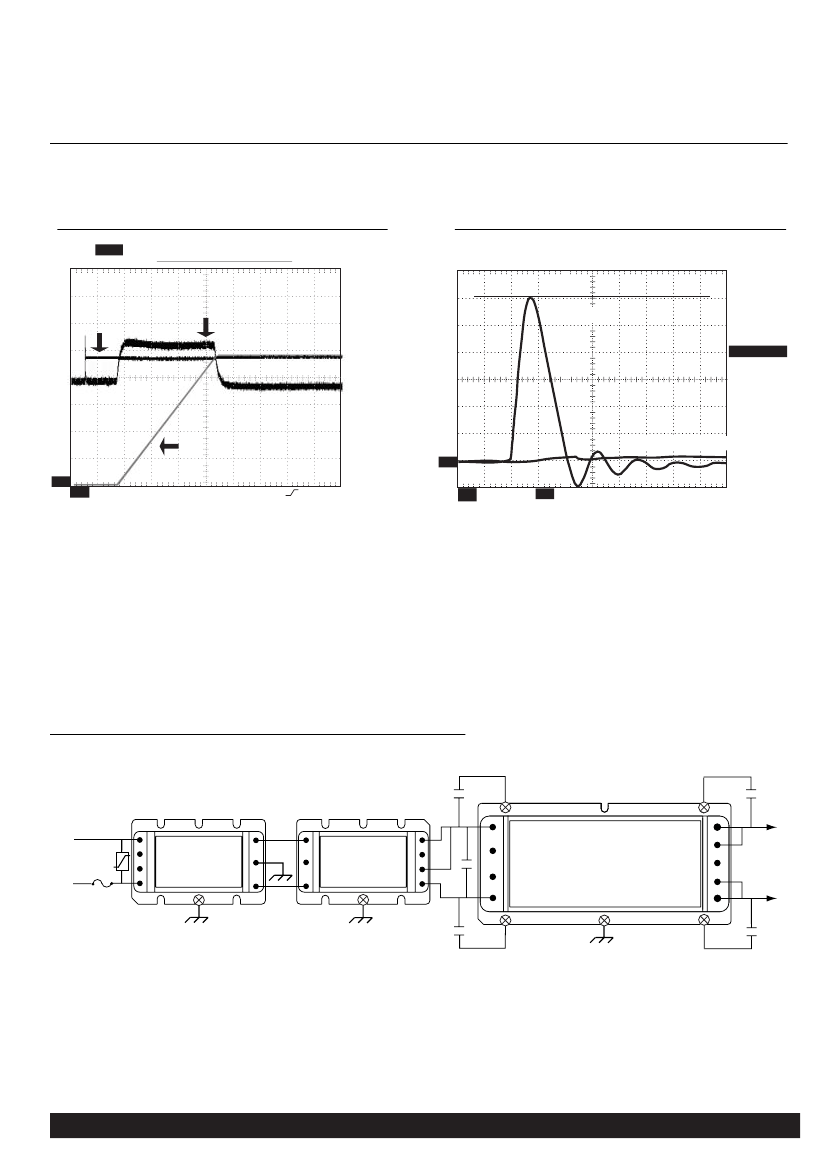

Typical Inrush Limiting and Transient Immunity Characteristics
Inrush Limiting
Tek
Stop:
Single Seq. 5.00MS/s
[
T
Ch1 Zoom:
Transient Immunity
]
Tek Run: 10.0MS/s
1.0X Vert 0.005X Horz
@ 200.0V
INPUT CURRENT
INPUT VOLTAGE
Ch1=Vdc in
©
INPUT TRANSIENT
Ch1=Input
Ch2=Output
Ch2=Vdc out
Ch3=Idc in
@0.2A/mV
4
©
©
OUTPUT VOLTAGE
2
©
OUTPUT VOLTAGE
48V offset
2
©
Ch1
10.0 V
Ch2
Ch4
10.0 V
M2.00ms
10.0mVΩ
Ch1
31.8 V
Ch1
25.0V
Ch2
25.0V
M5.00µs Ch4
8.2A
Figure 1—
I
nrush current with 330µF
on the IAM4820C12.
Figure 2—
Output response to a transient on the
48V input of a FM48-FiltMod/IAM48 combination.
Typical Transient, Surge Protection and Filtering Solution
Note:
The IAM48 is shown in the on state.
To disable, open the connection to pin 3.
–IN
–IN
5
– IN
NC
NC
+IN
– OUT
– IN
NC
+ IN
– OUT
1
2
4
3
2
7
NC
–OUT
PR
PC
+IN
3
FM48
GND
+ OUT
IAM48
Off/On
IAM2
7
+IN
+OUT
4
2nd Generation
48Vdc Input
DC-DC Converters
–S
SC
+S
+OUT
6
6
1
5
Figure 3
Set your site on VICOR at www.vicorpower.com

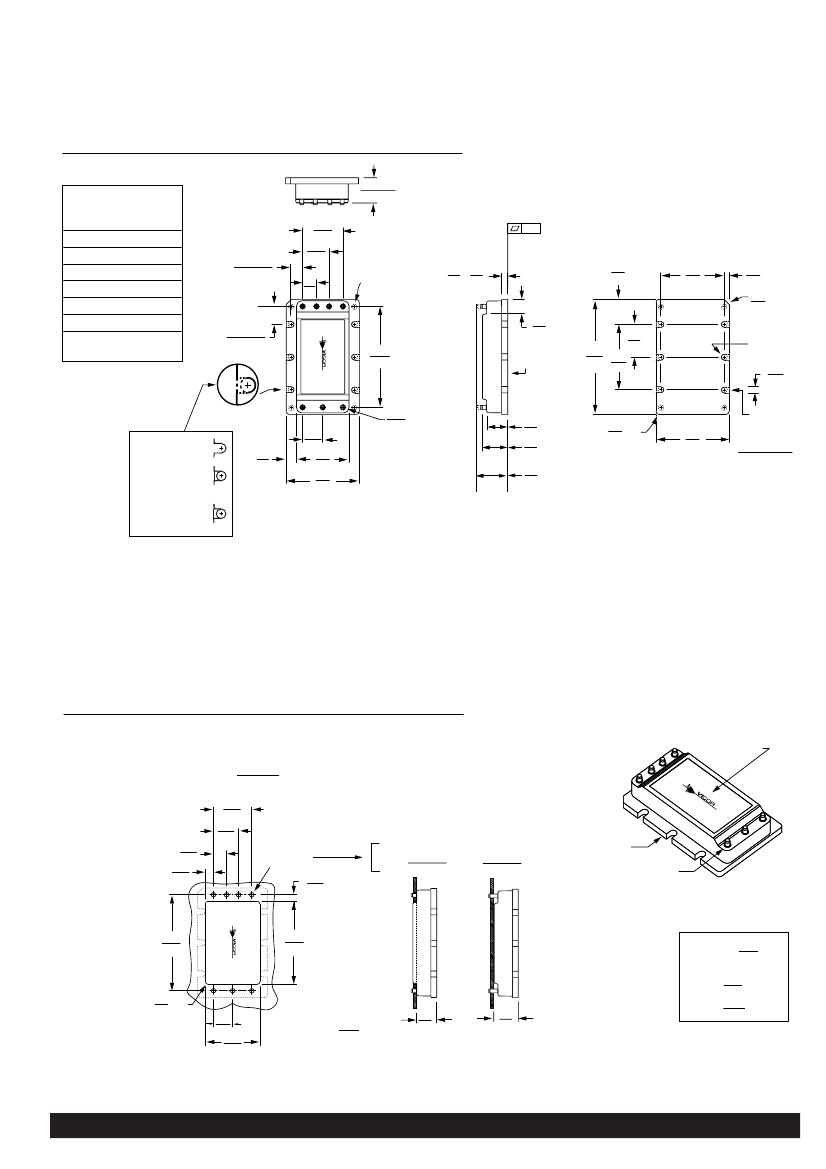

Mechanical Drawings (IAM48)
Module Outline
No.
1
2
3
4
5
6
7
PIN OUTS
Function Label
–Vout
Off/On
+Vout
+Vin
–Vin
–V
N/C
Off/On
+V
+V
N/C
–V
0.50
±0.02
12,7
±0,5
0.235
±0.015
5,97
±0,38
0.800
20,32
0.525
13,34
style 2 & 3
baseplates only
(4X)***
0.01
.275
6,99
0.12* 0.20**
3,1 5,08
0.49
12,4
1.27
32,3
0.09
2,3
0.10
X 45˚
2,5
CHAMFER
1
2
3
4
0.350
±0.015
8,89
±0,38
2.000
50,80
0.27
(2X)
6,9
ALUMINUM
BASEPLATE
2.28
57,9
0.65
16,5
1.30
33,0
FULL R (6X)
0.13
(6X)
3,3
7
6
5
0.080
DIA. (7X)
2,03
Slotted (Style 1)
or
Threaded (Style 2)
4-40 UNC-2B (6X)
0.21
5,2
(REF)
0.400
10,16
1.04
26,4
1.45
36,8
0.43
10,9
0.54
7X)
13,7
0.62
(7X)
15,7
0.06
R
(3X)
1,5
Pin Style 1
(Short )
1.45
36,8
(REF.)
Use a
4-40 Screw (6x)
Torque to:
5 in-lbs
0.57 N-m
Pin Style 2
(Long)
or
Thru Hole (Style 3)
#30 Drill Thru (6X)
(0.1285)
* Style 1 baseplate only
** Style 2 & 3 baseplates
*** Reserved for Vicor accessories
PCB Mounting Specifications
ALL MARKINGS
THIS SURFACE
PCB THICKNESS
0.062
±0.010
1,57
±0,25
0.800*
20,32
0.525*
13,34
0.275*
6,99
0.170*
4,32
PLATED
THRU HOLE
DIA
0.133
3,38
1
2
3
4
INBOARD
SOLDER
MOUNT
PIN STYLE 1
0.094
±0.003
2,39
±0,08
ONBOARD
SOLDER
MOUNT
PIN STYLE 2
0.094
±0.003
2,39
±0,08
(7X)
ALUMINUM
BASEPLATE
PINS: TIN/LEAD
HOT SOLDER DIPPED
2.000*
50,80
1.734**
44,04
Unless otherwise specified,
dimensions are in inches
mm
Decimals
Tol.
±0.01
±0.25
±1°
±0.005
±0.127
Angles
7
0.06
(4X)
1,5
6
5
0.XX
0.XXX
R
.400*
10,16
1.140**
28,96
*DENOTES TOL =
±0.003
±0,08
**PCB WINDOW
0.43
10,9
0.53
13,5
