IC1HA-40RD-1.27SFA Overview

68 CONTACT(S), FEMALE, RIGHT ANGLE PCMCIA CONNECTOR, SURFACE MOUNT, SOCKET

Preview

Download Datasheet

View All

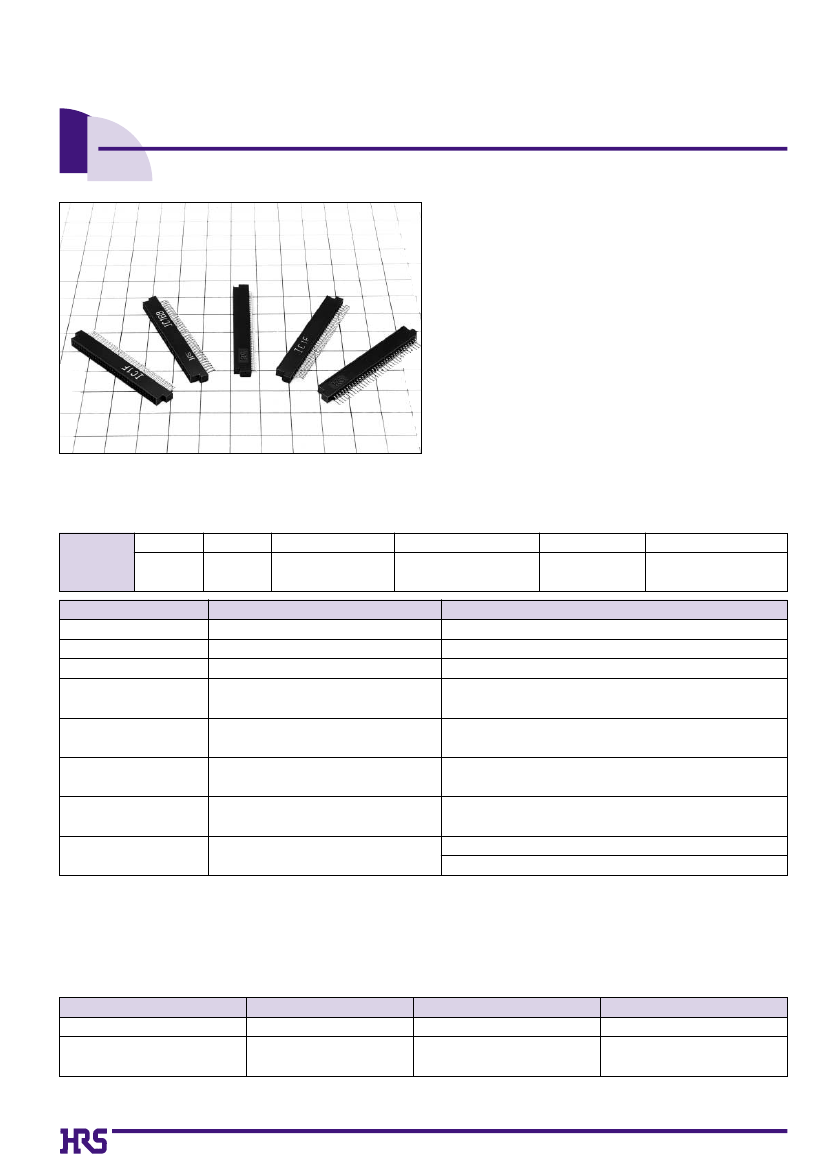

PC Card Socket Connector Complies with PC card Standard

IC1 Series

sFeatures

1. Compliant with PC Card Standards

Polarized entry prevents wrong insertion into a

corresponding connector. And sequential

contact engagement prevents electorostatic

discharge,avoiding possible damage to sensitive

board circuits.

2. Suited to Automatic Mounting

Packaged for a board placement with aoutmated

equipment.

3. Lead Offset

Available with several board termination

levels,to allow use of different height board

components.

In relation to the center line of connector,-

0.2mm,+0.3mm,+0.55mm,+0.9mm and

terminations on board center are available.

-55ç to +85ç (Note 1)

95% R.H. max.

(No condensation)

Specification

1000M ohms min.

No flashover or insulation breakdown.

40 m

ohms

max. (initial value) (Note 3)

No electrical discontinuity of 100ns or

500 V DC

500 V AC / 1 minute

1 mA

Frequency: 10 to 2000 Hz, single amplitude of 1.52 mm or

acceleration of 147 m/s

(peak), 4 hours in each of the 3 directions.

96 hours at temperature of 40ç and humidity of 90% to 95%

-55ç, 30 min

/15

to 30ç, within 5 min/85ç, 30 min

/15

to 35ç, within 5 min, for 5 cycles

10000 cycles at 400 to 600 cycles per hour

Reflow: At the recommended temperature profile

Manual soldering: 300ç for 3 seconds

Storage temperature

Storage humidity

Conditions

-40ç to +70ç (Note 2)

40% to 70% (Note 2)

sProduct

Specifications

Current rating 0.5 A

Ratings

Voltage rating 125 V AC

Item

1. Insulation resistance

2. Withstanding voltage

3. Contact resistance

4. Vibration

Operating temperature

Operating humidity

Humidity (Steady state)

Insulation resistance: 100 M

ohms

min.

Temperature cycle

Durability

(Insertion/withdrawal)

8. Resistance to

soldering heat

No damage, cracks, or parts looseness.

Change of contact resistance from the

start should be 20 m

ohms

max.

No deformation of components

affecting performance.

Note 1: Includes temperature rise caused by current flow.

Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature

Range and Humidity range covers non- conducting condition of installed connectors in storage, shipment or during

transportation.

sMaterials

Part

Insulator

Contact

Material

PPS

IC1K,IC1HA:Phosphor bronze

Others:Beryllium copper

Finish

Color : Black

Contact Area : gold plating

Lead Area

: solder plating

Remarks

UL94V-0

-----------------

A52
