DSEC-50-01-L-07.0-2-RA-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> DSEC-50-01-L-07.0-2-RA-TR

DSEC-50-01-L-07.0-2-RA-TR: DescriptionCard Edge Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size855KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric Compare View All

DSEC-50-01-L-07.0-2-RA-TR Overview

Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT

DSEC-50-01-L-07.0-2-RA-TR Parametric

Parameter Name	Attribute value
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	3 weeks
Other features	OTHER STACKING CONNECTOR: 100 CONTACTS; TWO ROWS, EDGE RATE CONTACT
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	DSEC
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
Base Number Matches	1

Preview

Download Datasheet

View All

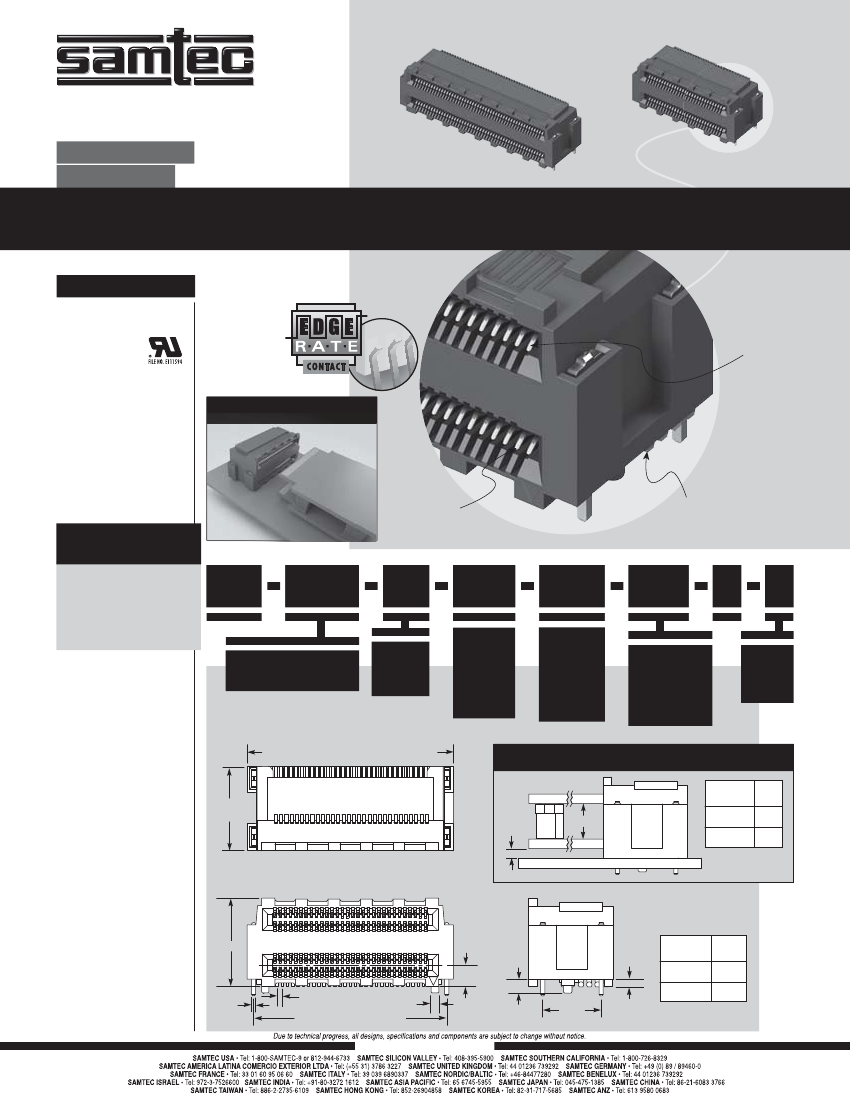

F-211-1 SUPPLEMENT

DSEC–30–01–L–05.5–2–RA–TR

(0,80mm) .0315"

DSEC SERIES

DSEC–50–01–L–05.5–2–RA–TR

DUAL STACK EDGE CARD SOCKET

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?DSEC

Insulator Material:

Black Liquid

Crystal Polymer

Contact:

Copper Alloy

Plating:

Au or Sn over 50µ"

(1,27µm) Ni

Current Rating:

0.5A @ 95°C

Operating Temp:

-55°C to +125°C

Card Insertion Depth:

(5,94mm) .234" nominal

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

Mates with:

1,60mm (.062") thick cards

™

Rugged

Edge Rate

™

contacts

designed for

Signal Integrity

APPLICATION

ALSO

AVAILABLE

• Tin-Lead Solder Charge

• Other card spacings

• Single card elevated

• Other plating options

Call Samtec.

Accepts two individual cards for low

proﬁle stack or “Dual Stack” card set

with industry standard 7mm board spacing

Solder charged

terminations for easy

board processing

DSEC

NO. OF

POSITIONS

LEAD

STYLE

PLATING

OPTION

BOARD

SPACING

SOLDER

TYPE

–30, –40, –50

(Per Row)

–01

= (1,60mm)

.062"

thick card

–L

= 10µ"

(0,25µm)

Gold on

contact,

Matte Tin

on tail

–05.5

= (5,5mm)

.217"

–2

= Lead-Free

Tin Alloy

96.5% Sn/

3% Ag/.5% Cu

Solder Crimp

– TR

= Tape

& Reel

Packaging

–07.0

= (7mm)

.276"

No. of Positions x (0,80) .0315 + (7,75) .305

TYPICAL APPLICATION

BOARD

SPACING

(1,65)

.065"

(5,50)

.217

(7,00)

.276

(12,96)

.510

–05.5

–07.0

(3,30)

.130

(1,15)

.045

BOARD

SPACING

–05.5

–07.0

(13,60)

.535

(15,10)

.594

Note:

Some lengths, styles

and options are non-standard,

non-returnable.

(0,64)

.025

(1,32)

.052

No. of Positions x

DIA

(0,80) .0315 + (5,72) .225

(0,80) .0315

(2,15)

.085

(9,00)

.354

WWW.SAMTEC.COM

DSEC-50-01-L-07.0-2-RA-TR Related Products

	DSEC-50-01-L-07.0-2-RA-TR	DSEC-40-01-L-05.5-2-RA-TR	DSEC-30-01-L-05.5-2-RA-TR	DSEC-40-01-L-07.0-2-RA-TR	DSEC-50-01-L-05.5-2-RA-TR	DSEC-30-01-L-07.0-2-RA-TR
Description	Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Card Edge Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Card Edge Connector, 100 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT	Card Edge Connector, 60 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Socket, ROHS COMPLIANT
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Factory Lead Time	3 weeks	3 weeks	3 weeks	3 weeks	3 weeks	3 weeks
Other features	OTHER STACKING CONNECTOR: 100 CONTACTS; TWO ROWS, EDGE RATE CONTACT	OTHER STACKING CONNECTOR: 80 CONTACTS; TWO ROWS, EDGE RATE CONTACT	OTHER STACKING CONNECTOR: 60 CONTACTS; TWO ROWS, EDGE RATE CONTACT	OTHER STACKING CONNECTOR: 80 CONTACTS; TWO ROWS, EDGE RATE CONTACT	OTHER STACKING CONNECTOR: 100 CONTACTS; TWO ROWS, EDGE RATE CONTACT	OTHER STACKING CONNECTOR: 60 CONTACTS; TWO ROWS, EDGE RATE CONTACT
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	DSEC	DSEC	DSEC	DSEC	DSEC	DSEC
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	100	80	60	80	100	60
Base Number Matches	1	1	1	1	1	1
