380-90-1-16-00-001000 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 380-90-1-16-00-001000

Preview

380-90-1-16-00-001000: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug,; CategoryThe connector The connector; File Size653KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

380-90-1-16-00-001000 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Plug,

380-90-1-16-00-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (200) OVER NICKEL (150)
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	380
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

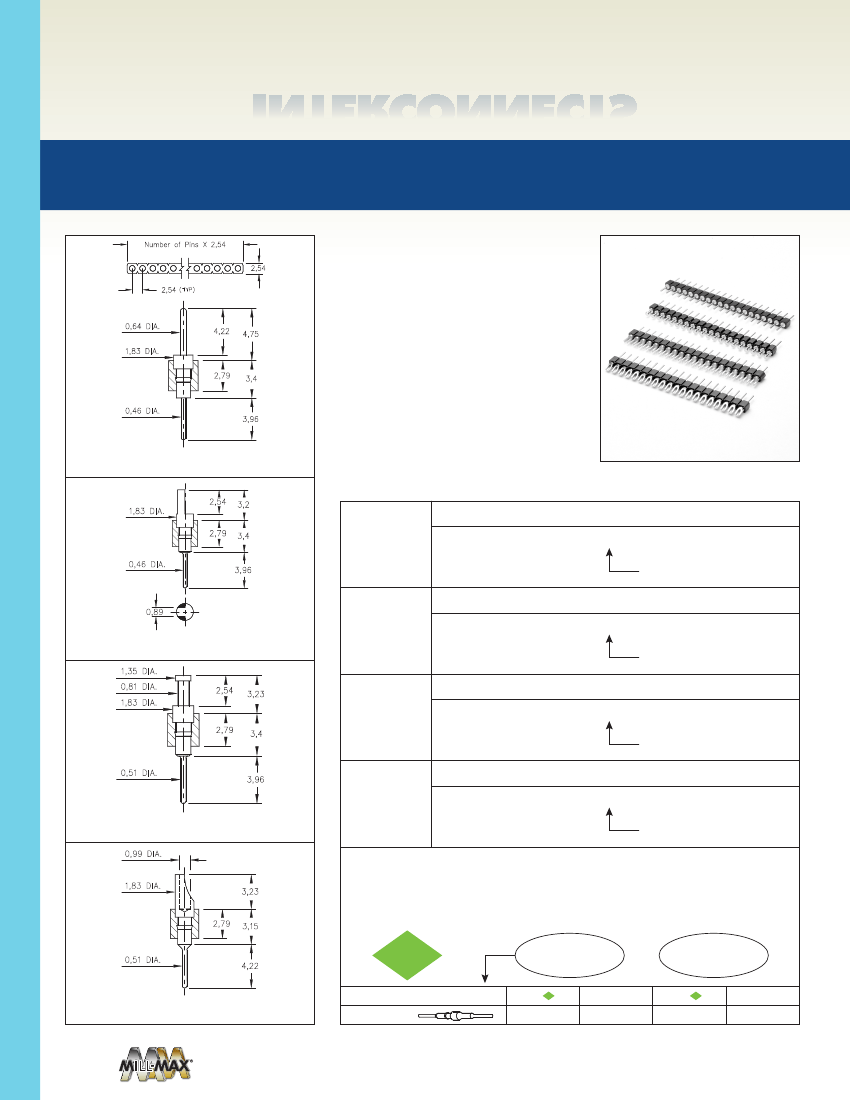

SERIES 350, 360, 370, 380 • 2,54 GRID SOLDER TAIL •

SINGLE ROW STRIPS

Number of Pins X 2,54

2,54

•

Series 350, 360, 370 & 380 single row header

strips come in various styles (pin, slotted,

head, turret and solder cup) with pluggable

solder tails

350...001 uses pin #0290

360...001 uses pin #0282

370...001 uses pin #0700

380...001 uses pin #8000

See pages 215 and 216 for details

0,64 DIA.

1,83 DIA.

4,22

4,75

2,79

3,4

0,46 DIA.

3,96

•

Insulators are high temperature thermoplastic,

suitable for all soldering operations

FIG. 1

1,83 DIA.

2,54

3,2

ORDERING INFORMATION

Series 350...001

0,64 / 0,46 Dia. Solder Tails

350-XX-1_ _-00-001000

Specify number of pins

01-64

3,4

2,79

FIG. 1

Series 360...001

0,46 DIA.

3,96

0,89

Slotted Head / Solder Tail

360-XX-1_ _-00-001000

FIG. 2

1,35 DIA.

0,81 DIA.

1,83 DIA.

2,79

2,54

3,23

FIG. 2

Series 370...001

Specify number of pins

01-64

Turret / Solder Tail

370-XX-1_ _-00-001000

FIG. 3

3,4

Specify number of pins

01-64

0,51 DIA.

3,96

Series 380...001

Solder Cup / Solder Tail

380-XX-1_ _-00-001000

FIG. 4

FIG. 3

0,99 DIA.

Specify number of pins

01-64

PAGE 84 | INTERCONNECTS

1,83 DIA.

3,23

2,79

3,15

0,51 DIA.

4,22

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

10

0,25μm

Au

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

90

5,08μm

Sn/Pb

40

5,08μm

Sn

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
