54LS14/B2A

Description
Inverter, LS Series, 6-Func, 1-Input, TTL, CQCC20
Categorylogic    logic
File Size141KB,4 Pages
ManufacturerYAGEO
Websitehttp://www.yageo.com/
Download Datasheet Parametric Compare View All

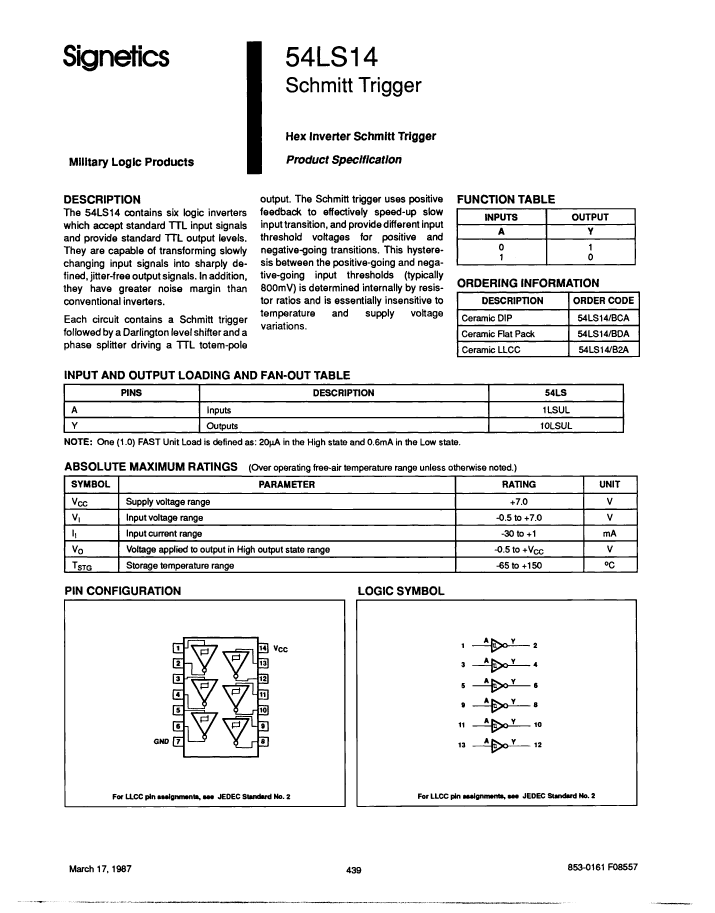

54LS14/B2A Overview

Inverter, LS Series, 6-Func, 1-Input, TTL, CQCC20

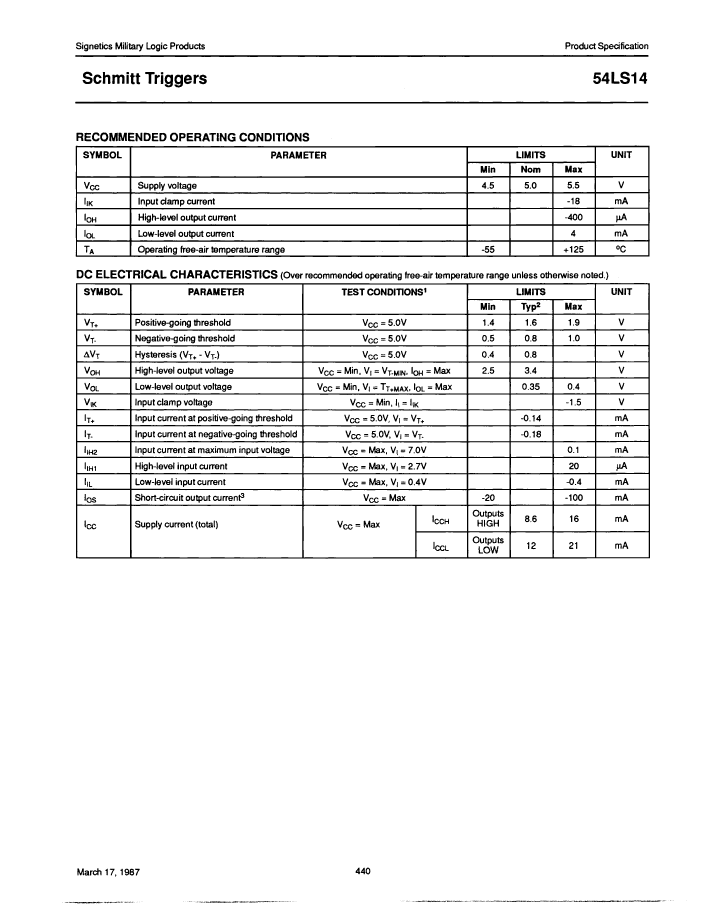

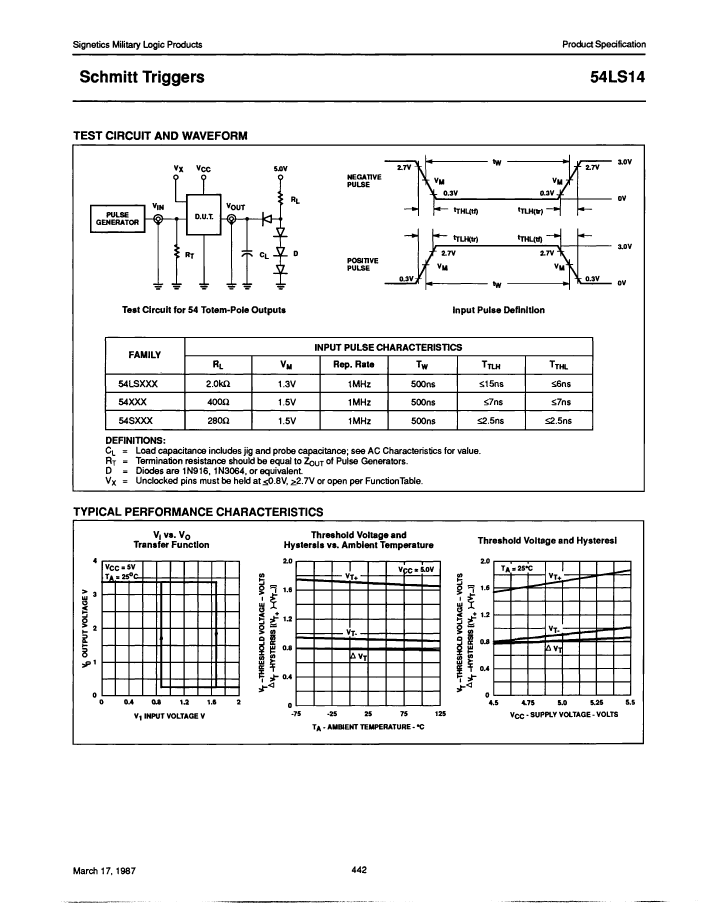

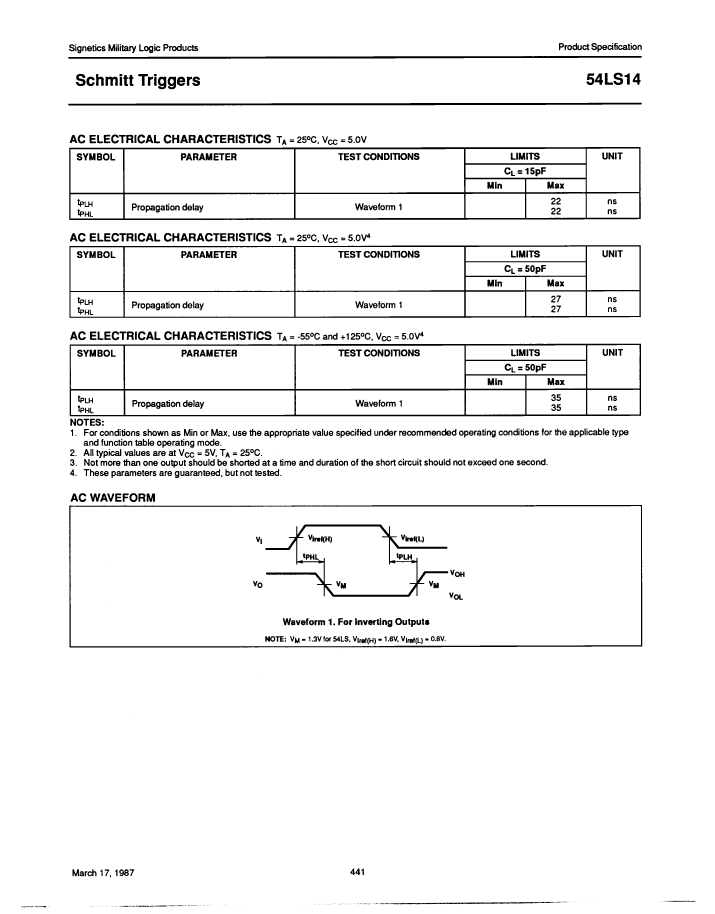

54LS14/B2A Parametric

Parameter NameAttribute value
package instruction,
Reach Compliance Codeunknown
seriesLS
JESD-30 codeS-CQCC-N20
Load capacitance (CL)50 pF
Logic integrated circuit typeINVERTER
Number of functions6
Number of entries1
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeSQUARE
Package formCHIP CARRIER
Maximum supply current (ICC)21 mA
propagation delay (tpd)35 ns
Certification statusNot Qualified
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal formNO LEAD
Terminal locationQUAD
Base Number Matches1

54LS14/B2A Related Products

54LS14/B2A 54LS14/BDA 54LS14/BCA
Description Inverter, LS Series, 6-Func, 1-Input, TTL, CQCC20 Inverter, LS Series, 6-Func, 1-Input, TTL, CDFP14 Inverter, LS Series, 6-Func, 1-Input, TTL, CDIP14
Reach Compliance Code unknown unknown unknown
series LS LS LS
JESD-30 code S-CQCC-N20 R-CDFP-F14 R-CDIP-T14
Load capacitance (CL) 50 pF 50 pF 50 pF
Logic integrated circuit type INVERTER INVERTER INVERTER
Number of functions 6 6 6
Number of entries 1 1 1
Number of terminals 20 14 14
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package body material CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED CERAMIC, METAL-SEALED COFIRED
Package shape SQUARE RECTANGULAR RECTANGULAR
Package form CHIP CARRIER FLATPACK IN-LINE
Maximum supply current (ICC) 21 mA 21 mA 21 mA
propagation delay (tpd) 35 ns 35 ns 35 ns
Certification status Not Qualified Not Qualified Not Qualified
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES YES NO
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal form NO LEAD FLAT THROUGH-HOLE
Terminal location QUAD DUAL DUAL
Base Number Matches 1 1 1
