GM71C18163CLT-5 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> GM71C18163CLT-5

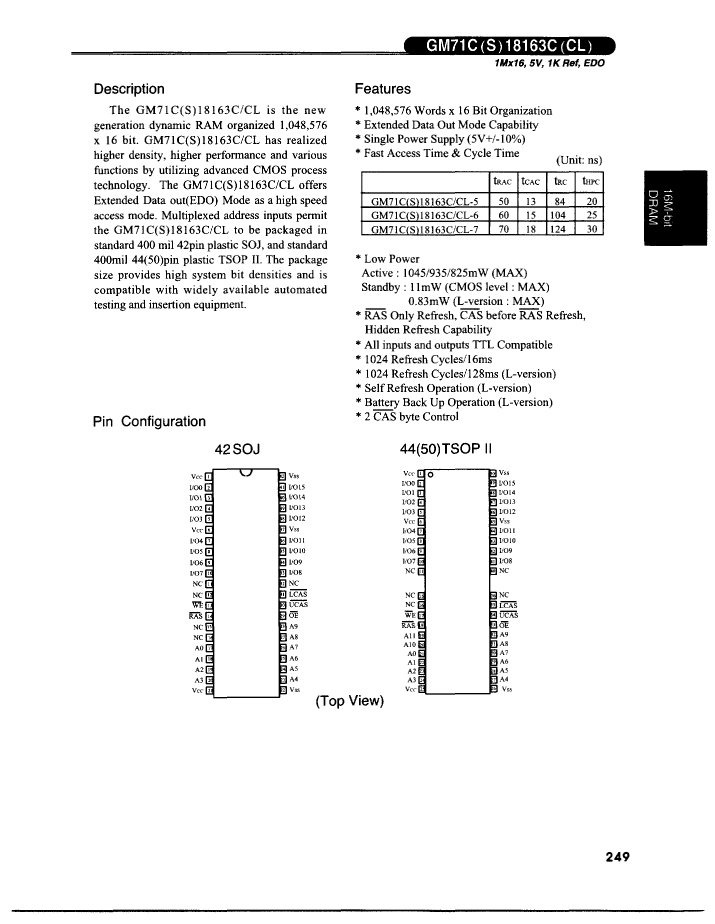

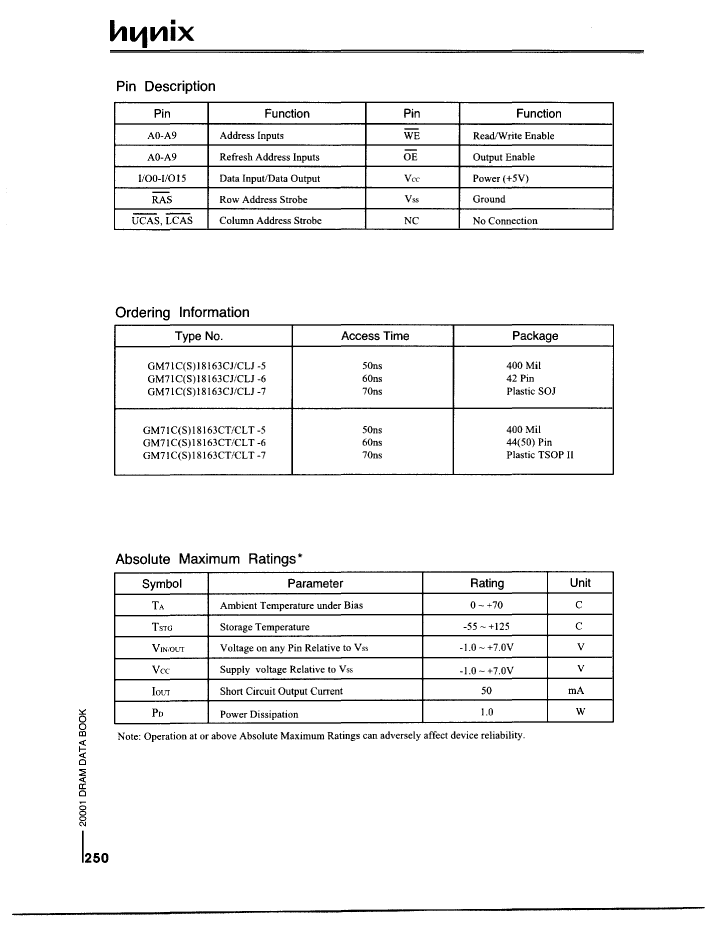

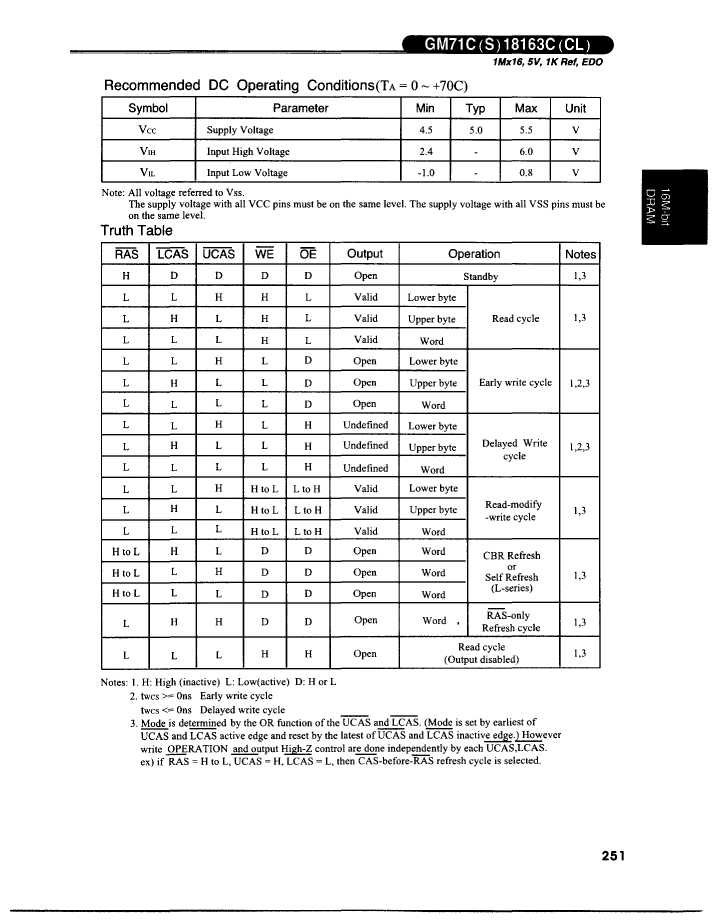

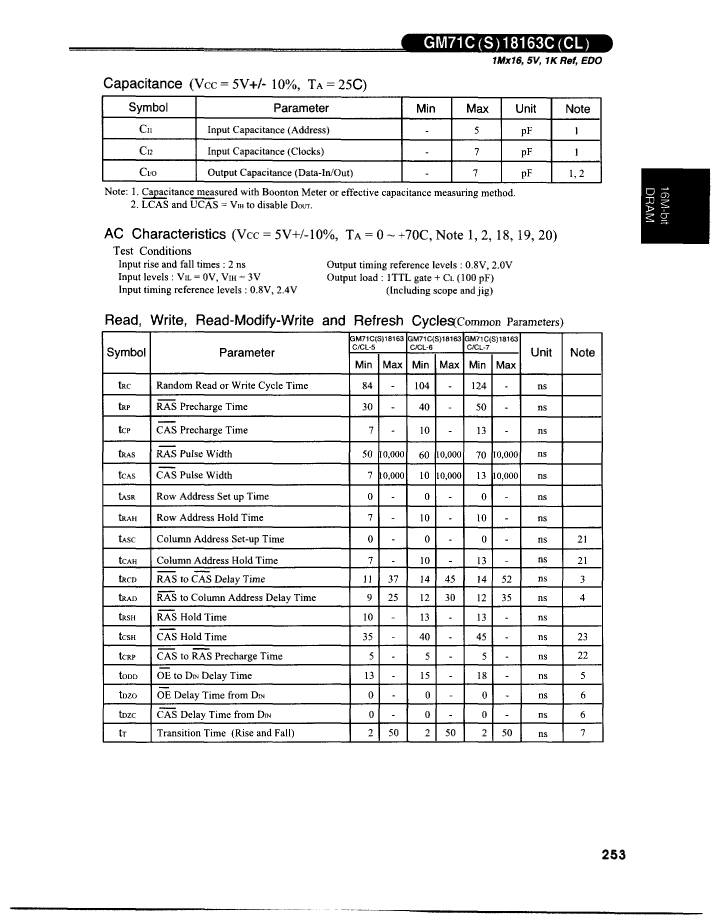

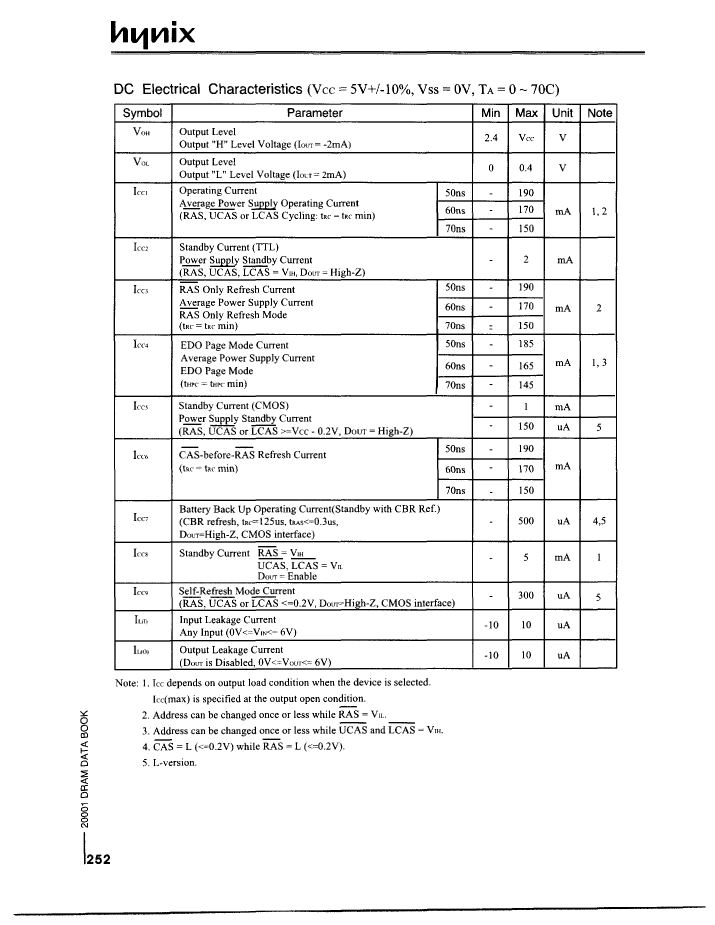

Preview

GM71C18163CLT-5: DescriptionEDO DRAM, 1MX16, 50ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-50/44; Categorystorage storage; File Size350KB，11 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

GM71C18163CLT-5 Overview

EDO DRAM, 1MX16, 50ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-50/44

GM71C18163CLT-5 Parametric

Parameter Name	Attribute value
Maker	SK Hynix
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	50
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	50 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/BATTERY BACKUP REFRESH
JESD-30 code	R-PDSO-G44
JESD-609 code	e6
length	20.95 mm
memory density	16777216 bit
Memory IC Type	EDO DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	44
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX16
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN BISMUTH
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	10.16 mm
Base Number Matches	1

Preview

Download Datasheet

View All

GM71C18163CLT-5 Related Products

	GM71C18163CLT-5	GM71C18163CT-6DR	GM71C18163CLT-6	GM71C18163CLJ-6
Description	EDO DRAM, 1MX16, 50ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-50/44	EDO DRAM, 1MX16, 60ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-50/44	EDO DRAM, 1MX16, 60ns, CMOS, PDSO44, 0.400 INCH, PLASTIC, TSOP2-50/44	EDO DRAM, 1MX16, 60ns, CMOS, PDSO42, 0.400 INCH, PLASTIC, SOJ-42
Maker	SK Hynix	SK Hynix	SK Hynix	SK Hynix
package instruction	TSOP2,	TSOP2,	TSOP2,	SOJ,
Reach Compliance Code	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	50 ns	60 ns	60 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN/BATTERY BACKUP REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/BATTERY BACKUP REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/BATTERY BACKUP REFRESH
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-J42
length	20.95 mm	20.95 mm	20.95 mm	27.06 mm
memory density	16777216 bit	16777216 bit	16777216 bit	16777216 bit
Memory IC Type	EDO DRAM	EDO DRAM	EDO DRAM	EDO DRAM
memory width	16	16	16	16
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	44	44	44	42
word count	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	1MX16	1MX16	1MX16	1MX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	TSOP2	TSOP2	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Maximum seat height	1.2 mm	1.2 mm	1.2 mm	3.76 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	J BEND
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm
Certification status	Not Qualified	-	Not Qualified	Not Qualified
