ICL7662C/D: DescriptionSwitched Capacitor Converter, 0.02A, 10kHz Switching Freq-Max, CMOS, DIE-8; CategoryPower/power management The power supply circuit; File Size984KB，8 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

ICL7662C/D Overview

Switched Capacitor Converter, 0.02A, 10kHz Switching Freq-Max, CMOS, DIE-8

ICL7662C/D Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1453660195
Parts packaging code	DIE
package instruction	DIE-8
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
YTEOL	0
Analog Integrated Circuits - Other Types	SWITCHED CAPACITOR CONVERTER
Maximum input voltage	20 V
Minimum input voltage	4.5 V
Nominal input voltage	15 V
JESD-30 code	R-XUUC-N8
JESD-609 code	e0
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output current	0.02 A
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum supply current (Isup)	0.85 mA
surface mount	YES
Switch configuration	DOUBLER INVERTER
Maximum switching frequency	10 kHz
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER

Preview

Download Datasheet

View All

ICL7662/Si7661

LE

AVAILAB

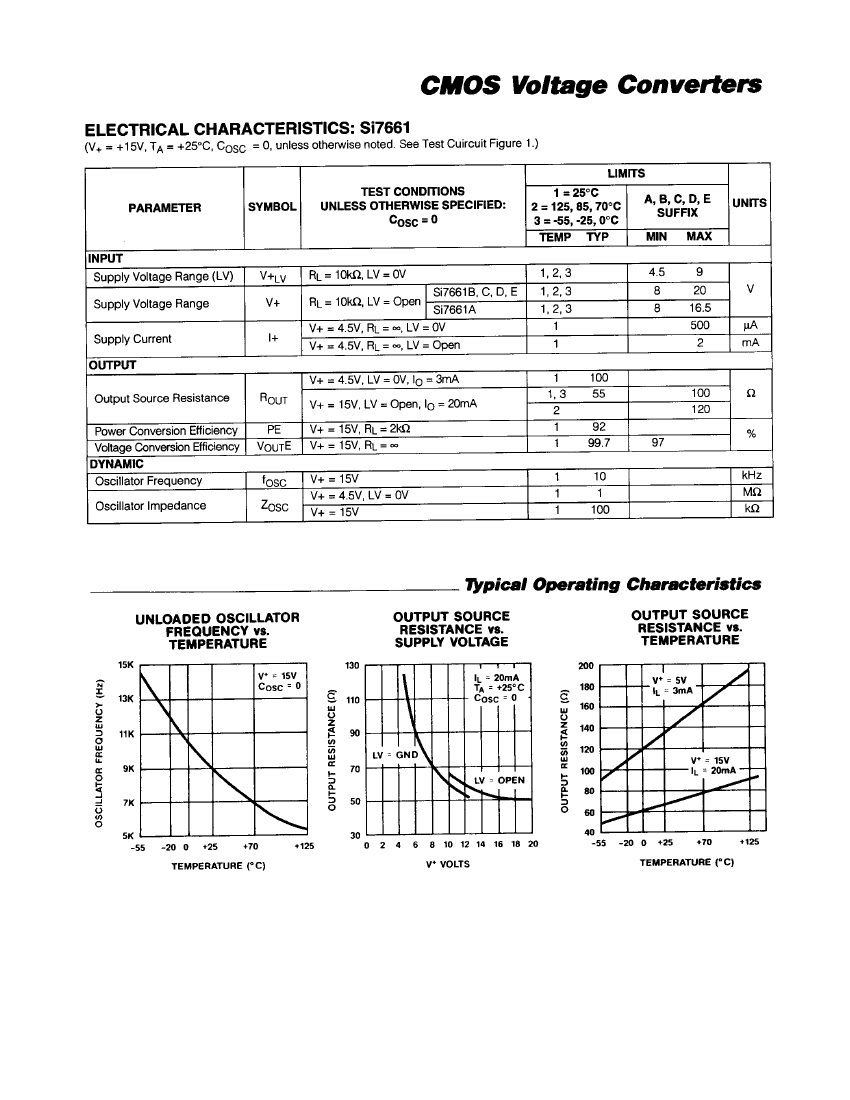

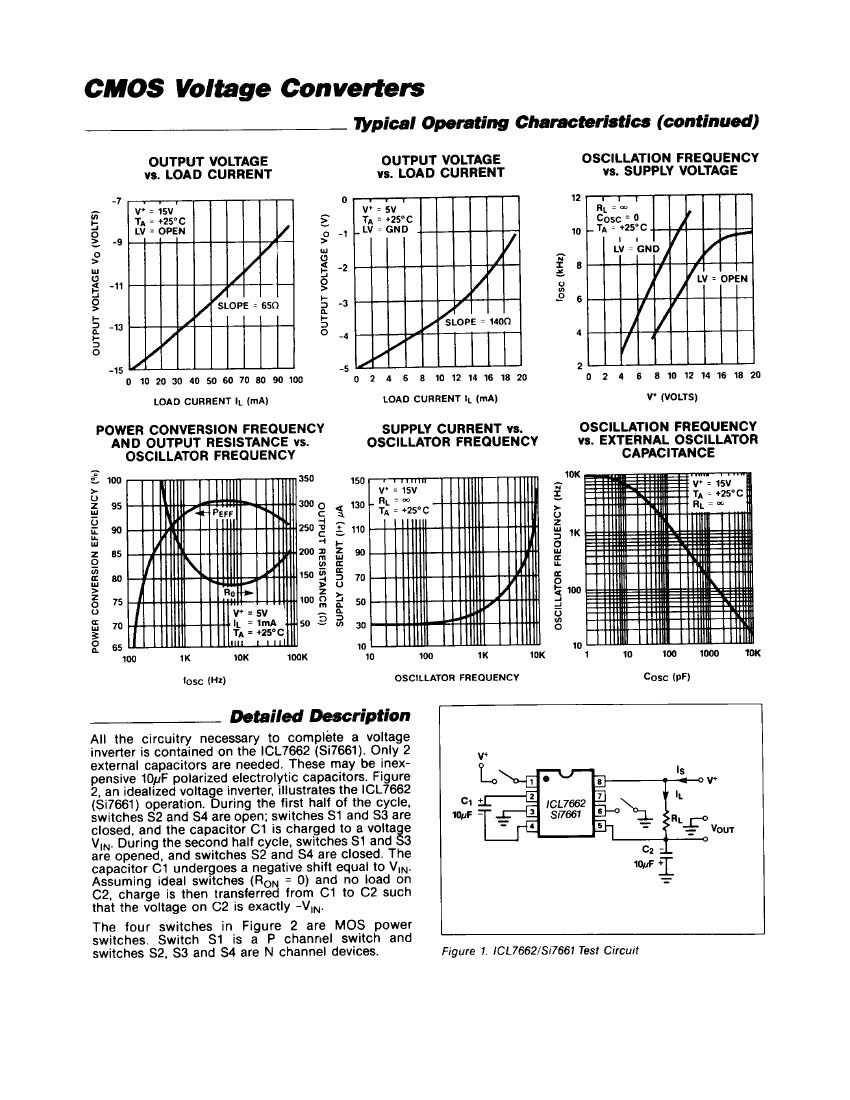

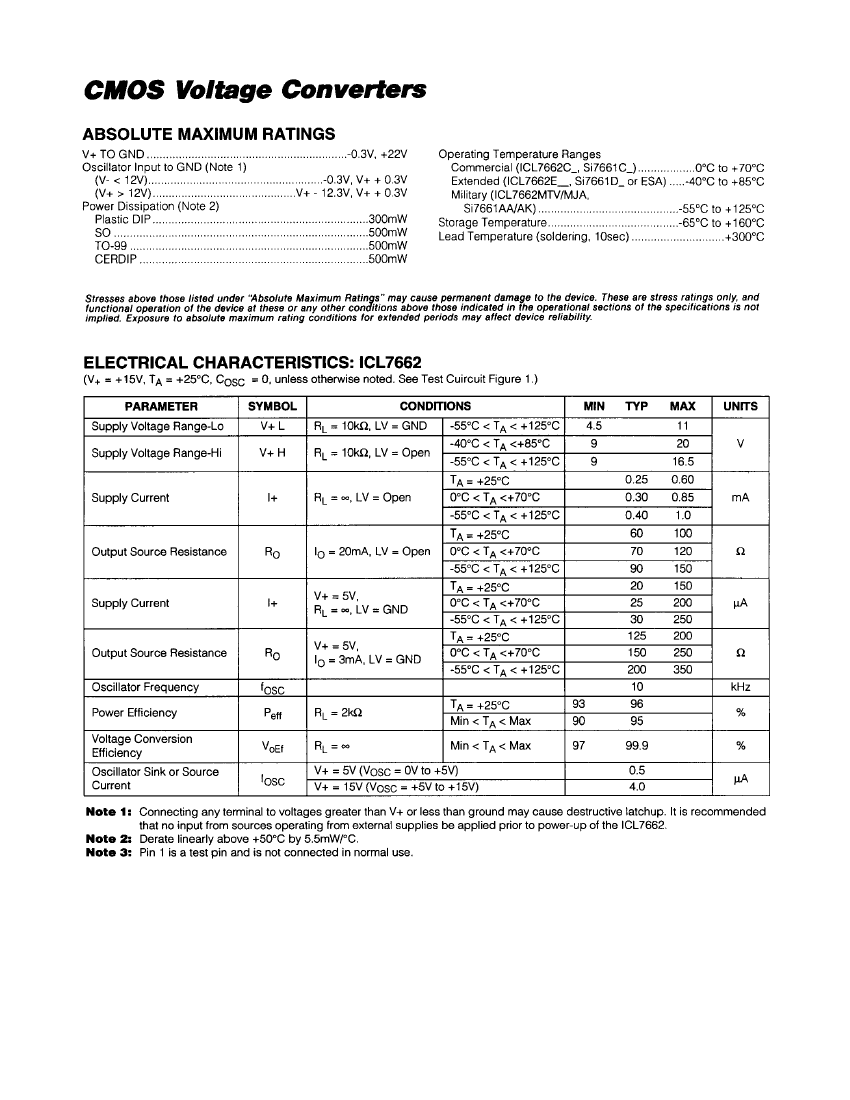

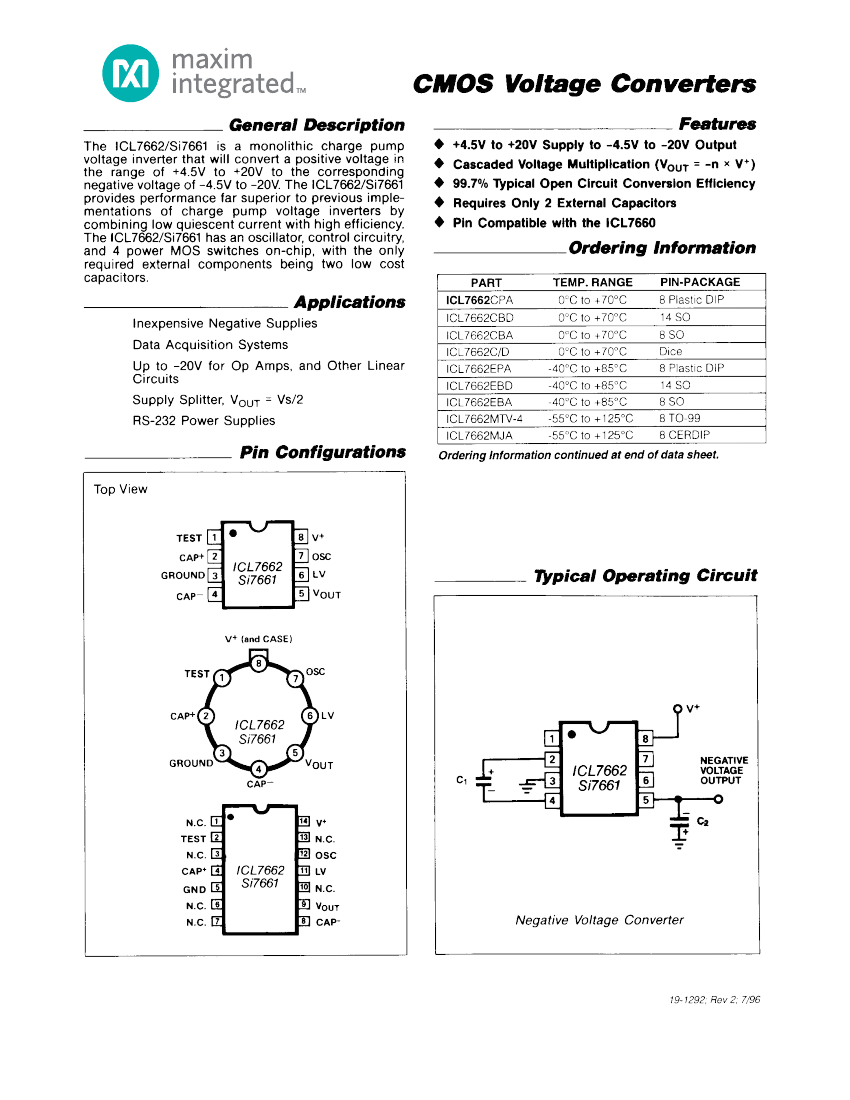

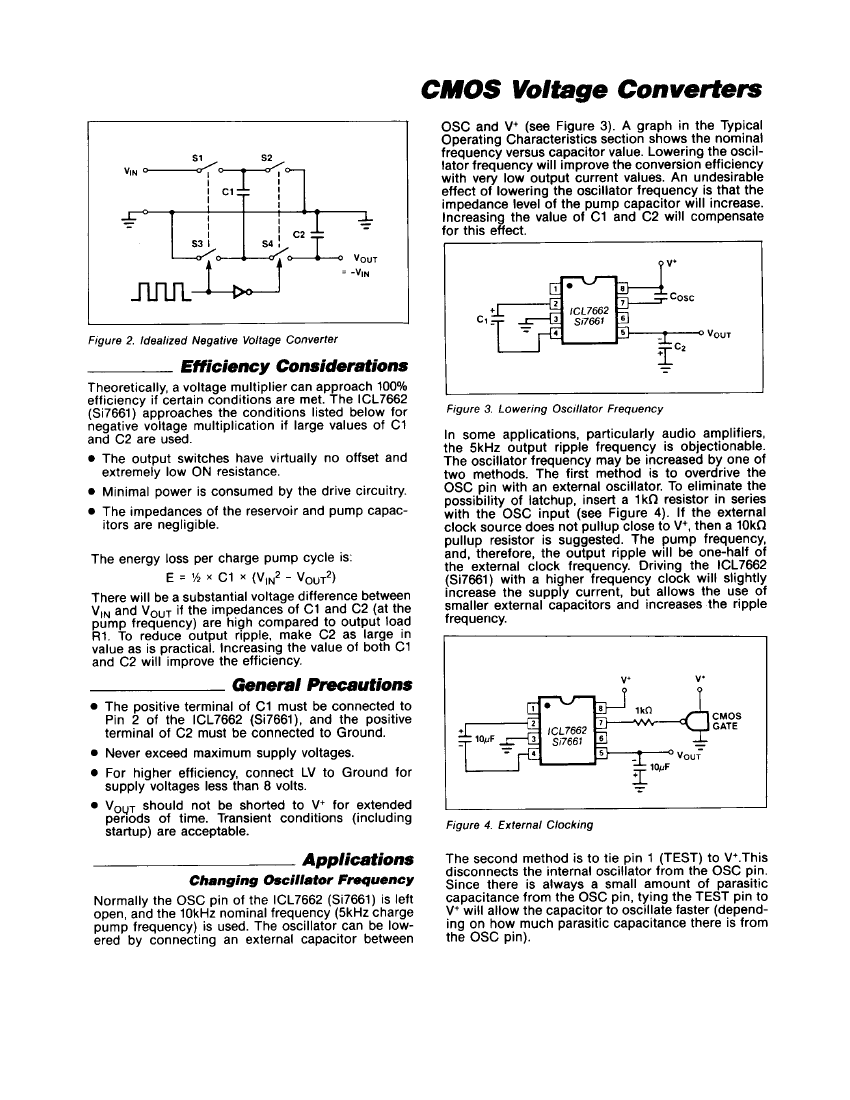

Functional Diagrams
