Z110-1204-109-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> Z110-1204-109-Z

Z110-1204-109-Z: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size236KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

Z110-1204-109-Z Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

Z110-1204-109-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.211 inch
subject depth	0.289 inch
body length	0.418 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	Z11
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.112 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	12
Base Number Matches	1

Preview

Download Datasheet

View All

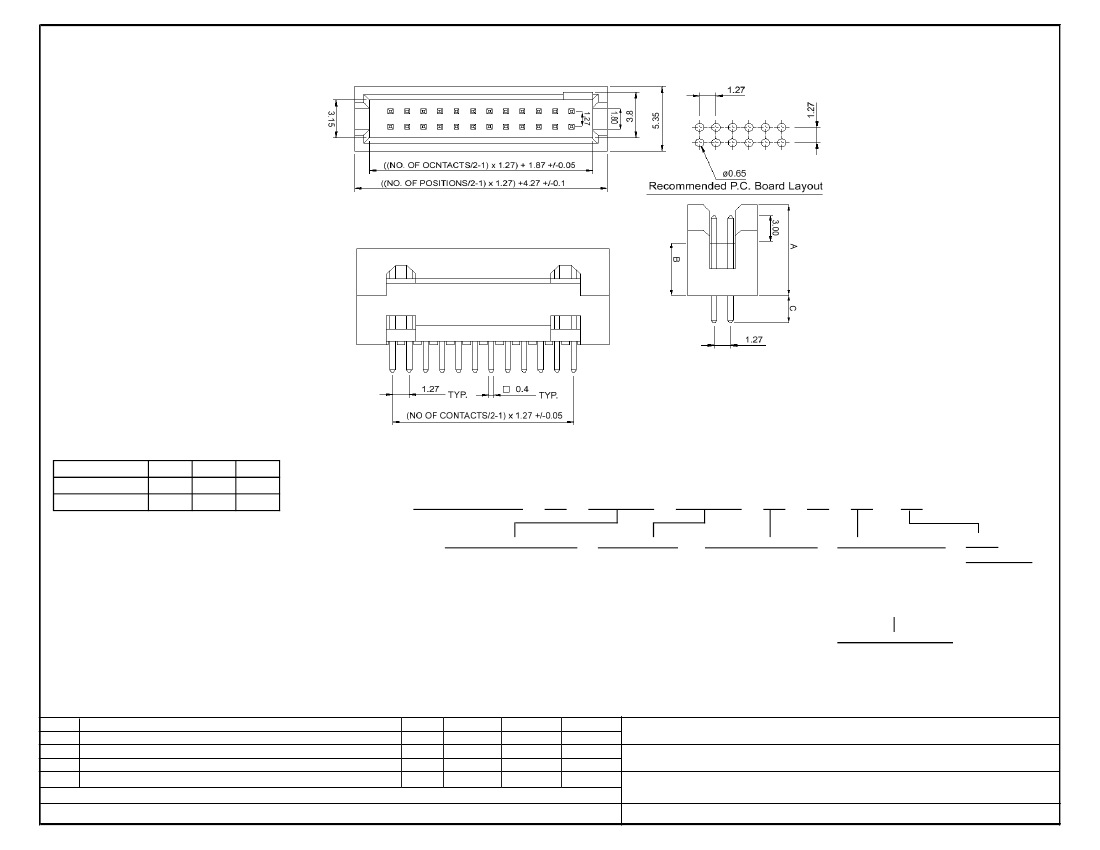

TYPE 04

DIMENSION(mm)

DIMENSION NO.

7.35

17.60

3.35

13.36

2.85

2.50

HOW TO ORDER:

RoHS

COMPLIANT

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE: < 30m

Ω

INSULATION RESISTANCE: 5000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 600VAC For 1 Min.

OPERATING TEMPERATURE: -55ºC to +105ºC

NUMBER OF CONTACTS:

10 thru 98 PIN

A0 - 100 PIN

TYPE NUMBER:

SEE TYPE ABOVE

DIMENSION NUMBER:

SEE DIMENSION

NUMBER ABOVE

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au

3 - 10u" GOLD

4 - 15u" GOLD

5 - 30u" GOLD

MATERIAL:

CONTACT: Copper Alloys

INSULATOR: High Temperature Thermoplastic (UL94V-0)

* MATES WITH Z10 SERIES TYPES 01, 02

Rev

Drawn

S.E.

B.S.

Checked

S.M.

Approved

S.M.

Date

4/1/98

7/09/07

SELECTIVE PLATING:

6 - Au CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Issued

Revised for RoHS Compliance

SMP TECHNOLOGY, INC.

STRAIGHT (TH) BOX HEADER, 1.27mm Pitch, SINGLE POLARIZATION w/BASE

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/-

UNIT: mm

SERIES: Z11

Pg: 1
