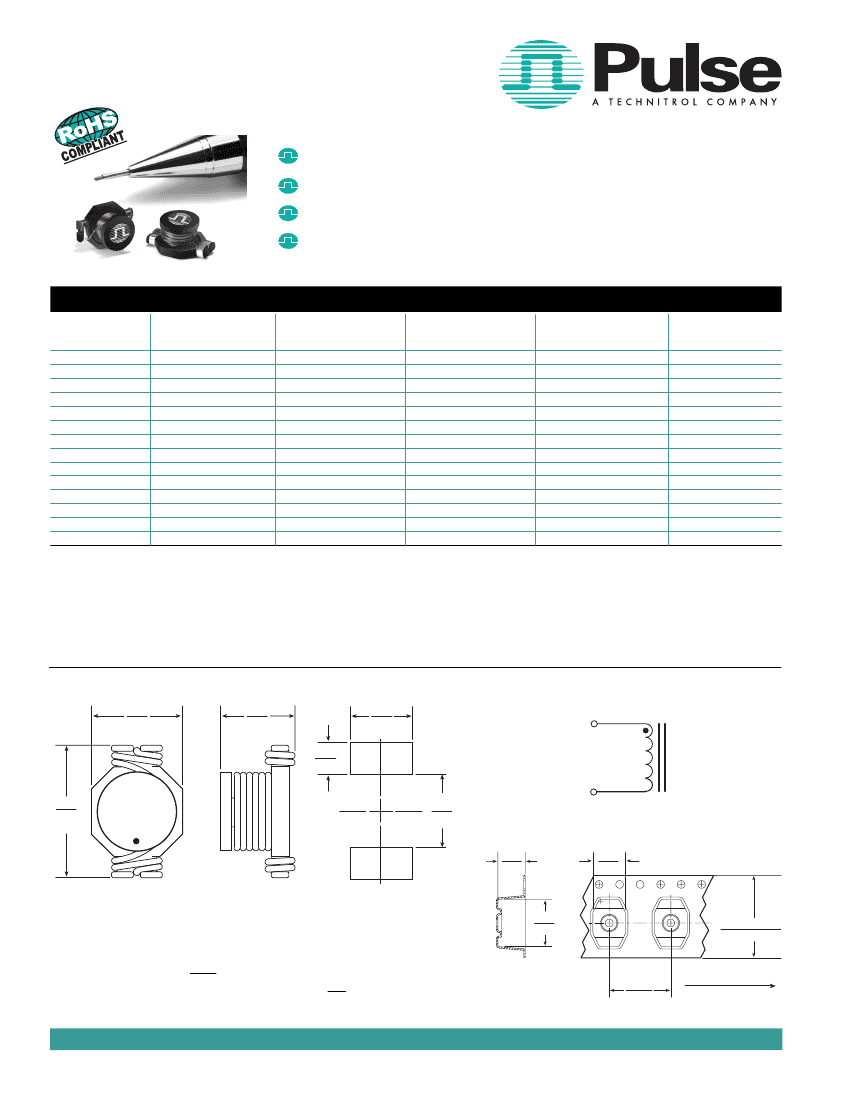

SMT POWER INDUCTORS
Unshielded Drum Core - PA0390NL Series
Height:
5.1mm Max
Footprint:
8.89mm x 6.10mm Max
Current Rating:
up to 6.0A
Inductance Range:
0.6µH to 113µH
Electrical Specifications @ 25°C — Operating Temperature -40°C to +130°C
Part
6,7
Number
PA0390.471NL
PA0390.102NL
PA0390.152NL
PA0390.222NL
PA0390.332NL
PA0390.472NL
PA0390.682NL
PA0390.103NL
PA0390.153NL
PA0390.223NL
PA0390.333NL
PA0390.473NL
PA0390.683NL
PA0390.104NL
Inductance
@ I
PK
A
DC
(µH ± 20%)
0.6
1.2
1.6
2.6
3.8
5.2
6.9
11
16
23
36
48
73
113
Irated
5
(A)
6
4.4
4.2
3.1
2.9
2.2
1.7
1.5
1.2
1
0.82
0.72
0.58
0.47
DCR (MAX)
(mΩ)
9.7
17.7
20
36.3
42.8
54.4
89.7
110.7
174.7
254.1
367
474
732
1109
Saturation Current
(A) @
25°C
7.7
5.3
4.5
3.5
3
2.6
2.2
1.9
1.5
1.2
0.99
0.87
0.67
0.53
Heating Current
(A)
6
4.4
4.2
3.1
2.9
2.2
1.7
1.5
1.2
1
0.82
0.72
0.58
0.47
NOTES:
1. The temperature of the component (ambient plus temperature rise)
must be within the specified operating temperature range.
2. Inductance tested at 100kHz, 250mV
RMS
3. Inductance drop = 10% typical at the Saturation Current.
4.
ΔT
= 40°C rise typical at the Heating Current
5. The rated current is the lower of the saturation or heating current.
6. Optional Tape & Reel packaging can be ordered by adding a "T" suffix to the part number
(i.e. PA0390.102NL becomes PA0390.102NLT). Pulse complies to industry standard tape
and reel specification EIA481.
7. The "NL" suffix indicates an RoHS-compliant part number. Non-NL suffixed parts are not
necessarily RoHS compliant, but are electrically and mechanically equivalent to NL versions.
If a part number does not have the "NL" suffix, but an RoHS compliant version is required,
please contact Pulse for availability.
Mechanical
SUGGESTED PAD LAYOUT
.240
6,10
MAX
.200
5,08
MAX
.065
1,65
.350
8,89
MAX
.160
4,06
Schematic
1
XXX
2
.200
5,08
.210
5,33
.250
6,35
.360
9,14
Weight
. . . . . . . . 0.2 grams
Tape & Reel
. . . . . . 900/reel
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
.630
± .012
16,00
± 0,30
USER DIRECTION
OF FEED
TAPE & REEL
LAYOUT
.472
12,00
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 54643211 / 2
•
China 86 755 33966678
•
Taiwan 886 3 4641811
www.pulseeng.com
12
SPM2007 (11/07)
