STRATUM 3E High Stability
Oven Stabilized Oscillator
OH100 Series
OCXO – OCVCXO
Description
Connor-Winfield’s high stability OH100
series are exceptionally precise frequency
standards, excellent for use in cellular base
32
12 CF
3
00
61 Hz
0- M
93
10 0
0.
74
OH 1
28
25
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
stations, test equipment, Synchronous
Ethernet, VSAT and Stratum 3E applications
These unique OCXOs and OCVCXOs
provide temperature stabilities in the range
of
±10
ppb to
±50
ppb, over the commercial,
extended commercial or the industrial
temperature range. Power requirements are
3W over the commercial temperature range
and 4.5W over the industrial temperature
range. Additionally, excellent aging is
achieved through the use of overtone SC cut
crystals.
The OH100 series is available with
CMOS logic or Sinewave output along
with Electronic Frequency Tuning. These
oscillators provide outstanding phase noise
that varies depending on frequency. Allan
Variance specifications are rated for primary
reference standards. Warm up times are on
the order of 5 minutes to 0.10 ppm of final
frequency.
11
94
Features
• Frequency Range: 5 to 40 MHz
• OCXO - Fixed Frequency
• OCVCXO - Voltage Controlled Frequency
• 3.3 Vdc or 5.0 Vdc Operation
• Available Frequency Stabilities:
±10.0
ppb,
±20
ppb or
±50
ppb
• Available Temperature Ranges:
0 to 70°C, -20 to 70°C, -20 to 75°C,
-40 to 70°C or -40 to 85°C
• Low Phase Noise / Phase Jitter
• Output: CMOS Logic or Sinewave
• Package: 1.0" x 1.0" x 0.500"
• RoHS Compliant / Lead Free
Ordering Information
OH100-
Package
OH100- =
1.0"x1.0"x0.5"
Through Hole
Package
6
Temperature
Range
5 = 0 to 70°C
6 = -40 to 85°C
7 = -20 to 70°C
8 = -40 to 70°C
9 = -20 to 75°C
10
Frequency
Stability
10 = ±10.0 ppb
20 = ±20.0 ppb
50 = ±50.0 ppb
03
Supply Voltage
03 = 3.3 Vdc
05 = 5.0 Vdc
C
Output Type
C = CMOS
S = Sinewave
F
OCXO Type
F = Fixed
Freq.
V = Voltage
Controlled
Freq.
- 010.0M
Output Frequency
Frequency Format
-xxx.xM Min
-xxx.xxxxxxM Max
*Amount of
numbers after the
decimal point.
M = MHz
Bulletin
Page
Revision
Date
Cx205
1 of 4
03
16 Aug 2012
voltage, CMOS square wave output, fixed output frequency OCXO, 10.0 MHz output frequency.
.
OH100-52005CV-010.0M = 1.0" x 1.0" x 0.445" package, 0 to 70°C temperature range, ±20.0 ppb frequency stability, 5.0 Vdc supply
voltage, CMOS square wave output, voltage controlled output frequency, OCVCXO, 10.0 MHz output frequency.
.
OH100-71005SV-010.0M = 1.0" x 1.0" x 0.445" package, -20 to 70°C temperature range, ±10.0 ppb frequency stability, 5.0 Vdc supply
voltage, Sinewave output, voltage controlled output frequency, OCVCXO, 10.0 MHz output frequency.
Example Part Number:
OH100-61003CF-010.0M = 1.0" x 1.0" x 0.445" package, -40 to 85°C temperature range, ±10.0 ppb frequency stability, 3.3 Vdc supply
Specifications subject to change without notice. All dimensions in inches. © Copyright 2010 The Connor-Winfield Corporation
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage - 3.3 Vdc (Vcc)
Supply Voltage - 5.0 Vdc (Vcc)
Control Voltage (Vc)
Minimum
-55
-0.5
-0.5
-0.5
Nominal
-
-
-
-
Maximum
125
4.5
7.0
7.0
Units
°C
Vdc
Vdc
Vdc
Notes
Operating Specifications
Parameter
Center Frequency: (Fo)
5
-
40
Operating Temperature Range:
Temperature Code 5
0
-
70
Temperature Code 6
-40
-
85
Temperature Code 7
-20
-
70
Temperature Code 8
-40
-
70
Temperature Code 9
-20
-
75
Frequency Calibration:
-0.1
-
0.1
Frequency Stability vs. Change in Temperature:
Stability Code 10
-10.0
-
10.0
Stability Code 20
-20.0
-
20.0
Stability Code 50
-50.0
-
50.0
Frequency Stability vs Load
-2.0
-
2.0
Frequency Stability vs Voltage
-2.0
-
2.0
Aging: Daily:
5 MHz to 20 MHz
-1.0
-
1.0
>20 MHz to 40 MHz
-2.0
-
2.0
Aging: First Year:
5 MHz to 20 MHz
-50
-
50
>20 MHz to 40 MHz
-100
-
100
Lifetime Tolerance: (20 Years)
5 MHz to 20 MHz-
-300
-
300
>20 MHz to 40 MHz
-500
-
500
Supply Voltage: (Vcc) (Note: Power supply turn-on ramp time must be > 5 ms to 90% of Vcc.)
Voltage Code 03
3.13
3.30
3.47
Voltage Code 05
4.75
5.00
5.25
Power Consumption: Turn-On
0 to 70°C Models
-
-
3.00
-20 to 70°C Models
-
-
3.20
-20 to 75°C Models
-
-
3.30
-40 to 85°C Models
-
-
3.80
Power Consumption: Steady State @ 25°C
0 to 70°C Models
-
-
1.10
-20 to 70°C Models
-
-
1.15
-20 to 75°C Models
-
-
1.20
-40 to 85°C Models
-
-
1.50
Phase Jitter: (BW: 10 Hz to Fo/2)
Models Fo: 5 MHz to 20 MHz
-
-
1.0
Models Fo: >20 MHz to 40 MHz
-
-
2.0
Short Term Allan Deviation (1s)
-
1.0E-11
-
Start-Up Time:
-
-
500
Warm Up Time @ 25°C:
-
-
5
Notes:
1. Referenced to the frequency measured
@ 25°C.
Minimum
Nominal
Maximum
Units
MHz
°C
°C
°C
°C
°C
ppm
ppb
ppb
ppb
ppb
ppb
ppb/day
ppb/day
ppb
ppb
ppb
ppb
Vdc
Vdc
W
W
W
W
W
W
W
W
ps RMS
ps RMS
RMS
ms
minutes
Notes
@ 25°C
1
1
1
±5%
±5%
2
2
3
3
4
4
4
4
4
4
4
4
5
2. t time of shipment after 48 hours of operation.
A
3. Inclusive of calibration, operating temperature, supply voltage change, load change and 20 years aging.
4. Measured with Vcc = Nominal, in calm air.
5. Measured @ 25°C, within ±100 ppb, referenced one hour after turn-on.
Bulletin
Page
Revision
Date
Cx205
2 of 4
03
16 Aug 2012
Specifications subject to change without notice. All dimensions in inches. © Copyright 2010 The Connor-Winfield Corporation
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Phase Noise Characteristics
Parameter
SSB Phase Noise
@ 1Hz offset
@ 10Hz offset
@ 100Hz offset
@ 1KHz offset
@ 10KHz offset
@ 100KHz offset
Typical Phase Noise for OH100-series with CMOS Output
5 - 12 MHz
-85
-115
-140
-145
-150
-150
>12- 20 MHz
-80
-110
-135
-140
-150
-150
>20 - 30 MHz
-70
-100
-125
-140
-150
-150
>30 - 40 MHz
-65
-95
-120
-140
-150
-150
Units
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Notes
OCVCXO Input Characteristics (OCXO Type Code V)
Control Voltage Range:
3.3 Vdc Models
5.0 Vdc Models
Frequency Pullability:
Input Impedance
Parameter
Minimum
0.30
0.50
±0.4
100K
Nominal
1.65
2.50
-
-
Maximum
3.00
4.50
-
-
Units
V
V
ppm
Ohms
Notes
Vcc = 3.3 Vdc
Vcc = 5.0 Vdc
CMOS Output Characteristics (Output Code C)
Parameter
Load
Output Voltage:
3.3 Vdc Models
Minimum
-
3.0
-
4.7
-
45
-
-
Nominal
15
-
-
-
-
50
-
-
Maximum
-
-
0.4
-
0.4
55
6
-80
Units
pF
V
V
%
ns
dBc
Notes
High (Voh)
Low (Vol)
5.0 Vdc Models High (Voh)
Low (Vol)
Duty Cycle at 50% of Vcc
Rise / Fall Time: 10% to 90%
Spurious Output
Sinewave Output Characteristics (Output Code S)
Parameter
Load
Output Power
Harmonics
Spurious
Minimum
-
5.0
-
-
Nominal
50
-
-
-
Maximum
-
-
-30
-80
Ohms
dBm:
dBc
dBc
Units
Notes
Package Characteristics
OH100 Package
Hermetically sealed, resistive welded package with grounded case.
Environmental Characteristics
Shock
Sinusoidal Vibration
Random Vibration
Moisture
Marking Permanency
Attachment Method PCB
Resistance to Solder Heat
Solder Process
500 G’s 1ms, Halfsine, 3 shocks per direction, per MIL-STD 202G, Method 213B Test Condition D.
0.06” D.A. or 10G’s Peak, 10 to 500 Hz, per MIL-STD-202G, Method 204D, Test Condition A.
5.35 G’s rms. 20 to 2000 Hz per MIL-STD-202G, Method 214,Test Condition 1A, 15 minutes each axis.
10 cycles, 95% RH, Per MIL-STD-202G, Method 112.
Per MIL-STD-202G, Method 215J.
Through Hole Mounted
Per MIL-STD-202G, Method 210, Condition E.
RoHS compliant, lead free. See solder profile.
Bulletin
Page
Revision
Date
Specifications subject to change without notice. All dimensions in inches. © Copyright 2010 The Connor-Winfield Corporation
Cx205
3 of 4
03
16 Aug 2012
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Re-Stabilization Time
Off Time
<1 Hour
<6 Hour
<24 Hour
1 to 16 Days
>16 Days
Re stabilization Time
<2 Hours *
<12 Hours *
<48 Hours *
48 Hours + 1/4 Off Time *
<6 Days *
* For a given off time, the time required to meet daily aging, short term stability requirements.

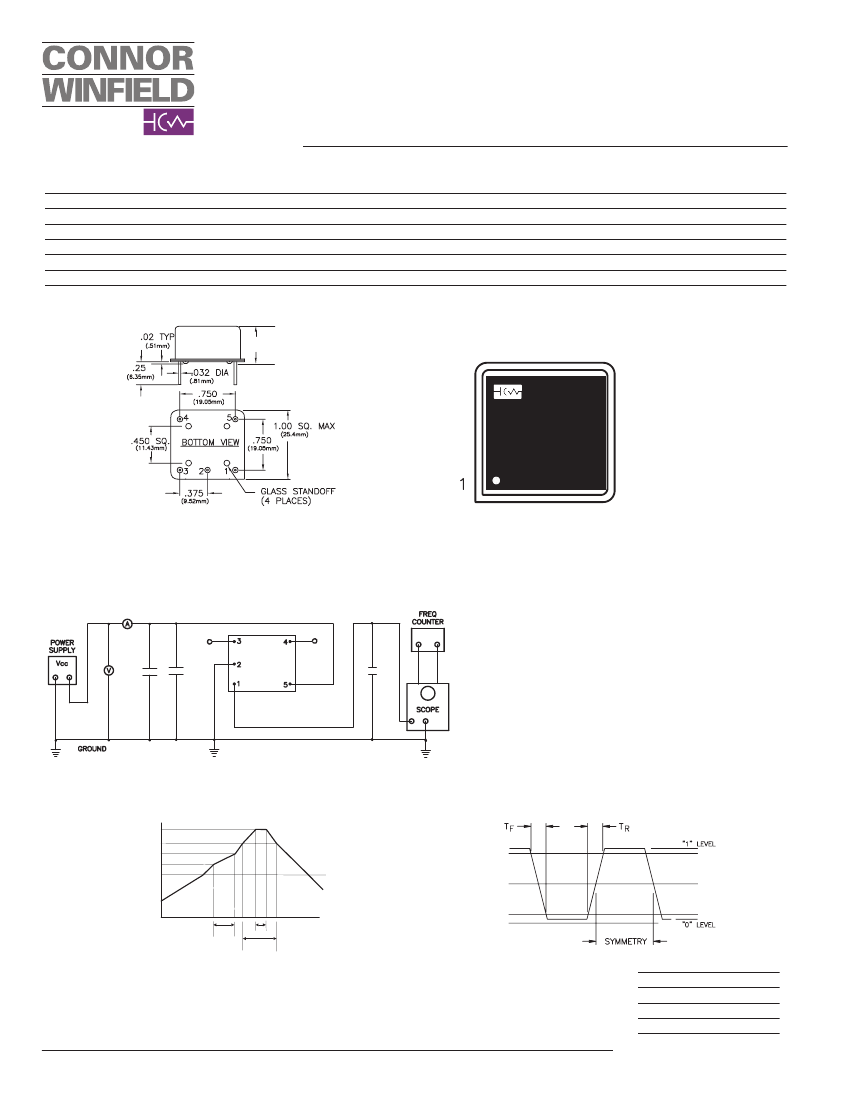

Package Outline
.500 Max.
(12.70mm)
Package Marking
1232
OH100-61003CF
10.0 MHz
123456789012
123456789012
Date Code (YYWW)
Model Number
Output Frequency
Serial # Barcode
Serial Number
Dimensional Tolerance:
±.005 (.127mm)
Keep Out Area: Under the OCXO is a keep out area, do not place any parts in this area.
Test Circuit
Control
Voltage
or
N/C
10 uF
to
100 uF
0.01 uF
Pin Connections
Pin Connection
1: Output
2: Ground (Case)
3: Control Voltage or N/C
4: N/C
5: Supply Voltage (Vcc)
N/C
15 pF
Solder Profile
Temperature
260°C
220°C
180°C
150°C
120°C
260°C
CMOS Output Waveform
90%
50%
0
10 s
Up to 120 s
60 to 90 s
Typical
Typical
Meets IPC/JEDEC J-STD-020C
10%
Bulletin
Page
Revision
Date
Cx205
4 of 4
03
16 Aug 2012
Specifications subject to change without notice. All dimensions in inches. © Copyright 2010 The Connor-Winfield Corporation
