ICS9169C-27

Frequency Generator for Pentium Based Systems

General Description

The

ICS9169C-27

is a low-cost frequency generator

designed specifically for Pentium based chip set systems.

The integrated buffer minimizes skew and provides all the

clocks required. A 14.318 MHz XTAL oscillator provides

the reference clock to generate standard Pentium

frequencies. The CPU clock makes gradual frequency

transitions without violating the PLL timing of internal

microprocessor clock multipliers.

Twelve CPU clock outputs provide sufficient clocks for the

CPU, chip set, memory and up to two DIMM connectors (with

four clocks to each DIMM). Either synchronous(CPU/2) or

asynchronous (32 MHz) PCI bus operation can be selected

by latching data on the BSEL input

Features

Twelve selectable CPU clocks operate up to 83.3MHz

Maximum CPU jitter of ± 200ps

Six BUS clocks support sync or async bus operation

250ps skew window for CPU outputs, 500ps skew

window for BUS outputs

CPU clocks BUS clocks skew 1-4ns (CPU early)

Integrated buffer outputs drive up to 30pF loads

3.0V - 3.7V supply range, CPU(1:6) outputs 2.5V(2.375-

2.62V) VDD option

32-pin SOIC/SOJ package

Logic inputs latched at Power-On for frequency selection

saving pins as Input/Output

48 MHz clock for USB support and 24 MHz clock for FD.

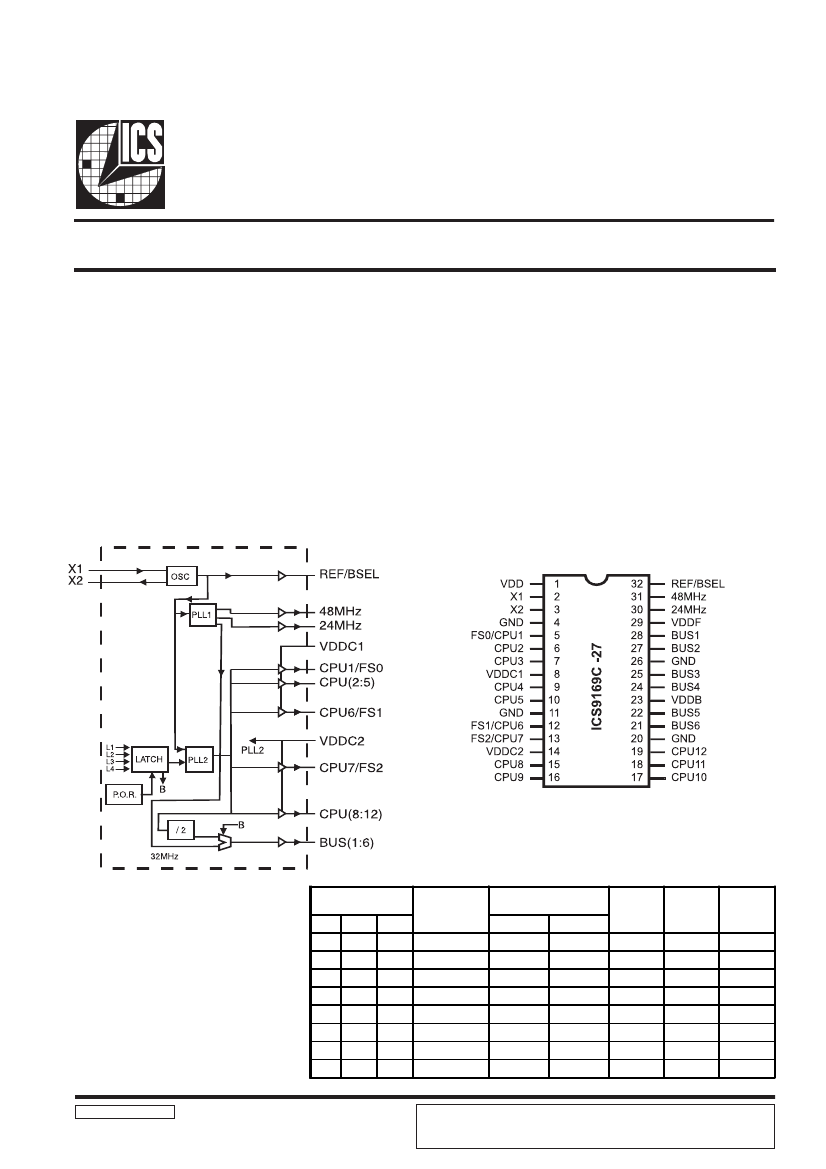

Block Diagram

Pin Configuration

32-Pin SOIC/SOJ

3.3V±10%, 0-70

Crystal (X1, X2) = 14.31818 MHz

ADDRESS

SELECT

FS2 FS1 FS0

CPU(1:12)

(MHz)

66.6

REF/2

83.3

Tristate

BUS (1:6)MHz

48MHz

BSEL=1

33.3

REF/4

27.5

37.5

41.7

Tristate

BSEL=0

REF/3

Tristate

24MHz

REF

Functionality

VDD Groups:

VDD = X1, X2, REF/BSEL

VDDC1 = CPU1-6

VDDC2 = CPU7-12 & PLL Core

VDDB = BUS1-6

VDDF = 48/24 MHz

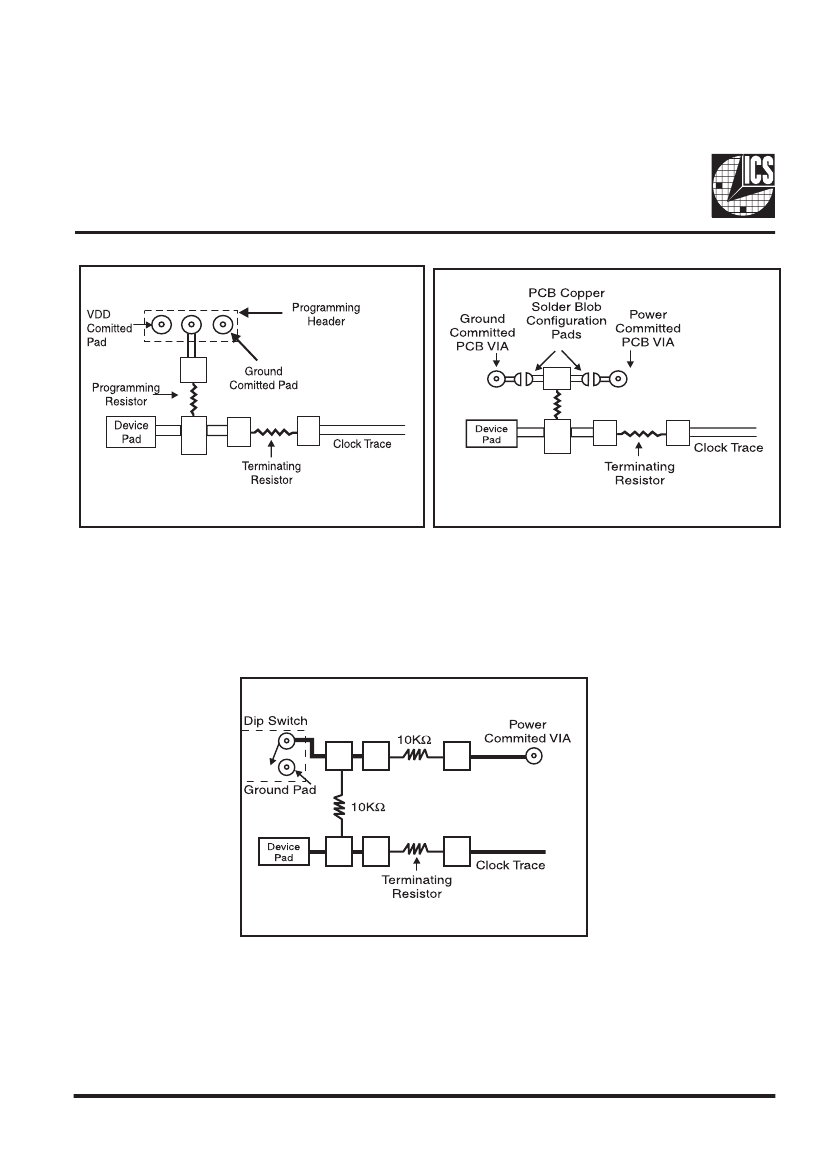

Latched Inputs:

L1 = BSEL

L2 = FS0

L3 = FS1

L4 = FS2

9169C-27 Rev C 04/16/98

REF

REF/2

REF/4

REF

Tristate Tristate Tristate

Pentium is a trademark on Intel Corporation.

ICS reserves the right to make changes in the device data identified in this publication

without further notice. ICS advises its customers to obtain the latest version of all

device data to verify that any information being relied upon by the customer is current

and accurate.
