3005918 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 3005918

3005918: DescriptionModular Terminal Block, 76A, 25mm2, 1 Deck(s); CategoryThe connector terminals; File Size90KB，1 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

3005918 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3005918	-	-	View	Buy Now

3005918 Overview

Modular Terminal Block, 76A, 25mm2, 1 Deck(s)

3005918 Parametric

Parameter Name	Attribute value
Maker	PHOENIX CONTACT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLYAMIDE
Fastening method	SPRING LOADED
Manufacturer's serial number	ZFK16-PE
Installation type	C RAIL
Number of layers	1
Rated current	76 A
Terminal and terminal strip types	MODULAR TERMINAL BLOCK
Conductor cross section	25 mm2
Wire gauge	4 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

Module no:3005918 LabelId:3005918 Operator:Phoenix

18:51:27, Donnerstag, 28. Juni 2001

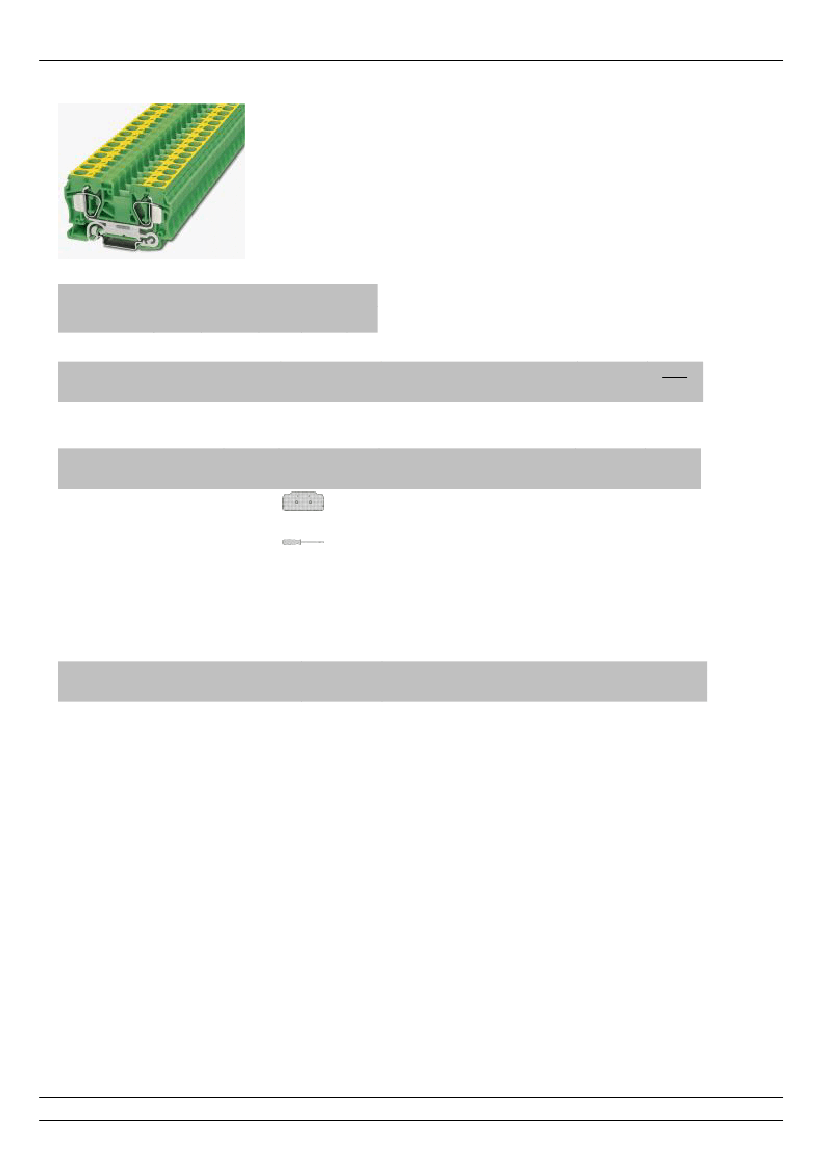

ZFK 16-PE

Terminal width 12

(IEC)

[mm ]

IEC 60 947-7-2

Description

Spring cage ground terminal

block,

for mounting on

Accessories

(1)

End cover

(2)

Plug-in bridge,

for cross-connections

in the terminal center,

divisible, screw heads

with insulation collars

gray

2-pos.

D-ZFK 16

FBST 2-12

30 05 93 4

30 05 95 0

rigid

solid

1.5-25

flexible

stranded AWG

1.5-16

16-4

[A]

Color

Type

green-yellow

ZFK 16-PE

Order No.

30 05 91 8

Pcs.

Pkt.

(3)

Zack marker sheet, flat,

50-section, for labelling the outer

marker grooves

Technical data

Dimensions

Width / length / end cover width

Height (NS 35:7.5)

Technical data in accordance with IEC/ DIN VDE

Maximum load current /

cross section

Rated surge voltage /

contamination class

Connection capacity

stranded with ferrule with

plastic sleeve

stranded with ferrule without

plastic sleeve

Stripping length

Internal cylindrical gage (IEC 60 947-1:1988)

Insulation material

Inflammability class acc. to UL 94

Temperature indices RTI / Ti

[mm ]

[mm]

ZBFM 8

(see

info)

[mm]

12 / 83 / 2

76 / 2.5

8/3

[A] / [mm ]

[kV] / –

1.5 - 10

130 / 120

Phoenix Contact Elektronischer Katalog

Page 1 / 1
