SIM4055-6-1-22-01-A datasheet, PDF

Datasheet> All Categories > The connector> The connector> SIM4055-6-1-22-01-A

SIM4055-6-1-22-01-A: DescriptionPCB Connector, 6 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Black Insulator,; CategoryThe connector The connector; File Size141KB，2 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

SIM4055-6-1-22-01-A Overview

PCB Connector, 6 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal, Black Insulator,

SIM4055-6-1-22-01-A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.087 inch
subject depth	1.043 inch
body length	0.758 inch
Connector type	PCB CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	80 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Durability	5000 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

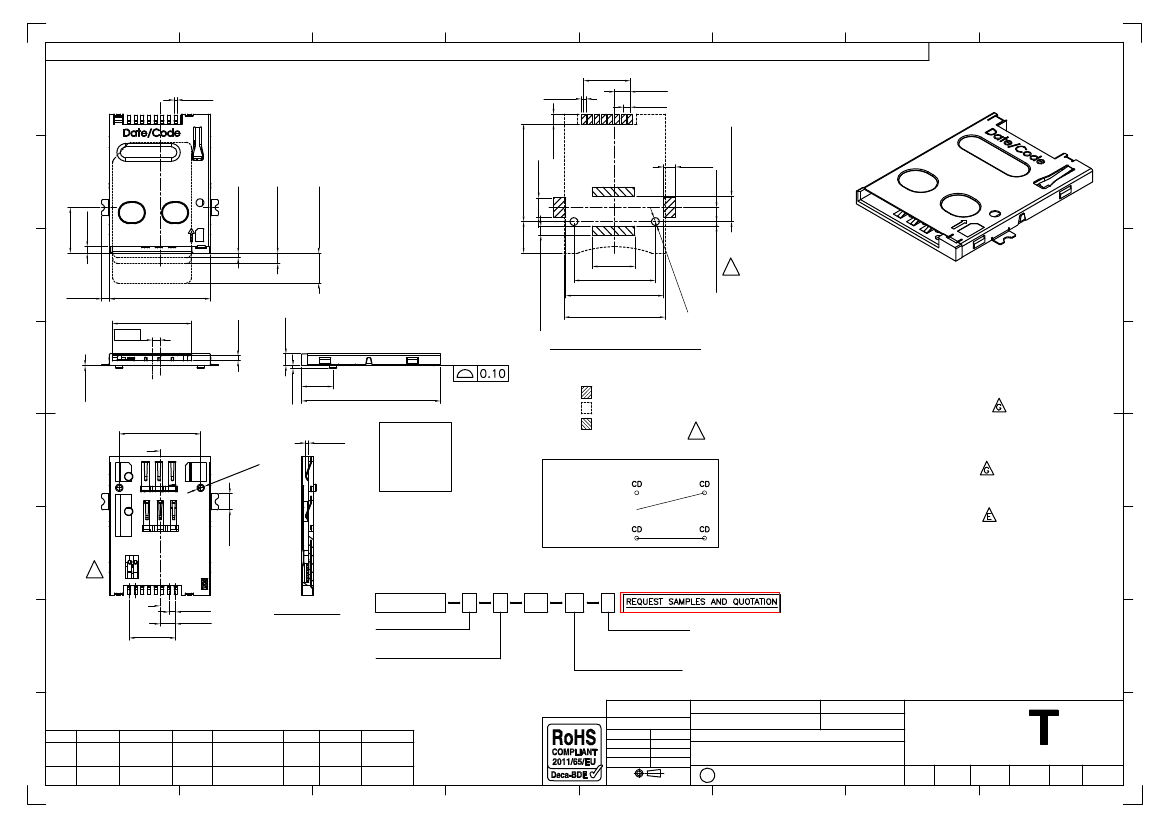

Global Connector Technology Ltd. - SIM4055 : SIM Card Connector, Push Push Type, 6 Pin, SMT, With Card Detect, 2.2mm Profile, With Locating Post

8.89

0.57

CARD INSERTED

POSITION

LOCATION OF

CARD EJECTED

PUSH STROKE

C2 C1

C/D C3

C/D C7 C6 C5

0.95

2.99

1.27

2.65

4.85±0.10

1.90

18.60

3.70

2.30

(0.89) Ref

(2.00) Ref

8.65

1.20

(5.74) Ref

6.00

2x1.70±0.10

1.50

19.25

2.20

15.15

1.505

8.10

15.54

18.65

(19.25)

0.88±010

2xØ

1.50

+0.1 0

0.0

0.95

0.05

0.60

(15.15)L C

L(19.25)

RECOMMENDED PCB LAYOUT

GENERAL TOLERANCE ±0.05

AS VIEWED FROM COMPONENT SIDE

6.00

26.50

Specifications

规格

Material

物料规格

Plastic Housing

塑胶外壳

: Hi-Temp Thermoplastic UL94V-0, Black

高温塑胶

黑色

Contact Terminal

接触端子

: Phosphor Bronze -

磷青铜

Metallic Shell

金属外壳

: Stainless Steel

不锈钢

Plating

电镀规格

Contact Terminal plating

接触端子部分电镀

Under-plating

底层电镀

: 50u" Min. Nickel all over

全部镀镍最少

50u"

Contact Area

接触部分

: 15u" Gold

镀金

15u"

Soldering Area

焊接部分

: Gold Flash

镀金

Switch Terminal plating

开关端子部分电镀

Under-plating

底层电镀

: 50u" Min. Nickel all over

全部镀镍最少

50u"

Contact Area

接触部分

: 15u" Gold

镀金

15u"

Soldering Area

焊接部分

: Gold Flash

镀金

Metallic Shell plating

金属外壳电镀

Under-plating

底层电镀

: 50u" Min. Nickel all over

全部镀镍最少

50u"

Soldering Area

焊接部分

: 2u" Selective Gold on one side

单面镀金

2u"

Electrical

电气规格

Voltage rating

电压额定值

: 5 V AC (R.M.S.) Max.

Current Rating

电流额定值

: 0.5A DC

Operating Temperature

工½温度

: -55°C to +105°C

Contact Resistance

接触电阻值

: 80mW Max.

Insulating Resistance

绝缘电阻值

: 500MW Min. (Apply

½加

500VDC)

Dielectric Withstand Voltage

寒耐电压

: No Discharge or

Flash over

没有放电或火花

(Apply 250VAC for 1 minute

½加

250VAC

共

分钟

)

Mechanical

机械规格

Durabillity

耐久性

: 5,000 cycles 5000

次插拨

Insertion / Withdrawal Force

插拔力

: 13.8 N Max.

Solder Area

Component Outline

Keep Out Area

15.54

0.65

C1----->VCC

C2----->RST

C3----->CLK

C5----->GND

C6----->Vpp

C7----->I/O

Ø1 .

Card Detection Switch

Normally Open

3.10

Card Inserted

C3 C2 C1

C7 C6 C5

C/D C/D

Ordering Grid

1.27

2.99

8.89

SECTION A-A

SIM4055

No. of Contacts

Packing Options

A = Tape & Reel

(0.6K per Reel)

Card Detection Switch

1 = With Switch

Locating Post

01 = With Post

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

SIM4055

Description:-

09 APR 08

DETAIL

REV

DATE

PKN

DRAWING

RELEASE

09/04/08

DMR

ECN081108A

03/11/08

PIN OUT

ERROR

04/11/08

ASE

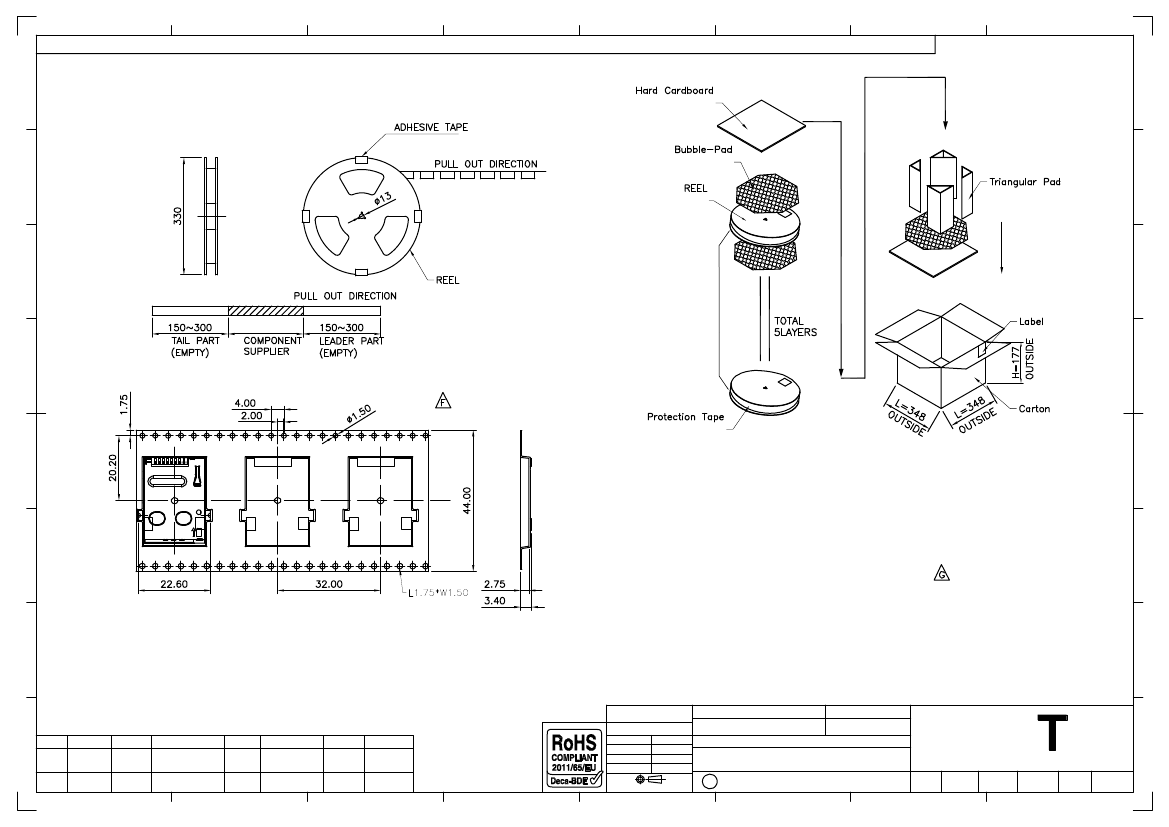

PACKING

LAYOUT

02/09/10

ECN:

SIM4050-001

12/01/11

PCB

PCB LAYOUT &

TERMINAL DETAIL LAYOUT

09/09/09

23/04/10

X.X ± 0.20

X.° ± 3°

X.XX ± 0.15

X.X° ± 2°

X.XXX ± 0.05

X.XX° ± 1°

SIM CARD CONNECTOR, PUSH PUSH TYPE, 6 PIN, SMT,

WITH CARD DETECT, 2.2MM PROFILE, WITH LOCATING POST

Scale

NTS

www.gct.co

Drawn by

PKN

E & OE

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Material

See Note

Sheet No.

1/2
