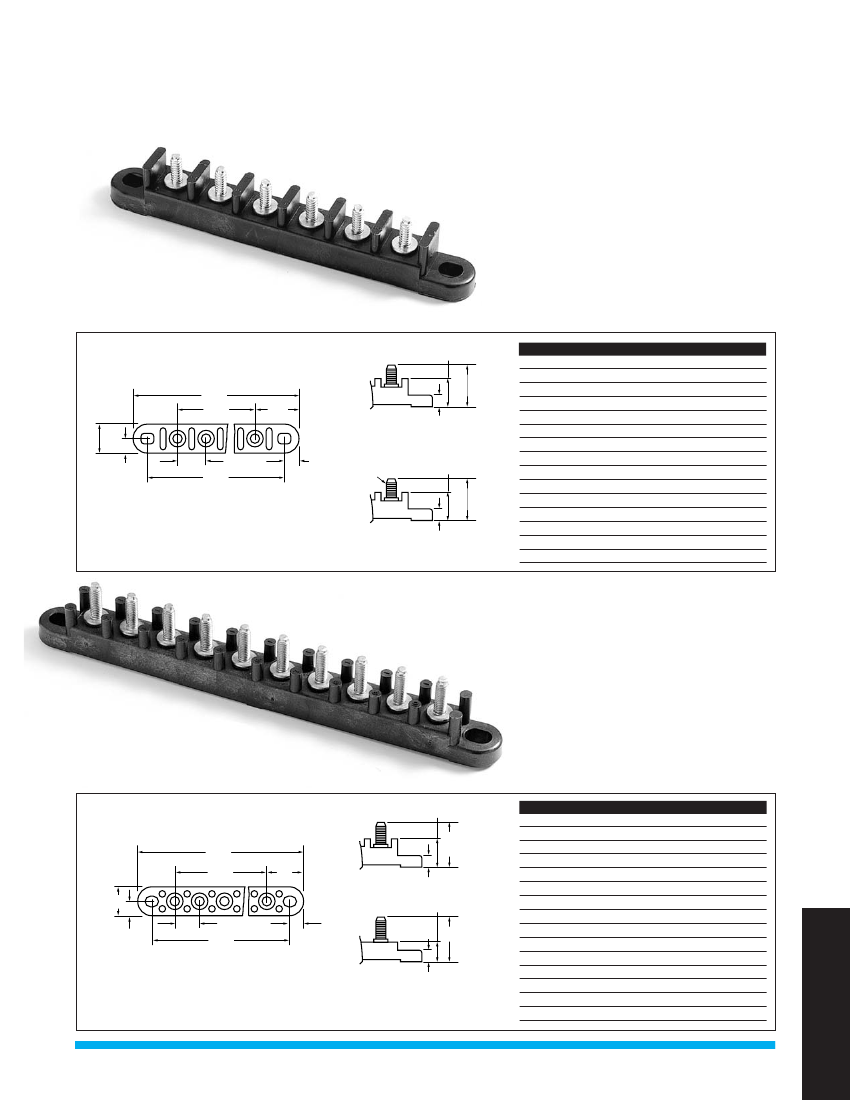

Stud Type Junction Blocks
(Non-Feed Thru)
Series C4559 & C6083
SPECIFICATIONS
Rating:
30A, 600V
Operating Temperature:
250°F (120°C)
Standards:
2 to 16 steel studs with #10-24
threads on .750" centers and a “dog point”
to guide nut onto thread.
Torque Rating:
20 in-lb (25 in-lb).
Marking:
Numbers and arrows molded on
top of barriers indicate terminals.
Approvals:
UL/CSA; CE Certified
Single & Double Row
Filtered Connectors
Dimensions
.84"
(21.34)
1.05"
(26.67)
1.12"
(28.45)
A
.75"
(19.05)
C
C4559
.31"
(7.87)
Mtg. holes 9/32"x 3/8" slot
.375"
(9.53)
.75"
(19.05)
B
.375"
(9.53)
#10-32 zinc plated
steel studs
.84"
(21.34)
1.09"
(27.69)
0ther series available with .750" centers:
C6083
.31"
(7.87)
(A,B,C Dimensions are the same as C4559)
Part No.
C4559-2
C4559-3
C4559-4
C4559-5
C4559-6
C4559-7
C4559-8
C4559-9
C4559-10
C4559-11
C4559-12
C4559-13
C4559-14
C4559-15
C4559-16
A
3.00 (76.2)
3.75 (95.2)
4.50 (114.3)
5.25 (133.3)
6.00 (152.4)
6.75 (171.4)
7.50 (190.5)
8.25 (209.5)
9.00 (228.6)
9.75 (247.6)
10.50 (266.7)
11.25 (285.7)
12.00 (308.4)
12.75 (323.8)
13.50 (342.9)
B
2.25 (57.1)
3.00 (76.2)
3.75 (95.2)
4.50 (114.3)
5.25 (133.3)
6.00 (152.4)
6.75 (171.4)
7.50 (190.5)
8.25 (209.5)
9.00 (228.6)
9.75 (247.6)
10.50 (266.7)
11.25 (285.7)
12.00 (308.4)
12.75 (323.8)
C
0.75 (19.0)
1.50 (38.1)
2.25 (57.1)
3.00 (76.2)
3.75 (95.2)
4.50 (114.3)
5.25 (133.3)
6.00 (152.4)
6.75 (171.4)
7.50 (190.5)
8.25 (209.5)
9.00 (288.6)
9.75 (247.6)
10.50 (266.7)
11.25 (285.7)
Euro-MAG Series
PCB – Spring Clamp
Base & Rail Mount
Connectors
Series C5237 & JB1032
SPECIFICATIONS
Rating:
UL: 30A, 300V; CSA: 30A, 600V.
Operating Temperature:
250°F (120°C)
Standards:
1 to 15 brass studs on .625"
centers with #10-32 thread and a “dog
point” to guide nut onto thread.
Torque Rating:
20 in-lb (25 in-lb).
Marking:
Numbers and arrows molded on
top of barriers indicate terminals.
Approvals:
UL/CSA; CE Certified
Power Distribution Blocks
Dimensions
A
C
1.0"
C5237
.81"
1.16"
.75"
.375"
.625"
B
.375"
.31"
Mtg. holes 9/32"X3/8" slot
.5"
1.16"
.31"
JB1032-120-XX
(No bosses between studs)
(A,B,C Dimensions ars the same as C5237)
Part No.
C5237-1
C5237-2
C5237-3
C5237-4
C5237-5
C5237-6
C5237-7
C5237-8
C5237-9
C5237-10
C5237-11
C5237-12
C5237-13
C5237-14
C5237-15
A
2.00 (50.8)
2.62 (66.7)
3.25 (82.5)
3.87 (98.4)
4.50 (114.3)
5.12 (130.8)
5.75 (146.0)
6.37 (161.9)
7.00 (177.8)
7.62 (193.7)
8.25 (209.5)
8.87 (225.4)
9.50 (241.3)
10.12 (257.2)
10.75 (273.0)
B
1.25 (31.7)
1.87 (47.5)
2.50 (63.4)
3.12 (79.4)
3.75 (95.2)
4.37 (111.1)
5.00 (127.0)
5.62 (142.9)
6.25 (158.7)
6.87 (174.6)
7.50 (190.5)
8.12 (206.4)
8.75 (222.2)
9.37 (238.1)
10.00 (254.0)
C
–
.625 (15.9)
1.25 (31.7)
1.87 (47.5)
2.50 (63.4)
3.12 (79.4)
3.75 (95.2)
4.37 (111.1)
5.00 (127.0)
5.62 (142.9)
6.25 (158.7)
6.87 (174.6)
7.50 (190.5)
8.12 (206.4)
8.75 (222.2)
