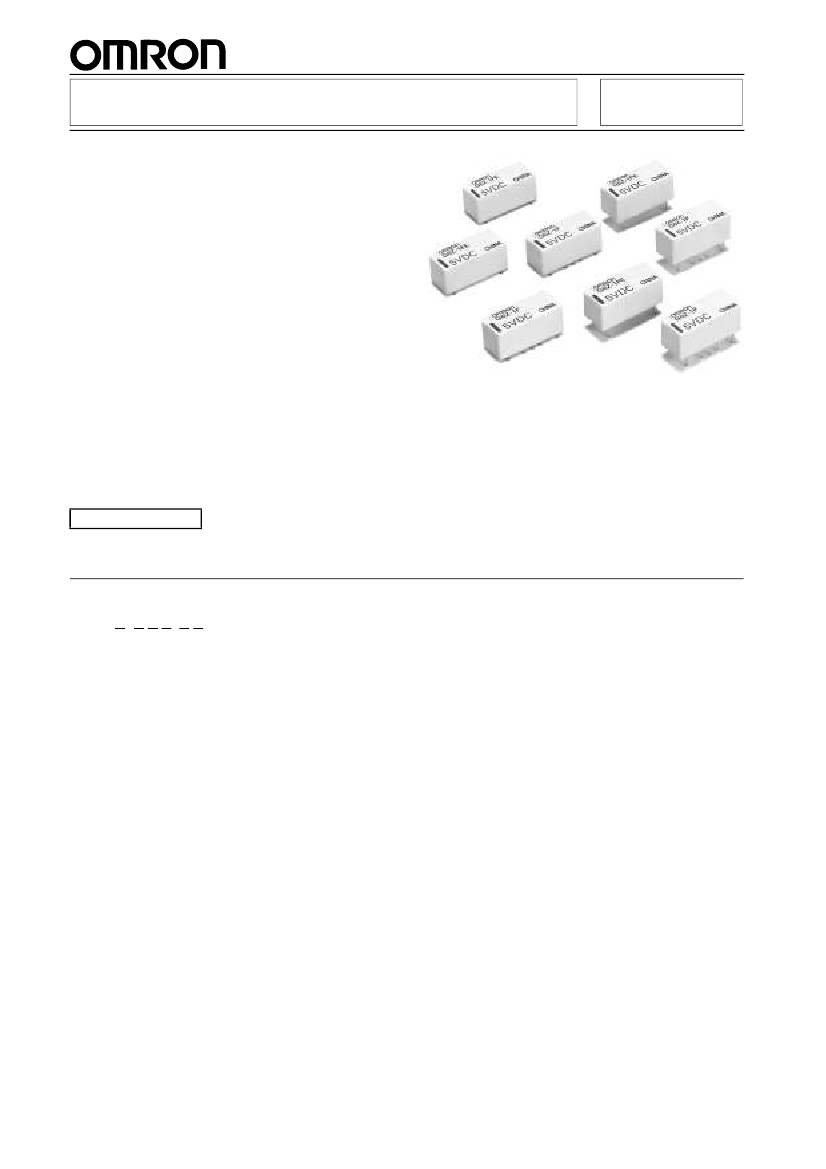

Surface-mounting High-frequency Relay
Surface-mounting, 2.6-GHz-Band,
Miniature, SPDT, High-frequency Relay
I
Superior high-frequency characteristics, such as
G6Z
an isolation of 30 dB min., insertion loss of 0.5 dB
max., and V.SWR of 1.5 max. at 2.6 GHz.
I
Surface-mounting terminals and superior high fre-
quency characteristics combined using semi tri-
plate strip transmission lines.
I
Miniature dimensions of 20
×
8.6
×
8.9 mm (L
×
W
×
H).
I
Choose from a lineup that includes single-winding
latching models (200 mW), double-winding latch-
ing models (360 mW), and models with a reverse
contact arrangement.
I
Series includes models with an E-shape terminal
structure (same as existing models), and models
with a Y-shape terminal structure, allowing greater
freedom with PCB design.
I
Models with 75-
Ω
impedance and models with
50-
Ω
impedance are available.
RoHS Compliant
Refer to pages 16 to 17 for details.
Ordering Information
I
Model Number Legend:
G6Z-@-@@@-@@
1
2 3 4
5
6
1. Relay Function
None: Single-side stable
U:
K:
1:
F:
P:
Single-winding latching
Double-winding latching
SPDT
Surface-mounting terminals
PCB terminals
4. Terminal Structure
None: Y-shape terminal structure
E:
E-shape terminal structure
5. Characteristic Impedance
None: 75
Ω
A:
50
Ω
6. Contact Arrangement
None: Standard contact arrangement
R:
Reverse contact arrangement
2. Contact Form
3. Terminal Shape
118
G6Z
I
G6Z
List of Models
Classifi-
cation
Structure
Contact
form
SPDT
Terminal
arrange-
ment
E-shape
Y-shape
Characteristic
impedance
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
Y-shape
E-shape
Y-shape
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
Rated coil voltage
Model
Standard Models with PCB Terminals
Single-
Plastic
side stable sealed
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
G6Z-1PE
G6Z-1PE-A
G6Z-1P
G6Z-1P-A
G6ZU-1PE
G6ZU-1PE-A
G6ZU-1P
G6ZU-1P-A
G6ZK-1PE
G6ZK-1PE-A
G6ZK-1P
G6ZK-1P-A
Single-
winding
latching
E-shape
Double-
winding
latching
Standard Models with Surface-mounting Terminals
Classifi-
cation
Structure
Contact
form
SPDT
Terminal
arrange-
ment
E-shape
Y-shape
Single-
winding
latching
E-shape
Y-shape
E-shape
Y-shape
Characteristic
impedance
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
75
Ω
50
Ω
Double-
winding
latching
75
Ω
50
Ω
75
Ω
50
Ω
Note:
Rated coil voltage
Model
Single-
Plastic
side stable sealed
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
3, 4.5, 5, 9, 12, and 24 VDC
G6Z-1FE
G6Z-1FE-A
G6Z-1F
G6Z-1F-A
G6ZU-1FE
G6ZU-1FE-A
G6ZU-1F
G6ZU-1F-A
G6ZK-1FE
G6ZK-1FE-A
G6ZK-1F
G6ZK-1F-A
When ordering tape packing (surface-mounting models), add “-TR” to the model number. “-TR” does not appear on the Relay itself.
Application Examples
These Relays can be used for switching signals in media equipment.
•
Wire communications:
Cable TV (STB and broadcasting infrastructure), cable modems, and VRS (video response systems)
•
Wireless communications:
Transceivers, ham radios, car telephones, ETC, ITS, high-level TV, satellite broadcasting, text multiplex broadcasting, pay TV, mobile
phone stations, TV broadcasting facilities, and community antenna systems
•
Public equipment:
TVs, TV games, satellite radio units, car navigation systems
•
Industrial equipment:
Measuring equipment, test equipment, and multiplex transmission devices
119
G6Z
I
G6Z
Characteristics
Item
Single-side stable models
G6Z-1P(E), G6Z-1F(E)
Single-winding latching
models
G6ZU-1P(E), G6ZU-1F(E)
Double-winding latching
models
G6ZK-1P(E), G6ZK-1F(E)
Contact resistance (See note 1.)
Operating (set) time (See note 2.)
Release (reset) time (See note 2.)
Minimum set/reset pulse time
Insulation resistance (See note 3.)
Dielectric
strength
Coil and contacts
Coil and ground, contacts
and ground
Contacts of same polarity
Vibration resistance
Shock resistance
Endurance
100 m
Ω
max.
10 ms max. (approx. 3.5 ms) 10 ms max. (approx. 2.5 ms)
10 ms max. (approx. 2.5 ms)
---
100 M
Ω
min. (at 500 VDC)
1,000 VAC, 50/60 Hz for 1 min
500 VAC, 50/60 Hz for 1 min
500 VAC, 50/60 Hz for 1 min
Destruction:10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Malfunction:10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Destruction:1,000 m/s
2
Malfunction:500 m/s
2
Mechanical:1,000,000 operations min. (at 36,000 operations/hour)
Electrical: 300,000 operations min. (30 VAC, 10 mA/30 VDC, 10 mA), 100,000 operations
min. (900 MHz, 10 W) at a switching frequency of 1,800 operations/hour
Operating:
−
40
°
C to 70
°
C (with no icing or condensation)
Operating: 5% to 85%
Approx. 2.8 g
12 ms
Ambient temperature
Ambient humidity
Weight
Note:
Note:
The above values are initial values.
1.
The contact resistance was measured with 10 mA at 1 VDC with a voltage drop method.
2.
Values in parentheses are actual values.
3.
The insulation resistance was measured with a 500-VDC megohmmeter applied to the same parts as those used for checking
the dielectric strength.
Engineering Data
Ambient Temperature vs.
Maximum Voltage
Maximum voltage (%)
Ambient Temperature vs. Must
Operate or Must Release Voltage
On the basis of rated voltage (%)
Shock Malfunction
Y
1,000
800
max.
avg.
min.
X
1,000
600 Not
energized
400
200
Z
1,000
Energized
250
100
Sample: G6Z-1P 5 VDC
90 Number of relays: 5
80
70
60
50
40
30
max.
avg.
min.
Must operate voltage
Must release voltage
Max. estimated value
200
G6Z
G6ZU
150
200
1,000
Z'
Shock direction
X'
X
Y
Z
Z'
Y'
400
600
800
1,000
Unit:
Sample:
m/s
2
G6Z-1P-A 50
Ω
5 VDC
Number of relays: 5
1,000
X'
G6ZK
100
50
20
10
Y'
0
−40
−20
0
20
40
60
80
100
0
−60
−40
−20
0
20
40
60
80 100
Ambient temperature (°C)
Ambient temperature (°C)
Conditions: Shock is applied in
±X, ±Y,
and
±Z
directions three times each with and
without energizing the Relays to check
for contact malfunctions.
122
