Surface Mount PIN Diode
SP3T Switches
MSW3200-320 & MSW3201-320
Series Datasheet
Features
•
•
•
•
•
•
•

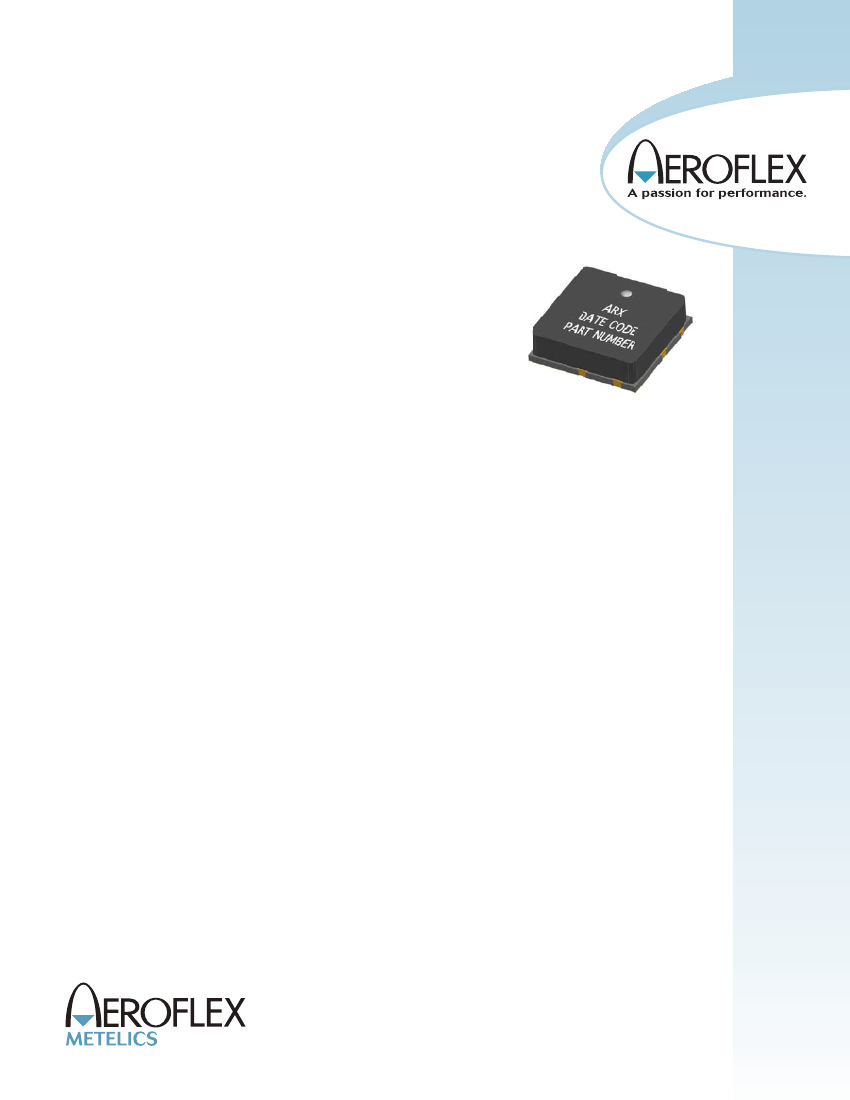

Surface Mount SP3T Switch in Compact Outline:
8mm L x 8mm W x 2.5 mm H
Higher Average Power Handling than Plastic (100 W C.W.)
Higher Voltage > 1,000 Volts for Higher RF Peak Power (500 W)
Lower Insertion Loss (0.5 dB) & Higher IIP3 (65 dBm)
Faster Switching Speed (1 μS)
Operates From +5 V & -180 V for Higher Linearity
RoHS Compliant
Description
The MSW3200-320 and MSW3201-320 Surface Mount Silicon PIN Diode SP3T Switches are
manufactured using Aeroflex / Metelics proven hybrid manufacturing process incorporating High Voltage
PIN Diodes and passive devices integrated within a ceramic substrate. This low profile, compact, surface
mount component, (8 mm L x 8 mm W x 2.5 mm H) offers superior low and high signal performance to
comparable MMIC devices in QFN packages. The SP3Tswitches are designed in a symmetrical topology
to optimize Insertion Loss and Isolation performance.
Using PIN Diodes with lower thermal resistance (< 10 ºC/W ), RF C.W. incident power levels of +50 dBm
and RF peak incident power levels of + 57 dBm are very achievable in higher power cold and hot
switching applications @ +85 ºC. The lower PIN Diode series resistance (< 1.0
Ω),
coupled with the longer
minority carrier lifetime, ( > 4 μS ), provides better IIP3 distortion values > + 65 dBm.
Applications
These MSW3200-320 & MSW3201-320 SP3T Switches are designed to be used in higher power switch
applications, operating from 20 MHz to 1,000 MHz, and 400-4,000 MHz respectively for high volume,
surface mount, solder re-flow manufacturing useful in IED and Radar market segments. These products
are durable, reliable, and capable of meeting all military, commercial, and industrial environments. The
devices are fully RoHS compliant.
Environmental Capabilities
The MSW3200-320 and MSW3201-320 SP3T Switches are capable of meeting the environmental
requirements of MIL-STD-202 and MIL-STD-750.
ESDand Moisture Sensitivity Level Rating
PIN Diode Switches are susceptible to ESD conditions as with all semiconductors. The ESD rating for this
device is Class 1C, HBM. The moisture sensitivity level rating for this device is MSL 2.
Document DS 13167 Rev B, ECN 9794
Revision Date: 4/20/2011
SP3T
PIN Diode Switches
MSW3200-320 Electrical Specifications
@ Zo = 50
Ω,
TA = +25 ºC ( Unless Otherwise Defined )
Parameter
Frequency
J0-J1, J0-J2 or J0-J3
Insertion Loss (Note 3)
J0-J1, J0-J2 or J0-J3
Return Loss (Note 3)
J0-J1, J0-J2 or J0-J3
Isolation (Note 3)
C.W. Incident Power
(Note 3)
Peak. Incident Power
(Note 3)
Switching Speed
Input 3rd Order
Intercept Point
Symbol
F
IL
RL
Isol
Pinc (CW)
Units
MHz
dB
dB
dB
dBm
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
3.0:1 Source & Load VSWR
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
1.5:1 Source & Load VSWR
(10% -90% RF Voltage)
TTL Rep rate = 100 kHz
F1 = 500 MHz
F2 = 510 MHz
P1 = P2 = +40 dBm
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
60
| -18 |
| -44 |
Test Conditions
Minimum
Value
10
Typical
Value
20 – 1000
| -0.4 |
| -20 |
| -47 |
+50
Maximum
Value
1500
| -0.6 |
Pinc (Pk)
dBm
+57 @
10 μS Pulse,
1 % Duty
2
65
3
Ts
IIP3
μS
dBm
MSW3201-320 Electrical Specifications
@ Zo = 50
Ω,
TA = + 25 ºC ( Unless Otherwise Defined )
Parameter
Frequency
J0-J1, J0-J2 or J0-J3
Insertion Loss (Note 3)
J0-J1, J0-J2 or J0-J3
Return Loss (Note 3)
J0-J1, J0-J2 or J0-J3
Isolation (Note 3)
C.W. Incident Power
(Note 3)
Peak. Incident Power
(Note 3)
Switching Speed
Input 3rd Order
Intercept Point
Symbol
F
IL
RL
Isol
Pinc (CW)
Units
MHz
dB
dB
dB
dBm
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
3.0:1 Source & Load VSWR
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
3.0:1 Source & Load VSWR
(10% -90% RF Voltage)
TTL Rep rate = 100 kHz
F1 = 2000 MHz
F2 = 2010 MHz
P1 = P2 = +40 dBm
-180V @ -50 mA (ON)
+1V @ +50 mA (OFF)
60
| -13 |
| -32 |
Test Conditions
Minimum
Value
200
Typical
Value
400 – 4000
| -0.6 |
| -15 |
| -35 |
+50
Maximum
Value
4500
| -0.8 |
Pinc (Pk)
dBm
+57 @
10 μS Pulse,
1 % Duty
1
65
2
Ts
IIP3
μS
dBm
2
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Document DS 13167 Rev B, ECN 9794
Revision Date: 4/20/2011
SP3T
PIN Diode Switches
MSW3200-320 and MSW3201-320 SP3T Schematic
J0
J1
J3
J2
Electrical Specification Notes:
1. Switching Speed (50 % TTL – 10/90 % RF Voltage) is a Function of the PIN Diode Driver Performance.
A RC “ Current Spiking Network” is used on the Driver output to provide a Ic = C dV/dt transient current
to move Stored charge through the PIN Diode, typical values are: R = 50 – 220
Ω
and C = 470 – 1,000 pF.
2. Aeroflex / Metelics MPD3T5N200-703 is the recommended Driver to interface with the MSW3200-320 and
MSW3201-320 SP3T Switches and its data sheet may be found at http://www.aeroflex.com/metelics.
3. PIN Diode D.C. Reverse Voltage to maintain High Resistance in the OFF PIN diode is determined by RF
Frequency, Incident Power, and VSWR. The Minimum D.C. Reverse Voltage values are provided on page 5
of this datasheet. -5 V @ -50 mA values may be utilized for small signal testing ~0 dBm.
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Document DS 13167 Rev B, ECN 9794
Revision Date: 4/20/2011
3
SP3T
PIN Diode Switches
RF Bias Network Values
Part Number
F ( MHz )
DC Blocking
Capacitors
0.1
μF
27 pF
Inductors
4.7
μH
82 nH
RF Bypass
Capacitors
0.1
μF
270 pF
MSW3200-320
MSW3201-320
50 – 1,000
400 – 4,000
D.C. Bias to RF Truth Table
RF State
J1-J0 Low Loss &
J2-J0 Isolation &
J3-J0 Isolation
J2-J0 Low Loss &
J1-J0 Isolation &
J3-J0 Isolation
J3-J0 Low Loss &
J1-J0 Isolation &
J2-J0 Isolation
J1 Bias
-180V @ -50 mA
J2 Bias
+1 V @ +25 mA
J3Bias
+1 V @ +25 mA
+1 V @ +25 mA
-180V @ -50 mA
+1 V @ +25 mA
+1 V @ +25 mA
+1 V @ +25 mA
-180V @ -50 mA
Minimum Reverse Bias Voltage @ J1, J2, J3 vs. Frequency for 100 W C.W. Power with 1.5:1 VSWR
Part Number
F ( MHz )
&
| - Vdc |
20 MHz
| -180 V |
20 MHz
NA
F ( MHz )
&
| - Vdc |
100 MHz
| -150 V |
100 MHz
NA
F ( MHz )
&
| - Vdc |
200 MHz
| -115 V |
200 MHz
| -150 V |
F ( MHz )
&
| - Vdc |
400 MHz
| -85 V |
400 MHz
| -115 V |
F ( MHz )
&
| - Vdc
1,000 MHz
| -35 V |
1,000 MHz
| -55 V |
F ( MHz )
&
| - Vdc |
4,000 MHz
NA
4,000 MHz
| -35 V |
MSW3200-320
MSW3201-320
Notes:
1.
“ NA ” denotes the Switch is not defined for that Frequency Band.
603-641-3800 • 888-641--SEMI (7364) • metelics-sales@aeroflex.com • www.aeroflex.com/metelics
Document DS 13167 Rev B, ECN 9794
Revision Date: 4/20/2011
5
