5962-9221501MSA

Description
CPACK-20, Tube
Categorylogic    logic
File Size169KB,7 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric Compare View All

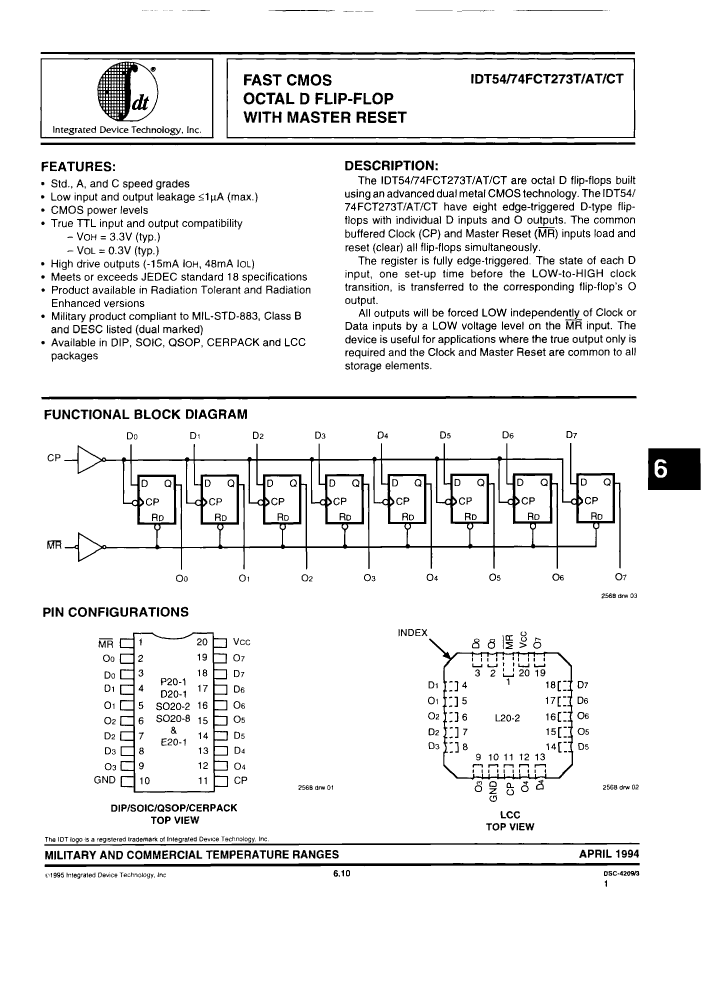

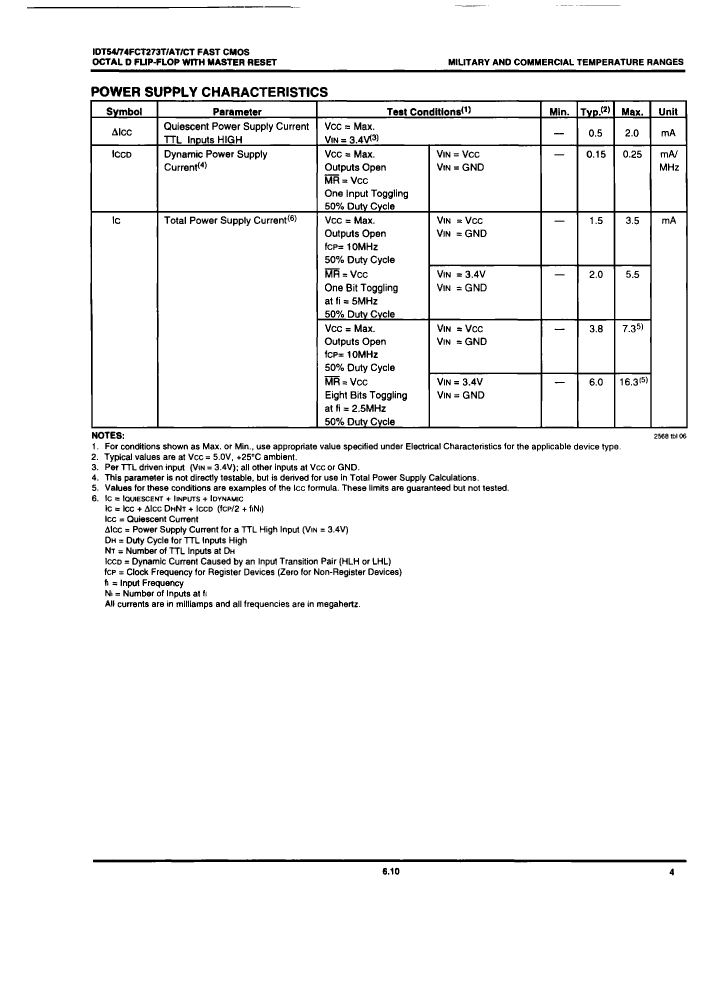

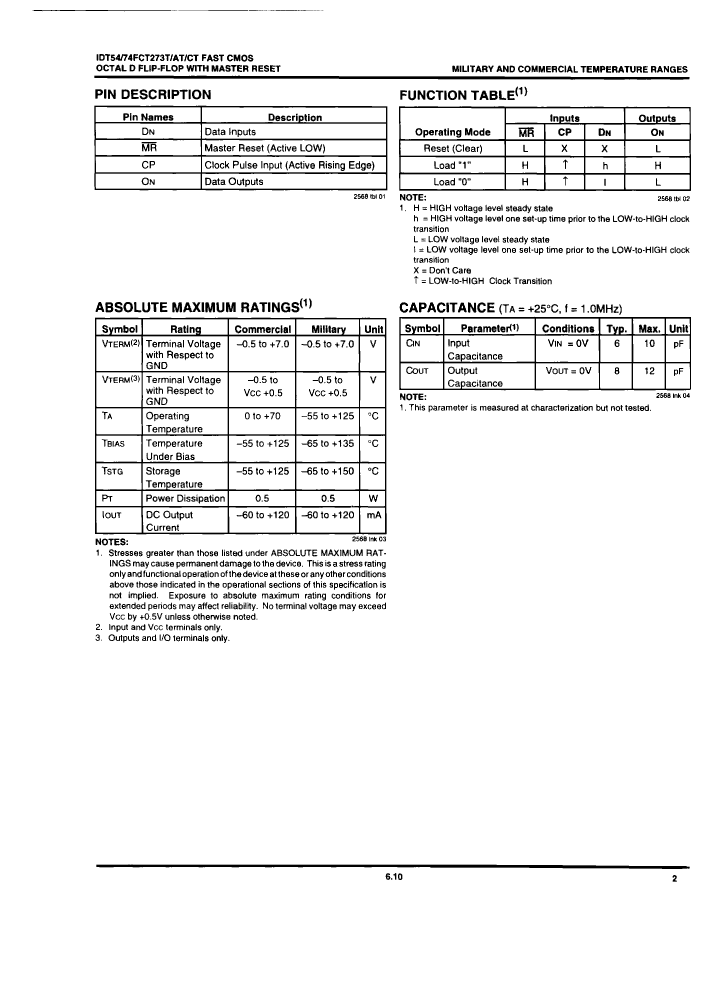

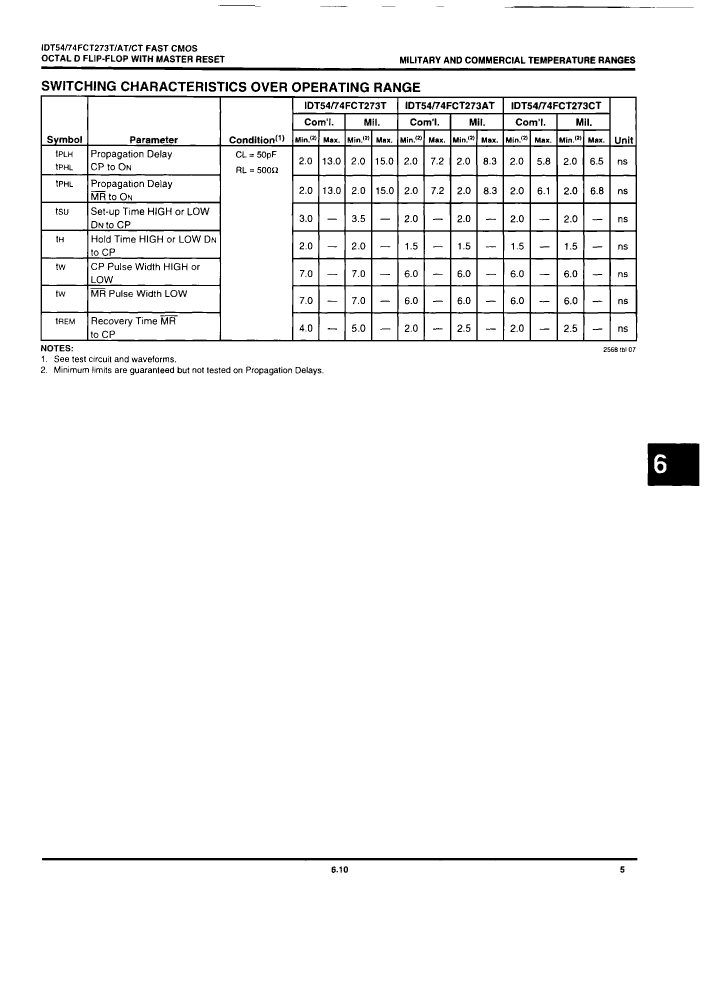

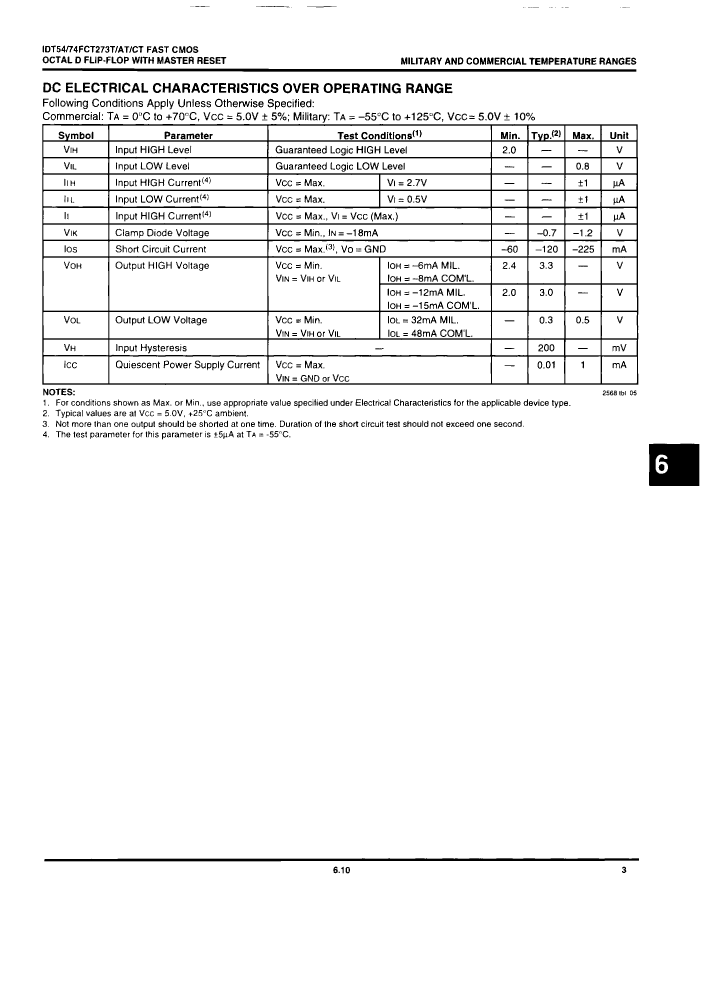

5962-9221501MSA Overview

CPACK-20, Tube

5962-9221501MSA Parametric

Parameter NameAttribute value
Brand NameIntegrated Device Technology
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeCPACK
package instructionDFP, FL20,.3
Contacts20
Manufacturer packaging codeCP20
Reach Compliance Codenot_compliant
seriesFCT
JESD-30 codeR-GDFP-F20
JESD-609 codee0
Load capacitance (CL)50 pF
Logic integrated circuit typeD FLIP-FLOP
MaximumI(ol)0.048 A
Humidity sensitivity level1
Number of digits8
Number of functions1
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output polarityTRUE
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDFP
Encapsulate equivalent codeFL20,.3
Package shapeRECTANGULAR
Package formFLATPACK
Peak Reflow Temperature (Celsius)260
power supply5 V
Prop。Delay @ Nom-Sup15 ns
propagation delay (tpd)15 ns
Certification statusNot Qualified
Filter levelMIL-STD-883
Maximum seat height2.3368 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width6.9215 mm
Base Number Matches1
