SAK-C505A-4E16M datasheet, PDF

SAK-C505A-4E16M: DescriptionMicrocontroller, 8-Bit, OTPROM, 16MHz, CMOS, PQFP44, PLASTIC, MQFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size829KB，88 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric View All

SAK-C505A-4E16M Overview

Microcontroller, 8-Bit, OTPROM, 16MHz, CMOS, PQFP44, PLASTIC, MQFP-44

Parameter Name	Attribute value
Maker	Infineon
Parts packaging code	QFP
package instruction	QFP,
Contacts	44
Reach Compliance Code	compliant
Has ADC	YES
Address bus width	16
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQFP-G44
length	10 mm
Number of I/O lines	34
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	2.45 mm
speed	16 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.25 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
width	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

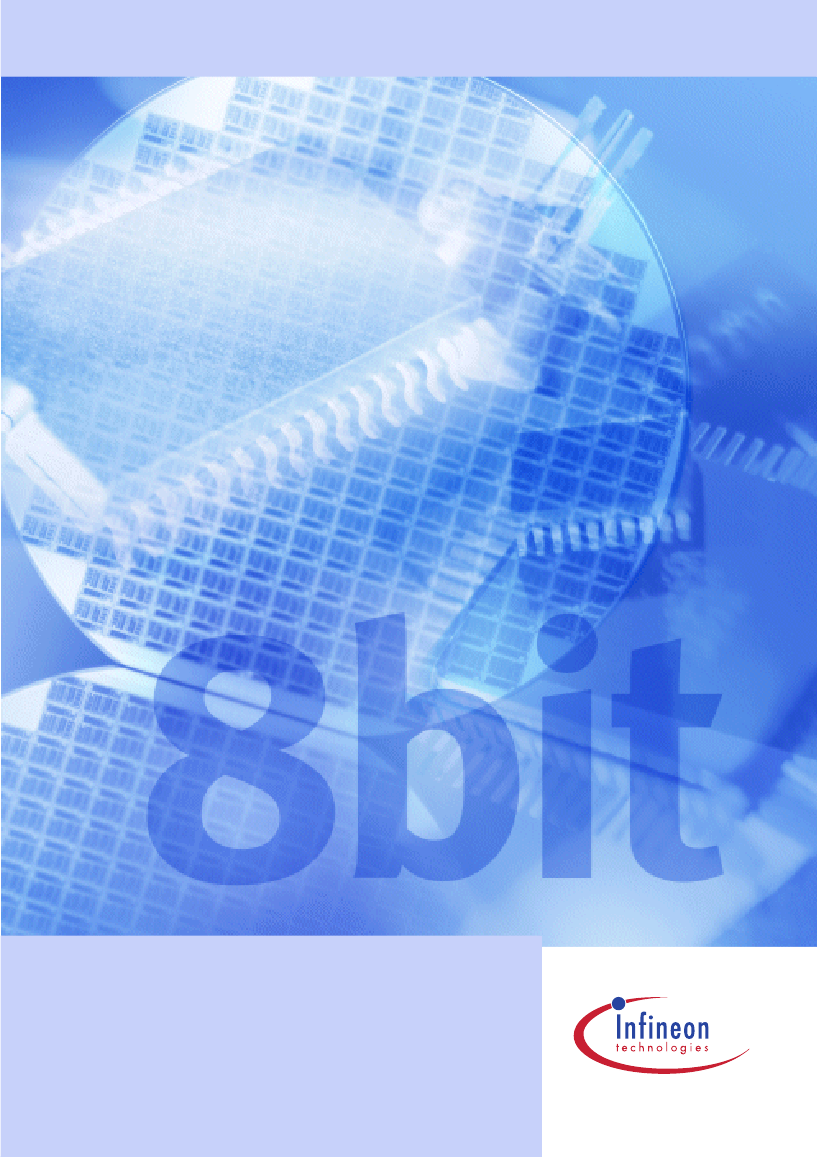

D at a S hee t, De c. 2 00 0

C505

C505C

C505A

C505CA

8-Bit Single-Chip Microcontroller

Microcontrollers

N e v e r

s t o p

t h i n k i n g .
