333513-000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> 333513-000

333513-000: DescriptionRESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size110KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

333513-000 Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, THROUGH HOLE MOUNT, RADIAL LEADED

333513-000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	TE Connectivity
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RESISTANCE RANGE(MIN-MAX): 0.015-0.023
Manufacturer's serial number	RGE
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Rated (AC) voltage (URac)	16 V
Rated power dissipation(P)	2.6 W
Resistor type	PTC RESETTABLE FUSE
surface mount	NO
Terminal surface	NOT SPECIFIED
Terminal location	RADIAL
Terminal shape	WIRE
Thermistor Applications	TEMPERATURE SENSING
Base Number Matches	1

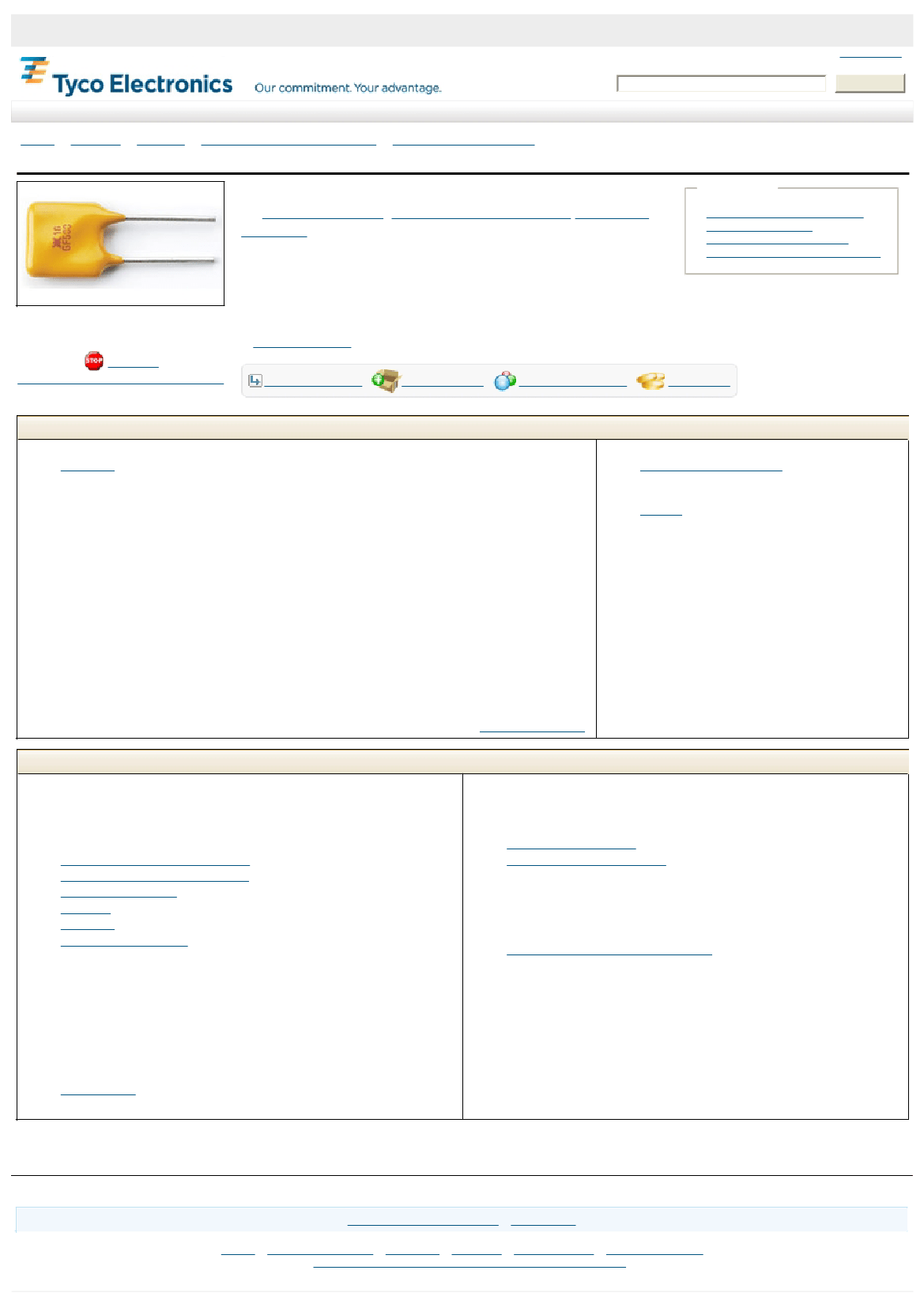

Preview

Download Datasheet

View All

C orporate Hom e

Electronic Components

Se gm e nts

W ho W e Are

My Account

Searc h

Products

Documentation

Resources

My Account

Customer Support

Home

Products

By Type

PolySwitch Resettable Devices

Product Feature Selector

> Product Details

RGE500K-2 Product Details

PolySwitch Resettable Devices

Always ELV C om plia nt

(

Find R oHS C om plia nt Alte rna te s

Sta te m e nt of

C om plia nce

)

Quick Links

C heck Pricing & Availability

Search for Tooling

Product Feature Selector

C ontact Us About This Product

RGE500K-2

T E I nternal N umber: 3 3 3 5 1 3 - 0 0 0

Product Highlights:

Radial Application

Family Name = RGE

Radial C onstruction, Through Hole C onstruction

IH (Room Temperature) = 5 Amps.

IT (Room Temperature) = 8.50 Amps.

View all Features

A dd to M y P art L is t

Reques t Sample

Find Similar P roduc ts

Obsolete

C ontact Product Information C enter

Buy P roduc t

Documentation & Additional Information

Product Drawings:

RGE500K

(PDF, English)

Catalog Pages/Data Sheets:

None Available

Product Specifications:

None Available

Application Specifications:

None Available

Instruction Sheets:

None Available

CAD Files:

None Available

List all Documents

Product Features

(Please use the Product Drawing for all design activity)

Product Type Features:

UL Recognized = File No. E74889

C SA File No. = 78165C

Electrical Characteristics:

IH (Room Temperature) (Amps.)

= 5

IT (Room Temperature) (Amps.)

= 8.50

Vmax Operating (V)

= 16

Rmin (?)

= 0.015

Rmax (?)

= 0.023

R1 Max [Post Trip] (?)

= 0.034

Power Dissipation (Typical) (W) = 2.60

Termination Related Features:

C onstruction = Radial, Through Hole

Body Related Features:

Lead Type = Standard Kinked Lead

Contact Related Features:

Family Name

= RGE

Configuration Related Features:

C oating = C oated

Industry Standards:

RoHS/ELV C ompliance

= ELV compliant

Lead Free Solder Processes

= Wave solder capable to 240?C , Wave

solder capable to 260?C , Wave solder capable to 265?C

RoHS/ELV C ompliance History = Always was ELV compliant

TUV C ertificate No. = R72041433

Conditions for Usage:

Operating Temperature (Max.) (?C )

= 85

Operation/Application:

Application = Radial

Packaging Related Features:

Packaging Method = Tape & Reel

Other:

Brand = Raychem

Additional Information:

Product Line Information

333513-000 Related Products

	333513-000	RGE500K-2
Description	RESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, THROUGH HOLE MOUNT, RADIAL LEADED	RESISTOR, TEMPERATURE DEPENDENT, PTC RESETTABLE FUSE, 0.015ohm, THROUGH HOLE MOUNT, RADIAL LEADED
Maker	TE Connectivity	TE Connectivity
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	RESISTANCE RANGE(MIN-MAX): 0.015-0.023	RESISTANCE RANGE(MIN-MAX): 0.015-0.023
Manufacturer's serial number	RGE	RGE
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR	TR
Rated (AC) voltage (URac)	16 V	16 V
Rated power dissipation(P)	2.6 W	2.6 W
Resistor type	PTC RESETTABLE FUSE	PTC RESETTABLE FUSE
surface mount	NO	NO
Terminal surface	NOT SPECIFIED	TIN LEAD
Terminal location	RADIAL	RADIAL
Terminal shape	WIRE	WIRE
Thermistor Applications	TEMPERATURE SENSING	TEMPERATURE SENSING
Base Number Matches	1	1
