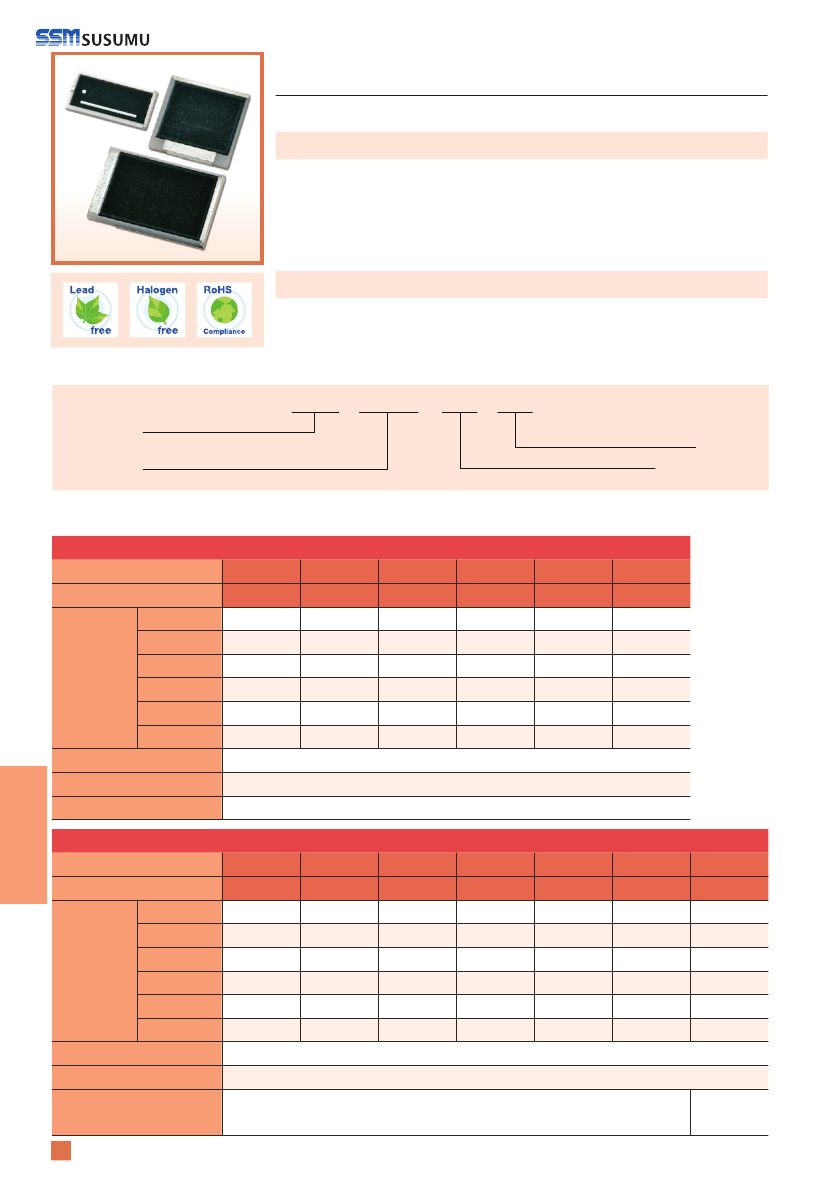

High Power Thin Film Chip Terminator
■PCS
Series、HPT Series
Features
・
Small high power chip terminator with aluminum nitride and aluminum oxide substrate
・
Efficient heat dissipation provides high power, anti-surge, overload protection.
・
Wrap around terminals provide easy and reliable soldering.
・
Thin film does not have any innate stress. Therefore, repeated power cycling does
not fatigue the element and cause no change in impedance.
Applications
・
Wireless base station, wireless communication devices, and high frequency power
source
◆Part
numbering system
HPT 3216 - 50 - T1
Series code(PCS, HPT)
Size : 1005,1608,2012,3216,5025
6432, *6464, *9464H
*HPT series only
Packing quantity:
T=Tape (T1/T5), B=Bulk
Impedance
◆
Electrical Specification
PCS series (Alumina substrate)
Type
Rated Power
DC
∼
3GHz
3.1∼5GHz
5.1∼7.5GHz
VSWR
7.6∼10GHz
10.1∼12.5GHz
12.6∼15GHz
Operating temperature
PCS1005
200mW
1.2
1.2
1.3
1.3
1.4
1.5
PCS1608
500mW
1.2
1.2
1.3
1.3
1.4
1.5
PCS2012
1W
1.2
1.3
1.3
1.4
1.5
ー
PCS3216
2W
1.2
1.3
1.4
1.5
ー
ー
-55℃∼ +125℃
+70℃
100/bag (B) 1000pcs/reel (T1) 5000pcs/reel (T5)
PCS5025
5W
1.3
1.4
1.5
ー
ー
ー
PCS6432
10W
1.2
1.5
ー
ー
ー
ー
High frequency surface mount components
Rated operating temperature
Packaging quantity
HPT series (ALN substrate)
Type
Rated Power
DC
∼
3GHz
HPT1608
2.5W
1.2
1.2
1.3
1.3
1.4
1.5
HPT2012
5W
1.2
1.3
1.3
1.4
1.5
ー
HPT3216
10W
1.2
1.3
1.4
1.5
ー
ー
HPT5025
20W
1.3
1.5
ー
ー
ー
ー
-40℃∼ +155℃
+100℃ at Terminal
100/bag (B) 1000pcs/reel (T1) 5000pcs/reel (T5)
100/bag(B)
1000pcs/reel (T1)
HPT6432
30W
1.3
1.5
ー
ー
ー
ー
HPT6464
60W
1.3
ー
ー
ー
ー
ー
HPT9464H
100W
1.3
ー
ー
ー
ー
ー
PCS Series, HPT Series
3.1∼5GHz
5.1∼7.5GHz
VSWR
7.6∼10GHz
10.1∼12.5GHz
12.6∼15GHz
Operating temperature
Rated operating temperature
Packaging quantity
87
◆

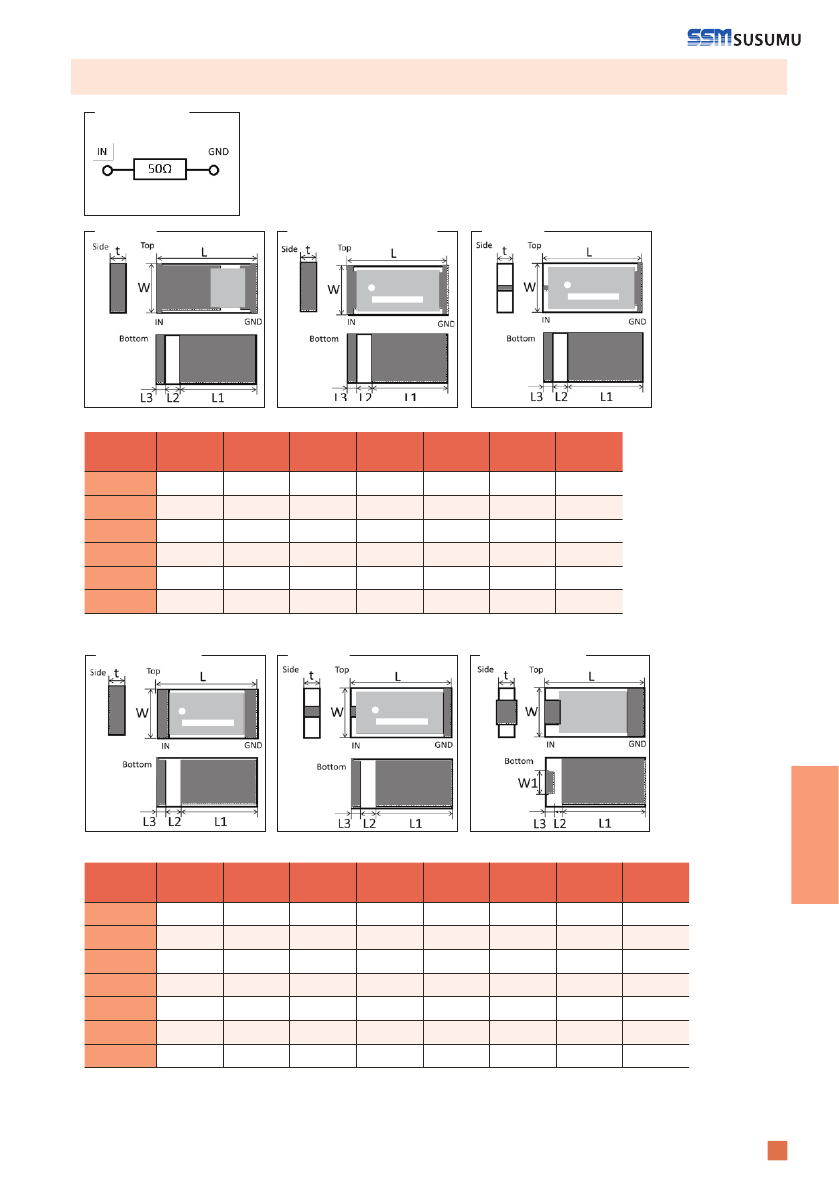

Dimension, Equivalent Circuit and pin arrangement
Equivalent circuit
PCS1608
PCS2012 PCS3216 PCS5025
PCS6432
Type
PCS1005
PCS1608
PCS2012
PCS3216
PCS5025
PCS6432
Size
(inch)
0402
0603
0805
1206
2010
2512
L
1.00±0.10
1.60±0.15
2.00±0.15
3.20±0.20
5.00±0.20
6.40±0.20
W
0.50±0.10
0.80±0.15
1.25±0.15
1.60±0.20
2.50±0.20
3.20±0.20
t
0.30±0.10
0.40±0.10
0.40±0.10
0.40±0.10
0.40±0.10
0.40±0.10
L1
0.65±0.10
1.10±0.15
1.50±0.15
2.70±0.20
4.30±0.20
5.70±0.20
L2
0.20±0.10
0.30±0.15
0.30±0.15
0.30±0.15
0.40±0.15
0.40±0.15
L3
0.15±0.10
0.20±0.15
0.20±0.15
0.20±0.15
0.30±0.15
0.30±0.15
HPT1608 HPT2012
HPT3216 HPT5025
HPT 6432
HPT6464 HPT9464H
High frequency surface mount components
Type
HPT1608
HPT2012
HPT3216
HPT5025
HPT6432
HPT6464
HPT9464H
Size
(inch)
0603
0805
1206
2010
2512
2525
3725
L
1.60±0.15
2.00±0.15
3.20±0.20
5.00±0.20
6.40±0.20
6.30±0.20
9.40±0.20
W
0.80±0.15
1.25±0.15
1.60±0.20
2.50±0.20
3.20±0.20
6.30±0.20
6.30±0.20
t
0.40±0.10
0.40±0.10
0.40±0.10
0.65±0.10
0.65±0.10
0.65±0.10
0.65±0.10
L1
1.10±0.15
1.50±0.15
2.70±0.20
3.60±0.20
5.50±0.20
4.90±0.20
7.10±0.20
L2
0.30±0.15
0.30±0.15
0.30±0.15
0.90±0.20
0.70±0.15
0.65±0.15
1.15±0.15
L3
0.20±0.15
0.20±0.15
0.20±0.15
0.50±0.15
0.20±0.15
0.75±0.15
1.15±0.15
W1
ー
PCS Series, HPT Series
ー
ー
ー
ー
3.05±0.20
3.00±0.20
（unit：mm）
88
High Power Thin Film Chip Terminator
■PCS
Series、HPT Series

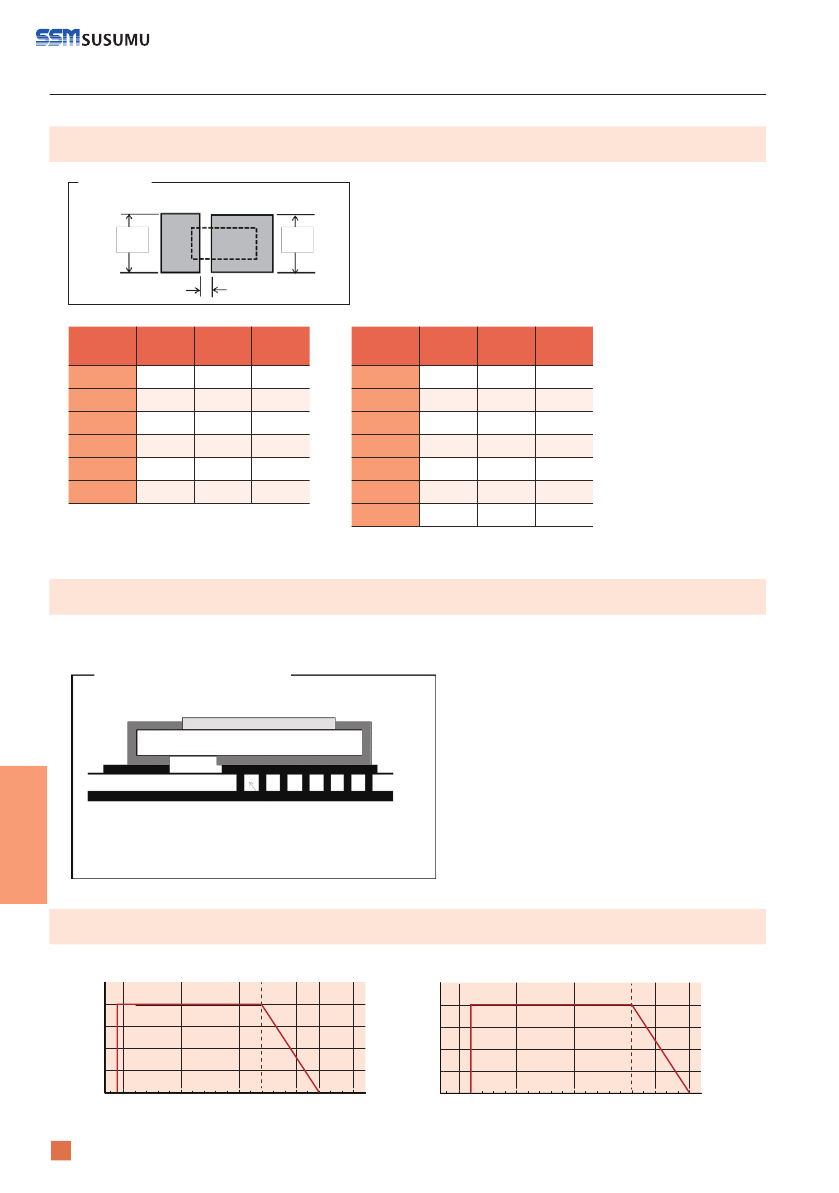

◆Recommended
land patterns (soldering footprints)
PCS ／ HPT
a
c
b
Type
PCS1005
PCS1608
PCS2012
PCS3216
PCS5025
PCS6432
a
0.70
1.20
1.20
2.00
2.90
3.60
b
0.20
0.30
0.45
0.45
0.55
0.55
c
0.70
1.20
1.60
2.00
2.90
3.60
（unit：mm）
Type
HPT1608
HPT2012
HPT3216
HPT5025
HPT6432
HPT6464
HPT9464H
a
1.20
1.60
2.00
2.90
3.60
3.30
3.30
b
0.40
0.40
0.40
0.90
0.70
1.15
1.15
c
1.20
1.50
2.00
2.90
3.60
6.80
6.80
（unit：mm）
◆Mounting
example
Pay special care to heat dissipation when this product is used at maximum rated power.
Mounting example of these series
Input terminal
Resistor element
Mounting
surface
High frequency surface mount components
Ground
Thermal vias
Above diagram shows a mounting example with thermal bias dissipating
heat to the ground. Depending on the application, a heat sink might be
needed closely contacting to the bottom of the product.
PCS Series, HPT Series
◆Derating
Curve
〇 PCS Series
Rated Power ratio（％）
〇 HPT Series
100
Rated Power ratio %
100
50
50
0
-55
0 50
70
100
125
Ambient tempareture（℃）
155
0
-40
0 50 100
Terminal temperature（℃）
155
89
