CT1D0F-0087-011M: DescriptionBase Station/Broadcast Transmission Antenna, 870MHz Min, 960MHz Max, 11dB Gain, 360deg 3dB Beamwidth; CategoryWireless rf/communication Radio frequency and microwave; File Size128KB，2 Pages; ManufacturerCommScope Inc

Download Datasheet Parametric Compare View All

CT1D0F-0087-011M Overview

Base Station/Broadcast Transmission Antenna, 870MHz Min, 960MHz Max, 11dB Gain, 360deg 3dB Beamwidth

CT1D0F-0087-011M Parametric

Parameter Name	Attribute value
Maker	CommScope Inc
Reach Compliance Code	unknown
Beam Width-E	5 deg
Beamwidth-H	360 deg
Characteristic impedance	50 Ω
Gain	11 dB
Omnidirectional	YES
Maximum operating frequency	960 MHz
Minimum operating frequency	870 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
polarization	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W
Maximum voltage standing wave ratio	1.5
Commentary	125 mph
Base Number Matches	1

Preview

Download Datasheet

View All

Base Station Antennas

ANTENNA SPECIFICATIONS

TM

PerforMax

ANTENNA TYPE:

Description:

Electrical Specifications

Frequency Band, MHz

Gain, dBd (dBi)

Elevation Beamwidth, degrees

Polarization Type

Electrical Downtilt, degrees

Return Loss, dB (VSWR)

Impedance, ohms

Maximum Input Power, watts

Lightning Protection

Connector Type

Connector Position

CT1D0F-0087-011

870-960 MHz, single polarized, 11 dBi gain omni antenna

with 0 degrees of electrical downtilt

870-960

8.8 (11.0)

5

Single/Vertical

0

>14.0 (<1.5)

50

500

DC Ground

7-16 DIN Female

Bottom

Mechanical Specifications

Antenna Dimensions - L x Dia., mm (in)

Antenna Weight, kg (lb)

Radome Color

Radome Material

4140 (163) x 76 (3)

16.4 (36.0)

Gray

UV Protected Fiberglass

Environmental Specifications

Survival Wind Speed, km/h (mph)

Wind Load, N (lbf)*

Bending Moment, N (ft-lb)

Flate Plate Area, sq. cm (sq. in)

Temperature Range, degrees C

Humidity, %

* Based on 100 mph (161 km/h)

201 (125)

454 (102)

802 (592)

1890 (293)

-40 to +70

Up to 100

Shipping Specifications

Shipping Dimensions - L x Diam., mm (in)

Shipping Weight, kg (lb)

4267 (168) x 127 (5)

23.6 (52.0)

Mounting Hardware Specifications

Mounting Bracket Part Number

Mount Weight, kg (lb)

Mount Description

To include mounting hardware with antenna,

order part number:

Shipping Dimensions of mount carton -

L x W x D, mm (in)

Shipping Weight of mount and antenna, kg (lb)

(Mount carton packaged with antenna for shipping)

Customer Support Center:

From North America: 1-800-255-1479

International: +1-708-873-2307

28.1 (61.9)

600033

4.3 (9.5)

Fixed Mount

CT1D0F-0087-011M

380 (15) x 80 (3.2) x 80 (3.2)

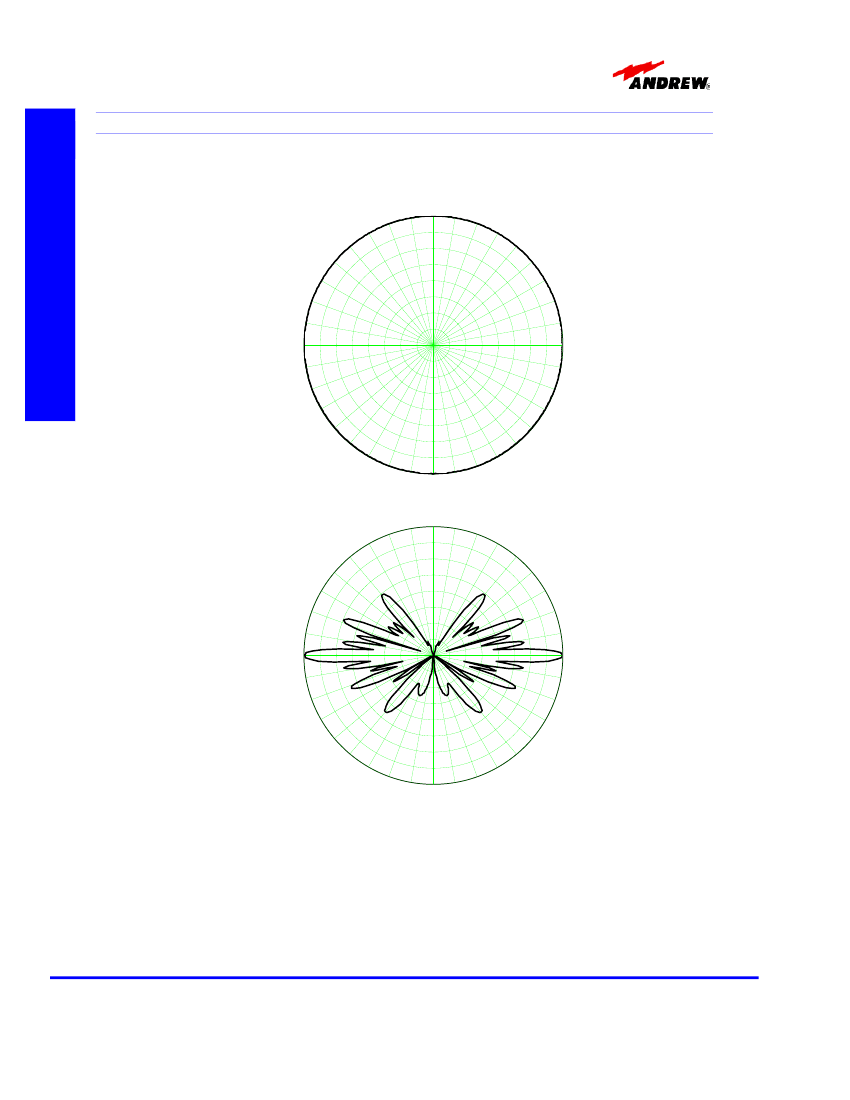

This Specification Sheet is for reference only and is subject to change without notice.

Copyright



2001 Andrew Corporation, Printed in the U.S.A.

Bulletin # 94005 - Rev. 9/17/2001

www.andrew.com

CT1D0F-0087-011M Related Products

	CT1D0F-0087-011M	CT1D0F-0087-011
Description	Base Station/Broadcast Transmission Antenna, 870MHz Min, 960MHz Max, 11dB Gain, 360deg 3dB Beamwidth	Base Station/Broadcast Transmission Antenna, 870MHz Min, 960MHz Max, 11dB Gain, 360deg 3dB Beamwidth
Maker	CommScope Inc	CommScope Inc
Reach Compliance Code	unknown	unknown
Beam Width-E	5 deg	5 deg
Beamwidth-H	360 deg	360 deg
Characteristic impedance	50 Ω	50 Ω
Gain	11 dB	11 dB
Omnidirectional	YES	YES
Maximum operating frequency	960 MHz	960 MHz
Minimum operating frequency	870 MHz	870 MHz
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C
polarization	LINEAR VERTICAL	LINEAR VERTICAL
RF/Microwave Device Types	BASE STATION/BROADCAST TRANSMISSION ANTENNA	BASE STATION/BROADCAST TRANSMISSION ANTENNA
Maximum transmission power	500 W	500 W
Maximum voltage standing wave ratio	1.5	1.5
Commentary	125 mph	125 mph
