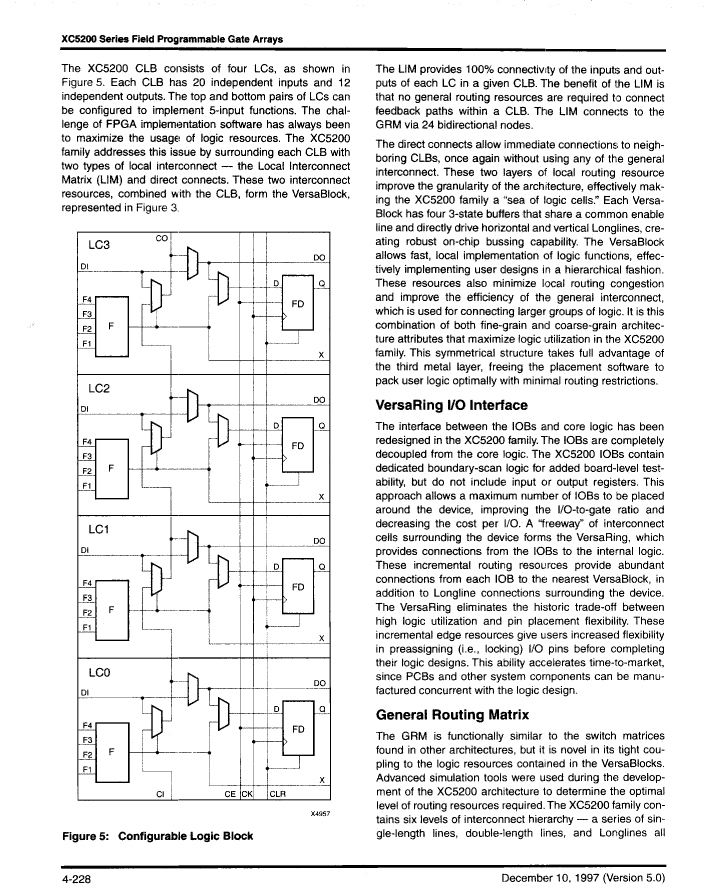

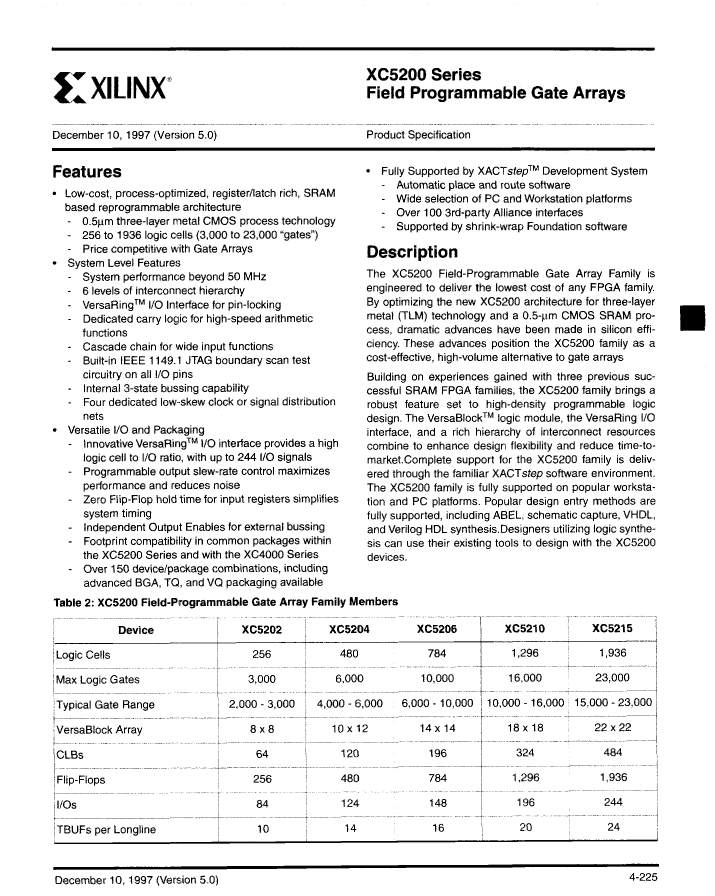

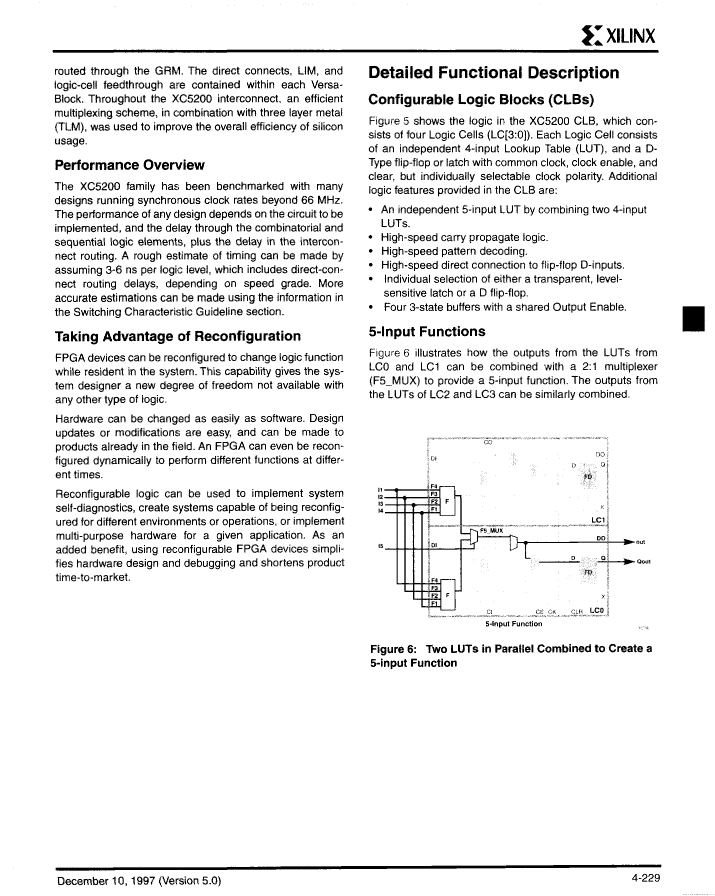

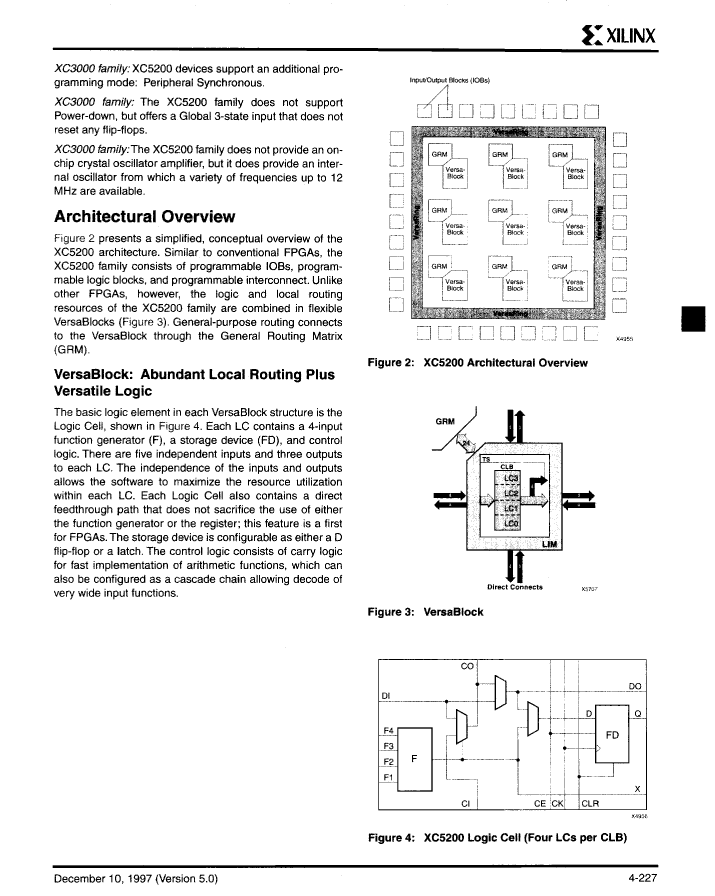

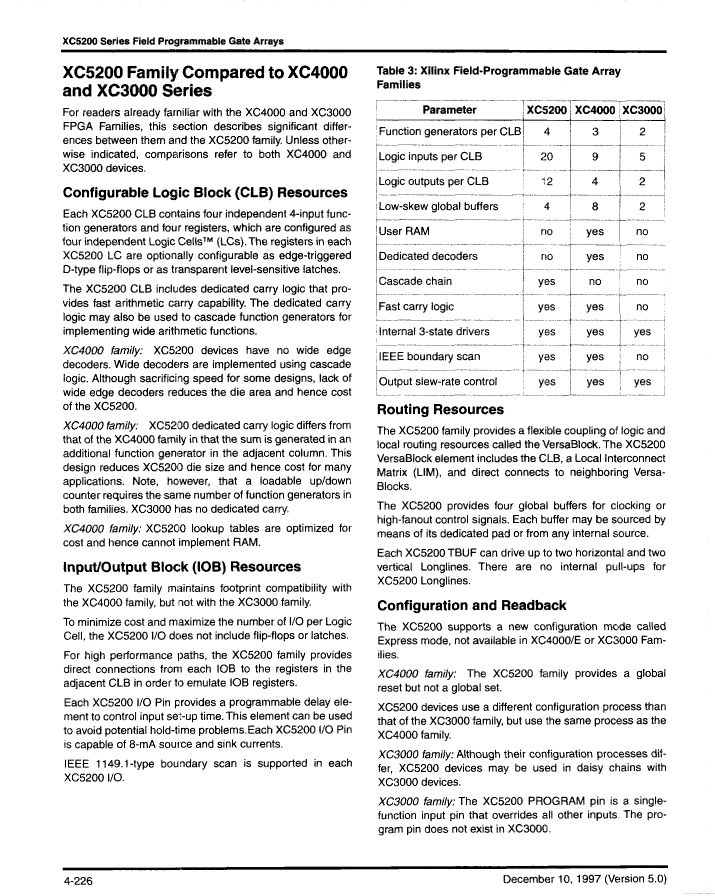

Preview

XC5215-6HQ304I: DescriptionField Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, 484-Cell, CMOS, PQFP304, HEAT SINK, PLASTIC, QFP-304; CategoryProgrammable logic devices Programmable logic; File Size5MB，72 Pages; ManufacturerXILINX; Websitehttps://www.xilinx.com/

Download Datasheet Parametric Compare View All

XC5215-6HQ304I Overview

Field Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, 484-Cell, CMOS, PQFP304, HEAT SINK, PLASTIC, QFP-304

XC5215-6HQ304I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	XILINX
Parts packaging code	QFP
package instruction	HEAT SINK, PLASTIC, QFP-304
Contacts	304
Reach Compliance Code	unknown
Other features	TYP. GATES = 15000-23000
maximum clock frequency	83 MHz
Combined latency of CLB-Max	5.6 ns
JESD-30 code	S-PQFP-G304
JESD-609 code	e0
length	40 mm
Humidity sensitivity level	3
Configurable number of logic blocks	484
Equivalent number of gates	15000
Number of entries	244
Number of logical units	484
Output times	244
Number of terminals	304
organize	484 CLBS, 15000 GATES
Package body material	PLASTIC/EPOXY
encapsulated code	HFQFP
Encapsulate equivalent code	HQFP304,1.7SQ,20
Package shape	SQUARE
Package form	FLATPACK, HEAT SINK/SLUG, FINE PITCH
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Maximum seat height	4.5 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	QUAD
width	40 mm
Base Number Matches	1

Preview

Download Datasheet

View All

XC5215-6HQ304I Related Products

	XC5215-6HQ304I	XC5215-5HQG208I	XC5215-6HQ304C	XC5215-5HQ304C	XC5215-5PQG160I	XC5215-5BGG225I	XC5215-5HQG240I	XC5215-5HQ304I
Description	Field Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, 484-Cell, CMOS, PQFP304, HEAT SINK, PLASTIC, QFP-304	Field Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, CMOS, PQFP208, HEAT SINK, PLASTIC, QFP-208	Field Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, 484-Cell, CMOS, PQFP304, HEAT SINK, PLASTIC, QFP-304	Field Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, 484-Cell, CMOS, PQFP304, HEAT SINK, PLASTIC, QFP-304	Field Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, CMOS, PQFP160, PLASTIC, QFP-160	Field Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, CMOS, PBGA225, PLASTIC, BGA-225	Field Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, CMOS, PQFP240, HEAT SINK, PLASTIC, QFP-240	Field Programmable Gate Array, 484 CLBs, 15000 Gates, 83MHz, 484-Cell, CMOS, PQFP304, HEAT SINK, PLASTIC, QFP-304
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible	conform to	conform to	conform to	incompatible
Parts packaging code	QFP	QFP	QFP	QFP	QFP	BGA	QFP	QFP
package instruction	HEAT SINK, PLASTIC, QFP-304	HFQFP,	HEAT SINK, PLASTIC, QFP-304	HEAT SINK, PLASTIC, QFP-304	QFP,	BGA,	HFQFP,	HEAT SINK, PLASTIC, QFP-304
Contacts	304	208	304	304	160	225	240	304
Reach Compliance Code	unknown	compliant	unknown	unknown	compliant	compliant	compliant	unknown
Other features	TYP. GATES = 15000-23000	TYP. GATES = 15000-23000	TYP. GATES = 15000-23000	TYP. GATES = 15000-23000	TYP. GATES = 15000-23000	TYP. GATES = 15000-23000	TYP. GATES = 15000-23000	TYP. GATES = 15000-23000
maximum clock frequency	83 MHz	83 MHz	83 MHz	83 MHz	83 MHz	83 MHz	83 MHz	83 MHz
Combined latency of CLB-Max	5.6 ns	4.6 ns	5.6 ns	4.6 ns	4.6 ns	4.6 ns	4.6 ns	4.6 ns
JESD-30 code	S-PQFP-G304	S-PQFP-G208	S-PQFP-G304	S-PQFP-G304	S-PQFP-G160	S-PBGA-B225	S-PQFP-G240	S-PQFP-G304
JESD-609 code	e0	e3	e0	e0	e3	e1	e3	e0
length	40 mm	28 mm	40 mm	40 mm	28 mm	27 mm	32 mm	40 mm
Humidity sensitivity level	3	3	3	3	3	3	3	3
Configurable number of logic blocks	484	484	484	484	484	484	484	484
Equivalent number of gates	15000	15000	15000	15000	15000	15000	15000	15000
Number of terminals	304	208	304	304	160	225	240	304
organize	484 CLBS, 15000 GATES	484 CLBS, 15000 GATES	484 CLBS, 15000 GATES	484 CLBS, 15000 GATES	484 CLBS, 15000 GATES	484 CLBS, 15000 GATES	484 CLBS, 15000 GATES	484 CLBS, 15000 GATES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HFQFP	HFQFP	HFQFP	HFQFP	QFP	BGA	HFQFP	HFQFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, HEAT SINK/SLUG, FINE PITCH	FLATPACK, HEAT SINK/SLUG, FINE PITCH	FLATPACK, HEAT SINK/SLUG, FINE PITCH	FLATPACK, HEAT SINK/SLUG, FINE PITCH	FLATPACK	GRID ARRAY	FLATPACK, HEAT SINK/SLUG, FINE PITCH	FLATPACK, HEAT SINK/SLUG, FINE PITCH
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.5 mm	4.1 mm	4.5 mm	4.5 mm	4.1 mm	3.5 mm	4.1 mm	4.5 mm
Maximum supply voltage	5.5 V	5.5 V	5.25 V	5.25 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.75 V	4.75 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn85Pb15)	Matte Tin (Sn)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Matte Tin (Sn)	TIN SILVER COPPER	MATTE TIN	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	BALL	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.65 mm	1.5 mm	0.5 mm	0.5 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	BOTTOM	QUAD	QUAD
width	40 mm	28 mm	40 mm	40 mm	28 mm	27 mm	32 mm	40 mm
Base Number Matches	1	1	1	1	1	1	1	1
Maker	XILINX	XILINX	XILINX	XILINX	XILINX	XILINX	XILINX	-
