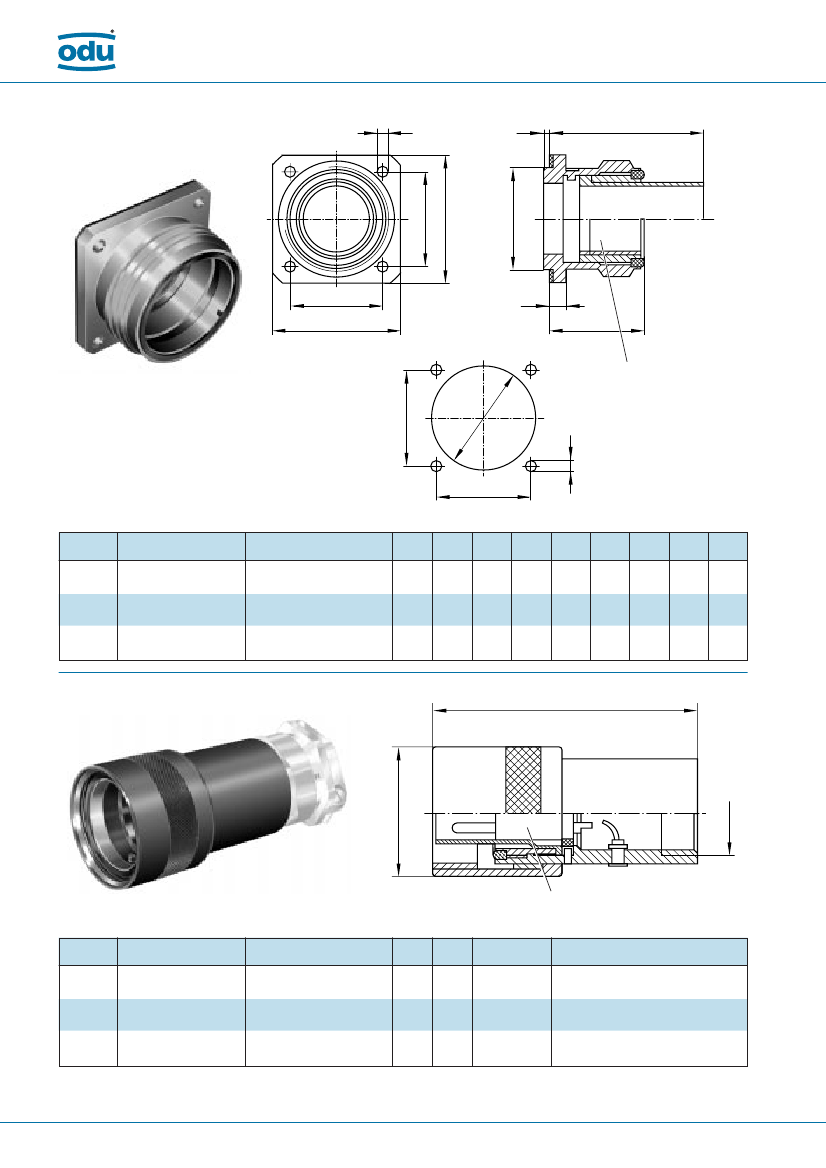

Heavy-Duty Connectors
Series 207, 208, 209
Straight Receptacle
C
D
G
(with Pin insert)
A
A
B
H
B
E
F
Inserts see Page 15 - 21
Recommended
Panel Cutout
A
K
A
C
(All dimensions in mm)
Series
Material and Finish
Part Number
Dim.
A
Dim.
B
Dim.
ØC
Dim.
D
Dim.
E
Dim.
F
Dim.
G
Dim.
ØH
Dim.
ØK
207
208
209
Alu-anodized
Brass-Ni-plated
Alu- anodized
Brass-Ni-plated
Alu-anodized
Brass-Ni-plated
207.010.000.632.000
207.010.000.304.000
208.010.000.632.000
208.010.000.304.000
209.010.000.632.000
209.010.000.304.000
24
34
48
32
46
60
3,2
3,3
4,5
1,5
2
3
4
6
7
23,5
27
33
38,5
41
55
25,5
32
46
26
32,5
46,5
Straight plug
A
B
Inserts see Page 15 - 21
(All dimensions in mm)
Series
Material and Finish
Part Number
1
)
Dim.
A
Dim.
B
Cable Size
Pg
1
)
Comments
207
208
209
1
Alu-anodized
Brass-Ni-plated
Alu- anodized
Brass-Ni-plated
Alu-anodized
Brass-Ni-plated
207.020.000.632.000
207.020.000.554.000
208.020.000.632.000
208.020.000.554.000
209.020.000.632.000
209.020.000.554.000
70
92
108
32
45
60
16
21
36
L = in mated condition
with 207.010 L = 79
L = in mated condition
with 208.010 L = 101
L = in mated condition
with 209.010 L = 123
)
Cable size is not shown in Part Number (see Page 22 and 23)
Assembly Instructions Page 24
Page 12
