FR606 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FR606

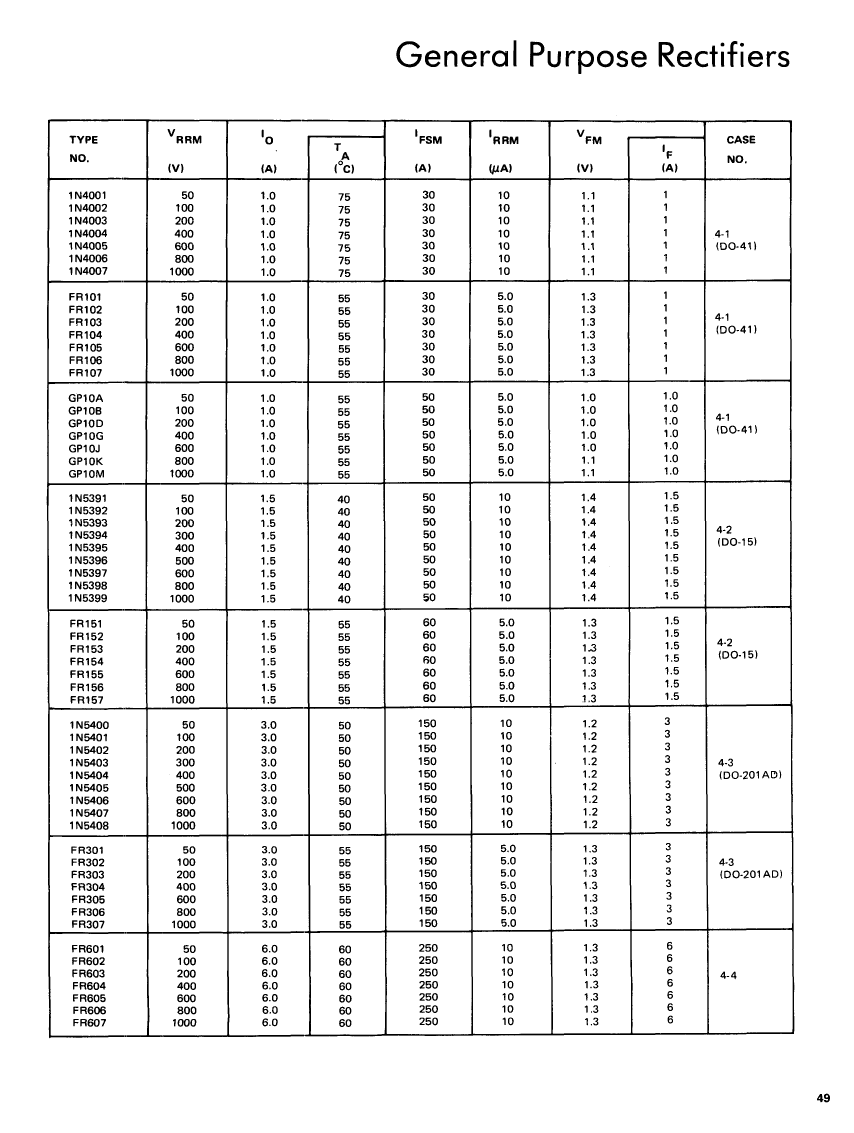

FR606: DescriptionRectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, CASE R-4, 2 PIN; CategoryDiscrete semiconductor diode; File Size43KB，1 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

FR606 Overview

Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, CASE R-4, 2 PIN

FR606 Parametric

Parameter Name	Attribute value
Maker	Micro Electronics
package instruction	O-XALF-W2
Contacts	2
Manufacturer packaging code	CASE R-4
Reach Compliance Code	unknown
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	O-XALF-W2
Maximum non-repetitive peak forward current	300 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	6 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

FR606 Related Products

	FR606	GP10B	GP10J	GP10K	GP10A	GP10D
Description	Rectifier Diode, 1 Phase, 1 Element, 6A, 800V V(RRM), Silicon, CASE R-4, 2 PIN	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-41, DO-41, 2 PIN	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-41, DO-41, 2 PIN	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-41, DO-41, 2 PIN	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-41, DO-41, 2 PIN	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-41, DO-41, 2 PIN
Maker	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics
package instruction	O-XALF-W2	O-XALF-W2	DO-41, 2 PIN	O-XALF-W2	DO-41, 2 PIN	DO-41, 2 PIN
Contacts	2	2	2	2	2	2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.1 V	1.1 V	1.2 V	1.1 V	1.1 V
JESD-30 code	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2	O-XALF-W2
Maximum non-repetitive peak forward current	300 A	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	6 A	1 A	1 A	1 A	1 A	1 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	100 V	600 V	800 V	50 V	200 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1	1	1
Parts packaging code	-	DO-41	DO-41	DO-41	DO-41	DO-41
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99
JEDEC-95 code	-	DO-41	DO-41	DO-41	DO-41	DO-41
Is Samacsys	-	-	N	N	N	N
