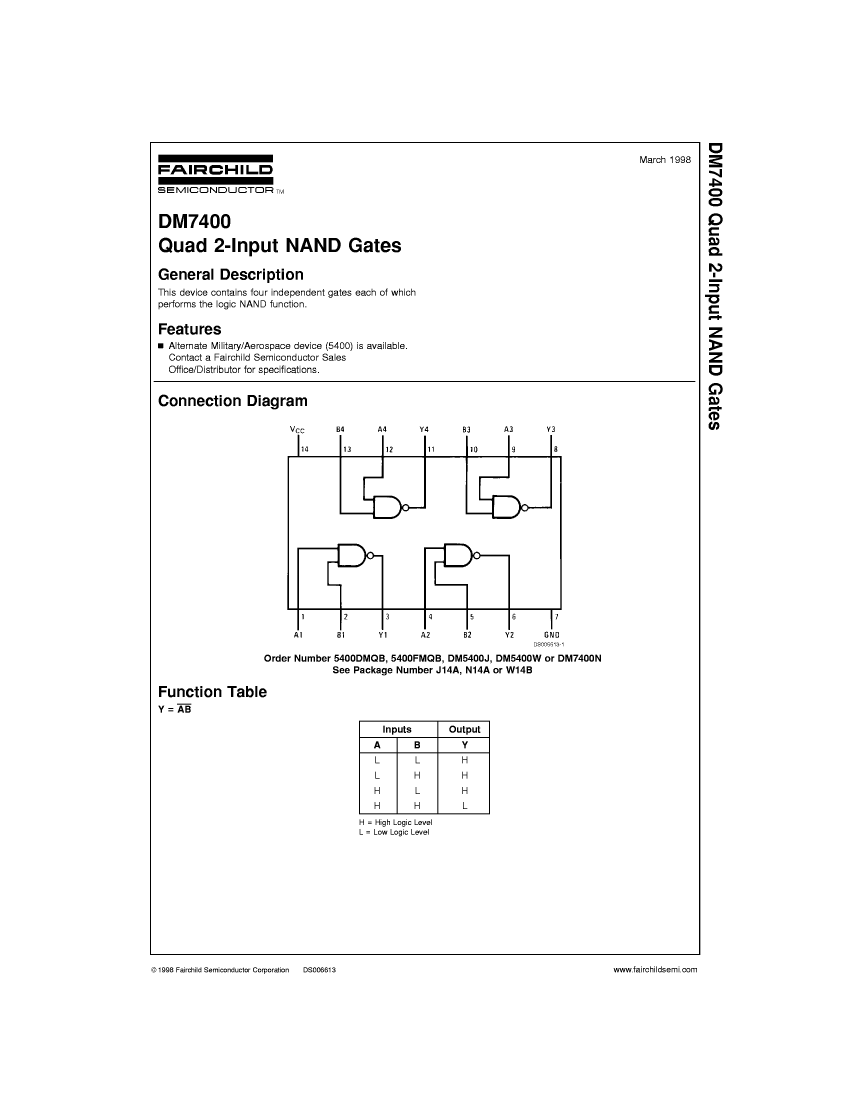

NAND Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14

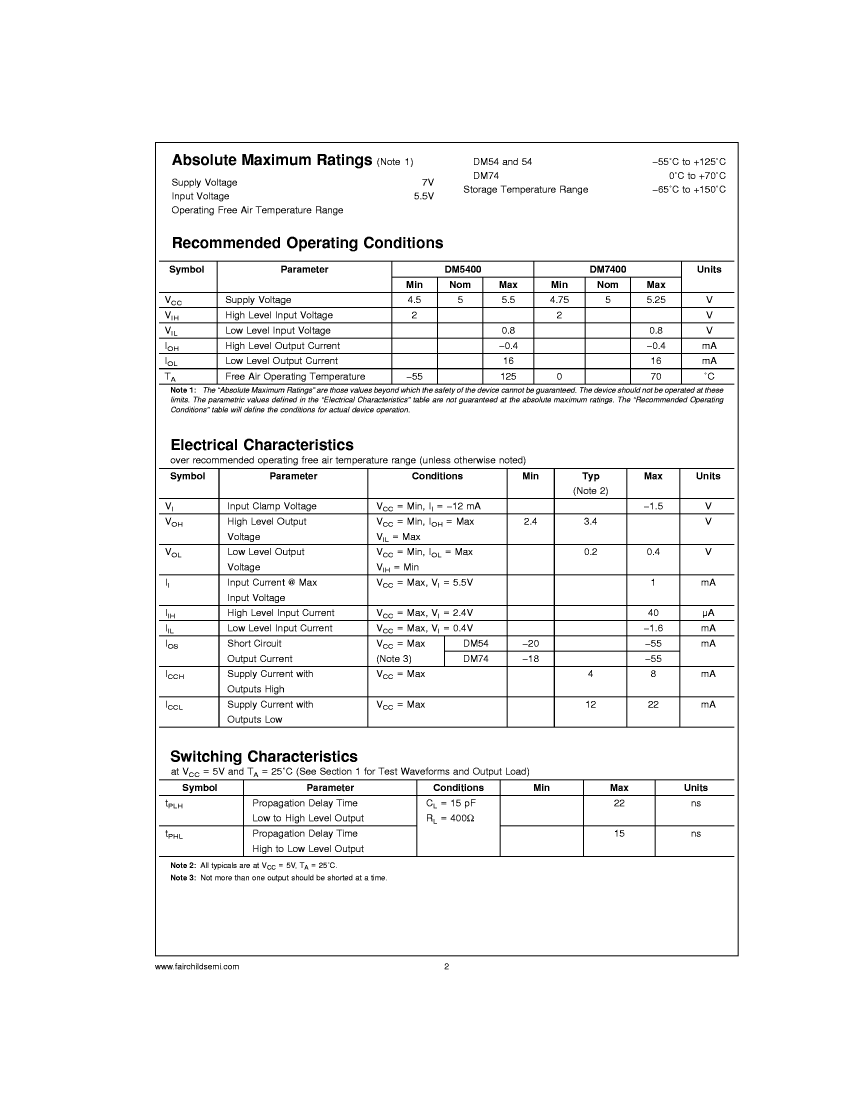

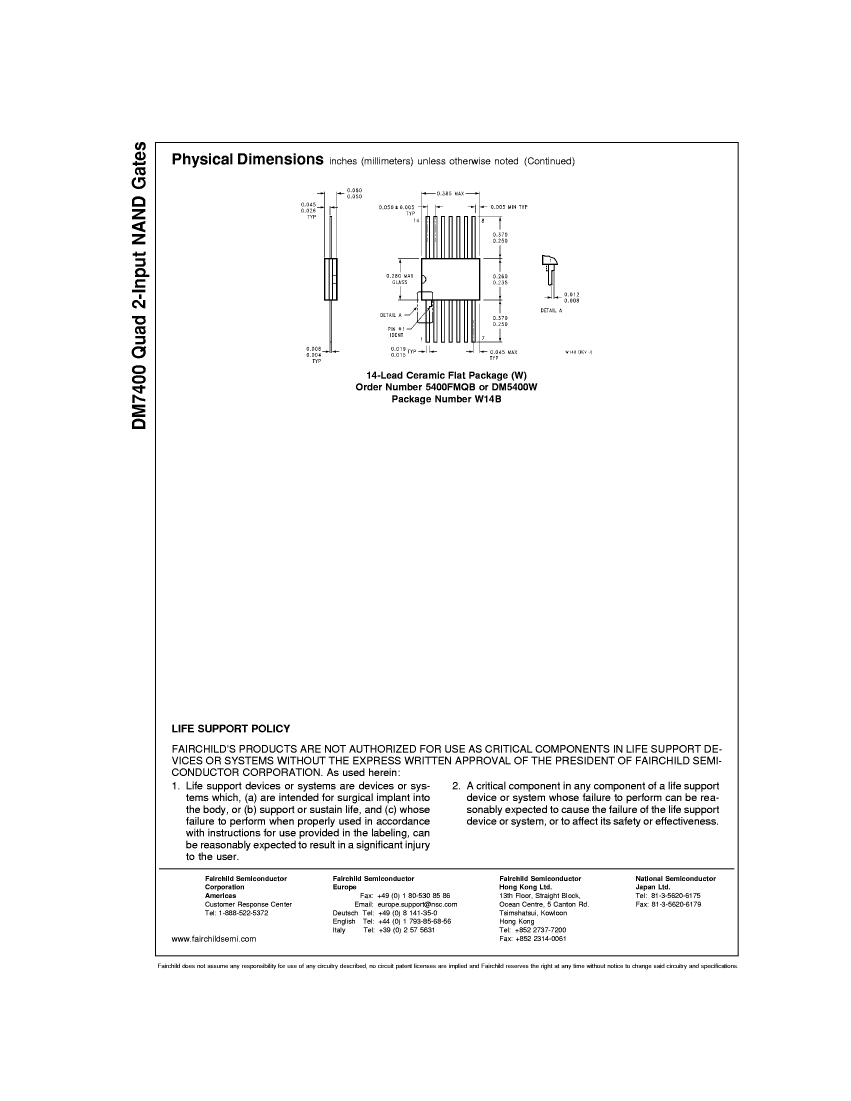

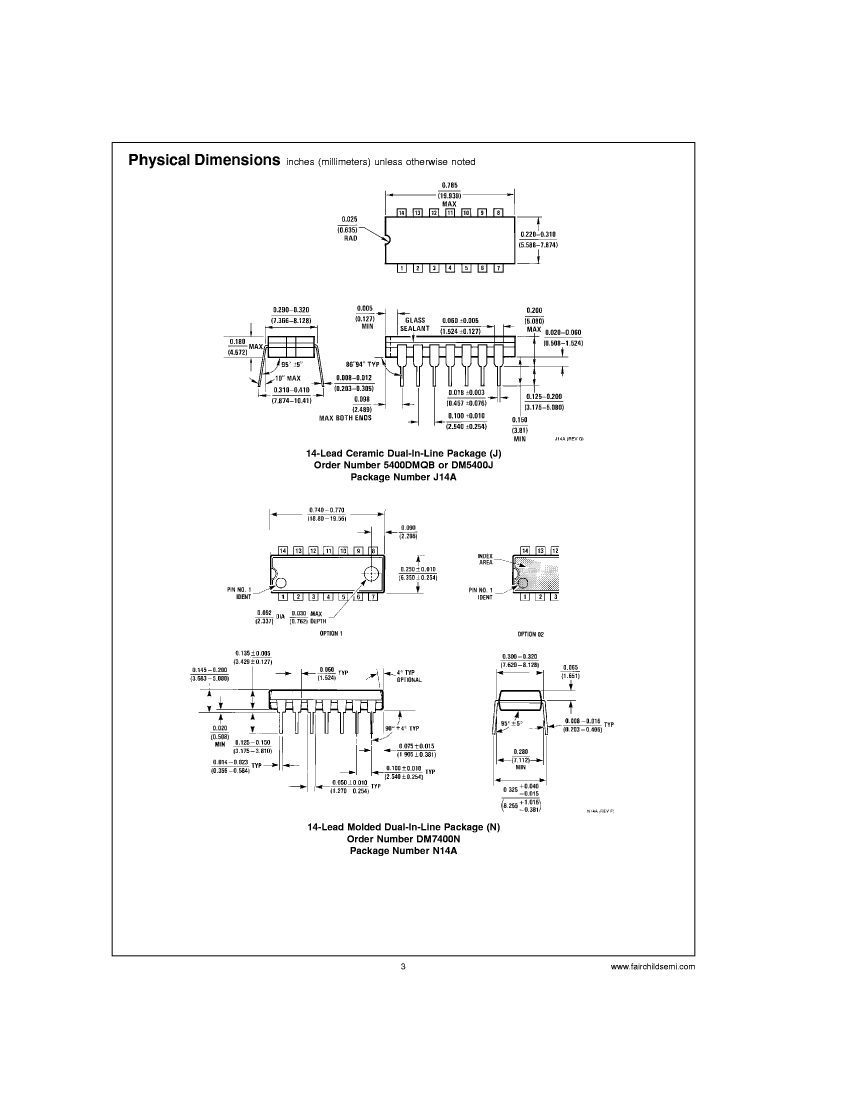

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DFP |
| package instruction | DFP, FL14,.3 |
| Contacts | 14 |
| Reach Compliance Code | unknown |
| series | TTL/H/L |
| JESD-30 code | R-GDFP-F14 |
| JESD-609 code | e0 |
| Logic integrated circuit type | NAND GATE |
| MaximumI(ol) | 0.016 A |
| Number of functions | 4 |
| Number of entries | 2 |
| Number of terminals | 14 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL14,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| power supply | 5 V |
| Maximum supply current (ICC) | 22 mA |
| Prop。Delay @ Nom-Sup | 22 ns |
| propagation delay (tpd) | 15 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| Filter level | MIL-STD-883 Class B |
| Maximum seat height | 2.032 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 6.2865 mm |
| Base Number Matches | 1 |
| 5400FMQB | 5400DMQB | DM5400W | DM5400J | |
|---|---|---|---|---|
| Description | NAND Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14 | NAND Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14 | NAND Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14 | NAND Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DFP | DIP | DFP | DIP |
| package instruction | DFP, FL14,.3 | DIP, DIP14,.3 | DFP, FL14,.3 | DIP, DIP14,.3 |
| Contacts | 14 | 14 | 14 | 14 |
| Reach Compliance Code | unknown | unknow | compliant | compliant |
| series | TTL/H/L | TTL/H/L | TTL/H/L | TTL/H/L |
| JESD-30 code | R-GDFP-F14 | R-GDIP-T14 | R-GDFP-F14 | R-GDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | NAND GATE | NAND GATE | NAND GATE | NAND GATE |
| MaximumI(ol) | 0.016 A | 0.016 A | 0.016 A | 0.016 A |
| Number of functions | 4 | 4 | 4 | 4 |
| Number of entries | 2 | 2 | 2 | 2 |
| Number of terminals | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DFP | DIP | DFP | DIP |
| Encapsulate equivalent code | FL14,.3 | DIP14,.3 | FL14,.3 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | IN-LINE | FLATPACK | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V |
| Maximum supply current (ICC) | 22 mA | 22 mA | 22 mA | 22 mA |
| propagation delay (tpd) | 15 ns | 15 ns | 15 ns | 15 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Schmitt trigger | NO | NO | NO | NO |
| Maximum seat height | 2.032 mm | 5.08 mm | 2.032 mm | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | NO |
| technology | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | THROUGH-HOLE | FLAT | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 6.2865 mm | 7.62 mm | 6.2865 mm | 7.62 mm |
| Prop。Delay @ Nom-Sup | 22 ns | - | 22 ns | 22 ns |
| Base Number Matches | 1 | 1 | 1 | - |
