LD-006ADUA3F: DescriptionSingle Color LED Array, Orange, 6.5mm; CategoryLED optoelectronic/LED photoelectric; File Size60KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

LD-006ADUA3F Overview

Single Color LED Array, Orange, 6.5mm

LD-006ADUA3F Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Reach Compliance Code	unknown
color	ORANGE
Configuration	SEPARATE, 6 ELEMENTS
Maximum forward current	0.02 A
Nominal luminous intensity	10 mcd
Installation features	RADIAL MOUNT
Number of functions	6
Number of terminals	12
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	4.85 mm
method of packing	BULK
peak wavelength	610 nm
shape	RECTANGULAR
size	6.5 mm
surface mount	NO
Terminal pitch	2.5 mm
Base Number Matches	1

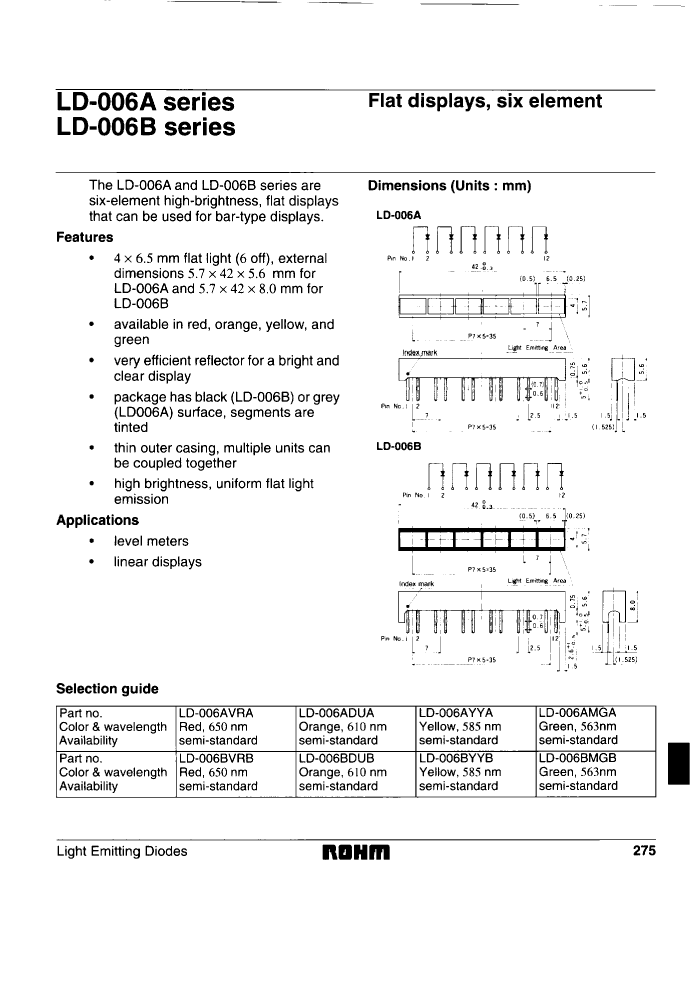

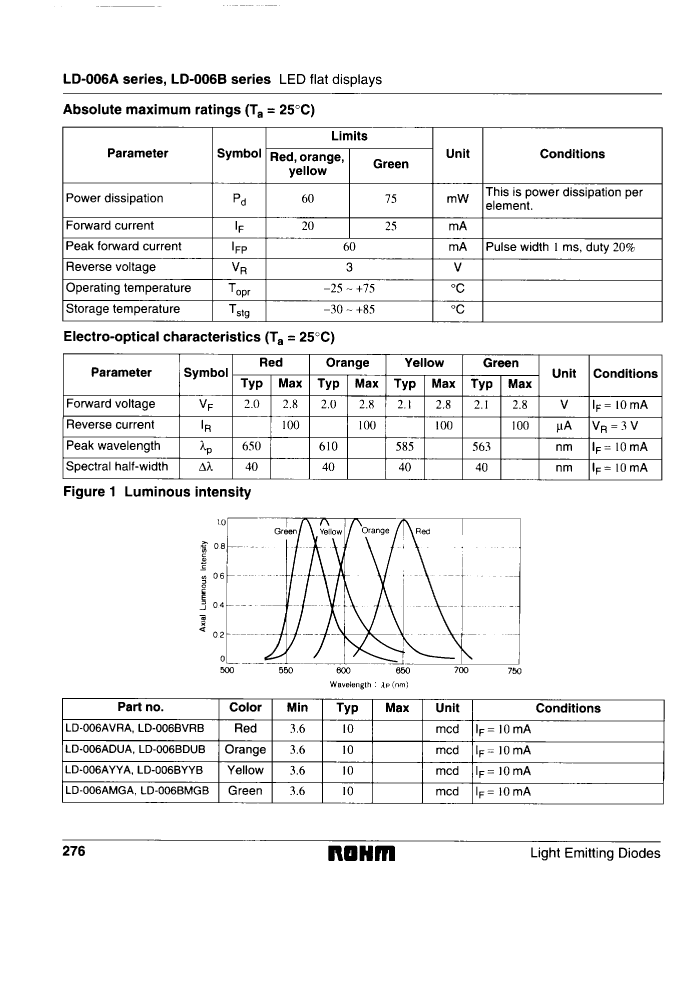

Preview

Download Datasheet

View All

LD-006ADUA3F Related Products

	LD-006ADUA3F	LD-006BMGB3F	LD-006AYYA3F	LD-006AVAR3F	LD-006AMGA3F	LD-006BVRB3F	LD-006BDUB3F	LD-006BYYB3F
Description	Single Color LED Array, Orange, 6.5mm	Single Color LED Array, Green, 6.5mm	Single Color LED Array, Yellow, 6.5mm	Single Color LED Array, Red, 6.5mm	Single Color LED Array, Green, 6.5mm	Single Color LED Array, Red, 6.5mm	Single Color LED Array, Orange, 6.5mm	Single Color LED Array, Yellow, 6.5mm
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	ORANGE	GREEN	YELLOW	RED	GREEN	RED	ORANGE	YELLOW
Configuration	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS	SEPARATE, 6 ELEMENTS
Maximum forward current	0.02 A	0.025 A	0.02 A	0.02 A	0.025 A	0.02 A	0.02 A	0.02 A
Nominal luminous intensity	10 mcd	10 mcd	10 mcd	10 mcd	10 mcd	10 mcd	10 mcd	10 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	6	6	6	6	6	6	6	6
Number of terminals	12	12	12	12	12	12	12	12
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm	4.85 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	610 nm	563 nm	585 nm	650 nm	563 nm	650 nm	610 nm	585 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Maker	ROHM Semiconductor	ROHM Semiconductor	-	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
