INA101HP-BI Overview

INA101HP-BI amplifier basic information:

INA101HP-BI is an INSTRUMENTATION AMPLIFIER. Commonly used packaging methods are DIP, DIP14,.3

INA101HP-BI amplifier core information:

The minimum operating temperature of INA101HP-BI is and the maximum operating temperature is 70 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.03 µA while its maximum input offset current (IIO) is only 0.03 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of INA101HP-BI is 0.4 V/us. The maximum slew rate of INA101HP-BI given by the manufacturer is 17 mA. Its maximum voltage gain is 1000 and its minimum voltage gain is 1. When the op amp is used in a closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the INA101HP-BI gain becomes 0.707 times the low-frequency gain is 0.3 MHz.

The nominal supply voltage of INA101HP-BI is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of INA101HP-BI is 1150 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

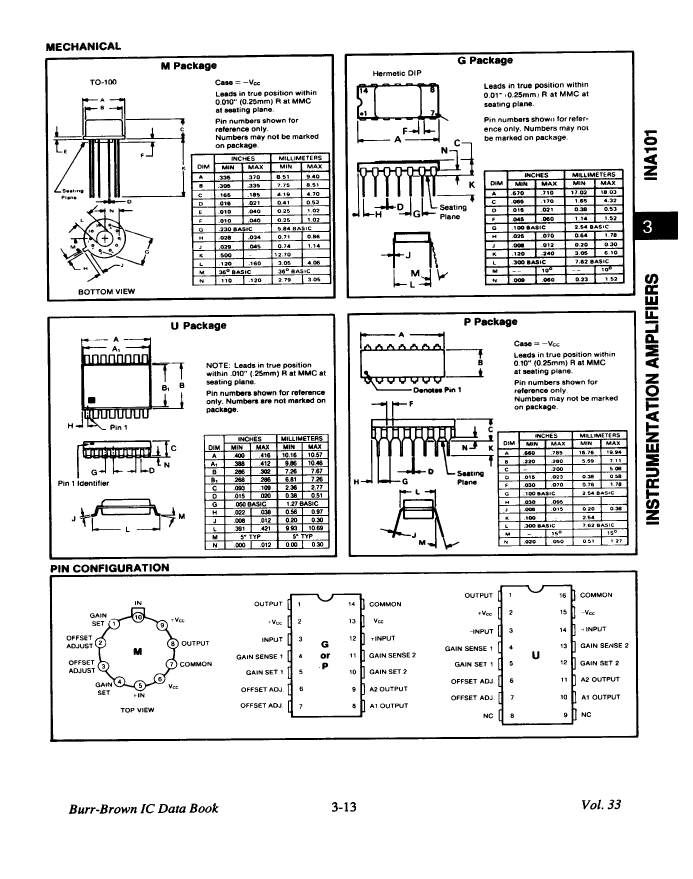

Related dimensions of INA101HP-BI:

INA101HP-BI has 14 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm.

INA101HP-BI amplifier additional information:

Its temperature grade is: COMMERCIAL. INA101HP-BI is not Rohs certified. The corresponding JESD-30 code is: R-PDIP-T14. The corresponding JESD-609 code is: e0. The packaging code of INA101HP-BI is: DIP.

INA101HP-BI packaging materials are mostly PLASTIC/EPOXY. The package shape is RECTANGULAR. The form of INA101HP-BI package pins is: IN-LINE. Its terminal form is: THROUGH-HOLE.

INA101HP-BI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Amplifier type	INSTRUMENTATION AMPLIFIER
Maximum average bias current (IIB)	0.03 µA
Nominal bandwidth (3dB)	0.3 MHz
Minimum Common Mode Rejection Ratio	65 dB
Maximum input offset current (IIO)	0.03 µA
Maximum input offset voltage	1150 µV
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
maximum nonlinearity	0.025%
Number of functions	1
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Nominal slew rate	0.4 V/us
Maximum slew rate	17 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage gain	1000
Minimum voltage gain	1
Base Number Matches	1

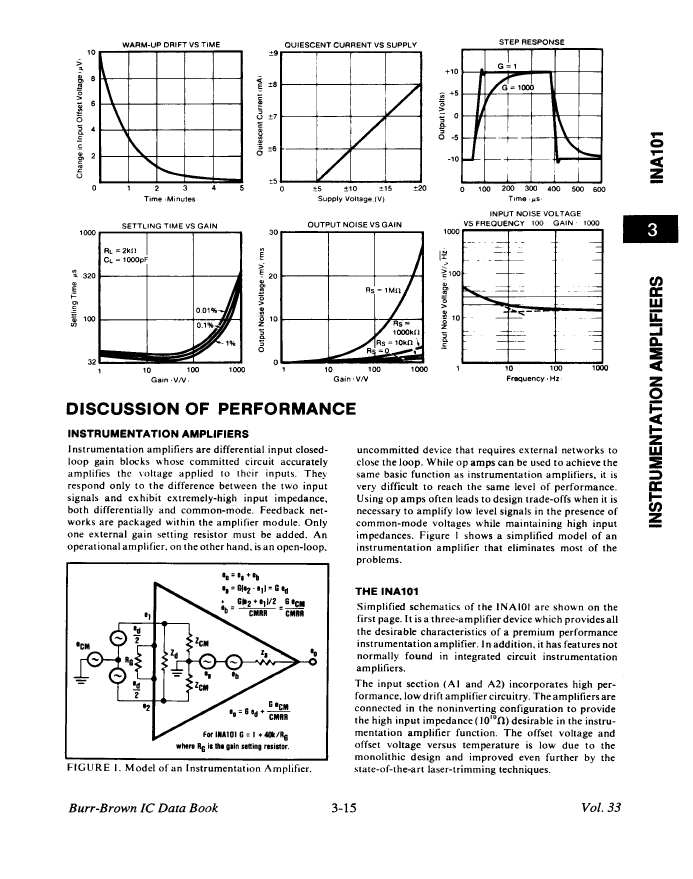

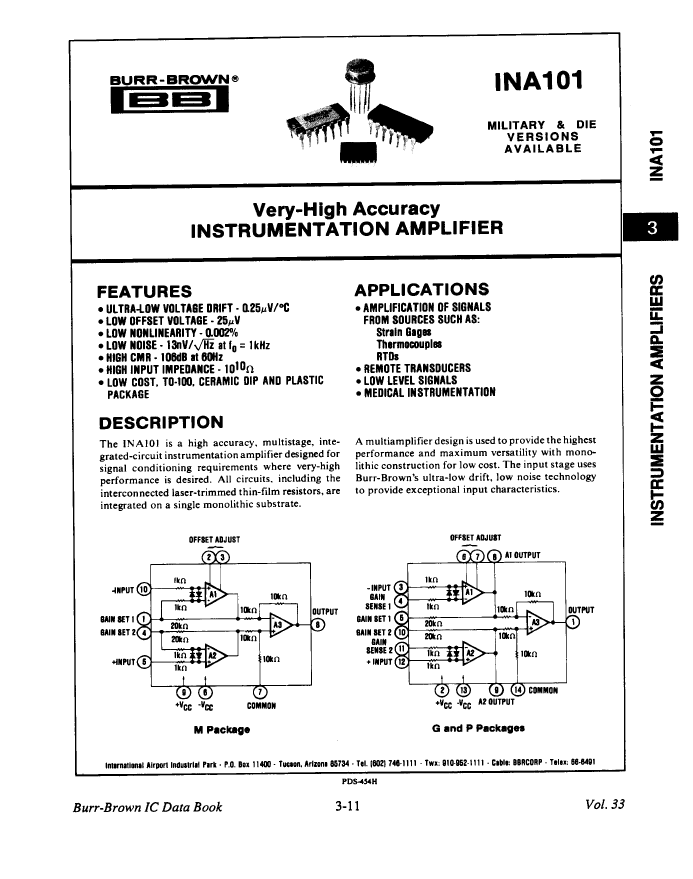

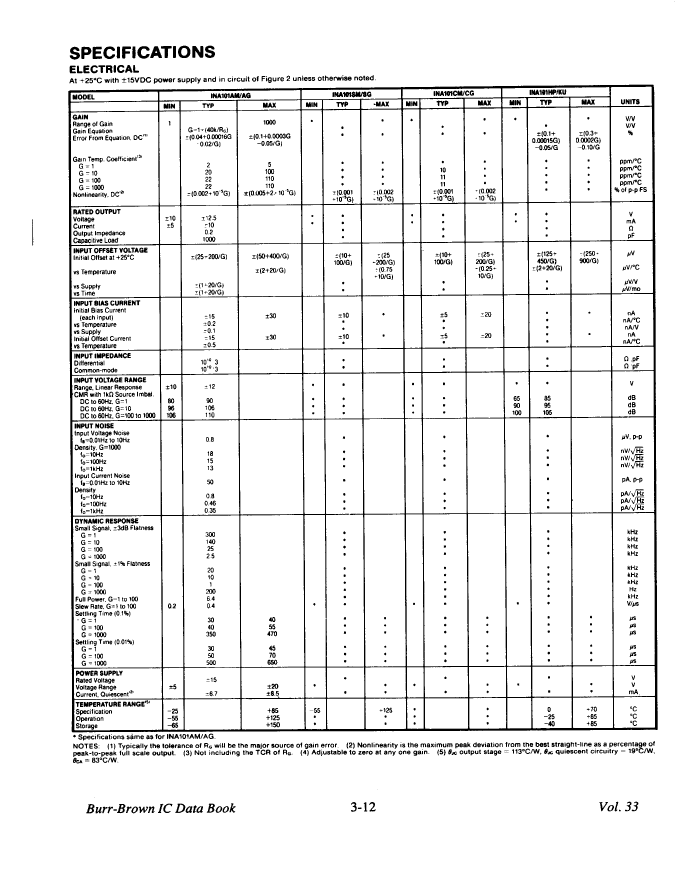

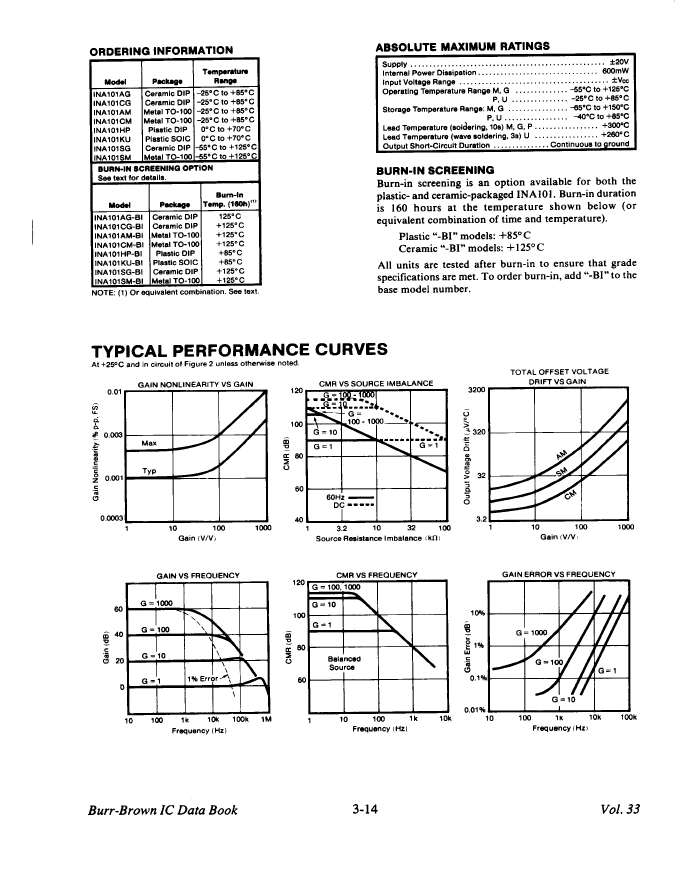

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

INA101HP-BI Related Products

	INA101HP-BI	INA101SM-BI	INA101SG-BI	INA101CM-BI	INA101AG-BI	INA101AM-BI	INA101CG-BI	INA101KU-BI
Description	Instrumentation Amplifier, 1 Func, 1150uV Offset-Max, 0.3MHz Band Width, BIPolar, PDIP14,	Instrumentation Amplifier, 1 Func, 225uV Offset-Max, 0.3MHz Band Width, BIPolar, MBCY10,	Instrumentation Amplifier, 1 Func, 225uV Offset-Max, 0.3MHz Band Width, BIPolar, CDIP14,	Instrumentation Amplifier, 1 Func, 225uV Offset-Max, 0.3MHz Band Width, BIPolar, MBCY10,	Instrumentation Amplifier, 1 Func, 450uV Offset-Max, 0.3MHz Band Width, BIPolar, CDIP14,	Instrumentation Amplifier, 1 Func, 450uV Offset-Max, 0.3MHz Band Width, BIPolar, MBCY10,	Instrumentation Amplifier, 1 Func, 225uV Offset-Max, 0.3MHz Band Width, BIPolar, CDIP14,	Instrumentation Amplifier, 1 Func, 1150uV Offset-Max, 0.3MHz Band Width, BIPolar, PDSO16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP14,.3	, CAN10,.23	DIP, DIP14,.3	, CAN10,.23	DIP, DIP14,.3	, CAN10,.23	DIP, DIP14,.3	SOP, SOP16,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER	INSTRUMENTATION AMPLIFIER
Maximum average bias current (IIB)	0.03 µA	0.03 µA	0.03 µA	0.02 µA	0.03 µA	0.03 µA	0.02 µA	0.03 µA
Nominal bandwidth (3dB)	0.3 MHz	0.3 MHz	0.3 MHz	0.3 MHz	0.3 MHz	0.3 MHz	0.3 MHz	0.3 MHz
Minimum Common Mode Rejection Ratio	65 dB	80 dB	80 dB	80 dB	80 dB	80 dB	80 dB	65 dB
Maximum input offset current (IIO)	0.03 µA	0.03 µA	0.03 µA	0.02 µA	0.03 µA	0.03 µA	0.02 µA	0.03 µA
Maximum input offset voltage	1150 µV	225 µV	225 µV	225 µV	450 µV	450 µV	225 µV	1150 µV
JESD-30 code	R-PDIP-T14	O-MBCY-W10	R-CDIP-T14	O-MBCY-W10	R-CDIP-T14	O-MBCY-W10	R-CDIP-T14	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Negative supply voltage upper limit	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
maximum nonlinearity	0.025%	0.012%	0.012%	0.012%	0.025%	0.025%	0.012%	0.025%
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	14	10	14	10	14	10	14	16
Maximum operating temperature	70 °C	125 °C	125 °C	85 °C	85 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-	-55 °C	-55 °C	-25 °C	-25 °C	-25 °C	-25 °C	-
Package body material	PLASTIC/EPOXY	METAL	CERAMIC, METAL-SEALED COFIRED	METAL	CERAMIC, METAL-SEALED COFIRED	METAL	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
Encapsulate equivalent code	DIP14,.3	CAN10,.23	DIP14,.3	CAN10,.23	DIP14,.3	CAN10,.23	DIP14,.3	SOP16,.4
Package shape	RECTANGULAR	ROUND	RECTANGULAR	ROUND	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL	IN-LINE	CYLINDRICAL	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	0.4 V/us	0.4 V/us	0.4 V/us	0.4 V/us	0.4 V/us	0.4 V/us	0.4 V/us	0.4 V/us
Maximum slew rate	17 mA	17 mA	17 mA	17 mA	17 mA	17 mA	17 mA	17 mA
Supply voltage upper limit	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	MILITARY	OTHER	OTHER	OTHER	OTHER	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE	THROUGH-HOLE	WIRE	THROUGH-HOLE	GULL WING
Terminal location	DUAL	BOTTOM	DUAL	BOTTOM	DUAL	BOTTOM	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum voltage gain	1000	1000	1000	1000	1000	1000	1000	1000
Minimum voltage gain	1	1	1	1	1	1	1	1
Base Number Matches	1	1	1	1	1	1	1	1
encapsulated code	DIP	-	DIP	-	DIP	-	DIP	SOP
Terminal pitch	2.54 mm	-	2.54 mm	-	2.54 mm	-	2.54 mm	1.27 mm
