5425FMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 5425FMQB

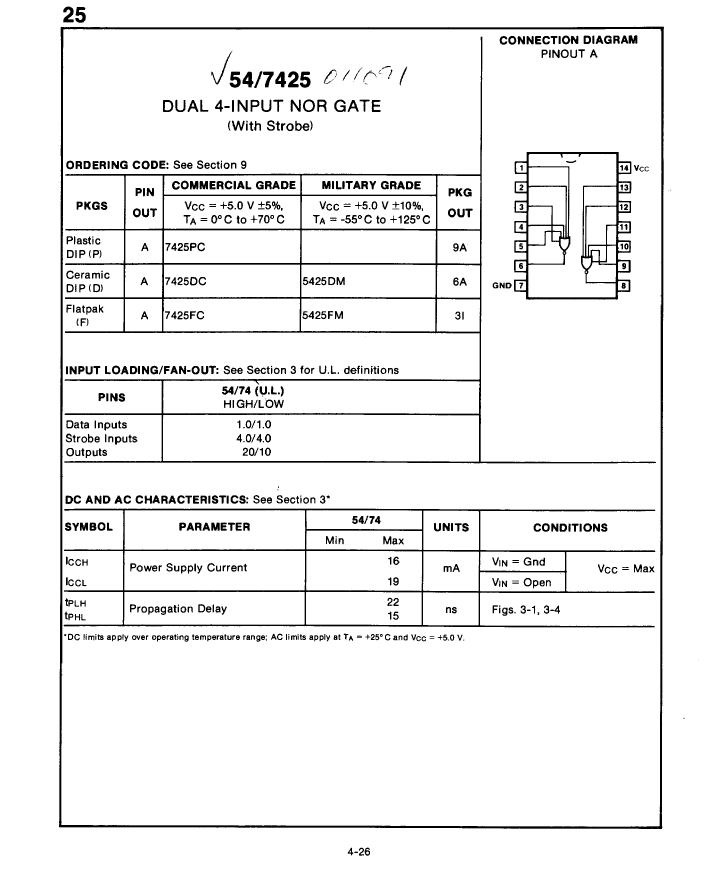

5425FMQB: DescriptionNOR Gate, TTL, CDFP14,; Categorylogic logic; File Size38KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5425FMQB Overview

NOR Gate, TTL, CDFP14,

5425FMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DFP, FL14,.3
Reach Compliance Code	compliant
JESD-30 code	R-XDFP-F14
JESD-609 code	e0
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.016 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL14,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Maximum supply current (ICC)	19 mA
Prop。Delay @ Nom-Sup	22 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

5425FMQB Related Products

	5425FMQB	5425DMQB	7425FCQM	7425FCQR	7425DCQM	7425DCQR	7425PCQM	7425PCQR
Description	NOR Gate, TTL, CDFP14,	NOR Gate, TTL, CDIP14,	NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDFP14, DFP-14	NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDFP14, DFP-14	NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14	NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14	NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14	NOR Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, PDIP14, PLASTIC, DIP-14
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DFP, FL14,.3	DIP, DIP14,.3	DFP, FL14,.3	DFP, FL14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant	unknown
JESD-30 code	R-XDFP-F14	R-XDIP-T14	R-PDFP-F14	R-PDFP-F14	R-CDIP-T14	R-CDIP-T14	R-PDIP-T14	R-PDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE
MaximumI(ol)	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A	0.016 A
Number of terminals	14	14	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	DIP	DFP	DFP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	FL14,.3	DIP14,.3	FL14,.3	FL14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	19 mA	19 mA	19 mA	19 mA	19 mA	19 mA	19 mA	19 mA
Prop。Delay @ Nom-Sup	22 ns	22 ns	22 ns	22 ns	22 ns	22 ns	22 ns	22 ns
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	-
series	-	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L	TTL/H/L
Number of functions	-	2	2	2	2	2	2	2
Number of entries	-	4	4	4	4	4	4	4
Is it lead-free?	-	-	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Maker	-	-	Fairchild	-	Fairchild	Fairchild	Fairchild	Fairchild
Humidity sensitivity level	-	-	2A	2A	2A	2A	2A	2A
Peak Reflow Temperature (Celsius)	-	-	250	250	250	250	250	250
propagation delay (tpd)	-	-	22 ns	22 ns	22 ns	22 ns	22 ns	22 ns
Maximum supply voltage (Vsup)	-	-	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	-	-	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Maximum time at peak reflow temperature	-	-	30	30	30	30	30	30
