ASSR-3210-503E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> ASSR-3210-503E

ASSR-3210-503E: DescriptionTRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, ROHS COMPLIANT, SURFACE MOUNT, SOP-4; CategoryLED optoelectronic/LED photoelectric; File Size162KB，14 Pages; ManufacturerAVAGO; Websitehttp://www.avagotech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ASSR-3210-503E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ASSR-3210-503E	-	-	View	Buy Now

ASSR-3210-503E Overview

TRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, ROHS COMPLIANT, SURFACE MOUNT, SOP-4

ASSR-3210-503E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVAGO
package instruction	ROHS COMPLIANT, SURFACE MOUNT, SOP-4
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	17 weeks
Other features	UL RECOGNIZED, CMOS COMPATIBLE
Configuration	COMPLEX
control current	0.003 A
control voltage	1.1 V
Maximum forward current	0.02 A
input type	DC
Maximum insulation voltage	3750 V
Number of components	1
Maximum on-state current	0.2 A
Maximum on-state resistance	10 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Output circuit type	MOSFET
total height	2.1 mm
total length	4.3 mm
Base Number Matches	1

Preview

Download Datasheet

View All

ASSR-3210, ASSR-3211, ASSR-3220

General Purpose, Form A, Solid State Relay (Photo MOSFET)

(250V/0.2A/10)

Data Sheet

Lead (Pb) Free

RoHS 6 fully

compliant

RoHS 6 fully compliant options available;

-xxxE denotes a lead-free product

Description

The ASSR-32XX Series consists of an AlGaAs infrared

light-emitting diode (LED) input stage optically coupled

to a high-voltage output detector circuit. The detector

consists of a high-speed photovoltaic diode array and

driver circuitry to switch on/off two discrete high volt-

age MOSFETs. The relay turns on (contact closes) with a

minimum input current of 3mA through the input LED.

The relay turns off (contact opens) with an input voltage

of 0.8V or less.

The single channel configurations, ASSR-3210 and ASSR-

3211, are equivalent to 1 Form A Electromechanical

Relays (EMR), and the dual channel configuration, ASSR-

3220, is equivalent to 2 Form A EMR. They are available

in 4-pin SO, 6-pin DIP, 8-pin DIP and Gull Wing Surface

Mount for DIP packages. Their electrical and switching

characteristics are specified over the temperature range

of -40°C to +85°C. They are used for general purpose

switching of signals and low power AC/DC loads.

ASSR-3211 enables AC/DC and DC-only output connec-

tions. For DC-only connection, the output current, Io,

increases to 0.4A and the on-resistance, R

(ON)

reduces

to 2.5.

Features



Compact Solid-State Bi-directional Signal Switch



Single and Dual Channel Normally-off Single-Pole-

Single-Throw (SPST) Relay



250V Output Withstand Voltage



0.2A or 0.4A Current Rating

(See Schematic for ASSR-3211 Connections A & B)



Low Input Current:

CMOS Compatibility



Low On-Resistance:

2 Typical for DC-only, 8 Typical for AC/DC



Very High Output Off-state Impedance:

10 Teraohms Typical



High Speed Switching:

0.25ms (Ton), 0.02ms (Toff ) Typical



High Transient Immunity: >1kV/s



High Input-to-Output Insulation Voltage

(Safety and Regulatory Approvals)

- 3750 Vrms for 1 min per UL1577

- CSA Component Acceptance

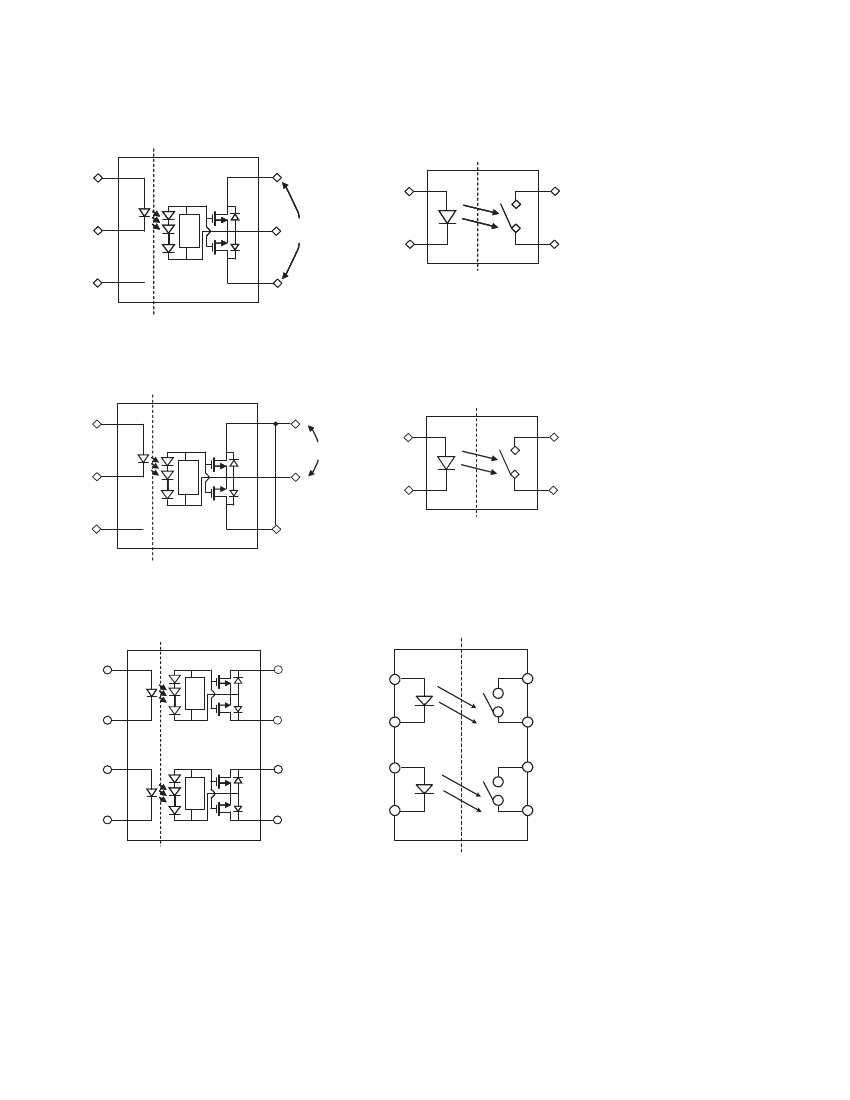

Functional Diagram

Opto-isolation

Applications



Telecommunication Switching

Data Communications

Industrial Controls

Medical

Security

EMR / Reed Relay Replacement

Turn-off

Circuit

Truth Table

LED

Off

Output

Open

Single Channel, SPST Relay,

1 Form A in 4-Pin SO Package

CAUTION: It is advised that normal static precautions be taken in handling and assembly

of this component to prevent damage and/or degradation which may be induced by ESD.

ASSR-3210-503E Related Products

	ASSR-3210-503E	ASSR-3220-302E	ASSR-3211-301E	ASSR-3220-502E
Description	TRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, ROHS COMPLIANT, SURFACE MOUNT, SOP-4	DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, 0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8	TRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, 0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-6	DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 3750V ISOLATION-MAX, 0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, SURFACE MOUNT, SOP-4	0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8	0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-6	0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maker	AVAGO	-	AVAGO	AVAGO
Factory Lead Time	17 weeks	-	17 weeks	17 weeks
