ISPGAL16Z8-20LPB datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> ISPGAL16Z8-20LPB

ISPGAL16Z8-20LPB: DescriptionEE PLD, 20ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24; CategoryProgrammable logic devices Programmable logic; File Size513KB，13 Pages; ManufacturerLattice; Websitehttp://www.latticesemi.com

Download Datasheet Parametric Compare View All

ISPGAL16Z8-20LPB Overview

EE PLD, 20ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24

ISPGAL16Z8-20LPB Parametric

Parameter Name	Attribute value
Maker	Lattice
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
maximum clock frequency	33.3 MHz
JESD-30 code	R-PDIP-T24
length	31.75 mm
Dedicated input times	8
Number of I/O lines	8
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature
organize	8 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Programmable logic type	EE PLD
propagation delay	20 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

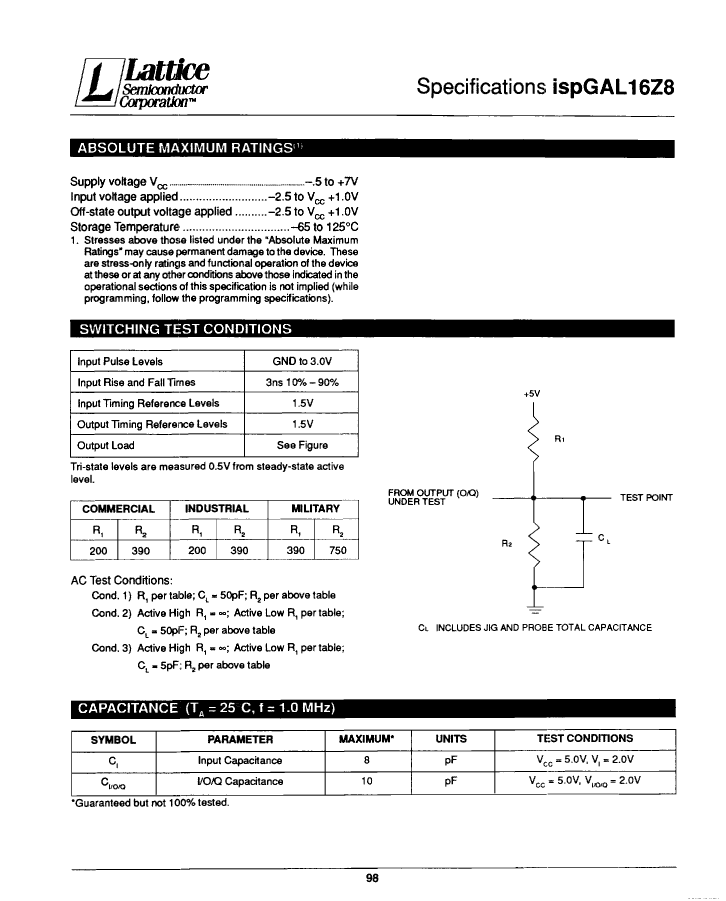

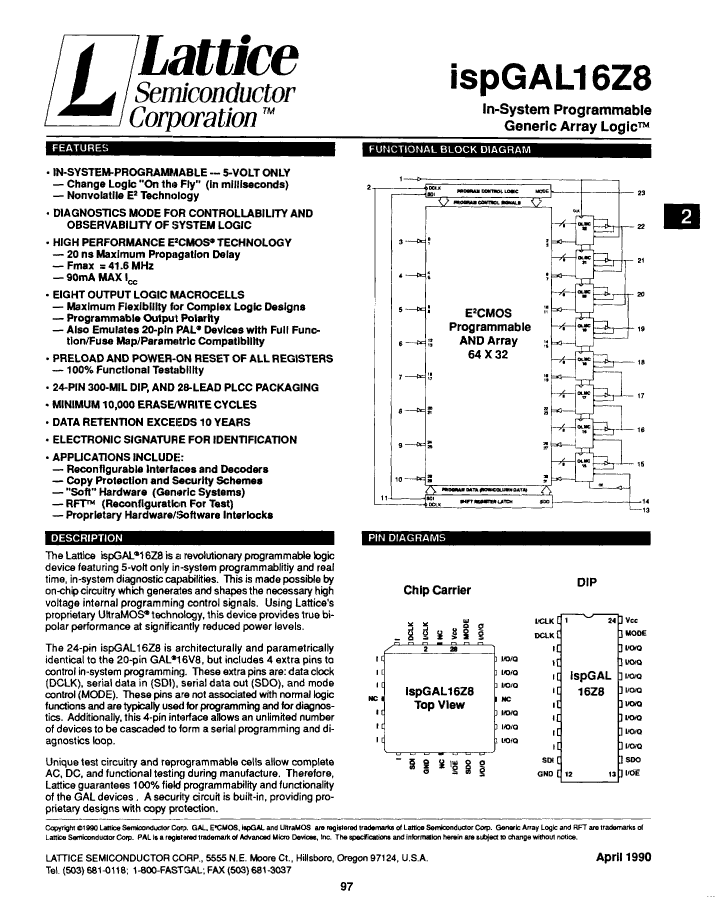

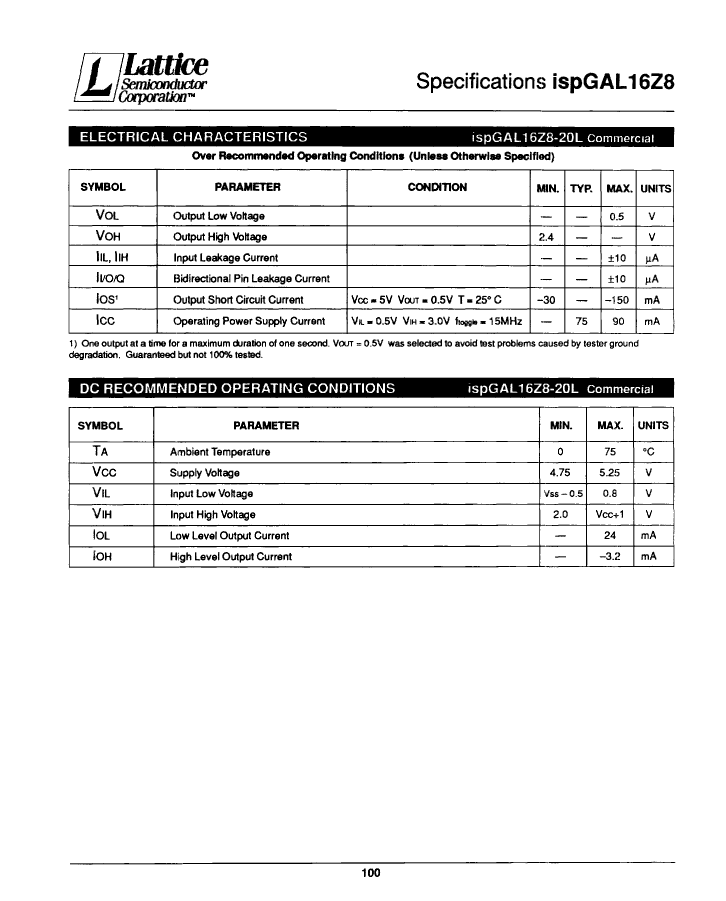

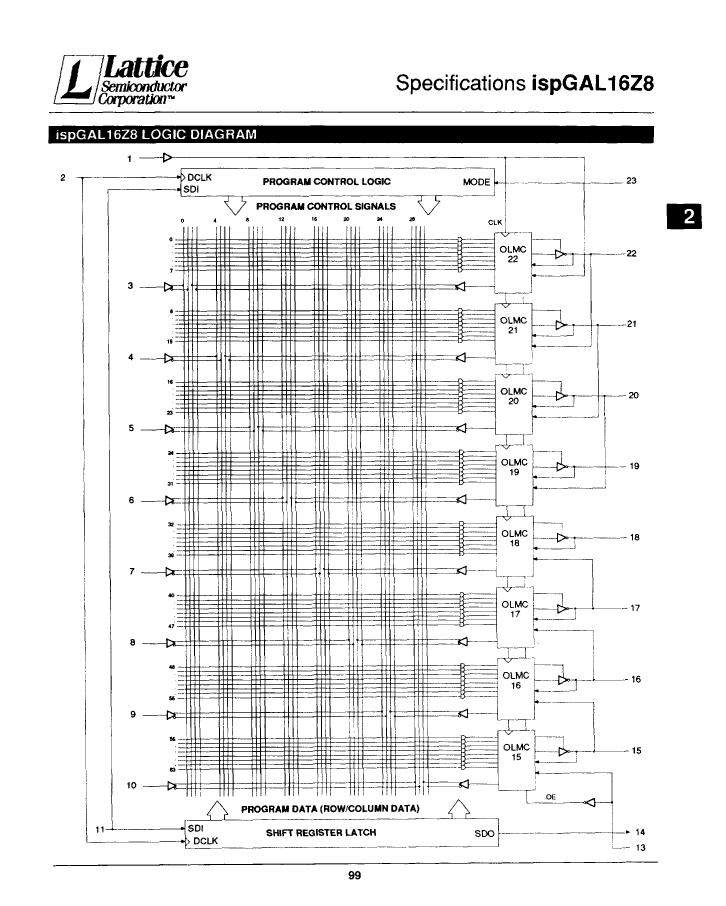

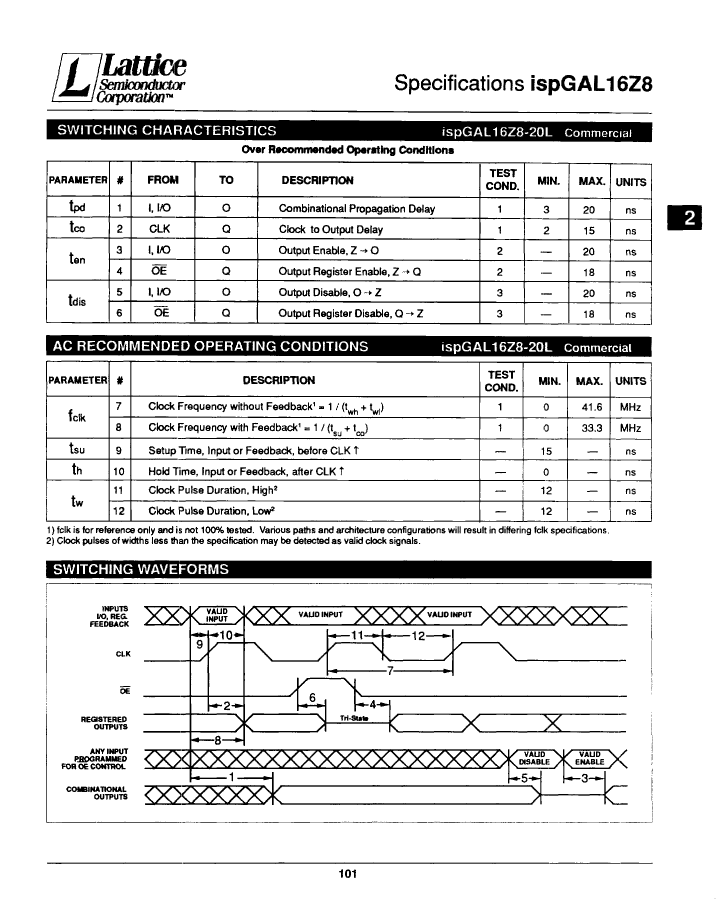

Preview

Download Datasheet

View All

ISPGAL16Z8-20LPB Related Products

	ISPGAL16Z8-20LPB	ISPGAL16Z8-25LJB	ISPGAL16Z8-25LPB	ISPGAL16Z8-20LJB
Description	EE PLD, 20ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	EE PLD, 25ns, CMOS, PQCC28, PLASTIC, LCC-28	EE PLD, 25ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	EE PLD, 20ns, CMOS, PQCC28, PLASTIC, LCC-28
Maker	Lattice	Lattice	Lattice	Lattice
Parts packaging code	DIP	QLCC	DIP	QLCC
package instruction	DIP,	QCCJ,	DIP,	QCCJ,
Contacts	24	28	24	28
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
maximum clock frequency	33.3 MHz	28.5 MHz	28.5 MHz	33.3 MHz
JESD-30 code	R-PDIP-T24	S-PQCC-J28	R-PDIP-T24	S-PQCC-J28
length	31.75 mm	11.5316 mm	31.75 mm	11.5316 mm
Dedicated input times	8	8	8	8
Number of I/O lines	8	8	8	8
Number of terminals	24	28	24	28
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
organize	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O	8 DEDICATED INPUTS, 8 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	QCCJ	DIP	QCCJ
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER
Programmable logic type	EE PLD	EE PLD	EE PLD	EE PLD
propagation delay	20 ns	25 ns	25 ns	20 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	4.57 mm	5.08 mm	4.57 mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	QUAD
width	7.62 mm	11.5316 mm	7.62 mm	11.5316 mm
Base Number Matches	1	1	1	1
