5962-8959839MXA datasheet, PDF

5962-8959839MXA: DescriptionStandard SRAM, 128KX8, 20ns, CMOS, CDIP32,; Categorystorage storage; File Size251KB，8 Pages; ManufacturerEDI [Electronic devices inc.]

Download Datasheet Parametric Compare View All

5962-8959839MXA Overview

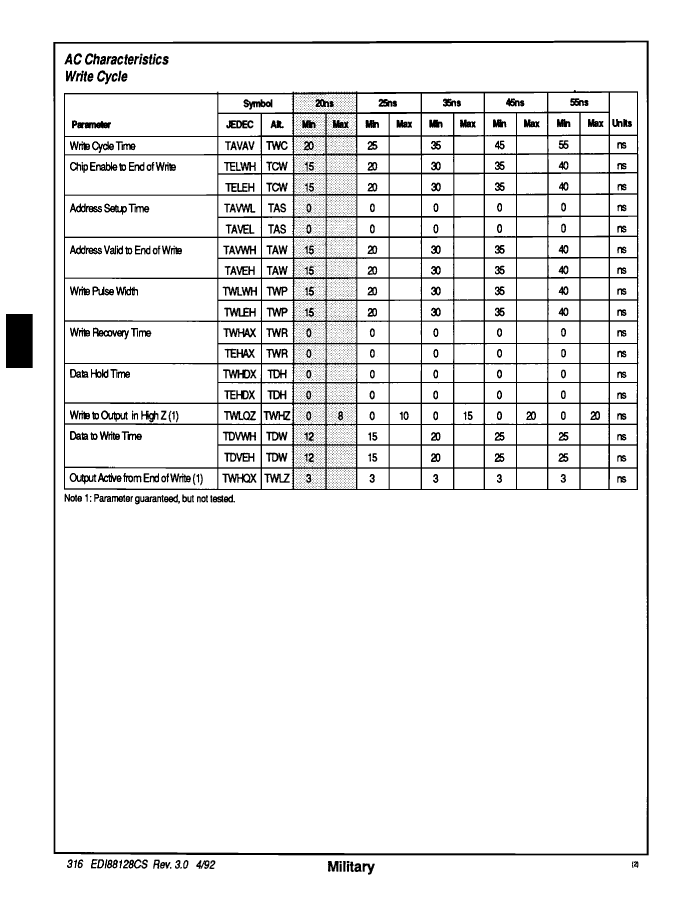

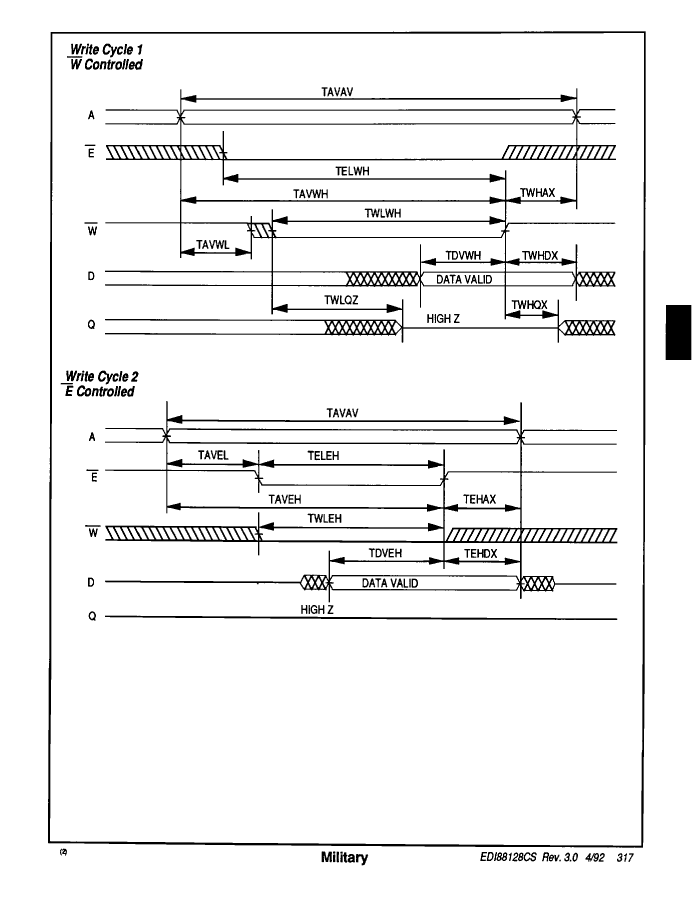

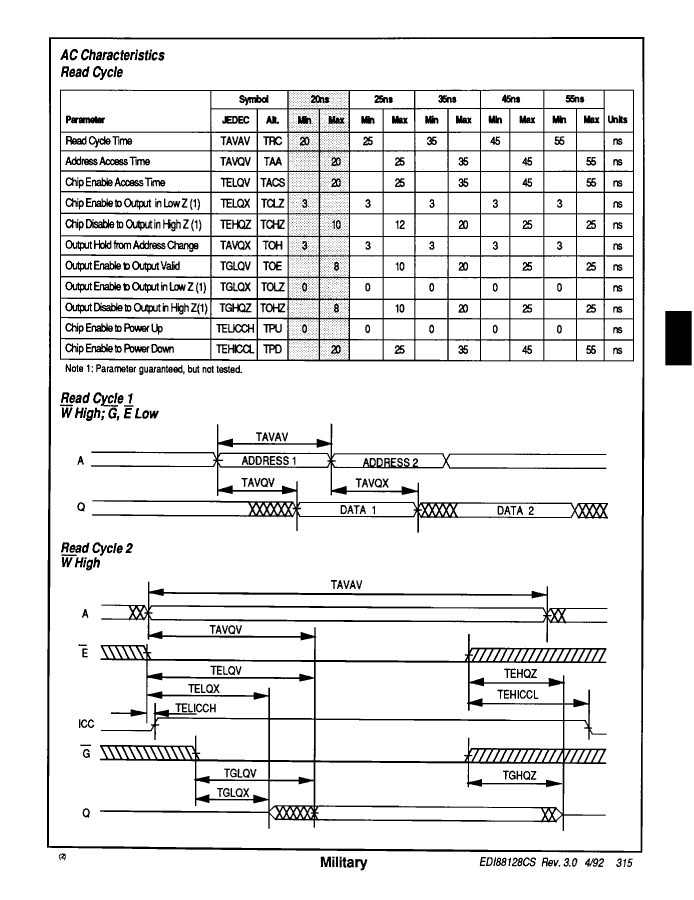

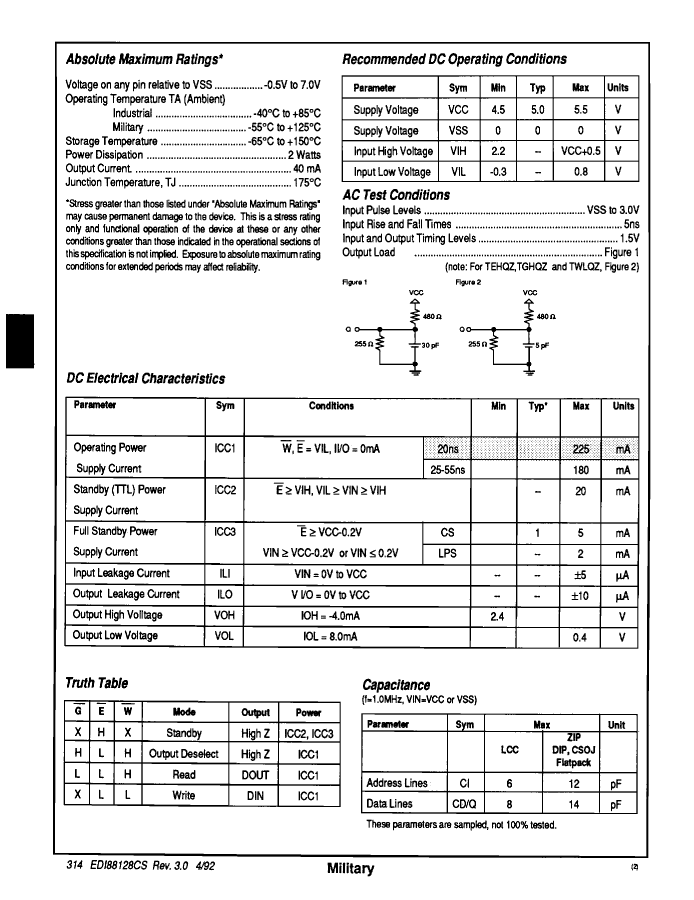

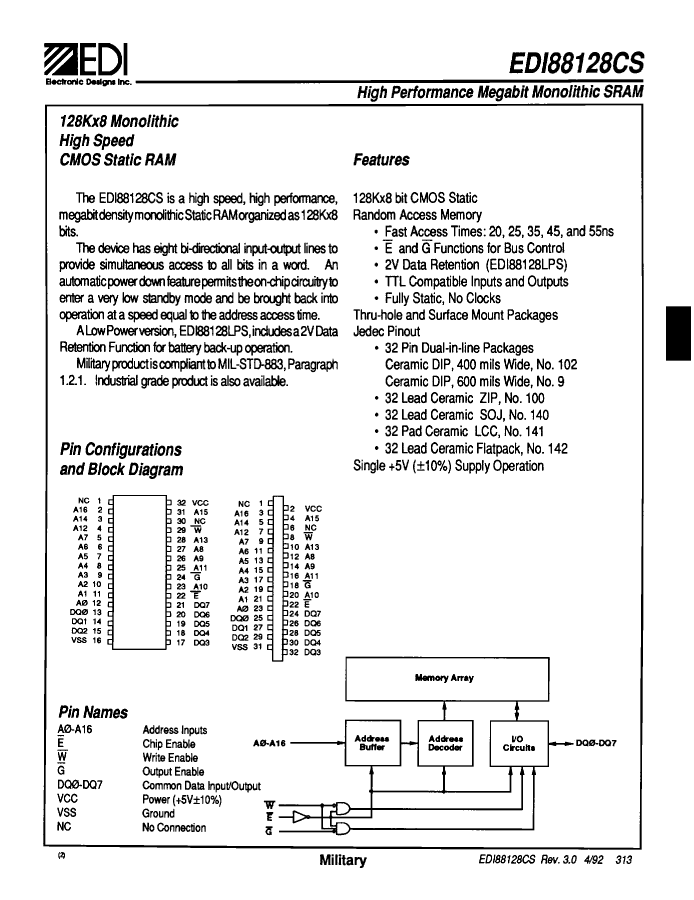

Standard SRAM, 128KX8, 20ns, CMOS, CDIP32,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum access time	20 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS; BATTERY BACKUP; LOW POWER STANDBY
JESD-30 code	R-CDIP-T32
JESD-609 code	e0
length	40.64 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	128KX8
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	4.3434 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

	5962-8959839MXA	5962-8959839MTA
Description	Standard SRAM, 128KX8, 20ns, CMOS, CDIP32,	Standard SRAM, 128KX8, 20ns, CMOS, CDFP32,
Reach Compliance Code	unknown	unknown
Maximum access time	20 ns	20 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS; BATTERY BACKUP; LOW POWER STANDBY	TTL COMPATIBLE INPUTS/OUTPUTS; BATTERY BACKUP; LOW POWER STANDBY
JESD-30 code	R-CDIP-T32	R-CDFP-F32
JESD-609 code	e0	e0
memory density	1048576 bit	1048576 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM
memory width	8	8
Number of functions	1	1
Number of terminals	32	32
word count	131072 words	131072 words
character code	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	128KX8	128KX8
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.3434 mm	3.175 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	15.24 mm	10.414 mm
Base Number Matches	1	1
