5962R9578501V9A datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9578501V9A

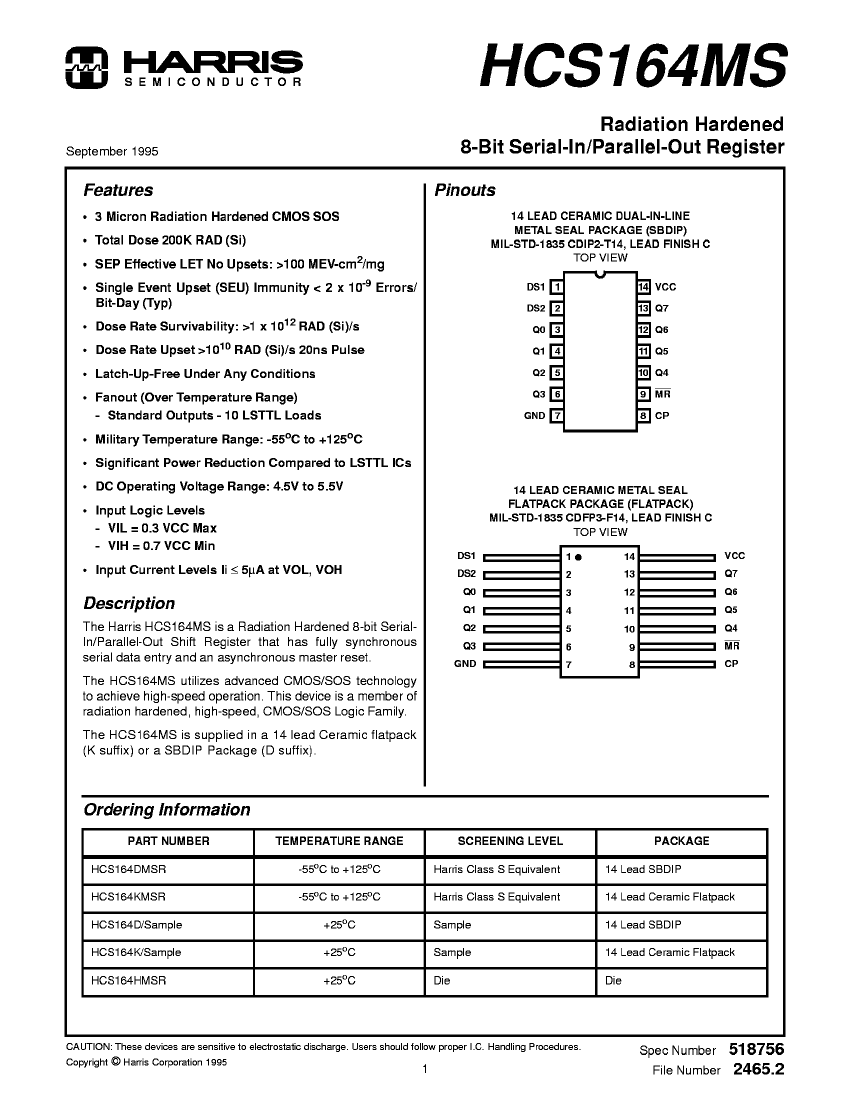

5962R9578501V9A: DescriptionSerial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS; Categorylogic logic; File Size230KB，9 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9578501V9A Overview

Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS

5962R9578501V9A Parametric

Parameter Name	Attribute value
package instruction	DIE,
Reach Compliance Code	unknown
Counting direction	RIGHT
series	HC/UH
JESD-30 code	X-XUUC-N14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
propagation delay (tpd)	37 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
Base Number Matches	1

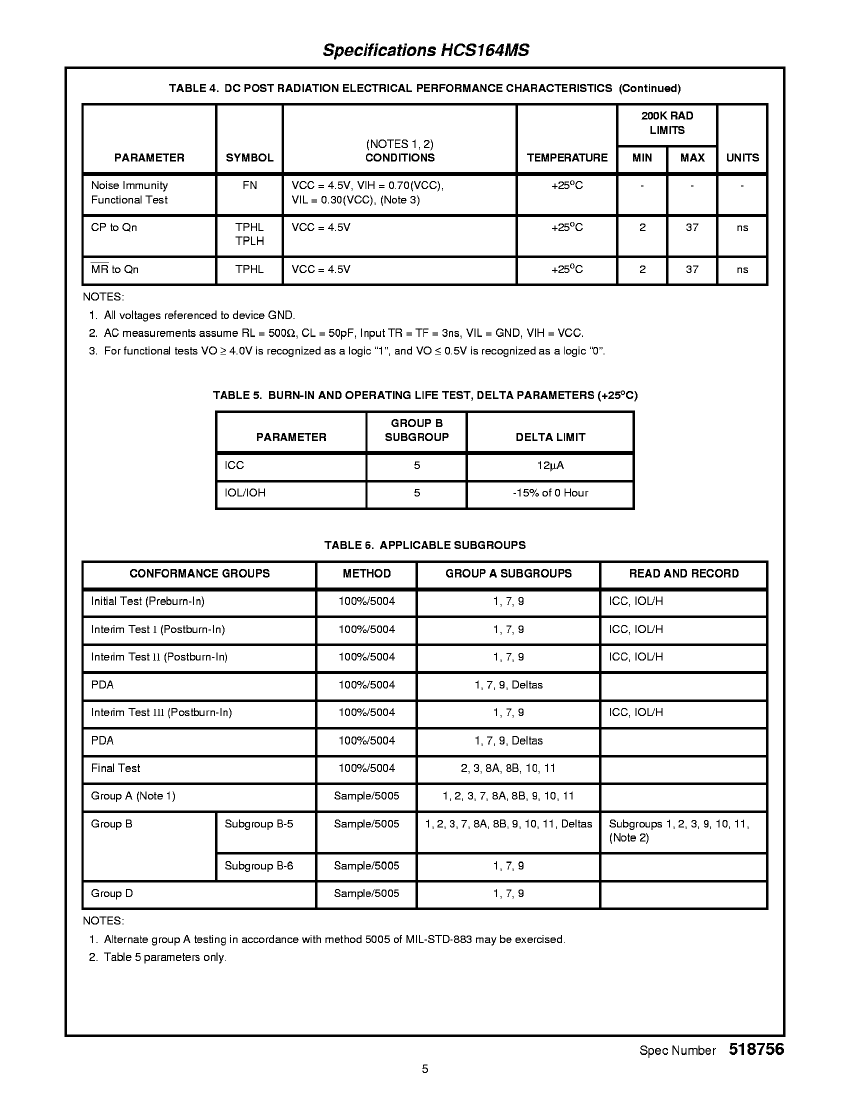

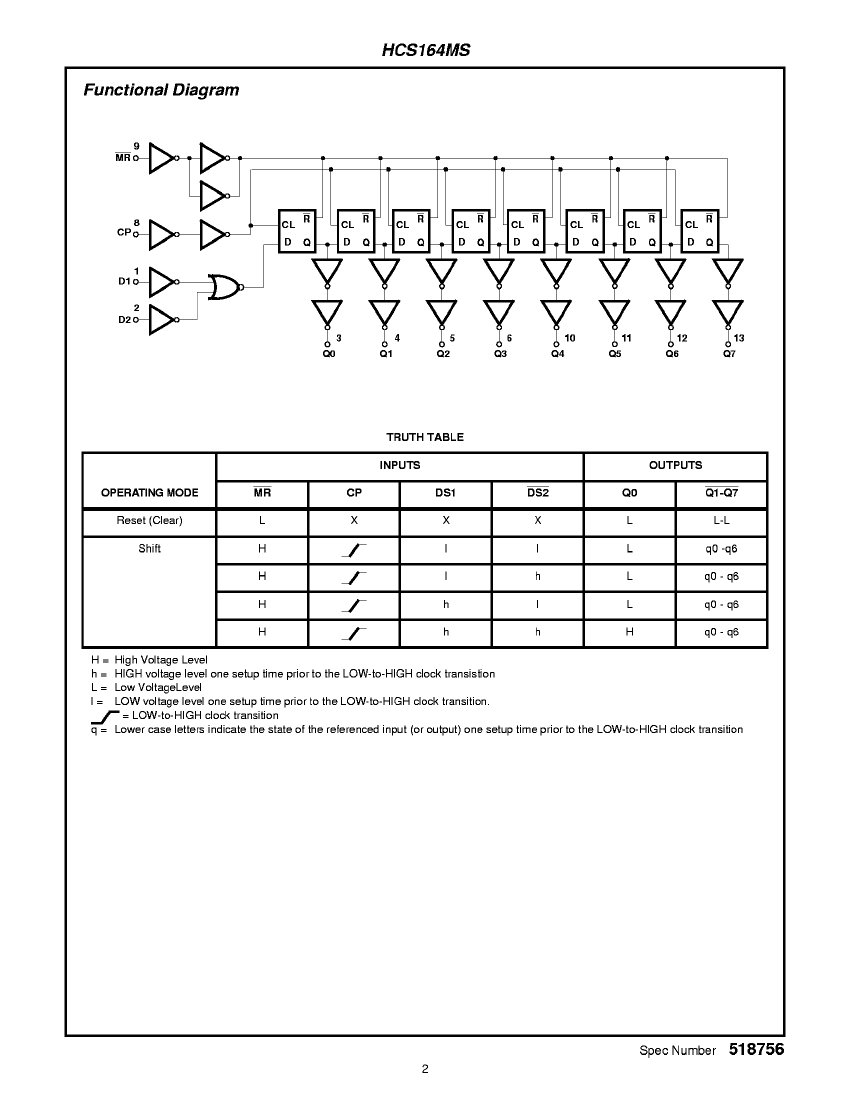

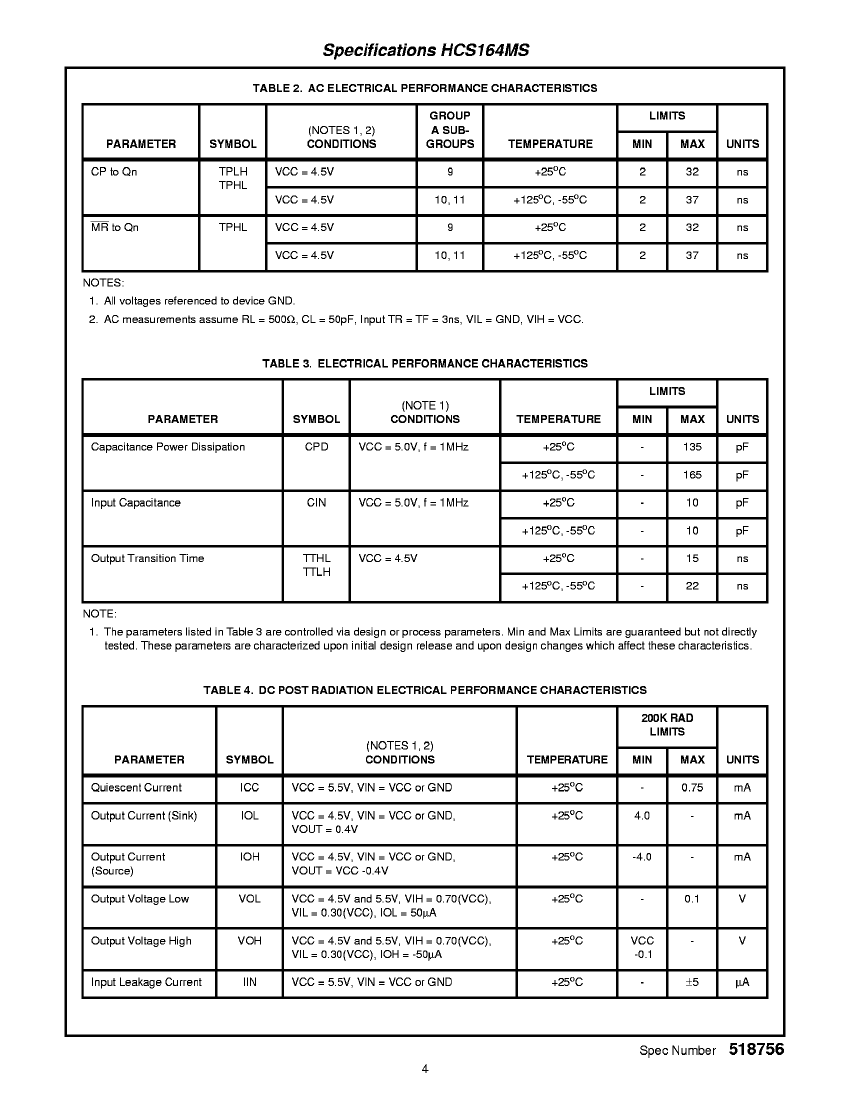

Preview

Download Datasheet

View All

5962R9578501V9A Related Products

	5962R9578501V9A	5962R9578501VCC	5962R9578501VXC	HCS164K/SAMPLE	HCS164KMSR	HCS164DMSR	HCS164HMSR
Description	Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS	Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS, CDIP14	Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS, CDFP14	Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS, CDFP14	Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS, CDFP14	Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS, CDIP14	Serial In Parallel Out, HC/UH Series, 8-Bit, Right Direction, True Output, CMOS
package instruction	DIE,	,	,	,	DFP, FL14,.3	DIP, DIP14,.3	DIE,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Counting direction	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	X-XUUC-N14	R-CDIP-T14	R-CDFP-F14	R-CDFP-F14	R-CDFP-F14	R-CDIP-T14	X-XUUC-N14
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT	SERIAL IN PARALLEL OUT
Number of digits	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1
Number of terminals	14	14	14	14	14	14	14
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	UNCASED CHIP	IN-LINE	FLATPACK	FLATPACK	FLATPACK	IN-LINE	UNCASED CHIP
propagation delay (tpd)	37 ns	37 ns	37 ns	37 ns	37 ns	37 ns	37 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	NO LEAD	THROUGH-HOLE	FLAT	FLAT	FLAT	THROUGH-HOLE	NO LEAD
Terminal location	UPPER	DUAL	DUAL	DUAL	DUAL	DUAL	UPPER
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
JESD-609 code	e0	e4	e4	-	e0	e0	-
Maximum operating temperature	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
encapsulated code	DIE	-	-	-	DFP	DIP	DIE
Temperature level	MILITARY	MILITARY	MILITARY	-	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	GOLD	GOLD	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Base Number Matches	1	1	1	1	-	-	-
Maker	-	-	-	Harris	Harris	Harris	Harris
