UM0128
USER MANUAL
STPM01- QUICK APPLICATION USER GUIDE
1 - USING THE GUI
The GUI (Graphical User Interface) provides immediate and easy access to all options you need to set in
order to use the STPM01 device.
The STPM01 Manager Functionalities are split in five main groups:
– Interactive information memo,
– Panel Page for Setting and manual Calibration features,
– Measured Information Panel to show mainly information about the measurement,
– Parameters to set and read relevant data,
– Control buttons.
The GUI is showed below:

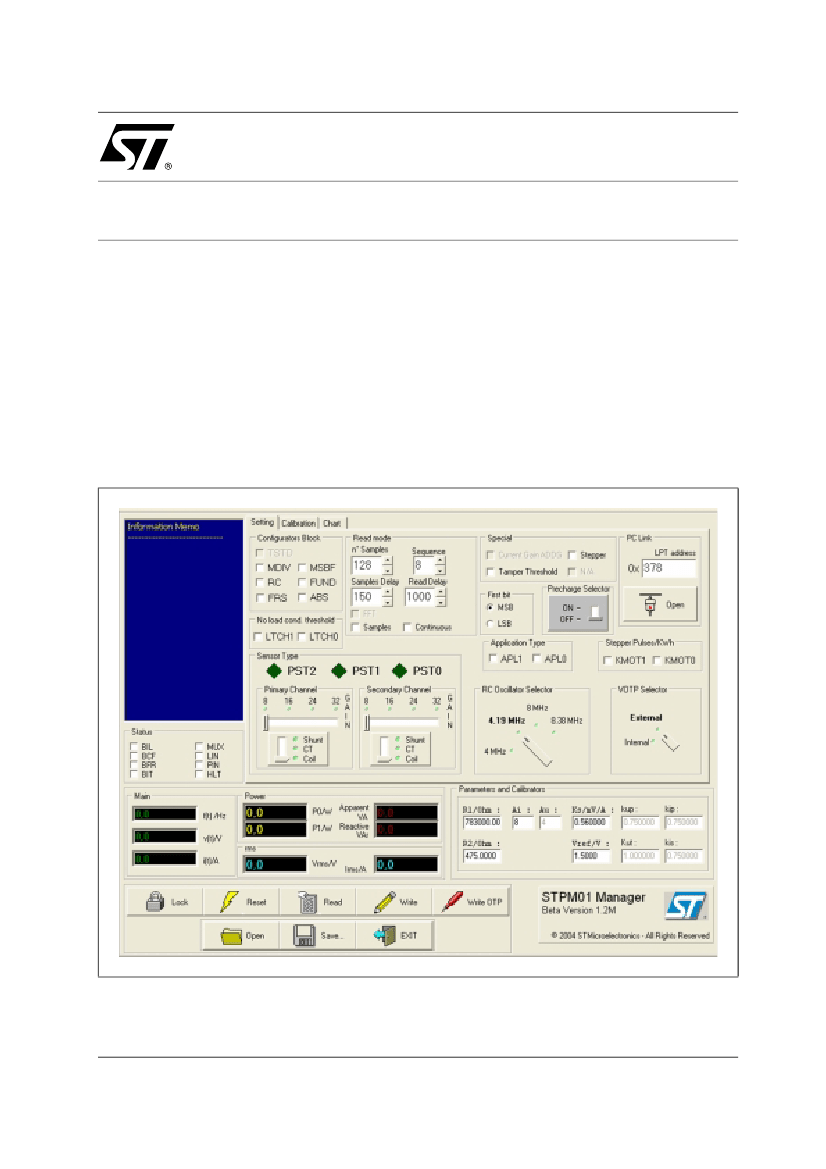

Figure 1 :
GUI
February 2005
5/21
