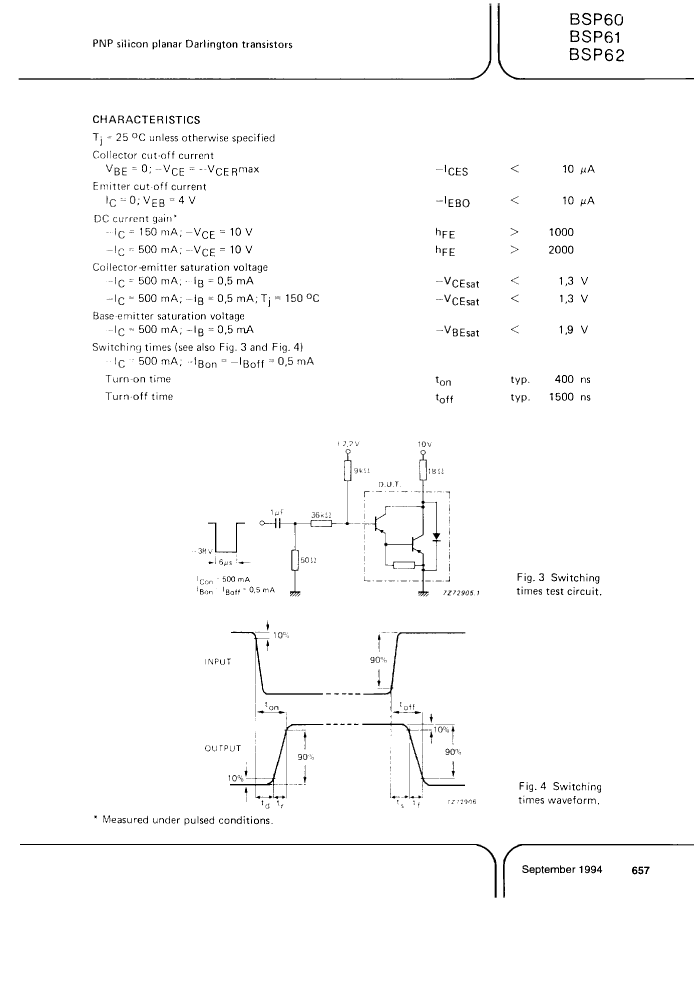

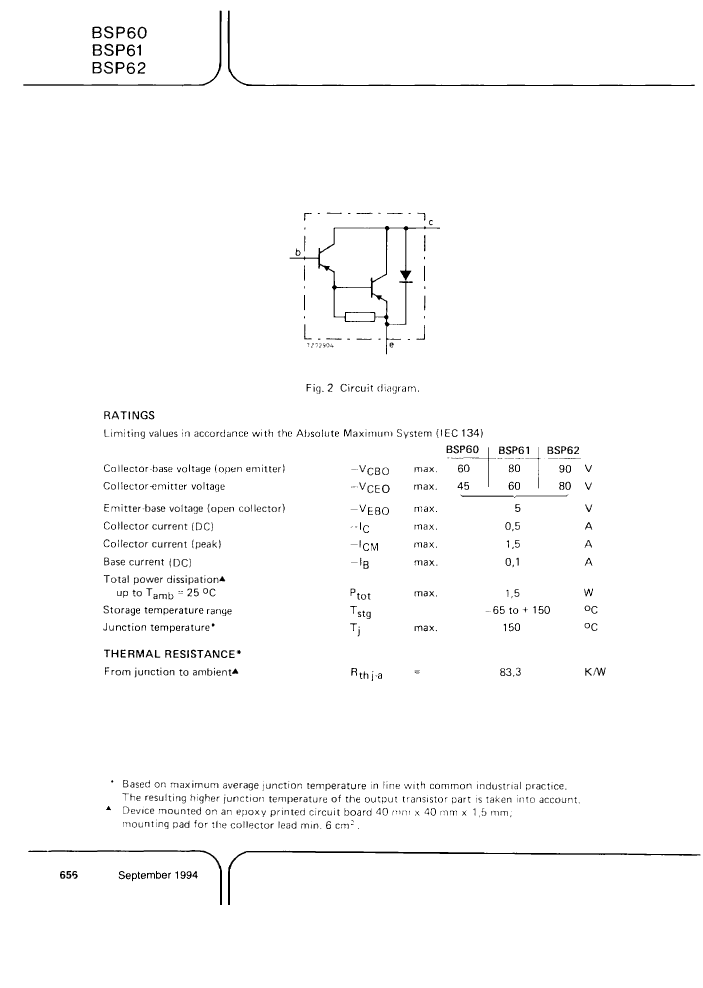

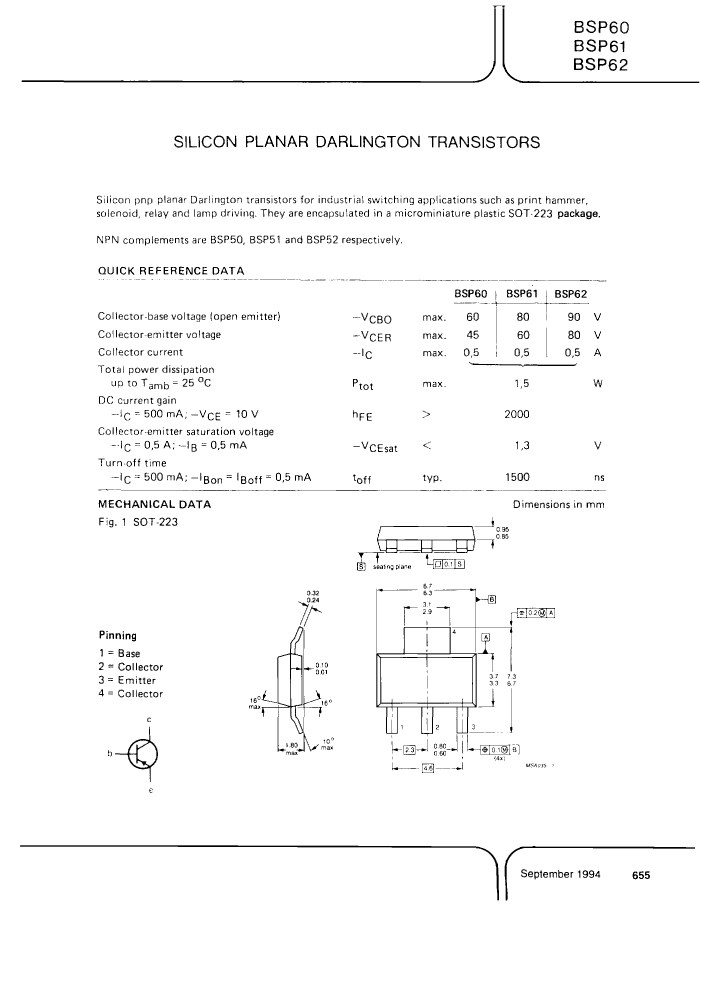

TRANSISTOR 0.5 A, 60 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power
| Parameter Name | Attribute value |
| package instruction | SMALL OUTLINE, R-PDSO-G4 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 0.5 A |
| Collector-emitter maximum voltage | 60 V |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR |
| Minimum DC current gain (hFE) | 2000 |
| JESD-30 code | R-PDSO-G4 |
| Number of components | 1 |
| Number of terminals | 4 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | PNP |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| VCEsat-Max | 1.3 V |
| Base Number Matches | 1 |
| BSP61-TAPE-7 | BSP61-TAPE-13 | BSP60-TAPE-7 | BSP60-TAPE-13 | BSP62-TAPE-13 | BSP62-TAPE-7 | |
|---|---|---|---|---|---|---|
| Description | TRANSISTOR 0.5 A, 60 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power | TRANSISTOR 0.5 A, 60 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power | TRANSISTOR 0.5 A, 45 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power | TRANSISTOR 0.5 A, 45 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power | TRANSISTOR 0.5 A, 80 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power | TRANSISTOR 0.5 A, 80 V, PNP, Si, POWER TRANSISTOR, BIP General Purpose Power |
| package instruction | SMALL OUTLINE, R-PDSO-G4 | SMALL OUTLINE, R-PDSO-G4 | SMALL OUTLINE, R-PDSO-G4 | SMALL OUTLINE, R-PDSO-G4 | SMALL OUTLINE, R-PDSO-G4 | SMALL OUTLINE, R-PDSO-G4 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Shell connection | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR |
| Maximum collector current (IC) | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A | 0.5 A |
| Collector-emitter maximum voltage | 60 V | 60 V | 45 V | 45 V | 80 V | 80 V |
| Configuration | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR | DARLINGTON WITH BUILT-IN DIODE AND RESISTOR |
| Minimum DC current gain (hFE) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
| JESD-30 code | R-PDSO-G4 | R-PDSO-G4 | R-PDSO-G4 | R-PDSO-G4 | R-PDSO-G4 | R-PDSO-G4 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 4 | 4 | 4 | 4 | 4 | 4 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | PNP | PNP | PNP | PNP | PNP | PNP |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| VCEsat-Max | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Base Number Matches | 1 | 1 | 1 | 1 | - | - |
