NMC0805NPO220C100TRPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC0805NPO220C100TRPF

NMC0805NPO220C100TRPF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 1.14% +Tol, 1.14% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size424KB，3 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NMC0805NPO220C100TRPF Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 1.14% +Tol, 1.14% -Tol, C0G, 30ppm/Cel TC, 0.000022uF, Surface Mount, 0805, CHIP, ROHS COMPLIANT

NMC0805NPO220C100TRPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 0805
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.000022 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	1.14%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PAPER
positive tolerance	1.14%
Rated (DC) voltage (URdc)	100 V
size code	0805
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

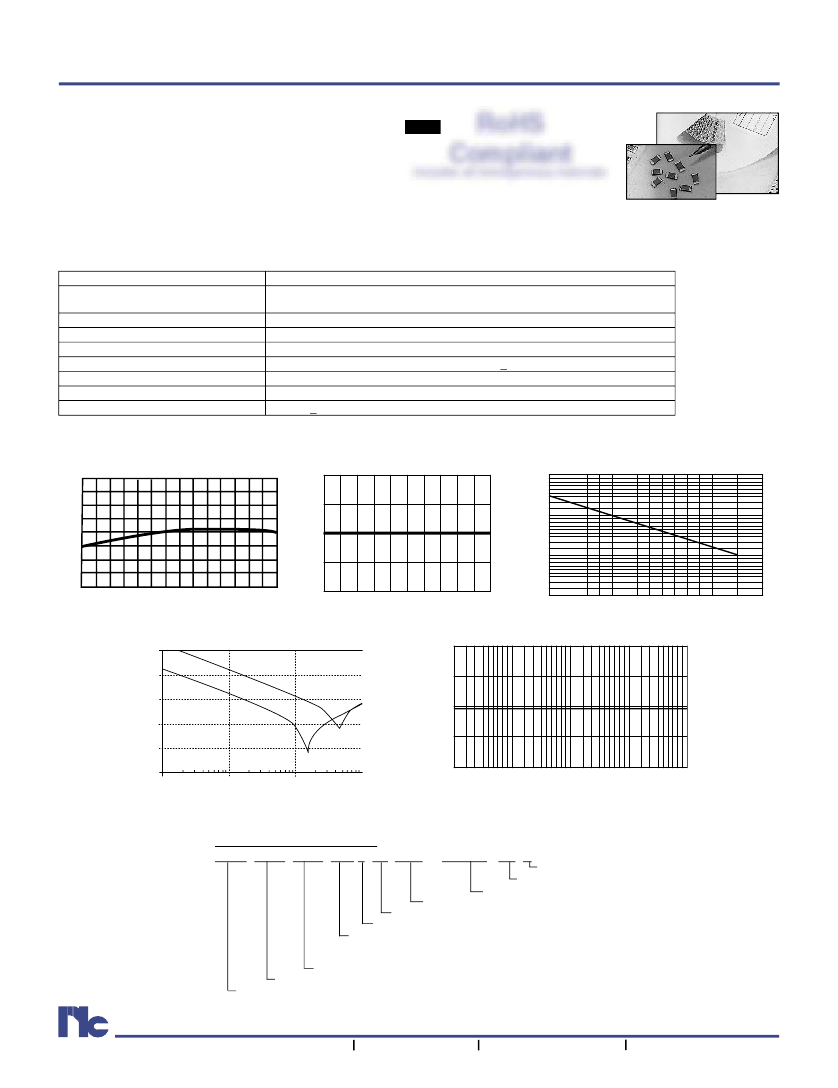

Multilayer Ceramic Chip Capacitors

FEATURES

•

CLASS I DIELECTRIC, TEMPERATURE COMPENSATING

•

HIGH STABILITY OVER TIME, VOLTAGE AND

includes all homogeneous materials

TEMPERATURE CHANGES

*See Part Number System for Details

•

LOW DIELECTRIC LOSS

•

NICKEL BARRIER TERMINATIONS AND EXCELLENT

MECHANICAL STRENGTH

•

EIA MARKING AVAILABLE

NMC Series NPO

RoHS

Compliant

SPECIFICATIONS NPO

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Characteristics

Rated Voltages

Dissipation Factor

insulation Resistance

Dielectric Withstanding Voltage

Test Conditions (EIA-198-2E)

0.47pF to 0.068µF

Below 10pF: ±0.1pF(B), ± 0.25pF(C), ±0.5pF(D)

10pF and above: ±1%(F), ±2%(G), ±5% (J)

-55°C ~ +125°C

0 ± 30ppm/°C

25Vdc, 35Vdc, 50Vdc (see NMC-H Series for higher voltages)

For values >30pF 0.1% @ 25°C; For values < 30pF Q=400+20 x C (C in pF)

100,000Megohms min. or 1000Megohm/µF (min.), whichever is less @ +25°C

250% of Rated Voltage for 5 ±1 seconds, 50mA maximum current

<1000pF; 1MHz, 1.2Vrms max. or >1000pF; 1KHz, 1.2Vrms max.

0.4

0.3

0.2

0.1

0.0

-0.1

-0.2

-0.3

-0.4

-55

Typical NPO Temperature Coefficient

0.2

0.1

0.0

-0.1

Voltage Coefficient of

Capacitance - NPO

10,000

1000

100

Minimum Insulation Resistance

vs Temperature

-25

0 25

50 75 100

Temperature (Degrees Celsius)

125

-0.2

0 10 20 30 40 50 60 70 80 90 100

DC Volts Applied

0.2

0.1

100 150

Temperature (Degrees C)

Impedance vs. Frequency NPO

1000

100

0.1

0.01

100

Frequency (MHz)

1000

1000pF

100pF

Aging Rate - NPO

0.0

-0.1

-0.2

100

Hours

1000

10000

PART NUMBER SYSTEM

NMC 0805 NPO 101 J 50 TRP or TRPLP 3K F

Series

RoHS Compliant

Optional Reel Qty (3K=3,000pcs)

Tape & Reel (Embossed Plastic Carrier)

Tape & Reel (Paper carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, first 2 digits are

significant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)
