BC1010F6H-B#5 datasheet, PDF - EEWORLD Datasheet

BC1010F6H-B#5: DescriptionFerrite Bead, 3 Function(s),; CategoryAnalog mixed-signal IC filter; File Size174KB，2 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BC1010F6H-B#5 Overview

Ferrite Bead, 3 Function(s),

Parameter Name	Attribute value
Maker	YAGEO
Reach Compliance Code	compliant
ECCN code	EAR99
filter type	FERRITE BEAD
high	9.47 mm
length	10.88 mm
Manufacturer's serial number	BC
Installation type	THROUGH HOLE MOUNT
Number of functions	3
Output impedance	220 OHM Ω
physical size	L10.88XB10.88XH9.47 (mm)
width	10.88 mm
Base Number Matches	1

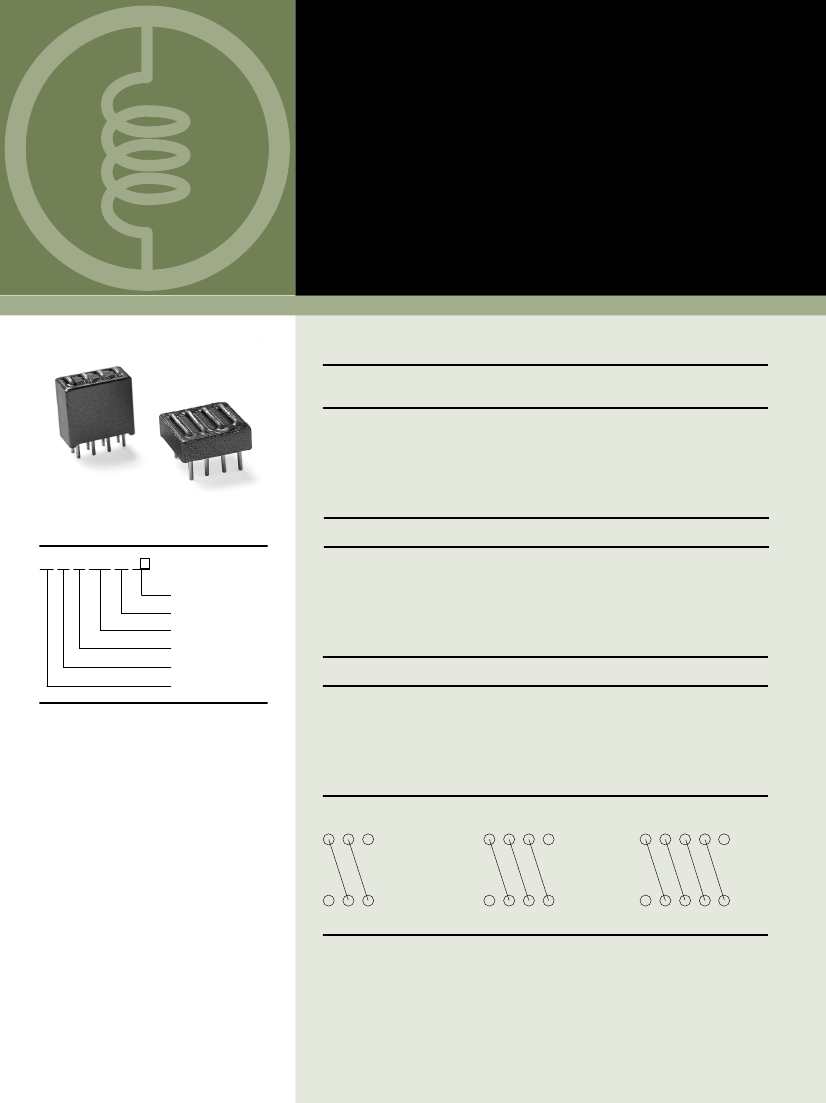

YAGEO CORPORATION

COILS

EMI PC Beads

BC TYPE

BC TYPE Series

APPLICATIONS

The PC Beads mainly use in the PC Board of Personal Computers, Microcomputers and

Relativedevices to Filter the EMI from the Outside.

FEATURES

PRODUCT IDENTIFICATION

BC 08 10 F8H - B #

Core Height NO.

Material

Core Type

B Dim.

A Dim.

Product Symbol

*Compact

*Easy Installation *High Performance

TEST INSTRUMENT

HP 4291A RF Impedance Analyzer

PRINT CIRCUIT BOARD LAYOUT

BC0810 SERIES

BC1010 SERIES

BC1310 SERIES

BC1010F6H-B#5 Related Products

	BC1010F6H-B#5	BC1010F6H-B#1	BC1010F6H-B#4	BC1010F6H-B#6	BC1010F6H-B#2	BC1010F6H-B#3
Description	Ferrite Bead, 3 Function(s),	Ferrite Bead, 3 Function(s),	Ferrite Bead, 3 Function(s),	Ferrite Bead, 3 Function(s),	Ferrite Bead, 3 Function(s),	Ferrite Bead, 3 Function(s),
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
filter type	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD
high	9.47 mm	5.19 mm	9 mm	11.54 mm	6.46 mm	7.73 mm
length	10.88 mm	10.88 mm	10.88 mm	10.88 mm	10.88 mm	10.88 mm
Manufacturer's serial number	BC	BC	BC	BC	BC	BC
Installation type	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of functions	3	3	3	3	3	3
Output impedance	220 OHM Ω	100 OHM Ω	200 OHM Ω	270 OHM Ω	140 OHM Ω	170 OHM Ω
physical size	L10.88XB10.88XH9.47 (mm)	L10.88XB10.88XH5.19 (mm)	L10.88XB10.88XH9 (mm)	L10.88XB10.88XH11.54 (mm)	L10.88XB10.88XH6.46 (mm)	L10.88XB10.88XH7.73 (mm)
width	10.88 mm	10.88 mm	10.88 mm	10.88 mm	10.88 mm	10.88 mm
Base Number Matches	1	1	1	1	1	1
